M8/KIT 필터 키트

2.2.- 회로 조립 용 키트
FILTERS KIT - M8/KIT

혁신적인 시스템

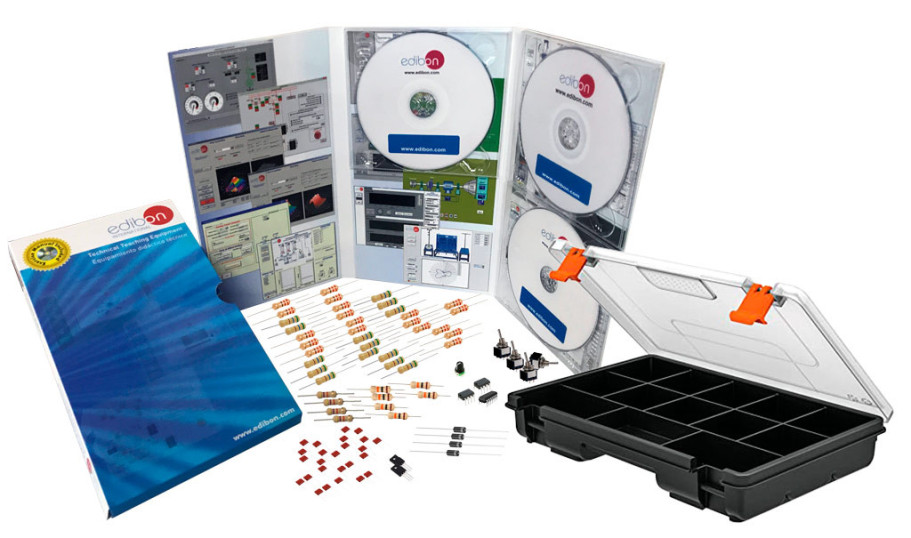

With Filters Kit, "M8/KIT", designed by EDIBON, the different types of filters can be studied: RC and LC, in "T" type configuration, active filters and also study associations of one and others in order to be able to practice with more complex filters, to obtain other filters with certain desired characteristics (low-pass filter, high-pass, band-pass and eliminated band).

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

실험실

2TV
 기술 및 직업 교육을위한 전자 연구실

관련 뉴스

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
더 읽어보기

일반적인 설명

With Filters Kit, "M8/KIT", designed by EDIBON, the different types of filters can be studied: RC and LC, in "T" type configuration, active filters and also study associations of one and others in order to be able to practice with more complex filters, to obtain other filters with certain desired characteristics (low-pass filter, high-pass, band-pass and eliminated band).

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

RC and LC filter responses:

  1. Frequency response.
  2. Low-pass filter.
  3. High-pass filter.
  4. LC Circuit.
  5. Faults study in low-pass filter.
  6. Faults study in high-pass filter.
  7. Theoretical/practical exercises.

T-shaped Filter:

  1. Filter with double T link.
  2. Signal generator circuit.
  3. Faults study in RC filters with double T.
  4. Theoretical/practical exercises.

Active filters:

  1. Low-pass filter with load.
  2. Low-pass filter with an operational amplifier.
  3. High-pass filter with load.
  4. High-pass filter with an operational amplifier.
  5. The attenuation is cumulative.
  6. Use of operational amplifier.
  7. Faults study in active filters.
  8. Theoretical/practical exercises.

Association of filters:

  1. Behaviour of the filter.
  2. Filtering of a distorted signal.
  3. Filter in cascade: low pass filter and high pass filter.
  4. Filter in parallel.
  5. Faults study in filters.
  6. Theoretical/practical exercises.
더보기

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Band-pass and band-stop filters.
  2. Several other exercises can be done and designed by the user.
