AE-PLC-FMS3 운송, 조립, 선택 (재료 및 색상), 저장을 위한 유연한 제조 시스템

6.2.6.- PLC를 사용한 유연한 제조 시스템
FLEXIBLE MANUFACTURING SYSTEM FOR TRANSPORT, ASSEMBLY, SELECTION (MATERIAL AND COLOR), AND STORAGE - AE-PLC-FMS3

혁신적인 시스템

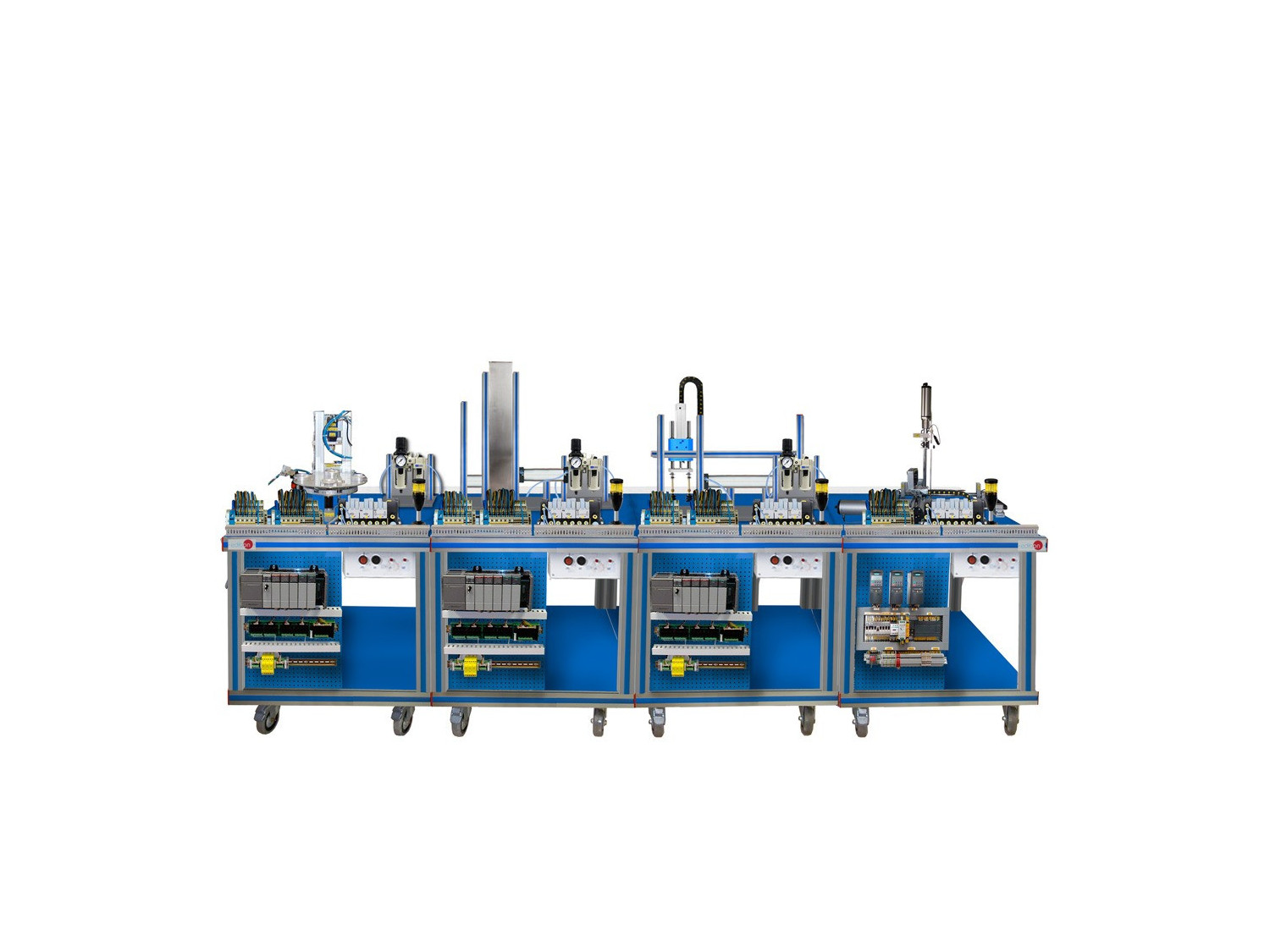

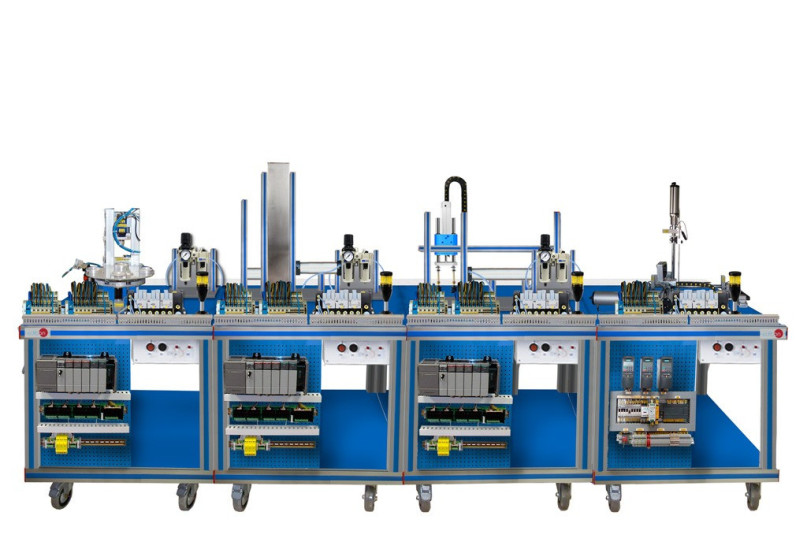

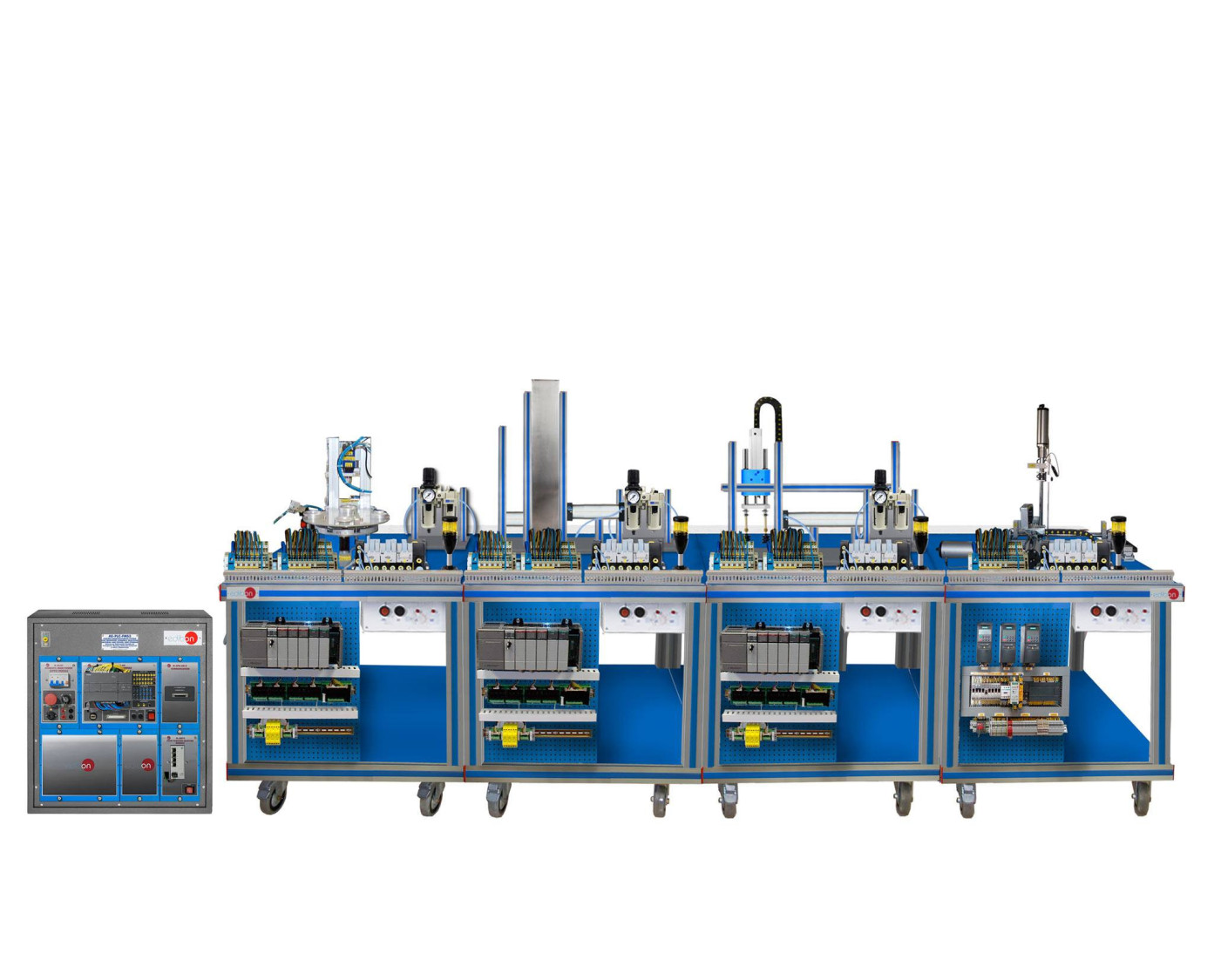

The Flexible Manufacturing System 3, "AE-PLC-FMS3" is a modular system composed of five workstations: the Feeding Workstation for Pieces "AE-PLC-A", the Mounting Workstation "AE-PLC-M", the Rotary Table Workstation 2 "AE-PLC-MR2", the Storage Workstation "AE-PLC-AL" and the Linear Transport Workstation "AE-PLC-T".

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

관련 뉴스

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기

일반적인 설명

The Flexible Manufacturing System 3, "AE-PLC-FMS3" is a modular system composed of five workstations: the Feeding Workstation for Pieces "AE-PLC-A", the Mounting Workstation "AE-PLC-M", the Rotary Table Workstation 2 "AE-PLC-MR2", the Storage Workstation "AE-PLC-AL" and the Linear Transport Workstation "AE-PLC-T".

The objective of the "AE-PLC-FMS3" system is to provide a base piece and mount two different pieces inside it, once the piece is complete, the system storage them in a specific position of the depot.

The process of the "AE-PLC-FMS3" is explained in the following lines:

  • First, the feeding system provides the base pieces with the correct dimensions and place them on the linear transport system.
  • Then, the mounting workstation provide another piece, and after verify that is correct, mount them inside the base piece placed on the linear transport system.
  • The rotary table workstation provides another piece to be mounted inside the base piece. The rotary workstation measures the dimensions, the color and the material of the provided pieces to check if they are correct to be mount in the base piece.
  • Finally, the storage workstation takes the base piece through an automatic manipulator and place in the programmed place of the storage.

Each workstation is locally commanded by a PLC device and, in turn, a central PLC coordinates all workstations. The communication network between workstations and PC is based on the Ethernet protocol.

The "AE-PLC-FMS3" system designed by EDIBON allows the users to learn the basic concepts of automation as the operation of an Ethernet network or how to program a PLC and about other areas as pneumatic, electro-pneumatic, vacuum technology, etc.

The optional "AE-AS" software is designed to teach the students how works real automation software. This software allows making 2D and 3D processes simulations, supervising and controlling SCADA systems, programming and communicating PLCs, simulating hydraulic, pneumatic and electronic devices’ operation, etc.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

Practical possibilities to be done with the Flexible Manufacturing System 3 (AE-PLC-FMS3):

  1. Introduction to flexible manufacturing system (FMS).
  2. Introduction to pneumatics and electro-pneumatics.
  3. Introduction to vacuum technology.
  4. Study of the sensor detection.
  5. Testing the digital inputs and outputs of the automatic system through a PLC.
  6. Modify manufacturing parameters through the PLC.
  7. Configuration of a pneumatic application.
  8. Introduction to the Human-machine interface systems (HMI).
  9. Study of an automatic control of an industrial system.
  10. Control of the flexible manufacturing system through a central PLC in an Ethernet network with local PLC in each workstation.
  11. Manage the flexible manufacturing system through the HMI device.

Practical possibilities to be done with the optional software Automation Systems Simulation Software (AE-AS):

  1. Introduction to the SCADA control system.
  2. OPC server system with Ethernet.
  3. SCADA control of an automatic industrial system through PC.

Practical possibilities to be done with the Workstation alone:

- Feeding Workstation for Pieces (AE-PLC-A):

  1. Manual control of a Feeding system.
  2. Automatic control of a Feeding system.
  3. Change the parameters of the Feeding process.
  4. Optimize the process time.
  5. Study and analysis of the faults inserted in the process with the fault generation module.

- Mounting Workstation (AE-PLC-M):

  1. Manual control of a mounting system.
  2. Automatic control of a mounting system.
  3. Change the parameters of the mounting process.
  4. Optimization of the process time.
  5. Study and analysis of the faults inserted in the process with the fault generation module.

- Rotary Table Workstation 2 (AE-PLC-MR2):

  1. Manual control of the rotary table system.
  2. Manual control of the quality control and drilling process on a rotary table.
  3. Automatic control of the rotary table system.
  4. Automatic control of the quality control and drilling process on a rotary table.
  5. Change the parameters of the rotary table process.
  6. Optimize the process time.
  7. Study and analysis of the faults inserted in the process with the fault generation module.

- Storage Workstation (AE-PLC-AL):

  1. Manual control of a storing system.
  2. Automatic control of a storing system.
  3. Change the parameters of the storing process.
  4. Optimize the process time.
  5. Study and analysis of the faults inserted in the process with the fault generation module.

- Linear Transport Workstation (AE-PLC-T):

  1. Manual control of a transporting system.
  2. Automatic control of a transporting system.
  3. Change the parameters of a transporting process.
  4. Optimize the process time.
  5. Study and analysis of the faults inserted in the process with the fault generation module.
