AFT/P Fluid Friction in Pipes Unit

8.8.- 유체 배관 시스템
FLUID FRICTION IN PIPES UNIT - AFT/P

혁신적인 시스템

The Fluid Friction in Pipes Unit, "AFT/P", is designed to determine the friction coefficient in pipes, to study the pressure losses in different types of valves and different fittings and to compare different methods to measure the flow.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

관련 뉴스

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
Setting up at Perenco in Gabon
Setting up at Perenco in Gabon
Today we want to talk to you about the latest installation we have done at Perenco in Gabon. We moved there to install the following units from our Fluid Mechanics area
더 읽어보기
Setting up at the National University of Technology - NUTECH (Pakistan)
Setting up at the National University of Technology - NUTECH (Pakistan)
The National University of Technology - Pakistan (NUTECH), specifically the Mechanical Engineering Technology Department, installed some of our units so that their students can receive a quality practical education. Specifically, they have acquired our COMPUTER CONTROLLED AERODYNAMIC TUNNEL, 300...
더 읽어보기
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
더 읽어보기

일반적인 설명

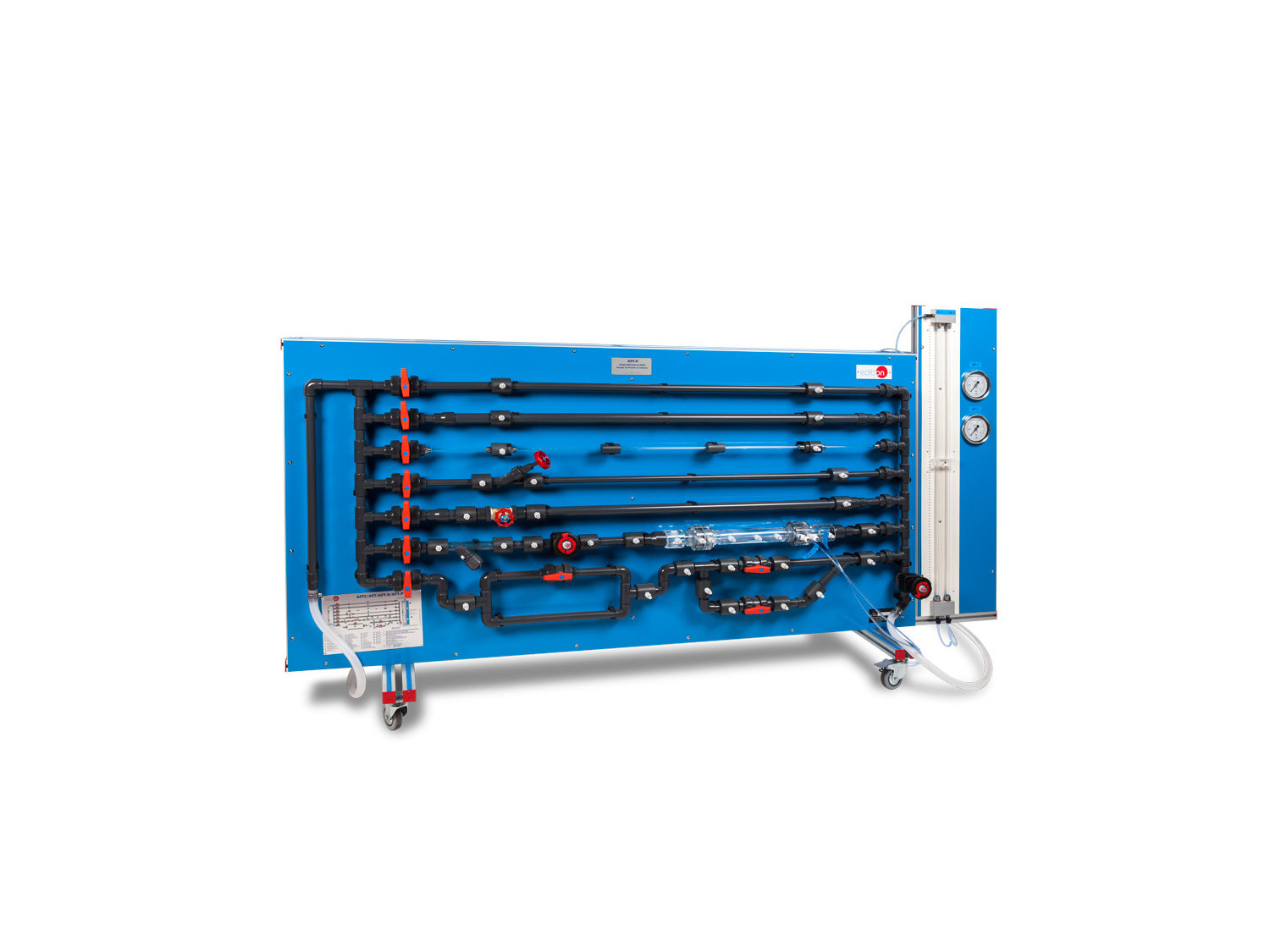

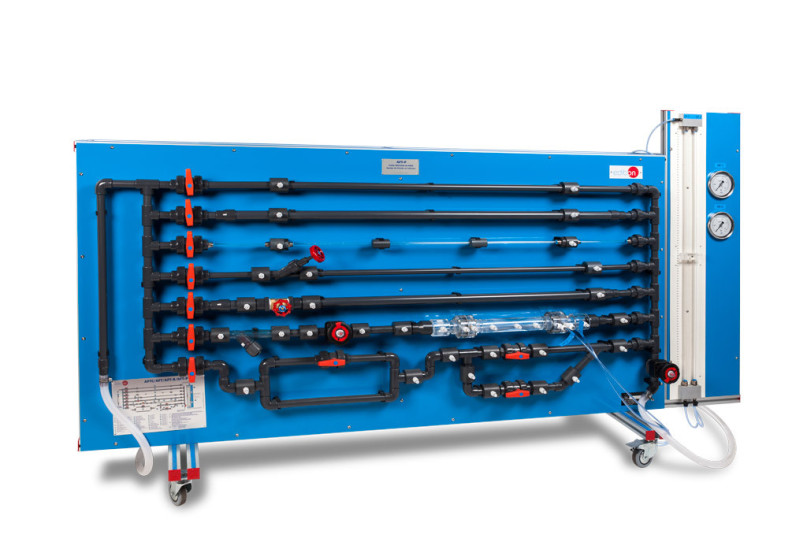

The Fluid Friction in Pipes Unit, "AFT/P", is designed to determine the friction coefficient in pipes, to study the pressure losses in different types of valves and different fittings and to compare different methods to measure the flow.

This unit contains five straight pipe sections made of different materials and with different diameters and roughness. Additionally, a wide range of accessories are included for the study of losses in straight pipes, several types of valves, pipe fitting, etc.

The different pipe sections, valves and pipe fittings include several pressure measurement points with quick action connections.

The unit includes two water manometric tubes, two Bourdon manometers and a flowmeter.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Determination of pressure loss due to friction in pipes made of different materials and with different diameters and roughness.
  2. Study of the influence of the diameter in the pressure loss due to friction in rough and smooth pipes.
  3. Study of the influence of the roughness on the pressure loss.
  4. Determination of the friction coefficient in pipes with different diameters and roughness.
  5. Study of the influence of the diameter on the friction coefficient in rough and smooth pipes.
  6. Comparison of the friction coefficient in smooth and rough pipes.
  7. Determination and comparison of pressure loss in different types of valves (angle-seat valve, gate valve, diaphragm valve, ball valve).
  8. Determination and comparison of pressure loss in different fittings (in-line strainer, elbows, narrowing, gradual widening, etc.).
  9. Measurement of the flow with the Venturi tube and the Pitot tube.
  10. Determination and comparison of the discharge coefficient determined in the Venturi tube and the Pitot tube.

비슷한 제품

FLUID FRICTION IN PIPES UNIT, WITH HYDRAULICS BENCH (FME00) - AFT
  • AFT
Available
8.8.- 유체 배관 시스템
AFT
Fluid Friction in Pipes Unit, with Hydraulics Bench (FME00)
The Fluid Friction in Pipes Unit, with Hydraulics Bench (FME00), "AFT", is designed to determine the friction coefficient in pipes of several diameters and roughness, to study the pressure losses in different types of valves and different fittings...
뷰 유닛

품질

판매 후 서비스

정보 요청
