The Friction Study Unit, "MEF", allows the unit to illustrate the friction force by simple demonstrations.

일반적인 설명보기

컨테스트 사양

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

MSAC

모듈식 획득 및 제어 시스템

실험실

7TV

기술 및 직업 교육을위한 기계, 자동차 및 재료 연구실

7HE

고등 교육을위한 기계, 자동차 및 재료 연구실

일반적인 설명

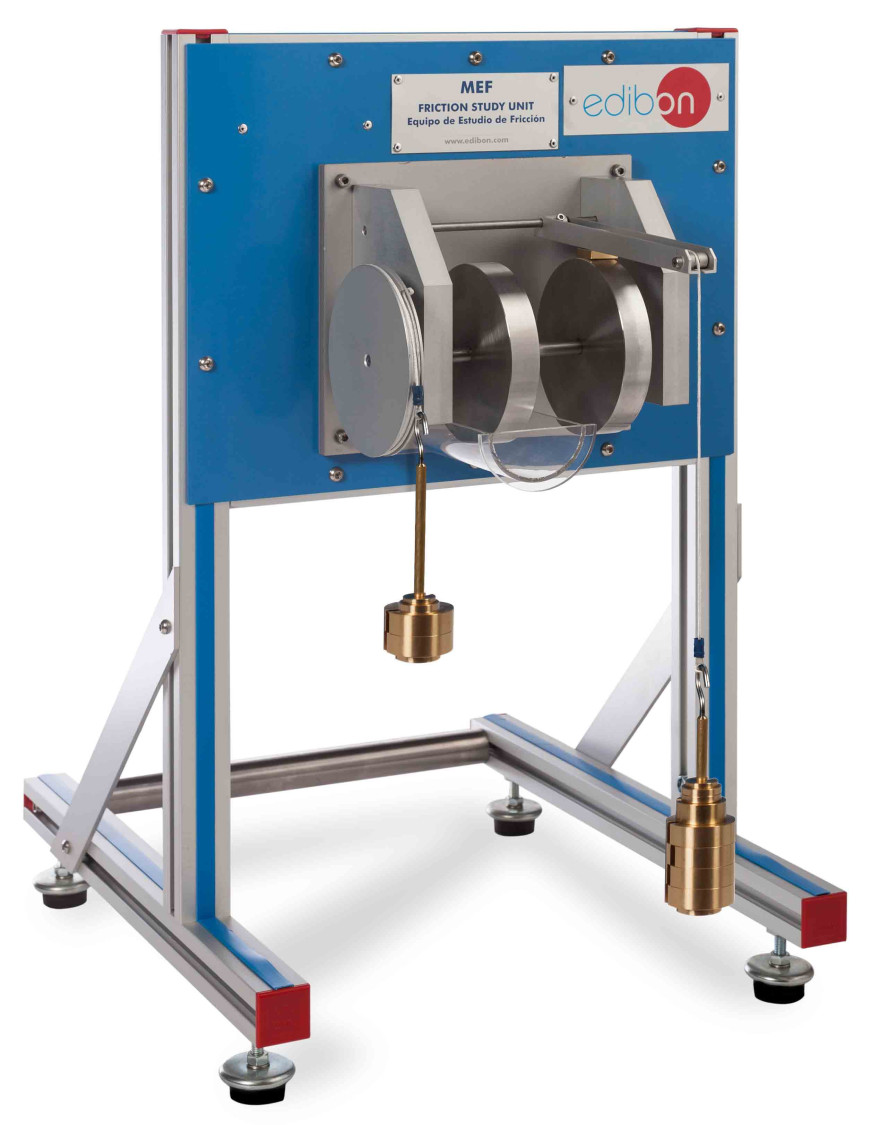

The Friction Study Unit, "MEF", allows the unit to illustrate the friction force by simple demonstrations.

It is designed for the study of the relations between friction forces and normal forces, between hard or soft surfaces, between lubricated or dry surfaces and between rolling surfaces for several types of materials.

The weight makes the roller set turn while another weight exerts some pressure on the brake. The relation between both of them determines the coefficient of friction for different materials and different operational conditions.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

Investigation of the relation between the friction forces and normal forces between surfaces in contact.
Comparison of the values between dry surfaces in contact, using several materials, by the sliding coefficient.
Comparison of the friction values for dry and lubricated surfaces.
Comparison of the friction force for sliding surfaces with rolling surfaces.
Comparison of the friction force of soft and hard rolling surfaces.
