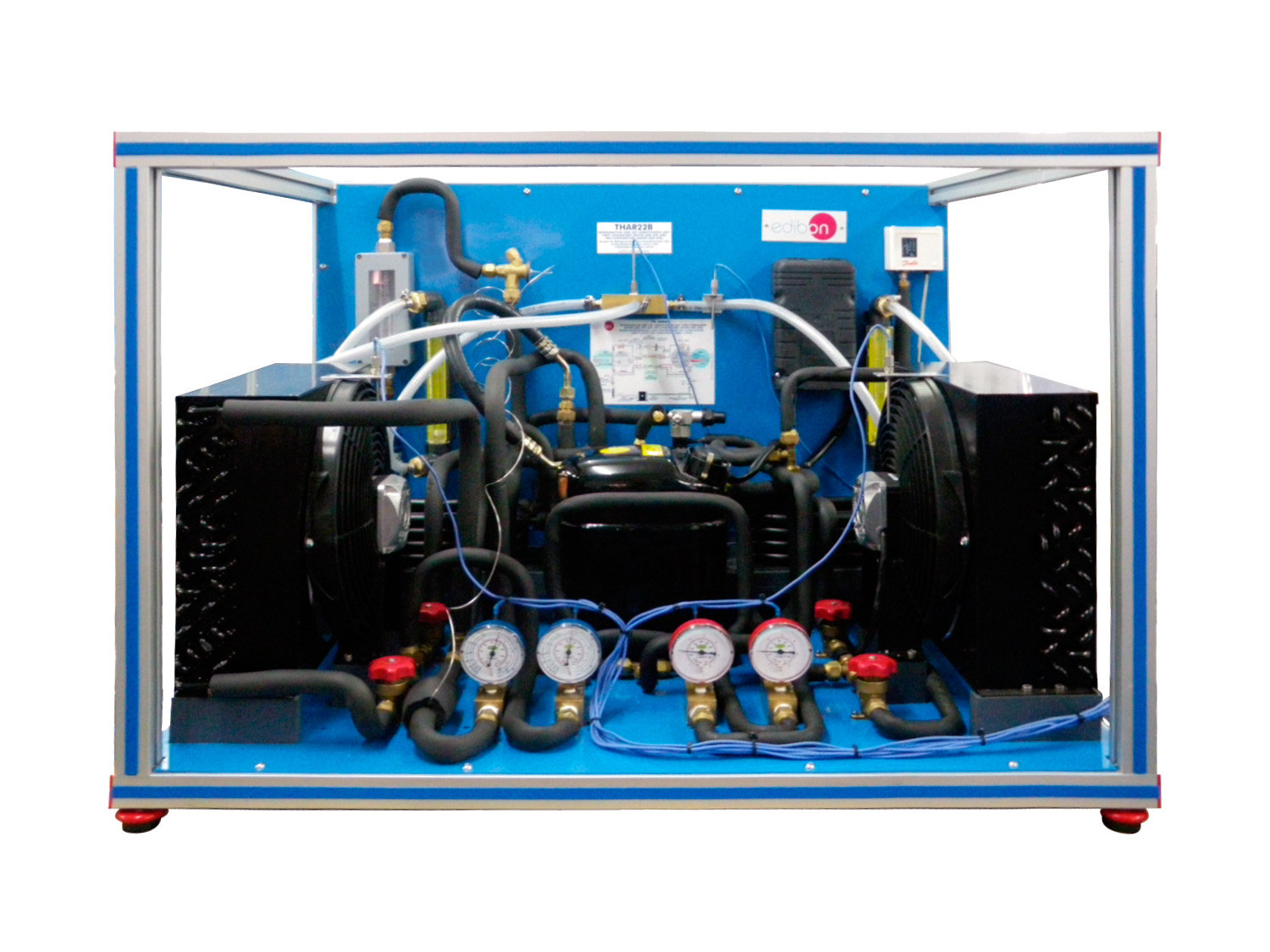

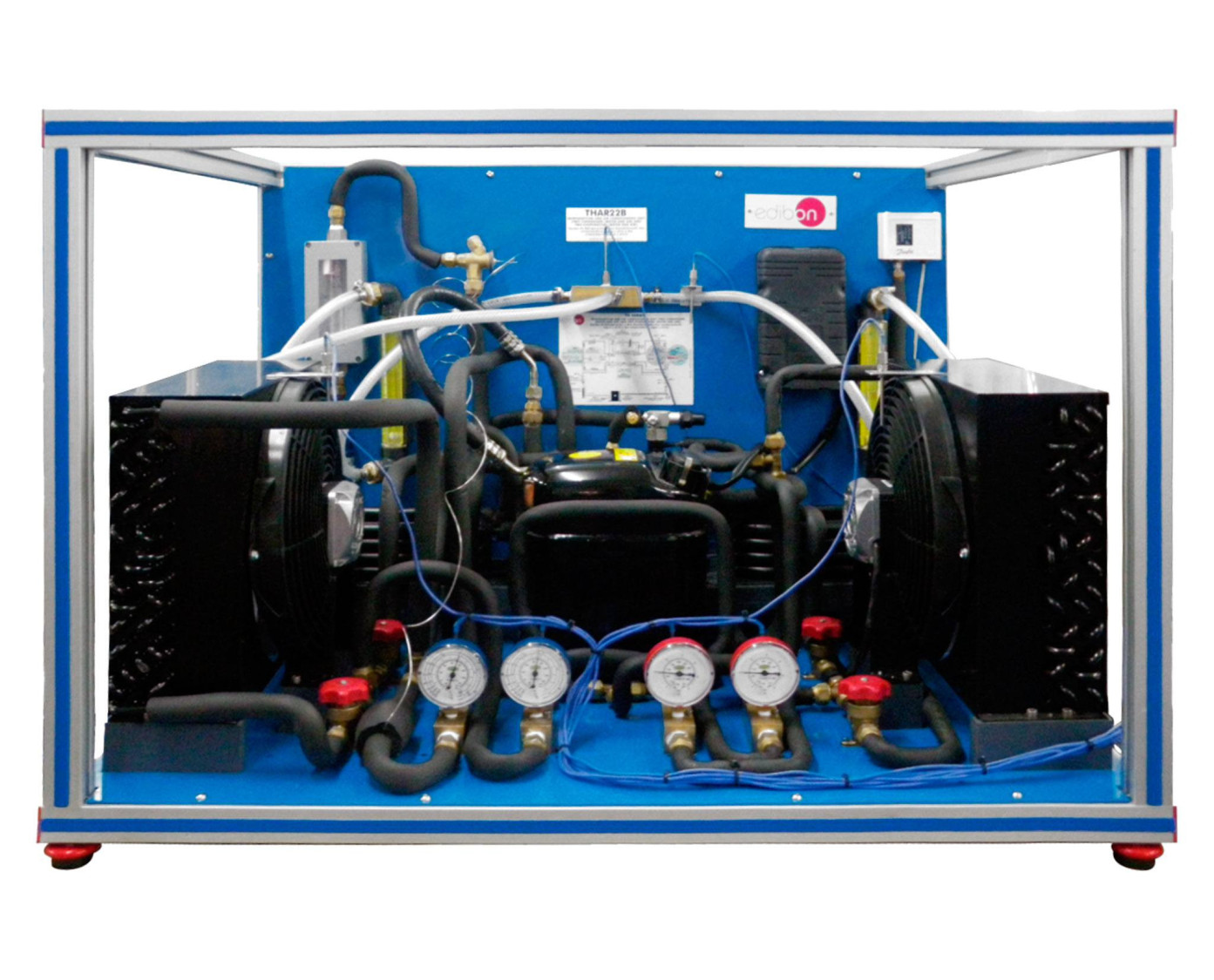

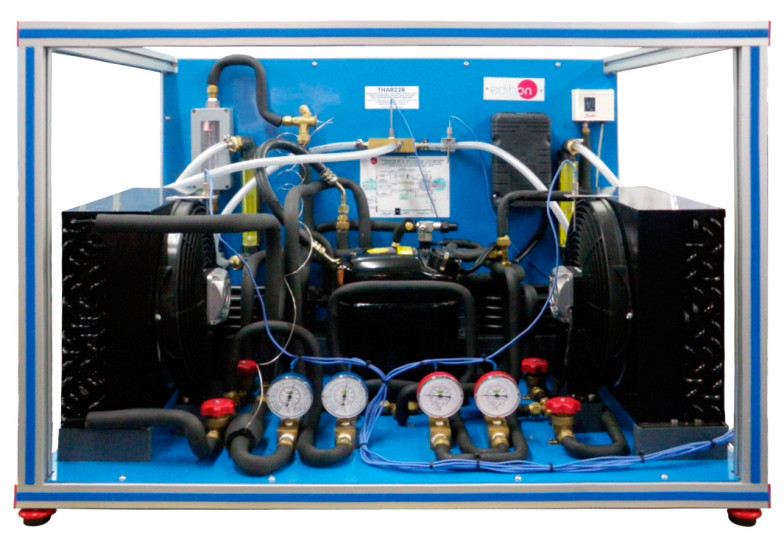

THAR22B 히트펌프 + 에어컨 + 냉각, 2개의 응축기와 2개의 증발기 (물/공기)

9.4.- 냉각
HEAT PUMP + AIR CONDITIONING + REFRIGERATION WITH 2 CONDENSERS AND 2 EVAPORATORS (WATER/AIR) - THAR22B

혁신적인 시스템

The Heat Pump + Air Conditioning + Refrigeration with 2 Condensers and 2 Evaporators (Water/Air)), "THAR22B", has as aim introducethe student to the study of the heat pumps, air conditioning and refrigeration, as well as the analysis and determination of the operationtypical parameters of the unit depending on the two types of fluids used in the processes of evaporation and condensation (air and water).

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

관련 뉴스

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
더 읽어보기
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
더 읽어보기
Setting up at TUMBA TVET SCHOOL
Setting up at TUMBA TVET SCHOOL
We want to talk to you about the latest installation we have carried out in Africa. Specifically, we went to the TUMBA TVET SCHOOL to install our THAR22B unit.
더 읽어보기

일반적인 설명

The Heat Pump + Air Conditioning + Refrigeration with 2 Condensers and 2 Evaporators (Water/Air)), "THAR22B", has as aim introduce the student to the study of the heat pumps, air conditioning and refrigeration, as well as the analysis and determination of the operationtypical parameters of the unit depending on the two types of fluids used in the processes of evaporation and condensation (air and water).

This unit can have different applications, depending on the type of cold focus or hot focus used in the processes of evaporation andcondensation. This unit consists of the following stages:

  • Compression: This stage begins when the coolant enters to the compressor. This coolant iscompressed, increasing its pressure and temperature. To measure these variables theunit includes a manometer and a temperature sensor.
  • Condensation: The coolant has two possibilities: divert the coolant through the air condenser, or through the water condenser. The coolanttransfers its heat to the water (or to the air) that flows for the condenser. At the end of this stage, the pressure and the temperatureof the coolant are measured by means of a manometer and a temperature sensor.
  • Expansion: The coolant circulates through an accumulator and a filter, to retain particles of condensate, and a flow meter. Next it circulatesthrough the valve of expansion, which causes a fall of pressure and temperature of the coolant. At the end of this stage, the pressureand the temperature of the coolant are measured by means of a manometer and temperature sensor.
  • Evaporation: The coolant has two possibilities: divert the coolant through the air evaporator, or through the water evaporator. The coolant absorbs the heat of the water (or the air) that flows for the evaporator. At the end of this stage, the pressure and the temperature of the coolant are measured by means of manometer and a temperature sensor. Finally, the coolant circulates through a liquid separator to retain liquid particles before going on to the compressor.

The condensers and evaporators have different meters for the measure of the most important parameters (temperatures and flows). Inaddition, the unit includes a high pressure control to avoid an excess of pressure in the unit.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Determination of the inlet power, heat produced andperformance coefficient. Water as heat source. (Water-water heat pump).
  2. Determination of the inlet power, produced heat andperformance coefficient. Air as heat source. (Water-air heat pump).
  3. Determination of the inlet power, produced heat andperformance coefficient. Air as heat source. (Air-air heat pump).
  4. Determination of the inlet power, heat produced andperformance coefficient. Water as heat source. (Air- water heat pump).
  5. Preparation of performance curves of the unit at different inletand outlet temperatures. Water as heat source. (Water-water heat pump).
  6. Preparation of performance curves of the unit at different inletand outlet temperatures. Air as heat source. (Water-air heat pump).
  7. Preparation of performance curves of the unit at different inletand outlet temperatures. Water as heat source. (Air-water heat pump).
  8. Preparation of the performance curves of the unit at differentinlet and outlet temperatures. Air as heat source. (Air-air heat pump).
  9. Lay out of the steam compression cycle in a diagram P-Hand comparison with the ideal cycle. Water as heat source.(Water-water heat pump).
  10. Lay out of the steam compression cycle in a diagram P-H andcomparison with the ideal cycle. Air as heat source. (Water-air heat pump).
  11. Lay out of the steam compression cycle in a diagram P-H andcomparison with the ideal cycle. Water as heat source. (Air water heat pump).
  12. Lay out of the steam compression cycle in a diagram P-H andcomparison with the ideal cycle. Air as heat source. (Air-air heat pump).
  13. Preparation of the performance curves of the unit based onthe properties of the refrigerant and at different condensation and evaporation temperatures. Water as heat source. (Water water heat pump).
  14. Preparation of the performance curves of the unit based on the properties of the refrigerant and at different condensation andevaporation temperatures. Air as heat source. (Water-air heat pump).
  15. Preparation of the performance curves of the unit based on the properties of the refrigerant and at different condensation and evaporation temperatures. Water as heat source. (Air-waterheat pump).
  16. Preparation of the performance curves of the unit based on theproperties of the refrigerant and at different condensation and evaporation temperatures. Air as heat source. (Air- air heatpump).

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Properties of the refrigerant R-513a.
  2. Enthalpy-Pressure diagram for the refrigerant R-513a.
