HPSE 다양한 열원 및 열교환기를 위한 열펌프

9.3.- 히트 펌프
HEAT PUMP FOR DIFFERENT HEAT SOURCES AND HEAT EXCHANGERS - HPSE

혁신적인 시스템

The Heat Pump for different Heat Sources and Heat Exchangers, "HPSE", designed by EDIBON, has a heat pump that can be connected to different heat sources and heat exchangers that act as heat sinks, allowing the study of the generation and accumulation of heat and cold.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

일반적인 설명

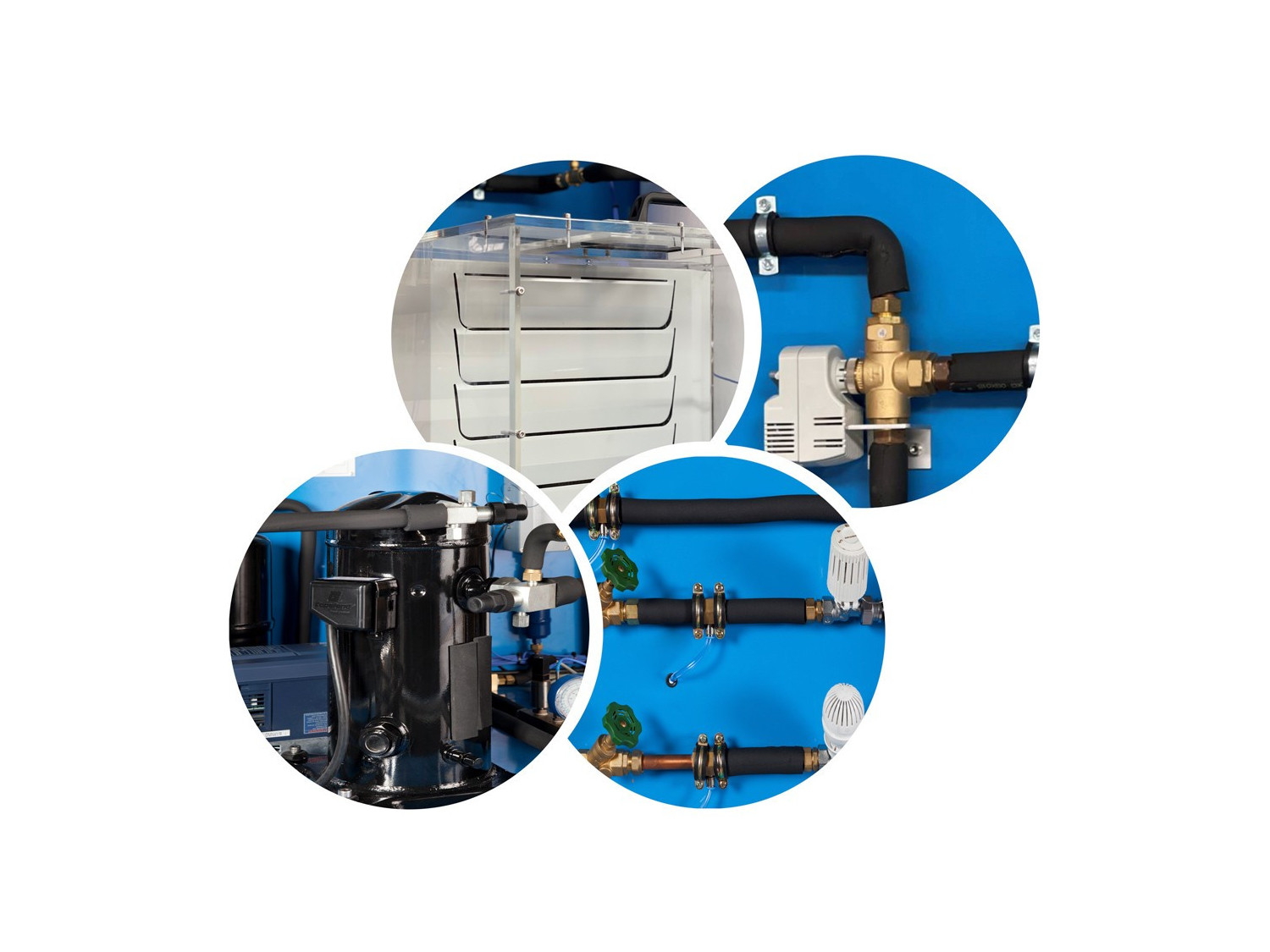

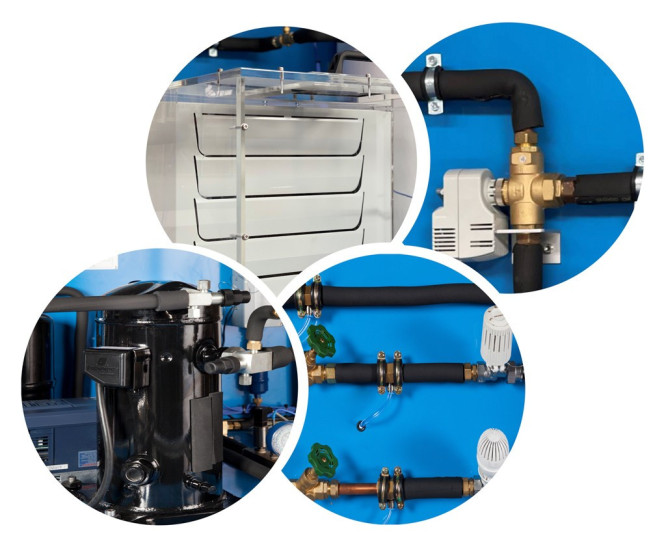

The Heat Pump for different Heat Sources and Heat Exchangers, "HPSE", represents the typical compressor compression refrigeration plant. The compressor is of the scroll type, which is a positive displacement compressor.

The evaporator and condenser are plate heat exchangers and the expansion element is a thermostatic expansion valve.

It includes a programmable heating controller that allows the management and control of the complete heat pump.

For the development of energy balances and to calculate the amount of heat transferred, temperature, pressure and flow sensors are provided at key points in the circuit.

Both the evaporator and condenser can be connected to different heat sources and heat exchangers to analyze and study the advantages and disadvantages of different systems.

As a safety feature, the unit is equipped with a pressure switch, which stops the compressor if the pressure is high.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Study of the different applications of a heat pump for heating and cooling.
  2. Study and adjustment of a heating controller for the control of a heat pump.
  3. Study of the operation and adjustment in case of variable heat supply.
  4. Study of the operation and adjustment in case of variable heat demand.
  5. Study of the dependence of the performance coefficient on the temperature of the sources and exchangers and their optimization.
