MUN 유니버설 조인트 메커니즘

7.1.2.1.- 메커니즘 14.1.2.1.- 메커니즘

혁신적인 시스템

The Hooke’s Joint Mechanism, "MUN", designed by EDIBON, allows the study of a cardan joint shaft.

일반적인 설명보기

컨테스트 사양

실험실

7TV

기술 및 직업 교육을위한 기계, 자동차 및 재료 연구실

7HE

고등 교육을위한 기계, 자동차 및 재료 연구실

일반적인 설명

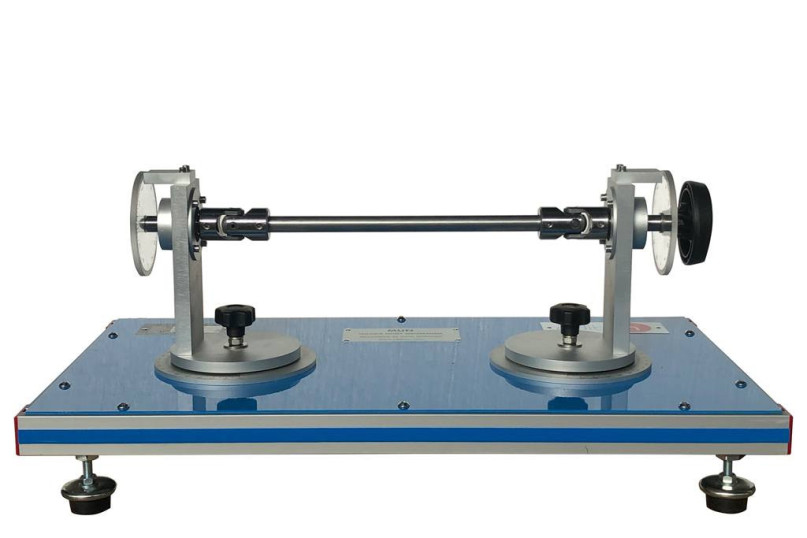

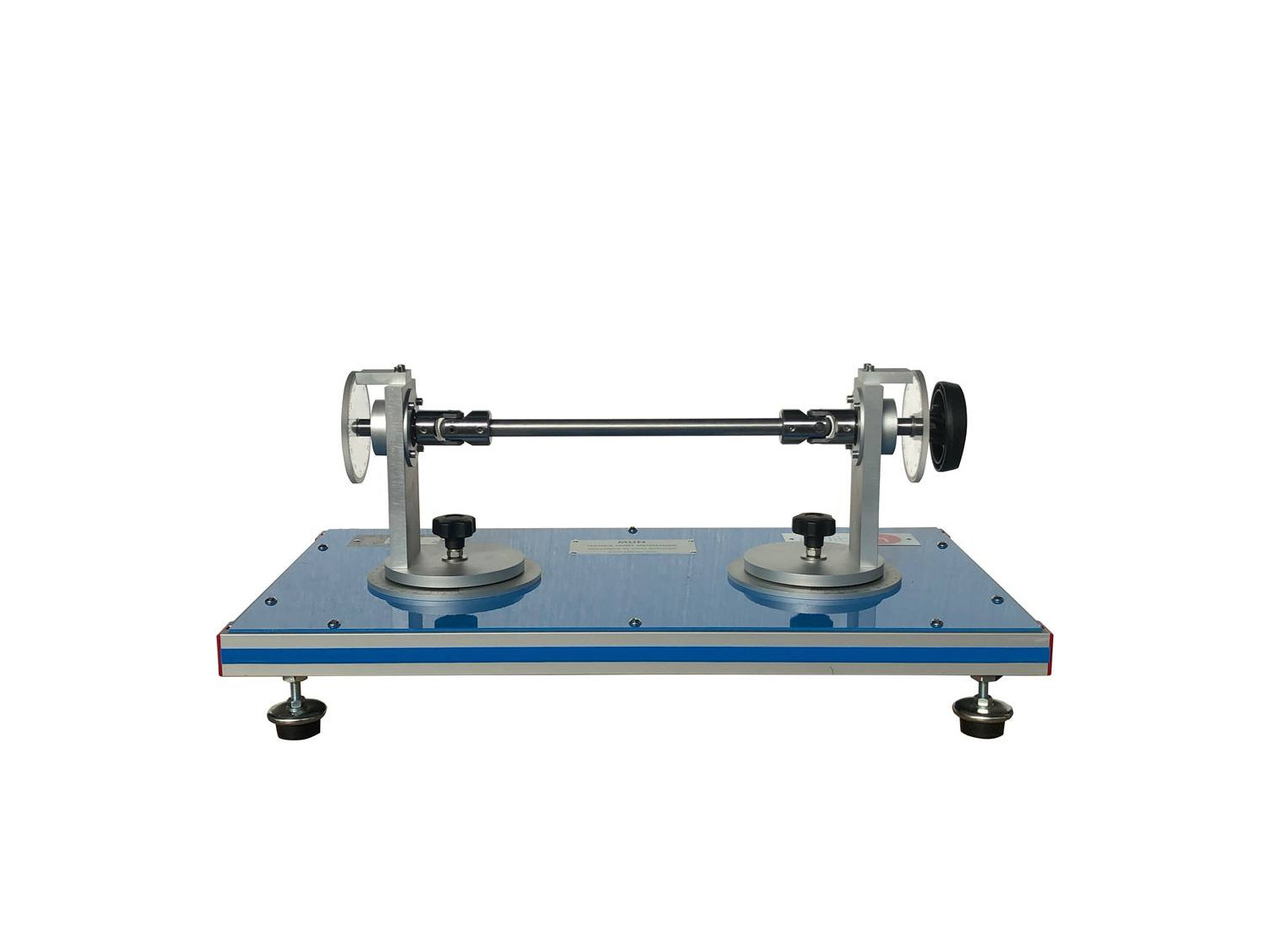

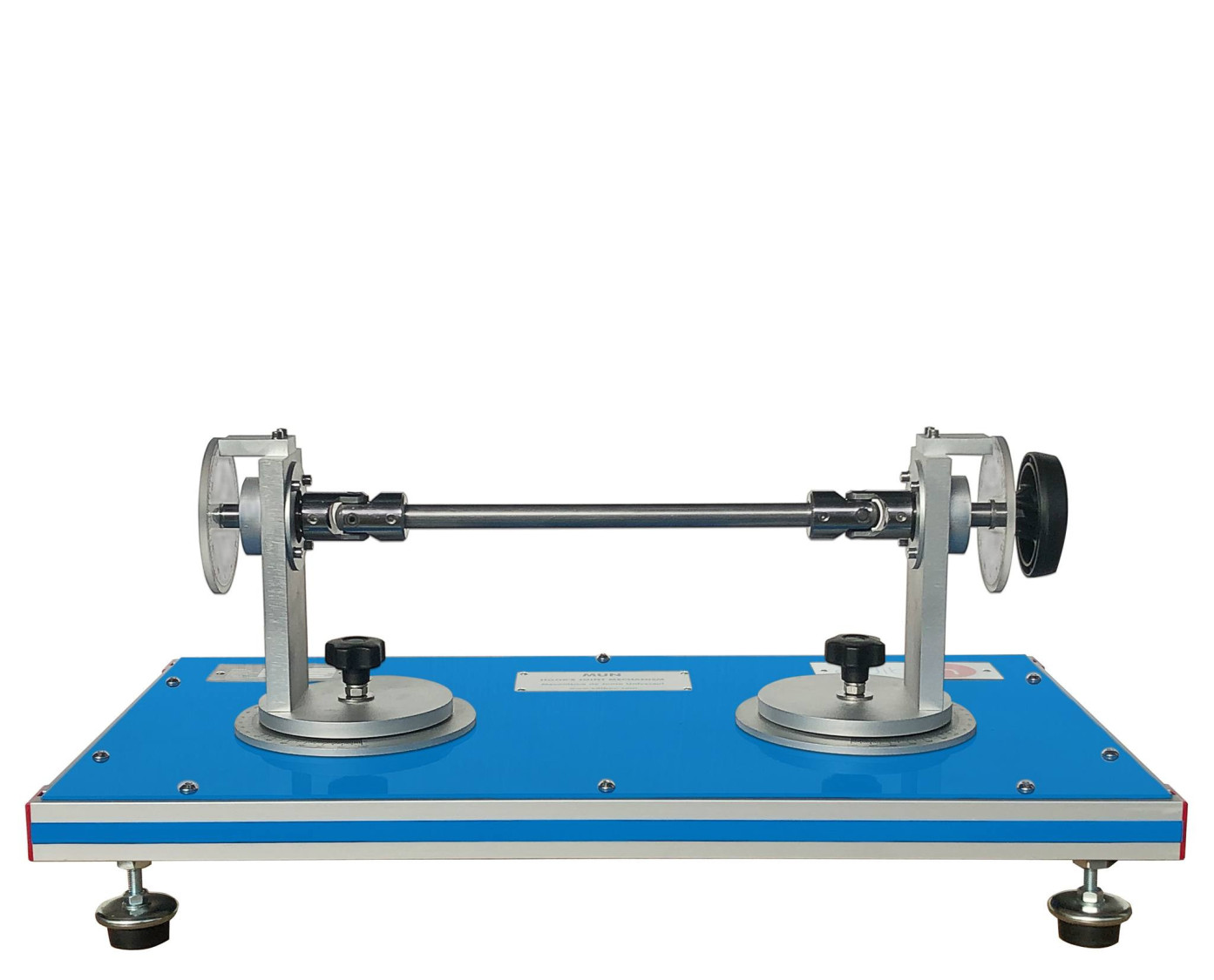

The Hooke’s Joint Mechanism, "MUN", designed by EDIBON, represents a universal coupling, also called a U-joint, Hooke joint or cardan joint. The Hooke joint is a universal mechanism that is often used to transmit rotary motion between two non-parallel but intersecting shafts.

The mechanism includes two universal couplings (cardan joints) joined by an intermediate shaft, allowing the adjustment and reading of the angle between inlet shaft and other outlet shaft by means of graduated discs fixed on the base panel.

Both couplings are mounted on two graduated discs, allowing the reading of the rotation at the input and output.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

Demonstrate the action of a single universal joint by connecting two axes that have small misalignments.
Determine graphically the relationship between the angular displacements of two shafts connected by a single universal joint with different degrees of misalignment.
Study how the universal joint arrangement and the angle of deflection affect the cardan error.
Determine graphically the relationship between the angular displacements of two shafts connected by a double universal joint with different degrees of misalignment.

장비로 수행 할 수있는 더 많은 실용적 연습

Determination of the velocity and acceleration of the output shaft on a single Hooke´s joint by graphical differentiation.
