The Surface Pressure Unit, "FME08", designed by EDIBON, allows to study the center of pressures with a partially or totally submerged quadrant.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어
MSAC

모듈식 획득 및 제어 시스템

실험실

8TV
 기술 및 직업 교육을위한 유체 역학 연구실
8HE
 고등 교육을위한 유체 역학 연구실

관련 뉴스

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
Setting up at the University of Trinidad and Tobago
Setting up at the University of Trinidad and Tobago
Recently, we have had the pleasure of making an installation at the University of Trinidad and Tobago
더 읽어보기
Setting up at Slippery Rock University
Setting up at Slippery Rock University
We are very pleased that we have recently completed an installation in the department of Physics and Engineering at the Slippery Rock University.  It's always a pleasure to work on projects like this!
더 읽어보기
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
더 읽어보기

일반적인 설명

The Surface Pressure Unit, "FME08", designed by EDIBON, allows to study the center of pressures with a partially or totally submerged quadrant.

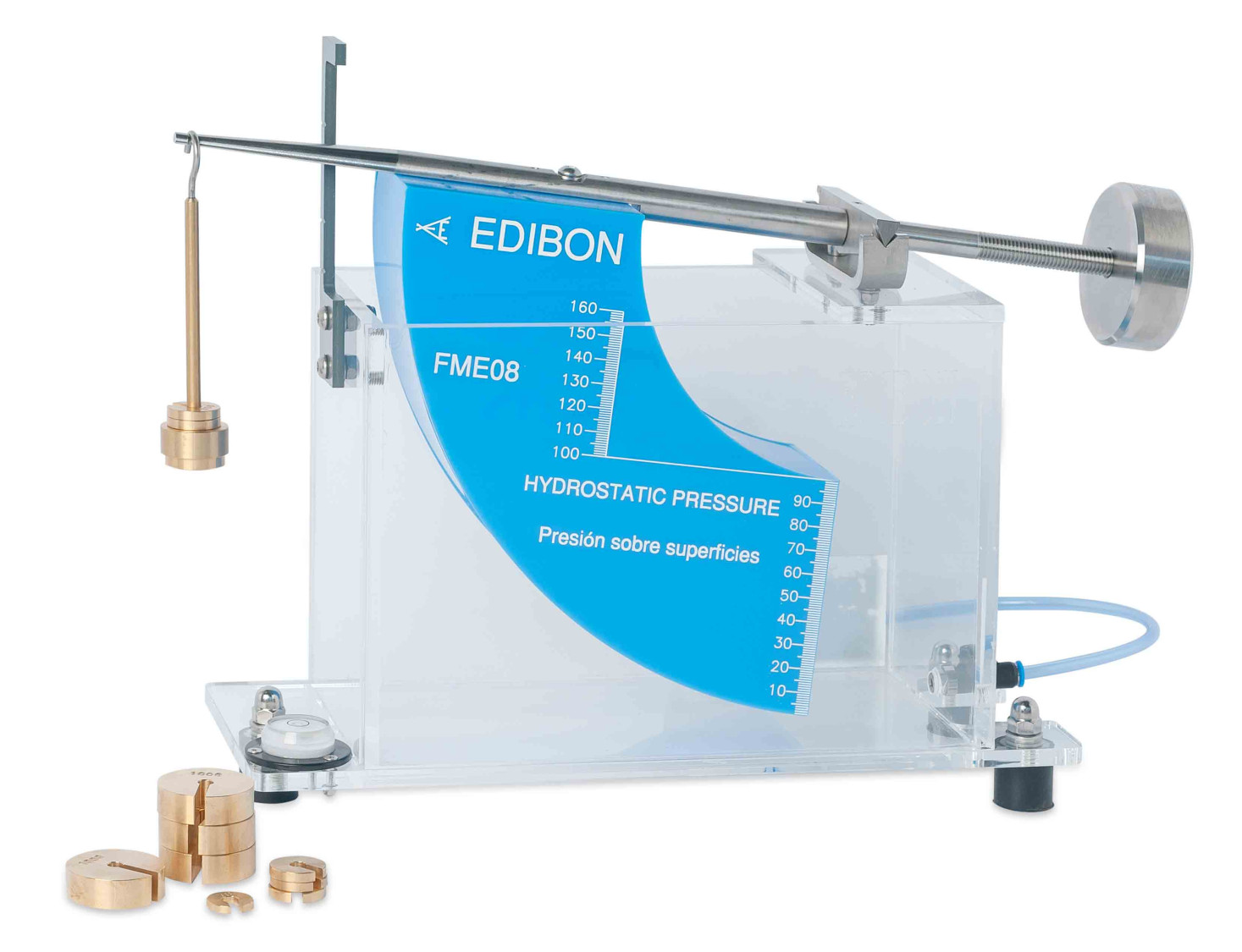

This unit consists of a quadrant mounted on the arm of a balance that pivots around an axis.

When the quadrant is immersed in the water tank, the force acting on the flat, rectangular front surface will create a moment with relation to the support axis.

The tilting arm incorporates a pan and an adjustable counterweight.

The tank has adjustable legs that determine its correct leveling.

It has a drain valve.

The level reached by the water in the tank is indicated on a graduated scale.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Determination of the center of pressures with an angle of 90°, partially submerged.
  2. Determination of the resultant force with an angle of 90°, partially submerged.
  3. Determination of the center of pressures, angle <> 90° partially submerged.
  4. Determination of the equivalent force with an angle <>90° partially submerged.
  5. Determination of the center of pressures with an angle of 90° totally submerged.
  6. Determination of the resultant force with an angle of 90° totally submerged.
  7. Determination of the center of pressures, angle <>90° totally submerged.
  8. Determination of the resultant force, angle <>90° totally submerged.
  9. Balance of momentum.
