TXC/CL 선형 열전도 장비 (TSTCC용)

9.6.- 열전달

LINEAR HEAT CONDUCTION MODULE FOR TSTCC - TXC/CL

혁신적인 시스템

TXC/CL. Linear Heat Conduction Module for TSTCC: study of the principles of linear heat conduction and to allow the measurement of the conductivity of different solid conductors and insulators.

일반적인 설명보기

컨테스트 사양

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

FSS

고장 시뮬레이션 시스템

PLC

PLC에 의한 산업 프로세스 제어

PLCHMI

HMI와 함께하는 로컬/원격 IIoT 제어 및 모니터링

ELK

EDIBON 소프트웨어 개발 키트, NI LabVIEW™에서 제공하는 기능

ECR

NI CompactRIO를 사용한 EDIBON의 산업용 모듈식 시스템

ESN

EDIBON SCADA-Net

ECL

EDIBON 원격 교육

실험실

11PTC

석유 연수원 연구실

9TV

기술 및 직업 교육을위한 열역학 및 열공학 실험실

9HE

고등 교육을위한 열역학 및 열공학 실험실

일반적인 설명

TXC/CL. Linear Heat Conduction Module for TSTCC: study of the principles of linear heat conduction and to allow the measurement of the conductivity of different solid conductors and insulators.

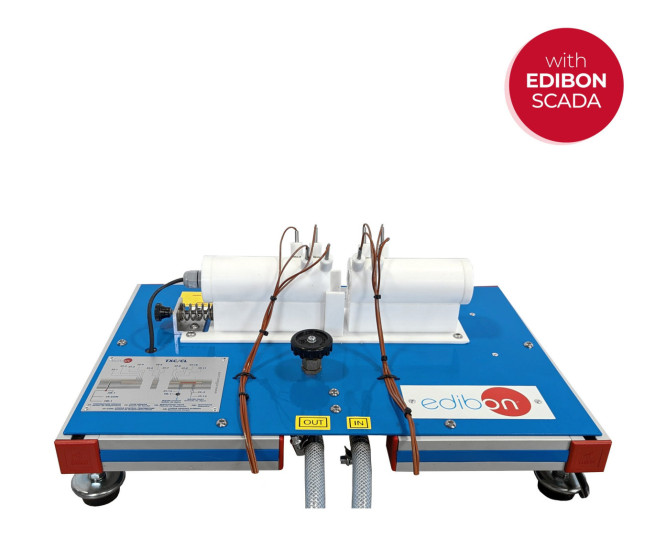

Bench-top unit to study the principles of linear heat conduction and to allow the conductivity of various solid conductors and insulators to be measured.

It is given with interchangeable samples of different materials, different diameters and different insulating materials that allow to demonstrate the area effects, the conductivity and the combinations in series in the heat transfer process.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

Conduction through a simple bar.
Conduction through a compound bar.
Determination of the thermal conductivity "k" of different materials (conductors and insulators).
The thermal conductivity properties of insulators may be found by inserting paper or other elements between the heating and cooling sections.
Insulation effect.
Determination of the thermal contact resistance Rtc.
Effect of the crossing sectional area.
Understanding the use of the Fourier equation in determining rate of heat flow through solid materials.
Sensors calibration.

필수 구성 요소

TSTCC/CIB
