ORIFICE DISCHARGE - FME04

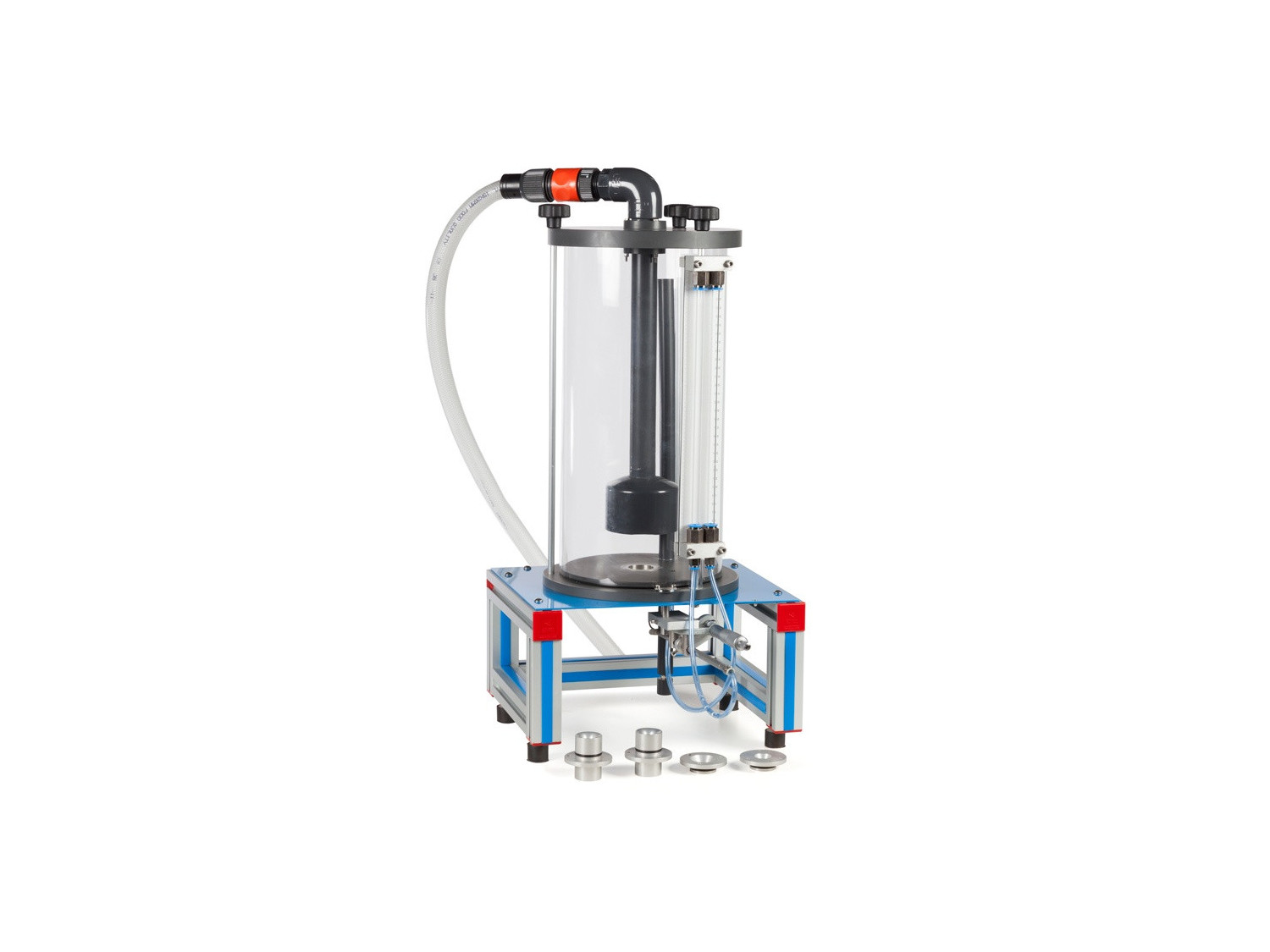

Complete FME04 Unit

ORIFICE DISCHARGE - FME04

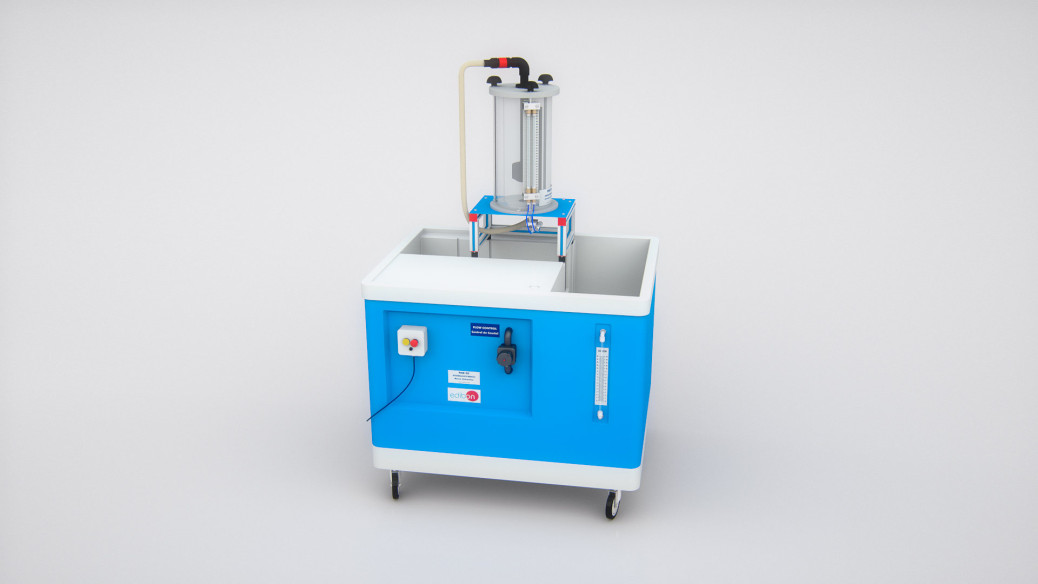

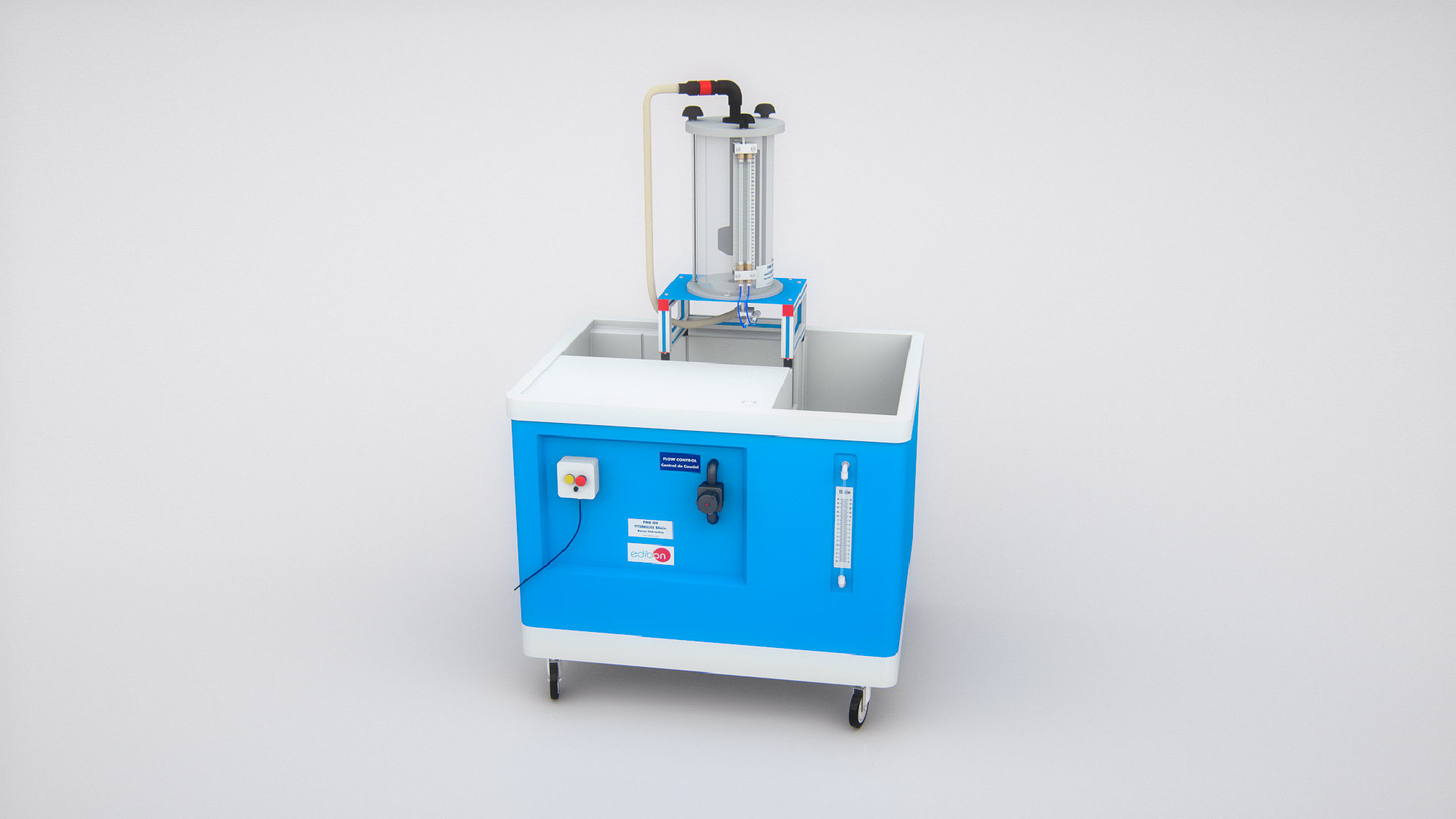

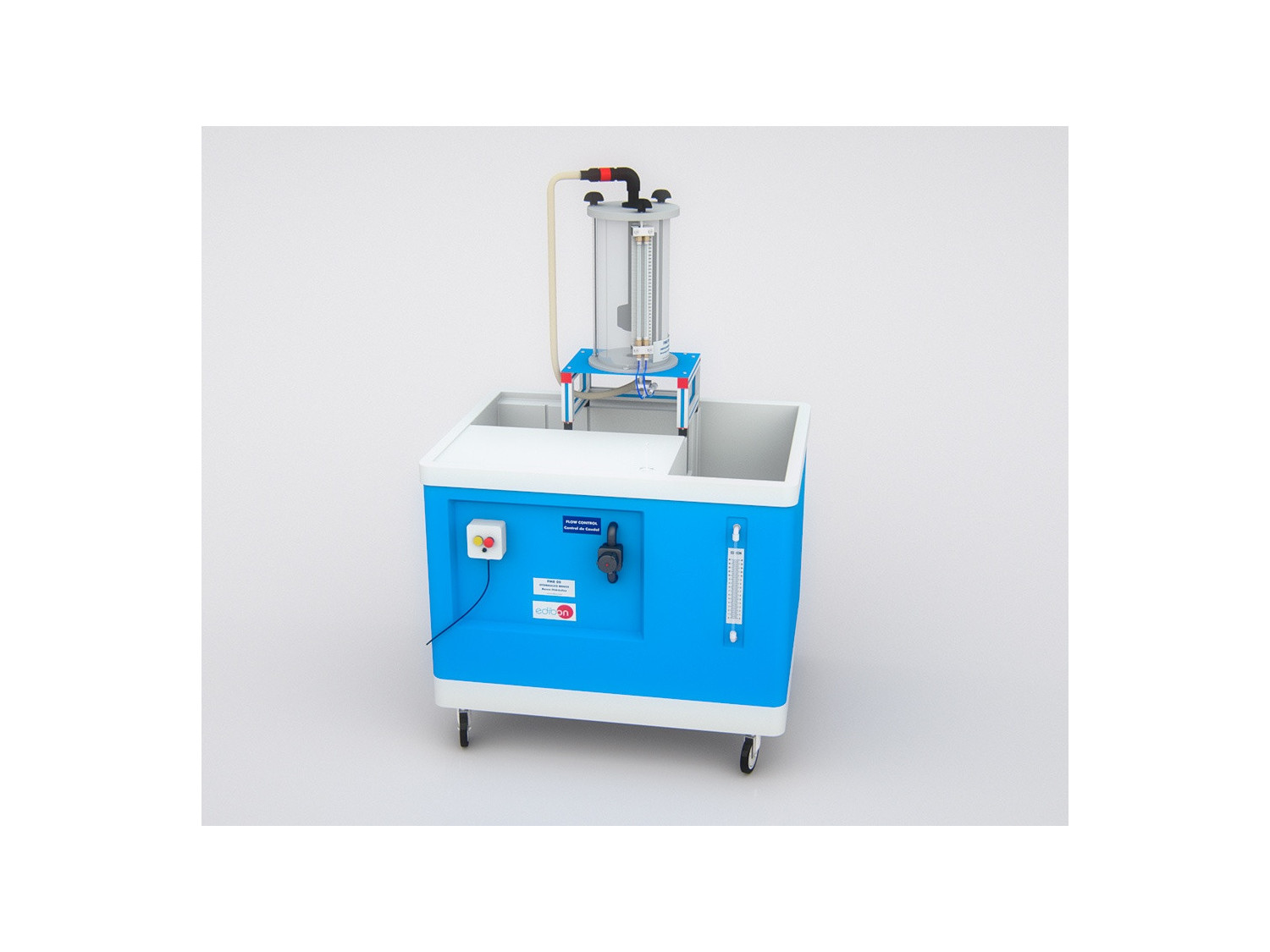

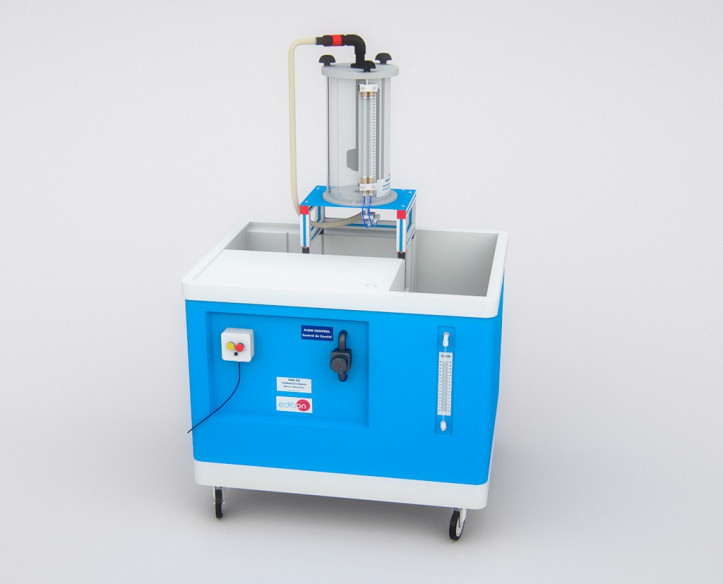

FME04 Unit with service unit FME00

ORIFICE DISCHARGE - FME04
ORIFICE DISCHARGE - FME04

혁신적인 시스템

The Orifice Discharge Unit, "FME04", designed by EDIBON allows the study of the different concentration, discharge and velocity coefficients for thin and/or thick wall for different types: colloidal, Venturi or diaphragm.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어
MSAC

모듈식 획득 및 제어 시스템

실험실

8TV
 기술 및 직업 교육을위한 유체 역학 연구실
8HE
 고등 교육을위한 유체 역학 연구실

관련 뉴스

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
Setting up at Slippery Rock University
Setting up at Slippery Rock University
We are very pleased that we have recently completed an installation in the department of Physics and Engineering at the Slippery Rock University.  It's always a pleasure to work on projects like this!
더 읽어보기
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
더 읽어보기

일반적인 설명

The Orifice Discharge Unit, "FME04", designed by EDIBON allows the study of the different concentration, discharge and velocity coefficients for thin and/or thick wall for different types: colloidal, Venturi or diaphragm.

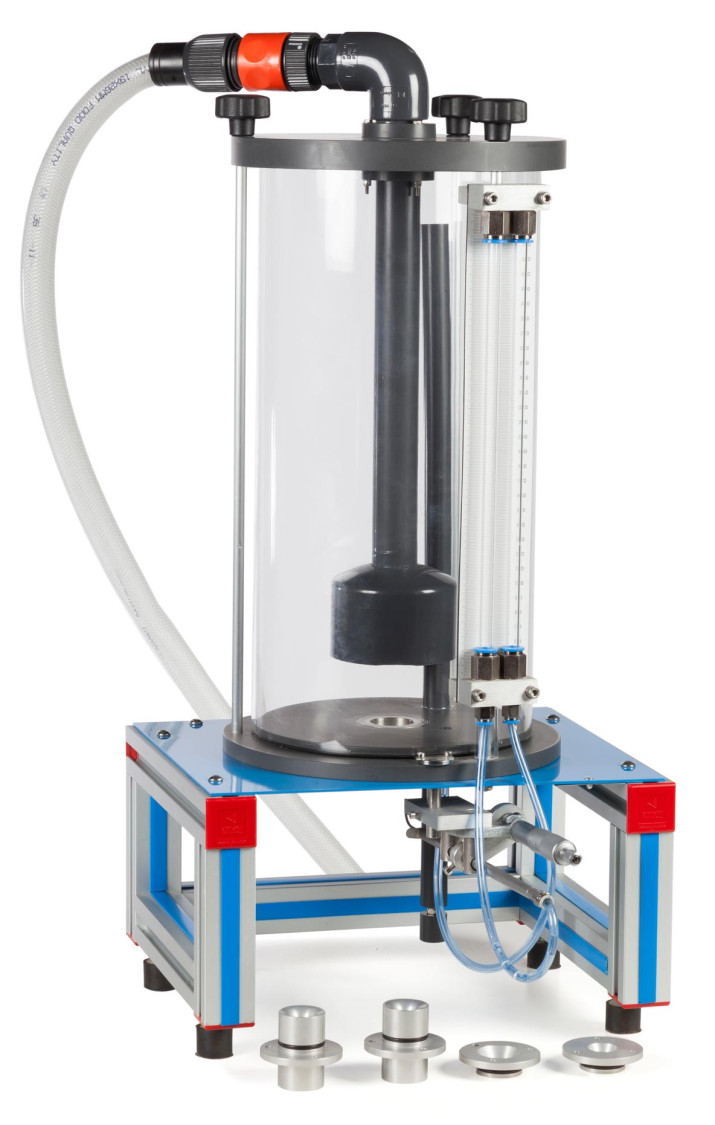

The unit consists of a transparent cylindrical tank that is fed from the top by the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B). The water flows through an interchangeable mouthpiece (a set of five mouthpieces is supplied, representing orifices of different characteristics) located in the base center. The liquid flowing vein goes directly to the volumetric tank of the Hydraulics Bench or from the Basic Hydraulic Feed System.

A Pitot’s tube can be placed in any point of the flowing vein to determine its total height of load.

A transverse device, joined to the Pitot’s tube, allows to determine the diameter of the liquid flowing vein.

It´s possible to measure the height of the Pitot’s tube and the total height through the orifice, in a panel of two manometric tubes located beside the tank.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Determination of the discharge coefficient for the mouthpiece of thin wall, Venturi type.
  2. Determination of the velocity coefficient for the mouthpiece of thin wall, Venturi type.
  3. Determination of the contraction coefficient for the mouthpiece of thin wall, Venturi type.
  4. Determination of the discharge coefficient for the mouthpiece of thin wall, diaphragm type.
  5. Determination of the velocity coefficient for the mouthpiece of thin wall, diaphragm type.
  6. Determination of the contraction coefficient for the mouthpiece of thin wall, diaphragm type.
  7. Determination of the discharge coefficient for the mouthpiece of thin wall, colloidal type.
  8. Determination of the velocity coefficient for the mouthpiece of thin wall, colloidal type.
  9. Determination of the contraction coefficient for the mouthpiece of thin wall, colloidal type.
  10. Determination of the discharge coefficient for the mouthpiece of thick wall, cylindrical type.
  11. Determination of the velocity coefficient for the mouthpiece of thick wall, cylindrical type.
  12. Determination of the contraction coefficient for the mouthpiece of thick wall, cylindrical type.
  13. Determination of the discharge coefficient for the mouthpiece of thick wall, Venturi type.
  14. Determination of the velocity coefficient for the mouthpiece of thick wall, Ventury type.
  15. Determination of the contraction coefficient for the mouthpiece of thick wall, Ventury type.
