FME06 Osborne Reynolds 데모
혁신적인 시스템

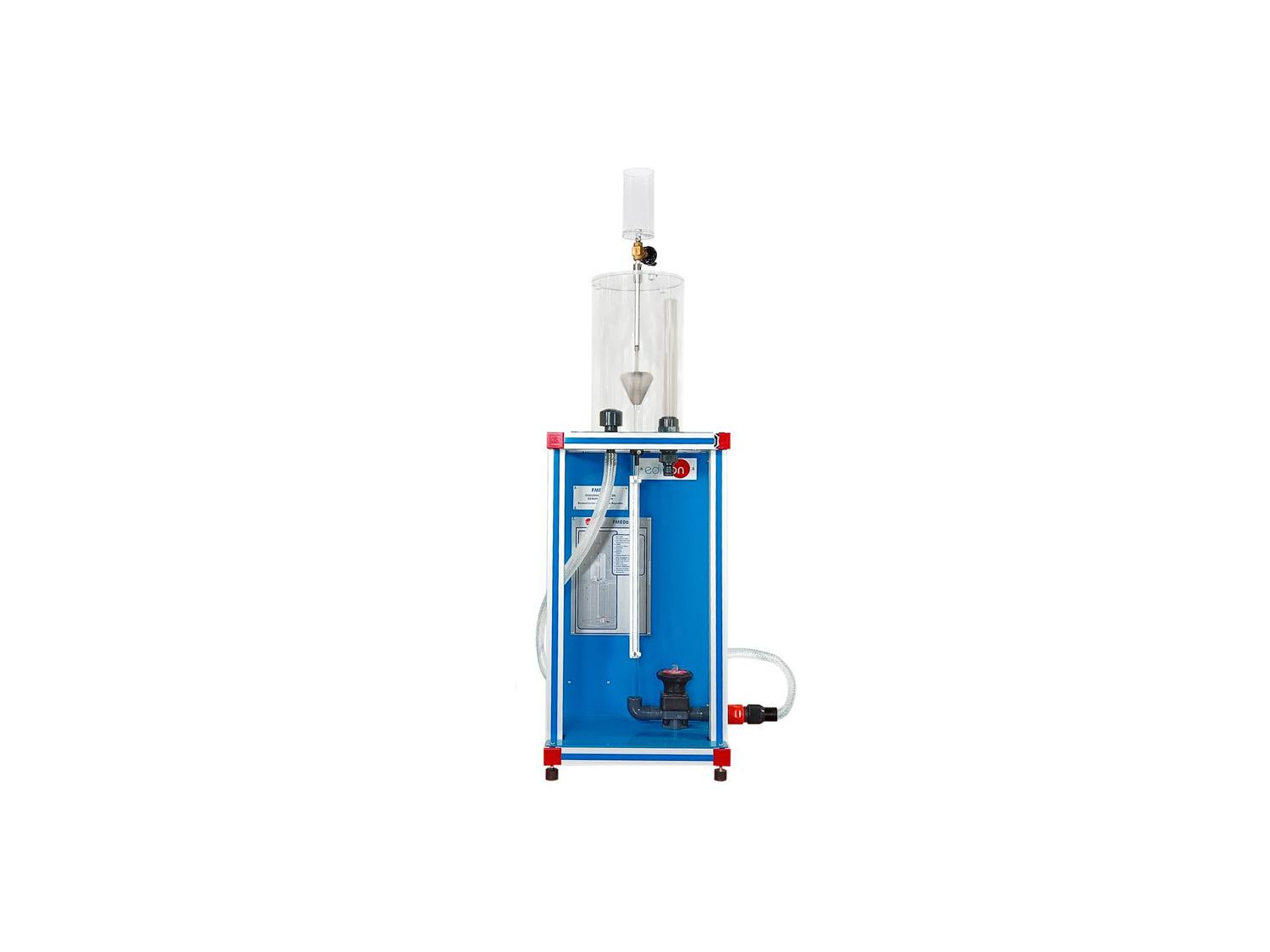

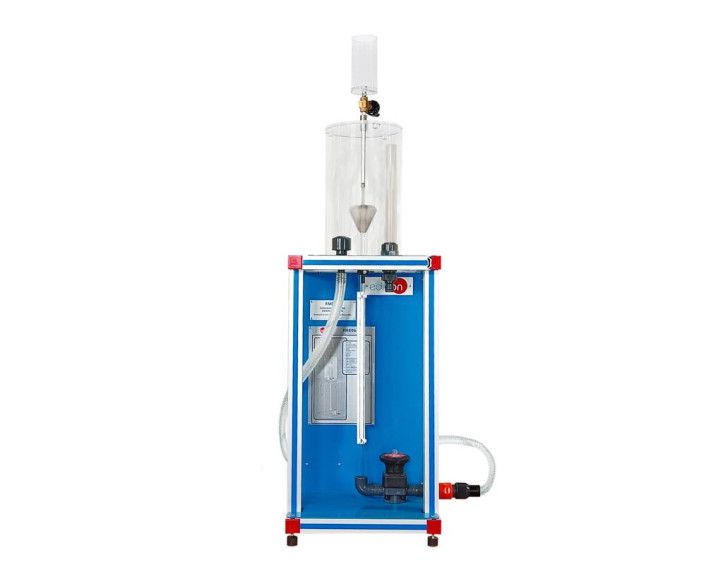

The Osborne Reynolds Demonstration Unit, "FME06", designed by EDIBON, consists of a cylindrical tank endowed with a nozzle, that is fitted to a methacrylate pipe, which allows the fluid visualization.
실험실
관련 뉴스
일반적인 설명
The Osborne Reynolds Demonstration Unit, "FME06", designed by EDIBON, consists of a cylindrical tank endowed with a nozzle, that is fitted to a methacrylate pipe, which allows the fluid visualization.

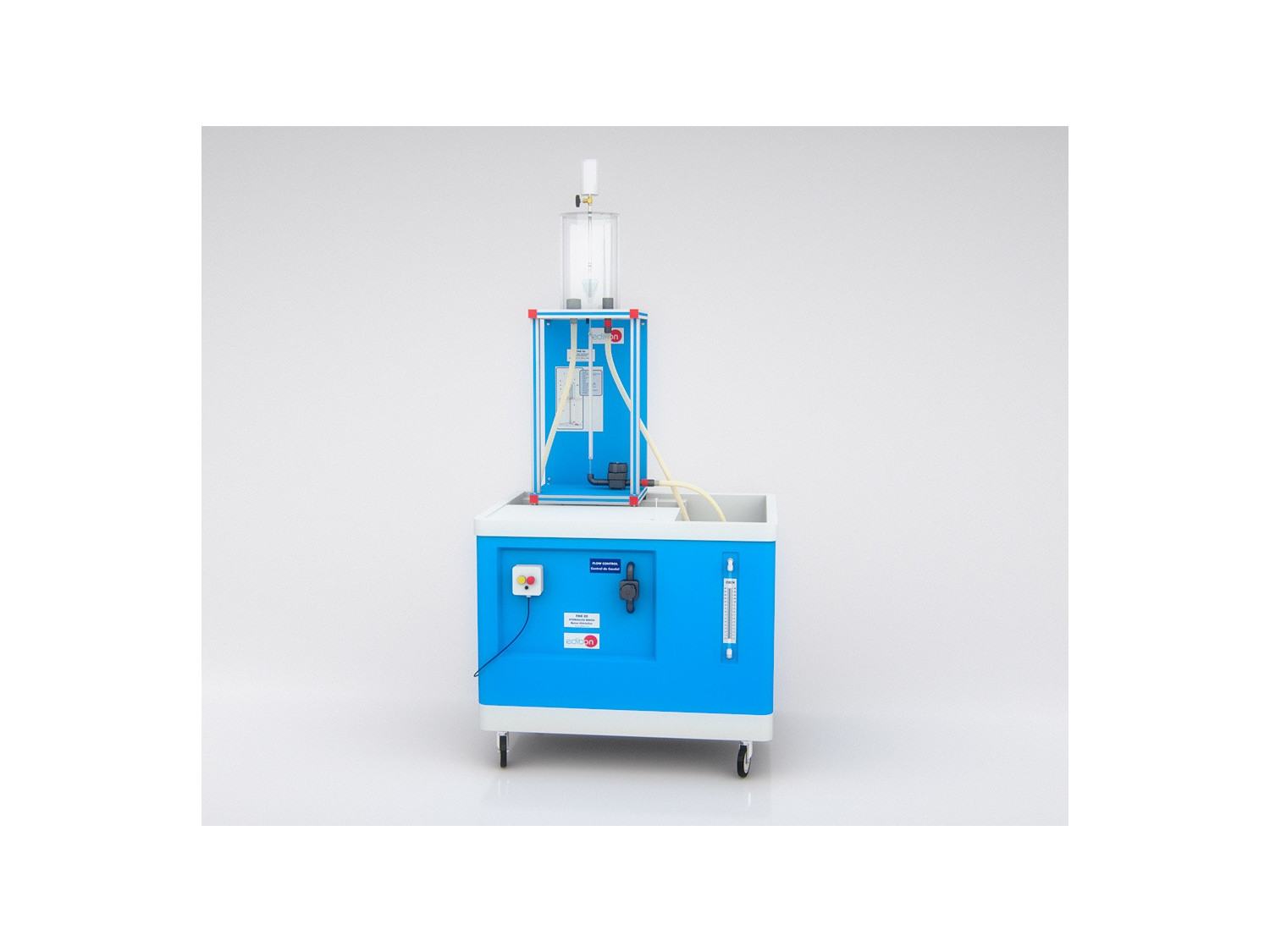

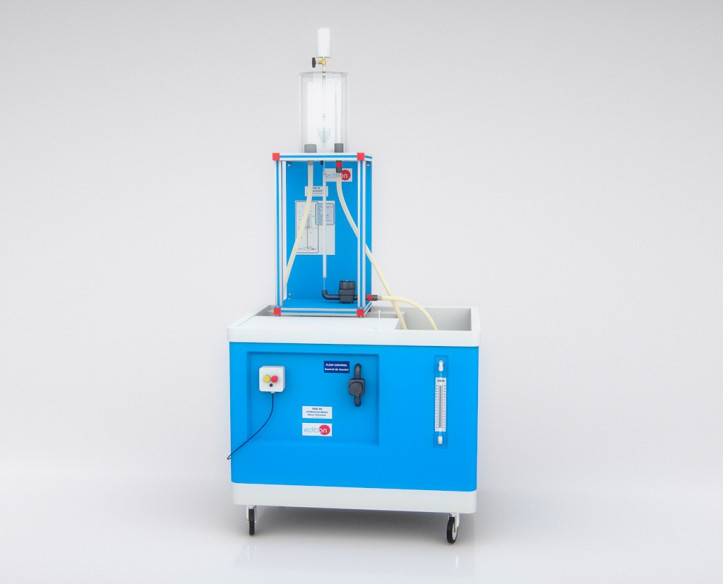

A spillway guarantees the homogeneity of the flow and a needle fitted to the deposit provides the dye. Water is supplied by the Hydraulics Bench (FME00) or the Basic Hydraulic Feed System (FME00/B).
The visualization of the laminar or turbulent regime can be carried out through the flow control valve.
연습 및 가이드
매뉴얼에 포함 된 가이드 실기 연습
- Observation of the laminar, transition and turbulent regime.
- Study of the velocity profile, reproducing the Osborne Reynolds’s experiment.
- Reynold’s number calculation.
