AEL-CPSS-03S SCADA를 갖춘 병렬 이중 발전기, 이중 분배선 및 부하가 있는 전력 시스템

5.1.3.1.- 발전

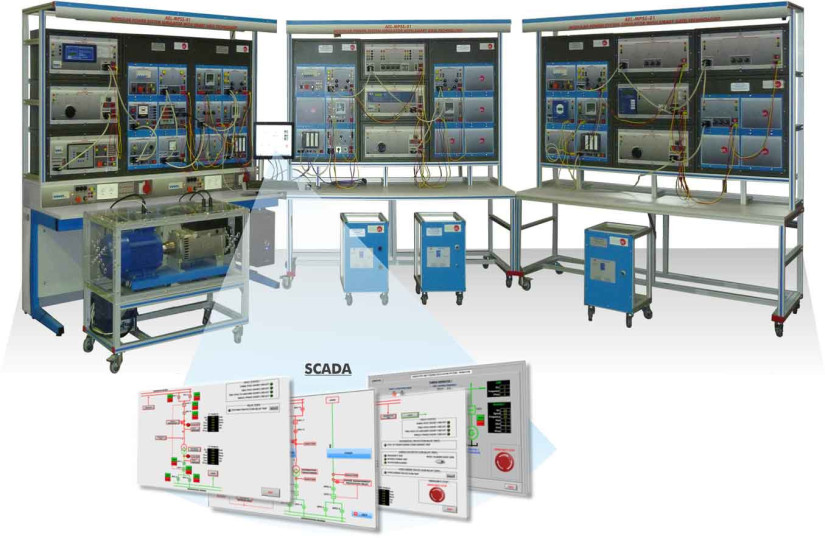

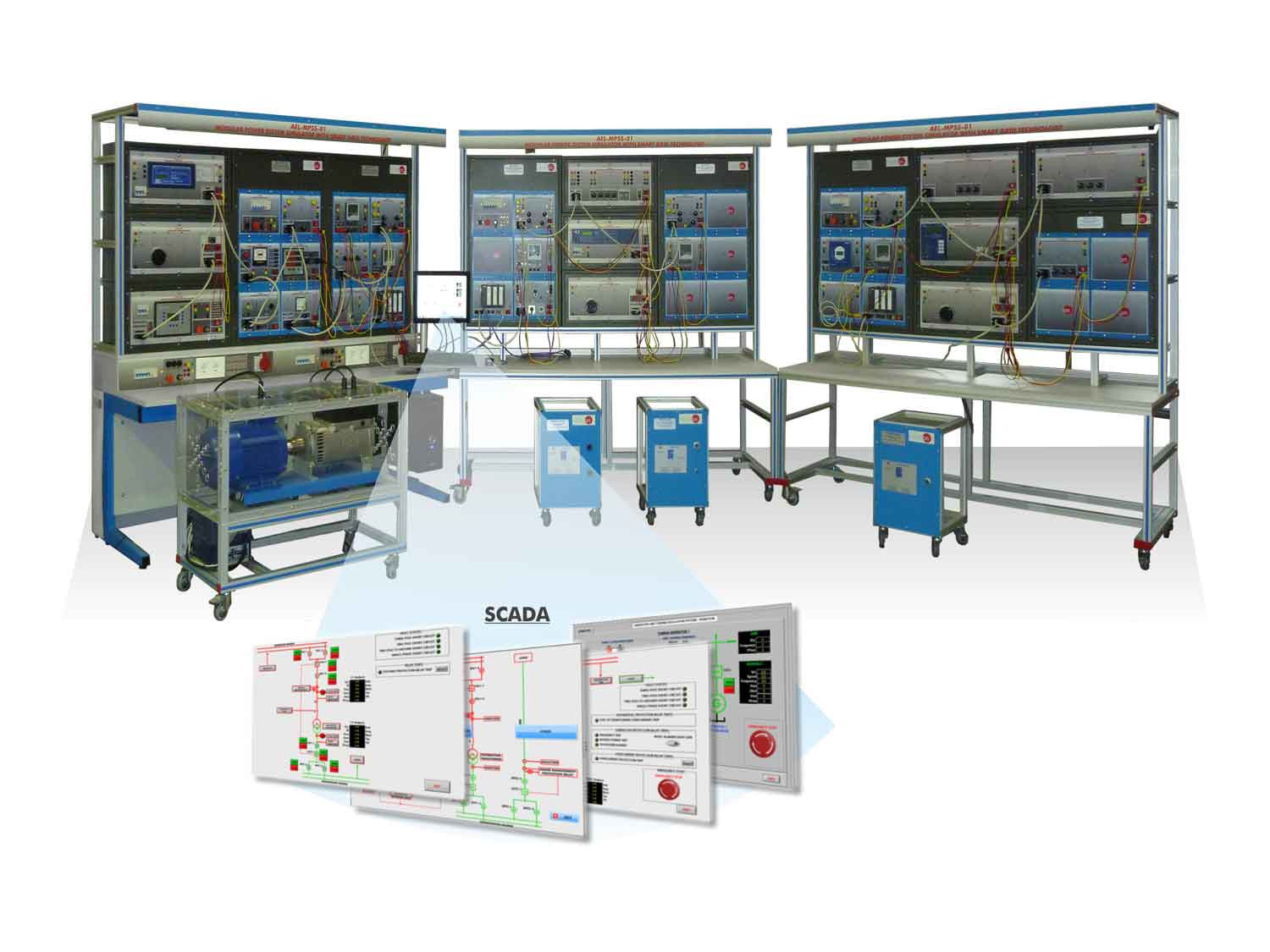

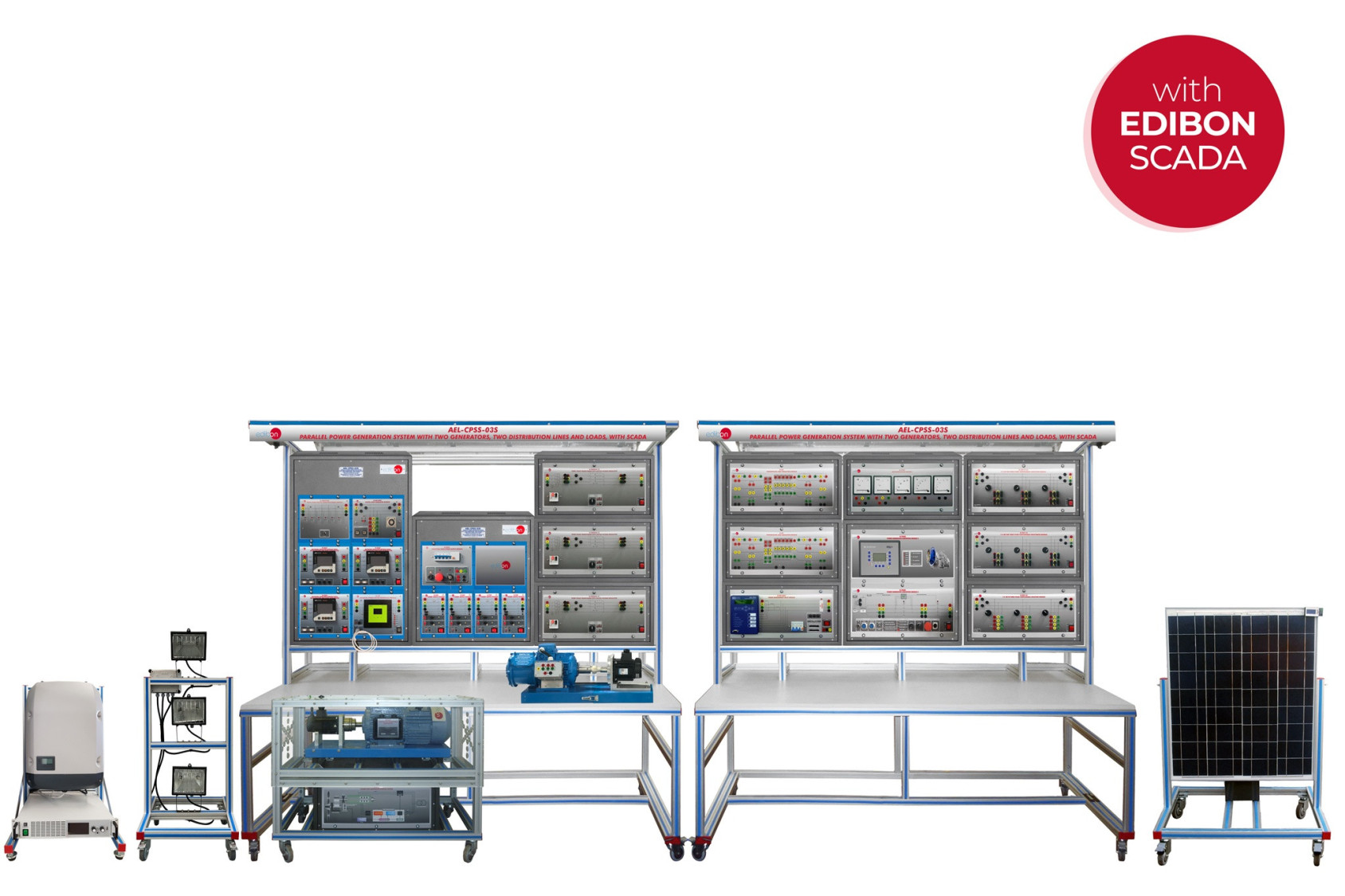

PARALLEL POWER GENERATION SYSTEM WITH TWO GENERATORS, TWO DISTRIBUTION LINES AND LOADS, WITH SCADA - AEL-CPSS-03S

혁신적인 시스템

The Parallel Power Generation System with two Generators, two Distribution Lines and Loads,"AEL-CPSS-03S", consists of a series of modules that will enable us to simulate the most important operations carried out in a power generation stations, power transmission, power distribution and load consumptions sytems.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어
ESN

EDIBON Scada-Net 시스템

관련 뉴스

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
더 읽어보기
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
더 읽어보기
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
SMART GRID. What is about?
SMART GRID. What is about?
With the new smart bidirectional meters, all protection and control devices and the wide use of Internet, the grid has become an intelligent (smart) grid.
더 읽어보기
NEW Renewable Energies leaflet
NEW Renewable Energies leaflet
The growing concern over pollution and climate change has exponentially increased the interest about clean energies. Computer Controlled Renewable Energies units (with SCADA), designed by EDIBON, are not only an effective learning tool to understand all energy related processes, but also a...
더 읽어보기

일반적인 설명

A Smart Grid is an advanced electrical grid that uses analog information, digital information and communications technology to gather and act on information about the behavior of suppliers and consumers, in an automated way to improve the efficiency, reliability, economics, and sustain ability of the production and distribution of electricity.

The AEL-CPSS-03S is an application that reflects the most important operations carried out in the actual Smart Grids Power Systems.

  • Generation:

Parallel operations with different renewable energy sources.

Real time monitoring and control the demanded energy and the energy production.

Automatic control operations of synchronization.

Parallel operations of hydroelectric, wind turbine and conventional energy sources.

  • Transmission:

Transmission and distribution flow powers.

Energy losses.

Distribution transformer with voltage regulator.

Parallel distribution lines.

  • Consumption:

Active, capacitive and inductive loads.

Automatic power factor compensation.

Feeder protection relay.

This application shows different operations of an entire power system, from the energy is generated until it reaches the final consumer.

In the generation field, the students will learn how work different generation systems from three different sources: conventional energy source like carbon, fuel, gas, etc., hydroelectric source, wind source.

The AEL-CPSS-03S includes a SCADA Control System that will allows the users supervise, control and manage the generation, transmission and consumption electrical system:

  • Disconnector and circuit breakers control.
  • Data Acquisition of all electrical parameters of the system.
  • Manual and automatic control of the generators.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Study of Synchronous Machines.
  2. Study of Asynchronous Machines.
  3. Study of parallel operation with synchronous generator and the grid.
  4. Study of parallel operation with asynchronous machine and the grid.
  5. Study of parallel operation of synchronous generator and asynchronous machine.
  6. Study of micro-grids.
  7. Study of power factor compensation.
  8. Study of brushless motors.
  9. Study of transformers: step-up voltage transformer, step-down voltage transformer, energy losses, voltage regulation.
  10. Study of drop voltages in transmission lines according to the line lengths.
  11. Study of the main operations of the protection relay: phase instantaneous overcurrent element 50P, negative sequence overcurrent element 50Q, Time-overcurrent element 51P, overvoltage element 59P and many other parameters.
  12. Study of different short circuit tests: single pole, two pole, two pole to ground and three-phase short circuits.
  13. Wiring of photovoltaic system.
  14. Checking the photovoltaic system with feed to the power grid.
  15. Measurement of energy production by the photovoltaics panel.
  16. Finding the Maximum Power Point.
  17. Minimum power of the photovoltaic inverter.
  18. Losses of the power grid inverter.
  19. Visualizing the electrical parameters of the photovoltaic panel through SCADA Control System.
  20. System’s response in case of power outage on the grid.

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Visualization of all the sensors values used in the AEL-CPSS-03S unit process.
  8. Several other exercises can be done and designed by the user.
