FME16 Pelton Turbine

8.1.7.- 유압 기계: 터빈

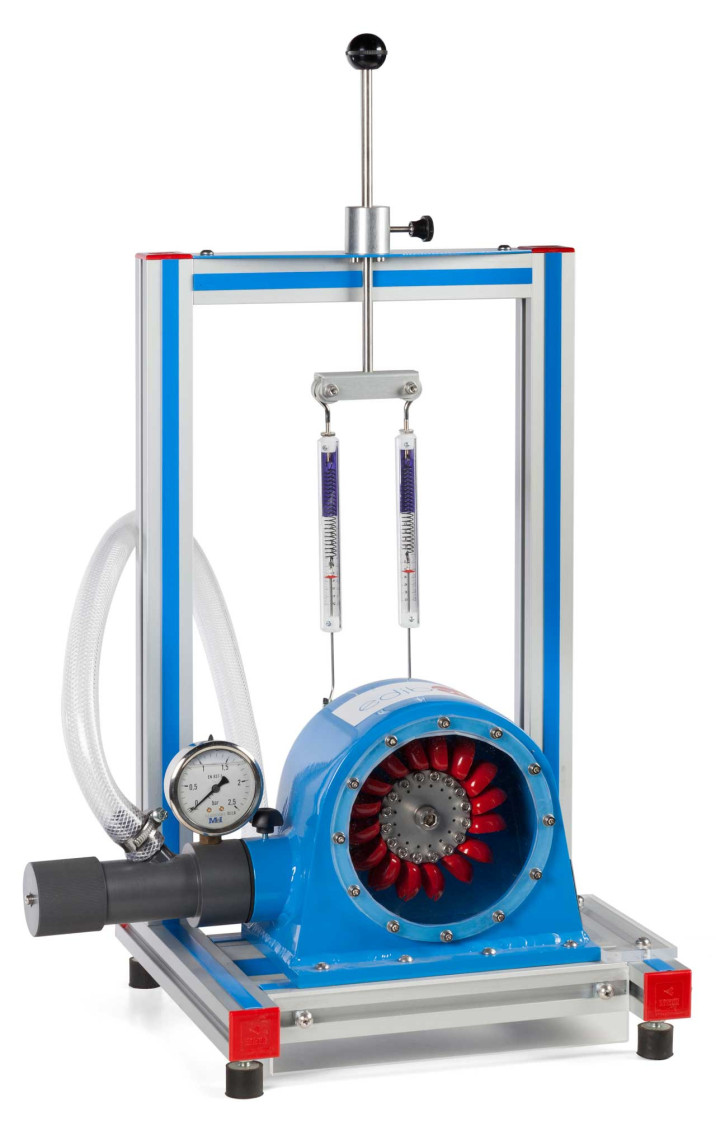

Complete FME16 Unit

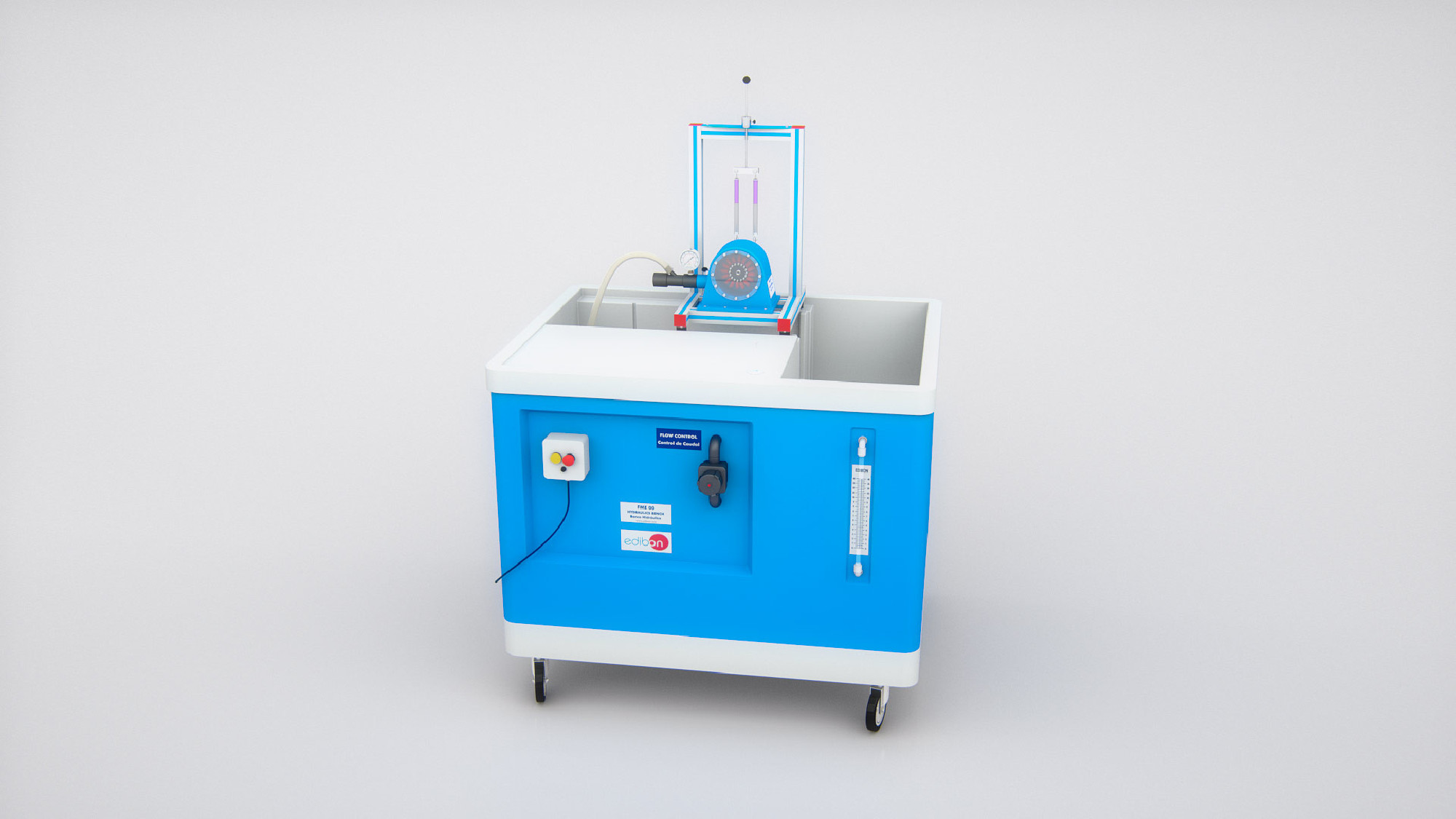

FME16 Unit with service unit FME00

혁신적인 시스템

The Pelton Turbine unit, "FME16", designed by EDIBON, allows the study of the characteristics of the tangential wheels or pressure turbines commonly used to produce electricity in hydroelectric plants to exploit large hydraulic jumps of low flow.

일반적인 설명보기

컨테스트 사양

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

MSAC

모듈식 획득 및 제어 시스템

실험실

8TV

기술 및 직업 교육을위한 유체 역학 연구실

8HE

고등 교육을위한 유체 역학 연구실

11PTC

석유 연수원 연구실

관련 뉴스

EDIBON and its commitment to European Skills

At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.

더 읽어보기

Setting up at Faculté des Sciences at the Université d’Etat d’Haiti

We want to present our new installation in the Faculté des Sciences at the Université d’Etat d’Haiti, specifically in the Fluid Mechanics Department. There, we have installed many of our equipment, among which are: AFT, CF80/5 (with CFAS, CFFS, CFPLR, CFPR, CFRM, CFSDL, CFTP, CFTS, CFVD, CFVEN,...

더 읽어보기

NEW Fluid Mechanics Course

Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.

더 읽어보기

일반적인 설명

This unit comprises a miniature Pelton’s Turbine with a retractable needle valve that allows to adjust the flow.

The Pelton’s Turbine runner is clearly visible through the transparent cover of the turbine.

A manometer placed at the inlet of the turbine enables to measure the inlet pressure at that point (water discharge pressure).

A band brake, connected to two dynamometers allows varying the load supplied to the turbine by means of a connection device.

The turbine axis velocity is determined by an optic tachometer.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

Determination of the operative characteristics of the Pelton Turbine.
Determination of the operation mechanical curves.
Determination of the operation hydraulic curves.
Adimensionalization.

필수 구성 요소
