REFRIGERATION SYSTEM WITH REFRIGERATION AND FREEZING STAGE MODEL - TRAMC/2

혁신적인 시스템

It consists of two separated refrigeration chambers, each one with an evaporator that can work in series or in parallel. Two fans are included in the refrigeration chambers and heater to simulate the refrigeration loads. One of the refrigeration chambers can be alternatively used with an expansion valve or with a capillary tube as expansion element.

일반적인 설명보기

관련 뉴스

일반적인 설명

The minimum supply consists of two main elements: the TRAMC Unit Base, "TRAMC-UB", and at least one of the required elements described below.

The models are interconnected by special refrigerant hoses.

The main components of the TRAMC Unit Base, "TRAMC-UB", are compressor, condenser, refrigerant receiver and accessories to complement the refrigeration cycle. They are arranged in a clear and visible way to facilitate the understanding of the thermodynamic cycle.

The SCADA software, developed by EDIBON, has a data acquisition and control system that enables to automate the unit and to perform and assess all the practical exercises quickly, as well as to represent all the measured and calculated magnitudes in real time.

The measurements of the experiment are recorded in function of time and the generation of file compatible with spreadsheet applications via software. The temperatures and pressures existing in the system are recorded by sensors. Besides, the thermodynamic cycle can be represented in p-H and H- X diagrams.

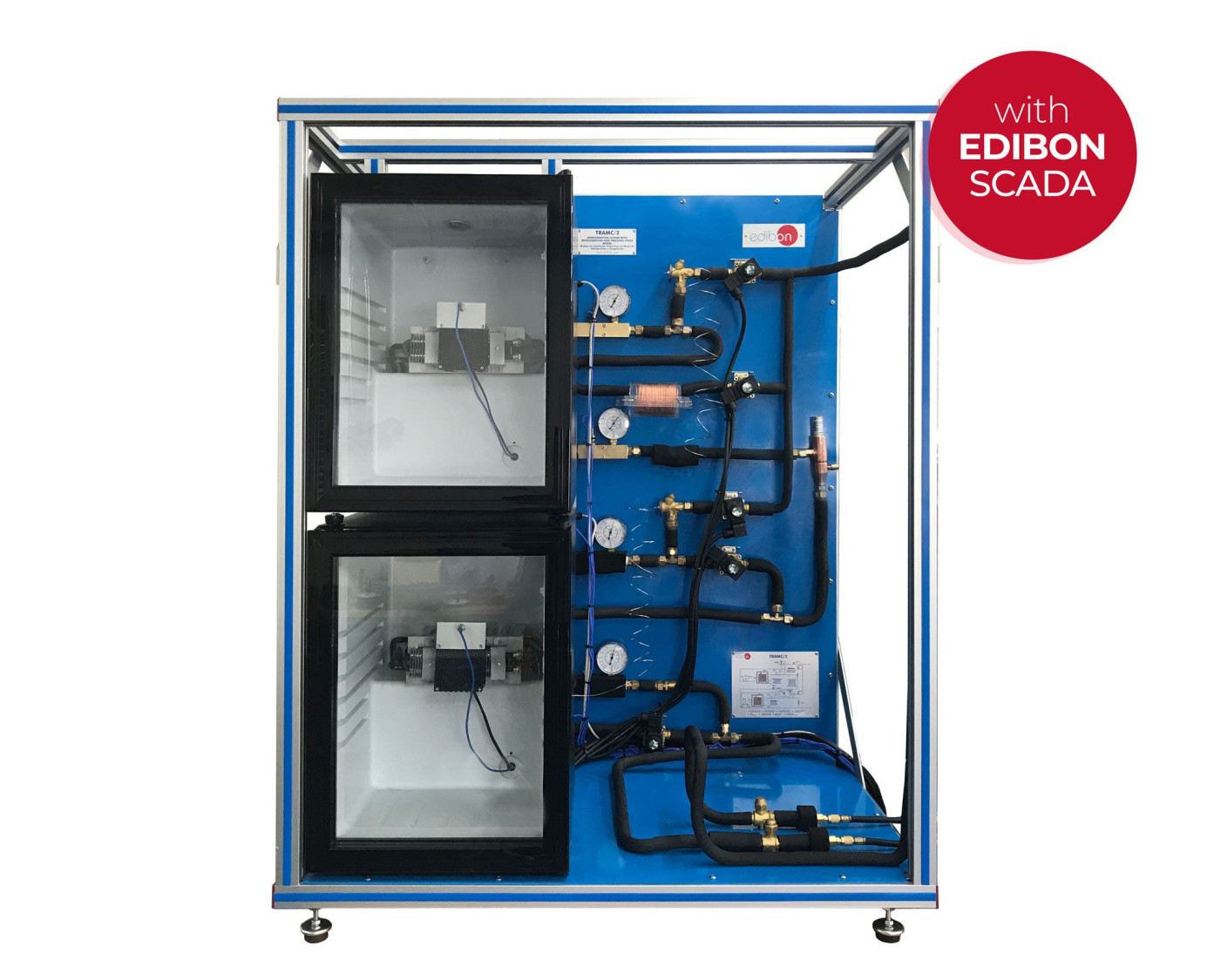

It consists of two separated refrigeration chambers, each one with an evaporator that can work in series or in parallel. Two fans are included in the refrigeration chambers and heater to simulate the refrigeration loads. One of the refrigeration chambers can be alternatively used with an expansion valve or with a capillary tube as expansion element.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The TRAMC Unit Base (TRAMC-UB) + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Function and behavior of the refrigeration circuit components.
  2. Study and comparation of work with different expansion elements:
  • Expansion valve.
  • Capillary tube.
  1. Representation of the thermodynamic cycle in the p-h log diagram.
  2. Study of a refrigeration system with two evaporators in series and in parallel.
  3. Study of a refrigeration system with two evaporators in series and in parallel.

장비로 수행 할 수있는 더 많은 실용적 연습

  1. Sensors calibration.
  2. Properties of the refrigerant R-513a.
  3. Enthalpy-pressure diagram for the refrigerant R-513a.

Other possibilities to be done with this System:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivate parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
