The Scotch Yoke Mechanism, "MYE", designed by EDIBON, is an example of slider-crank mechanism for converting the linear motion of a slider into rotational motion or vice versa.

일반적인 설명보기

컨테스트 사양

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

MSAC

모듈식 획득 및 제어 시스템

실험실

7TV

기술 및 직업 교육을위한 기계, 자동차 및 재료 연구실

7HE

고등 교육을위한 기계, 자동차 및 재료 연구실

일반적인 설명

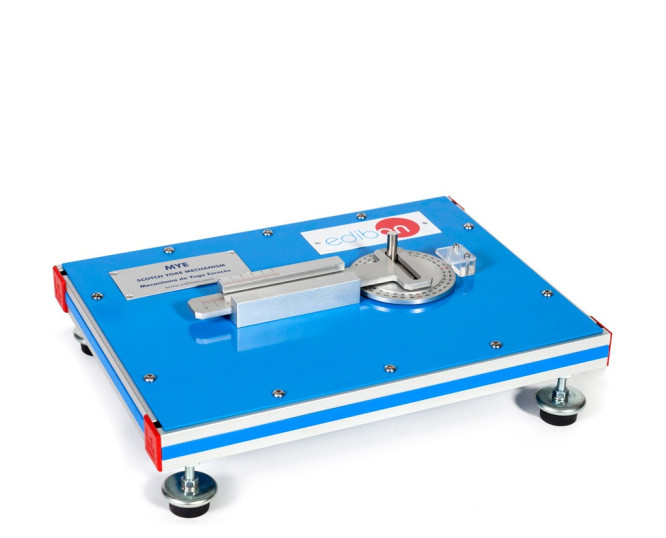

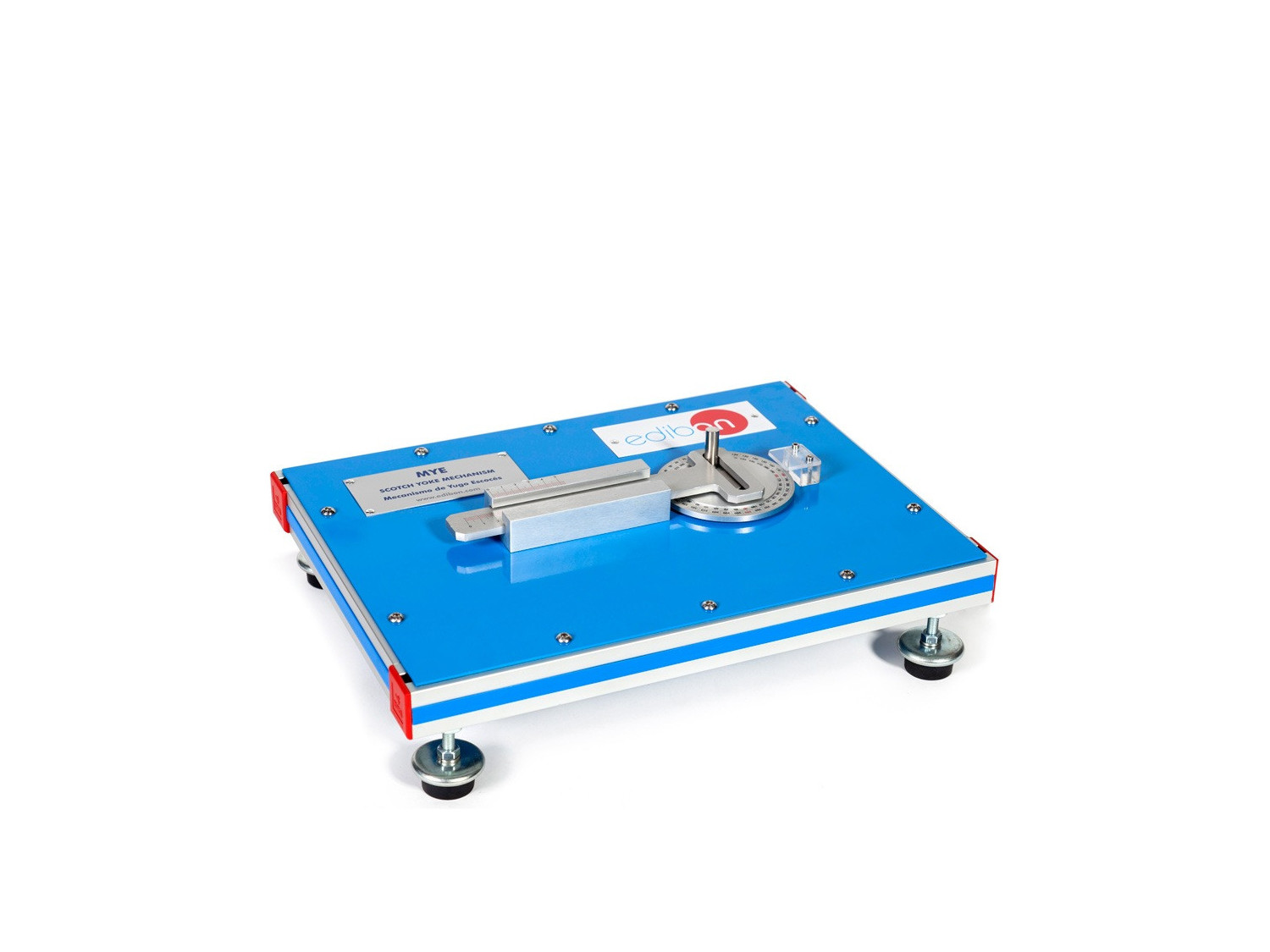

The Scotch Yoke Mechanism, "MYE", designed by EDIBON, is an example of slider-crank mechanism for converting the linear motion of a slider into rotational motion or vice versa.

It is made of aluminum and consists of a rotary element, called crank, with a graduated disc. This element and a piston are linked to a vertical pivot. The rotating motion of the crank generates the alternative linear motion of the piston.

It is a reversible system, if the piston generates the input motion (for example, a piston in a car's engine), the crank rotates.

The input angle is set on the ball bearing mounted crank disc and it is read on an angle measuring scale. A millimeter scale is fitted to measure the linear motion of the connecting rod.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

Study of the conversion of smooth rotary motion into purely harmonic reciprocating motion.
Demonstrating the behaviour of a simple crank-driven Scotch yoke mechanism.
Plotting the relation between the linear displacement of the Scotch yoke and the angular displacement of the crank.
Determining the velocity and acceleration of the Scotch yoke by graphical differentiation.
Comparing the values obtained by the equations of motion.

보완 장비

Available

7.1.2.1.- 메커니즘

MBD

Slider Crank Mechanism

The Slider Crank Mechanism, "MBD", designed by EDIBON, is an example of slider-crank mechanism.This mechanism is made of aluminum and consists of a rotary element (graduated disc), called crank, connected to a rigid bar, calledconnecting rod. When...

MBM1

Available

7.1.2.1.- 메커니즘

MBM1

Slotted Link Mechanism

The Slotted Link Mechanism, "MBM1", is an example of a quick-return mechanism, capable of transforming circular motion into reciprocating motion. It is made of aluminum and consists of a rotary element (graduated disk), called crank, connected to...

MBM2

Available

7.1.2.1.- 메커니즘

MBM2

Whitworth Quick Return Mechanism

The Whitworth Quick Return Mechanism, "MBM2", is a mechanism able to transform circular movement into reciprocating movement. It ismade of aluminum and consists of a rotary element, called crank, with a graduated disk, connected to a rigid bar,...

Available

7.1.2.1.- 메커니즘

MCA

Four-Bar Mechanism

The Four-Bar Mechanism, "MCA", designed by EDIBON, is a bench-top unit to perform laboratory experiments.It is made of anodized aluminum and consists of two rotary elements (graduated discs) mounted on ball bearings. The discs include a scale to...

Available

7.1.2.1.- 메커니즘

MME

Geneva Stop Mechanism

The Geneva Stop Mechanism, "MME", designed by EDIBON, is a mechanism that transforms continuous circular motion into intermittent motion. It is a positive drive in which the driven wheel is positively moved or locked.It is made of aluminum and...

Available

7.1.2.1.- 메커니즘

MAC

Coupling Mechanism

The Coupling Mechanism, "MAC", represents a simple Oldham type coupling. The lateral displacement of the input and output shafts may be varied and circular scales are fitted to the input and output flanges.It consists of two outer discs made of...

Available

7.1.2.1.- 메커니즘

MUN

Hooke's Joint Mechanism

The Hooke’s Joint Mechanism, "MUN", designed by EDIBON, represents a universal coupling, also called a U-joint, Hooke joint or cardan joint. The Hooke joint is a universal mechanism that is often used to transmit rotary motion between two...

Available

7.1.2.1.- 메커니즘

MEX

Cam and Follower Mechanism

The Cam and Follower Mechanism, "MEX", allows to study the cam-follower and eccentric-follower mechanisms. For that purpose, several plate cam models in different forms, one eccentric and several roller-shaped, flat-shaped, wedge-shaped and...

Available

7.1.2.1.- 메커니즘

MBI

Crank Mechanism

The Crank Mechanism "MBI", is a unit designed to observe, study and record the motion of a crank and the forces involved in a simple engine mechanism. The piston is linearly displaced through a cylinder with the aid of a guide.Bearings are coupled...

Available

7.1.2.1.- 메커니즘

MDA

Ackermann Steering Mechanism

The Ackermann Steering Mechanism, "MDA", is a bench-mounted unit designed to determine the lead angle of a steering trapezoid in an Ackermann steering mechanism, the disadvantages of incorrectly adjusted track rods and the influence of the track...

MMEL

Available

7.1.2.1.- 메커니즘

MMEL

Winch Mechanism

The Winch Mechanism, "MMEL", allows to study the lifting velocity and load transmission of a winch. Efficiency and load transmission can be determined by force balance.The unit consists of a gear transmission mechanism. One gear is the input gear...

MBLU

Available

7.1.2.1.- 메커니즘

MBLU

Bar Linkages Unit

The Bar Linkages Unit "MBLU" allows many experiments using different arrangements of their parts.The "MBLU" unit includes a selection of more than twenty perforated bars of different lengths and pivots or "joints" to allow students to configure...
