TACS Split Air Conditioner Unit

SPLIT AIR CONDITIONER UNIT - TACS

혁신적인 시스템

The Split Air Conditioner Unit, "TACS", designed by EDIBON allows the study of the operation of a split system air conditioner with heat pump function to heat or cool, apart from other operation modes available.

일반적인 설명보기

일반적인 설명

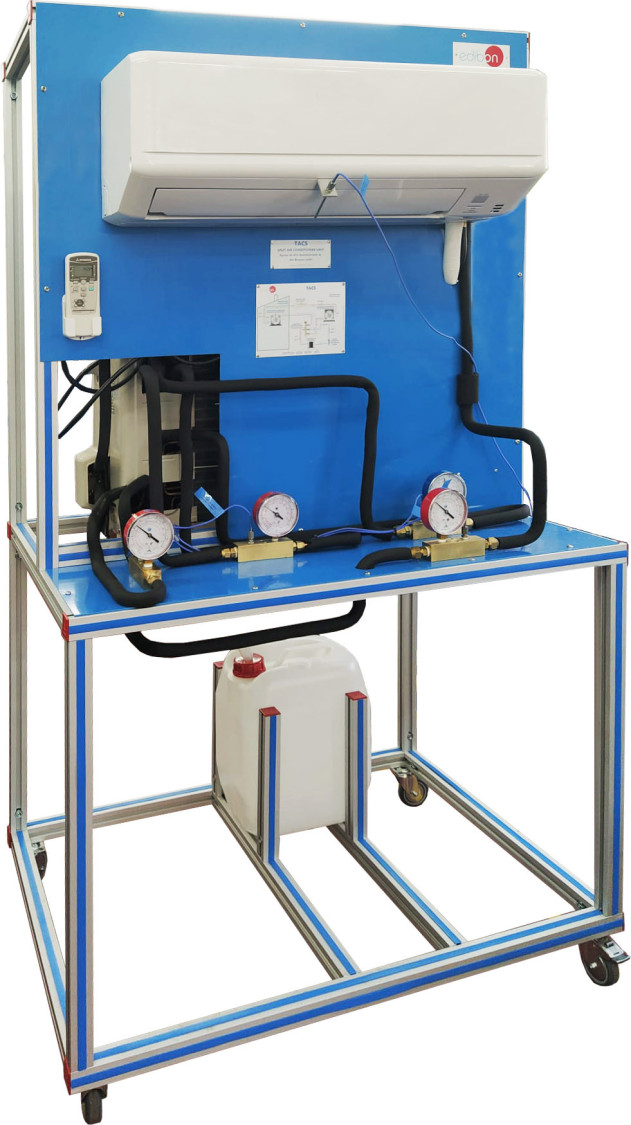

The Split Air Conditioner Unit, "TACS", designed by EDIBON allows the study of the operation of a split system air conditioner with heat pump function to heat or cool, apart from other operation modes available.The main element of the Split Air Conditioner Unit, "TACS", is a noiseless split system air conditioner mounted in a panel (dividing wall) made of painted steel that simulates a real air conditioning system.The inner unit with fan is located at the front and the outer unit is located at the back. It includes a rotary compressor, a heat exchanger, a capillary tube for the expansion, a storage tank and a valve to switch the operation mode of the heat pump.For a better understanding of the cycle, two additional manometers are included to check the refrigerant pressure before and after the compression stage.

The unit can be operated in different modes:

  • Cooling.
  • Heating.
  • Dehumidifying: light cooling.Ventilation: using only the fan of the inner unit.

Service mode: the user selects the operation of the fan and the desired room temperature with the remote control.Automatic mode: the user sets a temperature and the service mode is automatically selected till that temperature is reached in function of the real ambient temperature.The additional functions can be set with the remote control:

  • Timer for switching on and off (the remaining service time is indicated).
  • "Sleep" mode: low noise and energy saving.
  • "Swing" mode: fixed or movable position of the lamella at the air outlet for air distribution.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Study of the assembly and operation of a split system air conditioner.
  2. Study of six different operation modes of the air conditioning system:
  • Cooling.
  • Heating.
  • Dehumidifying.
  • Ventilating.
  • Automatic service.
  • Service mode (test of cooling function).
  1. Study of the three additional functions:
  • "SLEEP" night function.
  • "SWING" function.
  • 24h switching on/off timer.
  1. Study of the remote control functions.
