MFLT Strut Buckling Unit

7.1.6.- TRIBOLOGY (마찰, 마모, 윤활) 7.3.2.1.- 기계적 테스트 14.1.8.- 기계적 테스트
STRUT BUCKLING UNIT - MFLT

혁신적인 시스템

The Strut Buckling Unit, "MFLT", has been designed by EDIBON for demonstrate the buckling of structures by compression, allowing to calculate the critical buckling load in function of different end fixation conditions.

일반적인 설명보기
목록 목록
컨테스트 사양
정보 요청

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어
MSAC

모듈식 획득 및 제어 시스템

실험실

7TV
 기술 및 직업 교육을위한 기계, 자동차 및 재료 연구실
7HE
 고등 교육을위한 기계, 자동차 및 재료 연구실

관련 뉴스

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
NEW Photoelasticity course
NEW Photoelasticity course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
더 읽어보기
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
더 읽어보기
NEW Strength of Materials Course
NEW Strength of Materials Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!
더 읽어보기

일반적인 설명

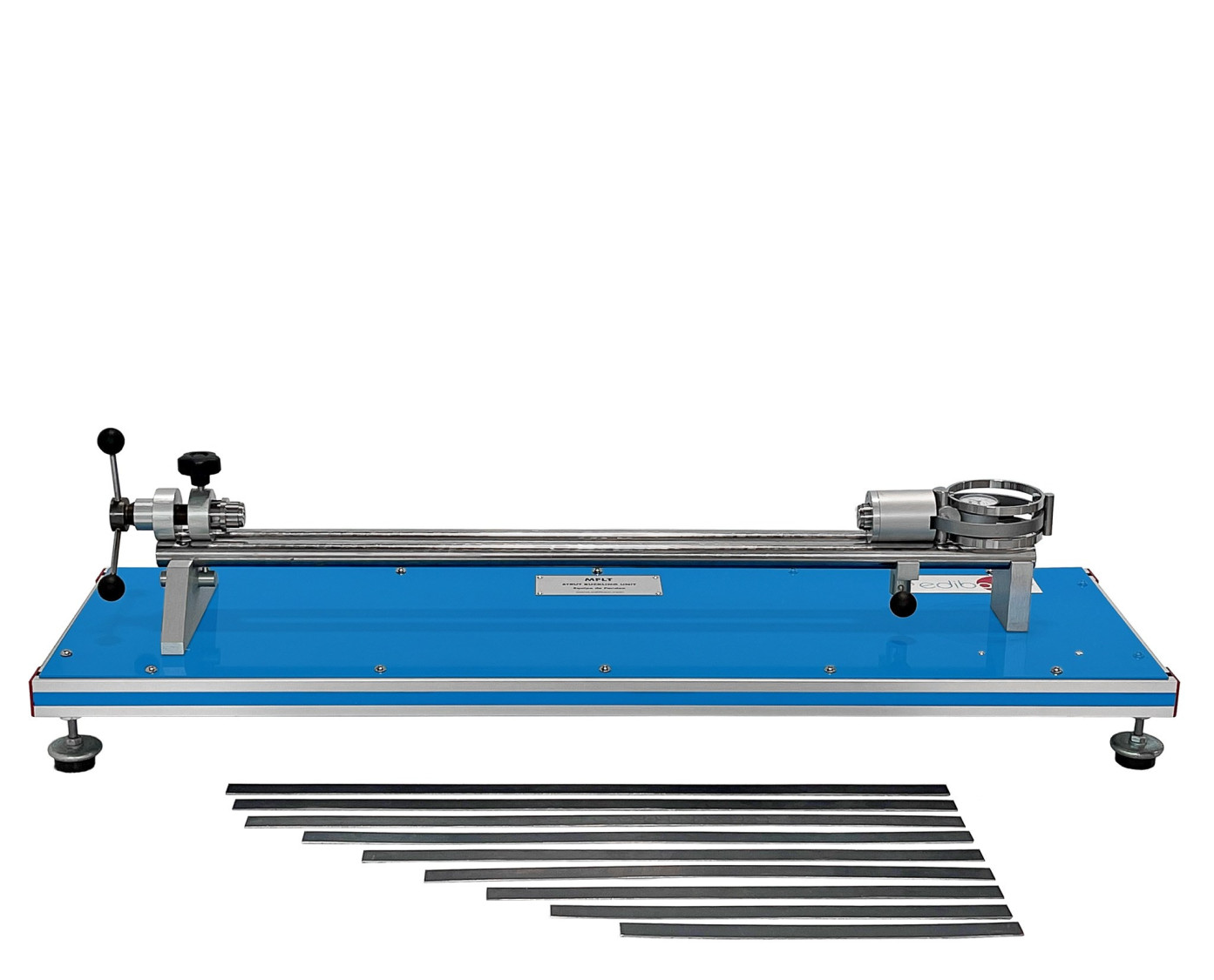

The Strut Buckling Unit "MFLT" allows the student to obtain experimentally the buckling critical load of slender struts subjected to compression.
