THREE-PHASE INSTALLATIONS FAULTS APPLICATION - AEL-AD33T

혁신적인 시스템

The Three-phase Installations Faults Application, "AEL-AD33T", has been designed to study several protections belonging to industrial installations.

일반적인 설명보기

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

실험실

4TV
 기술 및 직업 교육을위한 전기 연구실
4HE
 고등 교육을위한 전기 실험실
11PTC
 석유 연수원 연구실

관련 뉴스

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
더 읽어보기
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
더 읽어보기
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
더 읽어보기

일반적인 설명

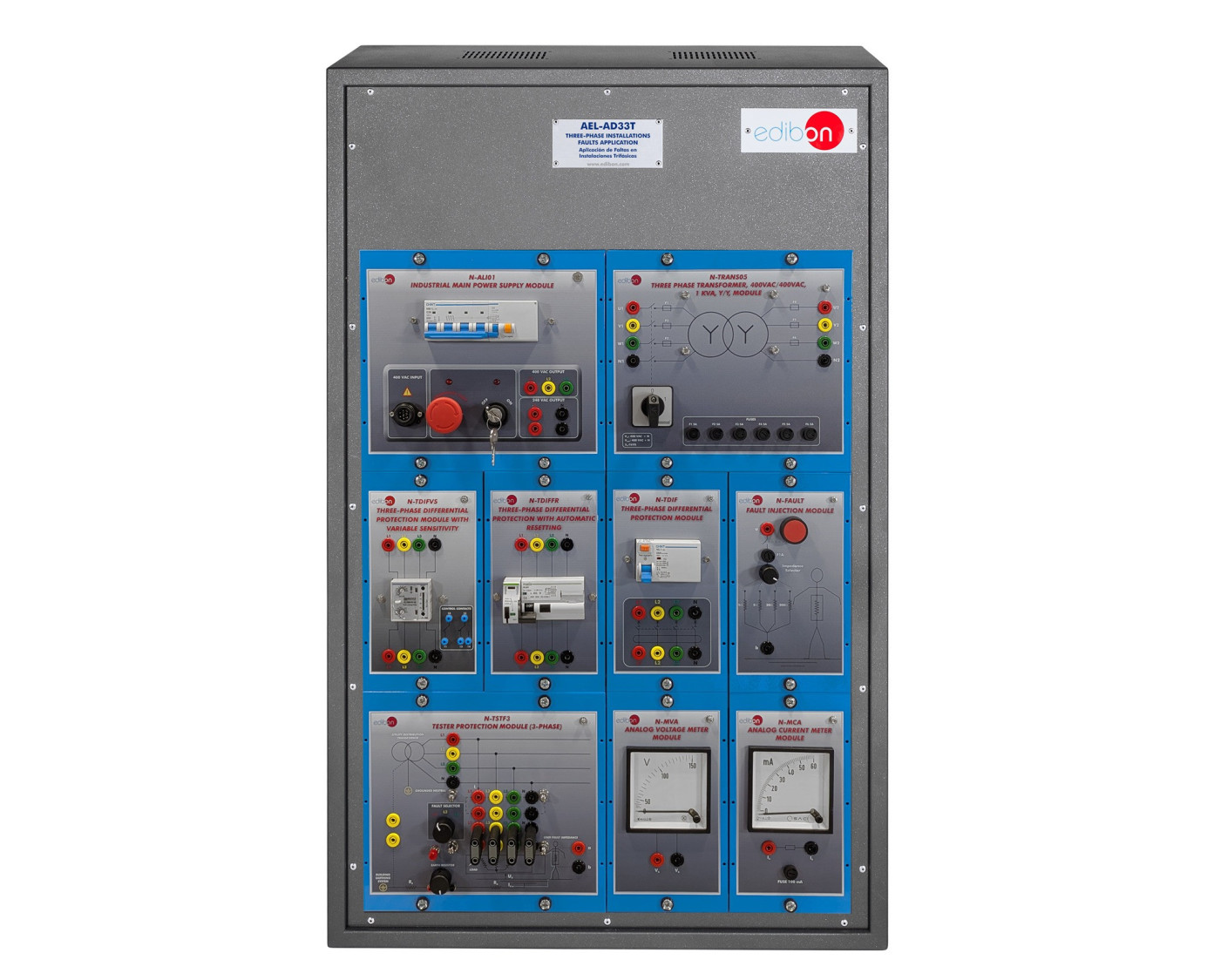

The Three-phase Installations Faults Application, "AEL-AD33T", has been designed to study several protections belonging to industrial installations. Through safety elements, the students can simulate different faults and verify the reasons why each type of protection acts.

It includes some innovative electric devices for the protection of people and installations against the effects of electric current, which ensure the continuity of power availability, as well as people safety. It includes a three-phase transformer in order to simulate earth derivations under safety conditions.

It is also possible to change the configuration of ground connection of the charges connected to the system. Some of those configurations are: TN, IT, TN-S, TN-C, TN-C-S.

Besides, the following protections are included: protection by earthing, protection by differential circuit breaker with automatic reset and protection by differential circuit breaker with variable sensitivity.

To check all protections, a variable resistor is included to control current derivations. It also has meters to know the amount of derivation current and verify the sensivity of the protections.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Study of basic concepts of three-phase differential protection.
  2. Study of three-phase differential protection with variable sensitivity.
  3. Study of three-phase differential protection with automatic restore.
  4. Adjustment of sensibility of the three-phase differential protection.
  5. Study of short-circuits in three-phase system with basic differential protection.
  6. Study of short-circuits in three-phase system with short-circuit impedance and basic differential protection.
  7. Study short-circuits in three-phase system with differential protection with variable sensitivity.
  8. Study short-circuits in three-phase system with short-circuit impedance and differential protection with variable sensitivity.
  9. Study short-circuits in three-phase system with differential protection with automatic restore.
  10. Study short-circuits in three-phase system with short-circuit impedance and differential protection with automatic restore.
  11. Study of isolation coordination.
  12. Checking the differences between some different grid system configurations in the face of disturbances.
