TRANSMISSIONS EXPERIMENTS - MECA3

혁신적인 시스템

Most recent machines require the transmission of motion between elements to obtain the desired mechanical result.

일반적인 설명보기
목록 목록
컨테스트 사양
정보 요청

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

실험실

7TV
 기술 및 직업 교육을위한 기계, 자동차 및 재료 연구실
7HE
 고등 교육을위한 기계, 자동차 및 재료 연구실

관련 뉴스

NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
더 읽어보기

일반적인 설명

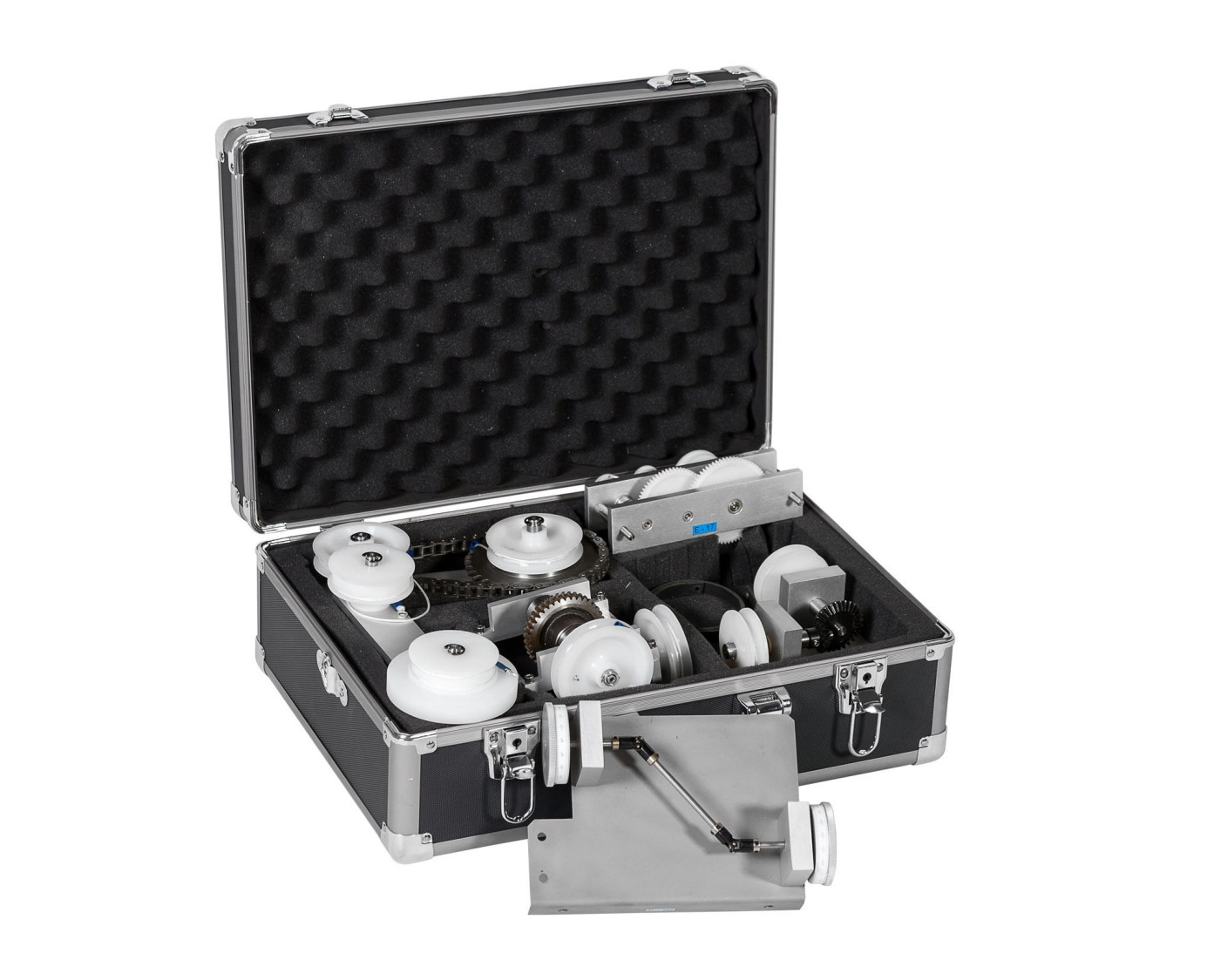

Most recent machines require the transmission of motion between elements to obtain the desired mechanical result. The mechanisms studied in this module are those that transmit motion between two axles.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

  1. Belt drive (Belt drive (I) and Belt drive (II)): Verification of the direction of rotation of open and crossed belt drives. Verification of the speed of rotation of the two pulleys is inversely proportional to their diameters. To measure the difference in tension between the two sides of a belt drive and to determine the efficiency of drive transmission.
  2. Chain drive. Verification of the speed ratio of a chain drive. Measurement of the efficiency of drive transmission.
  3. The Geared winch (two parallel axles). Comparison of the velocity ratios of a system of single-stage and double stage geared winch. Specification of their corresponding mechanical advantages and efficiencies under varying loads.
  4. Bevel gears (two intersecting axles). Verification of the efficiency velocity-ratio and mechanical advantages of the Bevel gear unit under different loads.
  5. Worm gear (two crossed axles). Verification of the speed ratio of a worm and specification of the transmission efficiency under different loads.
  6. Universal coupling. To investigate the effect of introducing universal coupling to a simple drive shaft.
