MBF Unit for Studying Bearing Friction

7.1.5.- 트라이 볼 로지 (마찰, 마모, 윤활) 14.1.5.- 트라이 볼 로지 (마찰, 마모, 윤활)

혁신적인 시스템

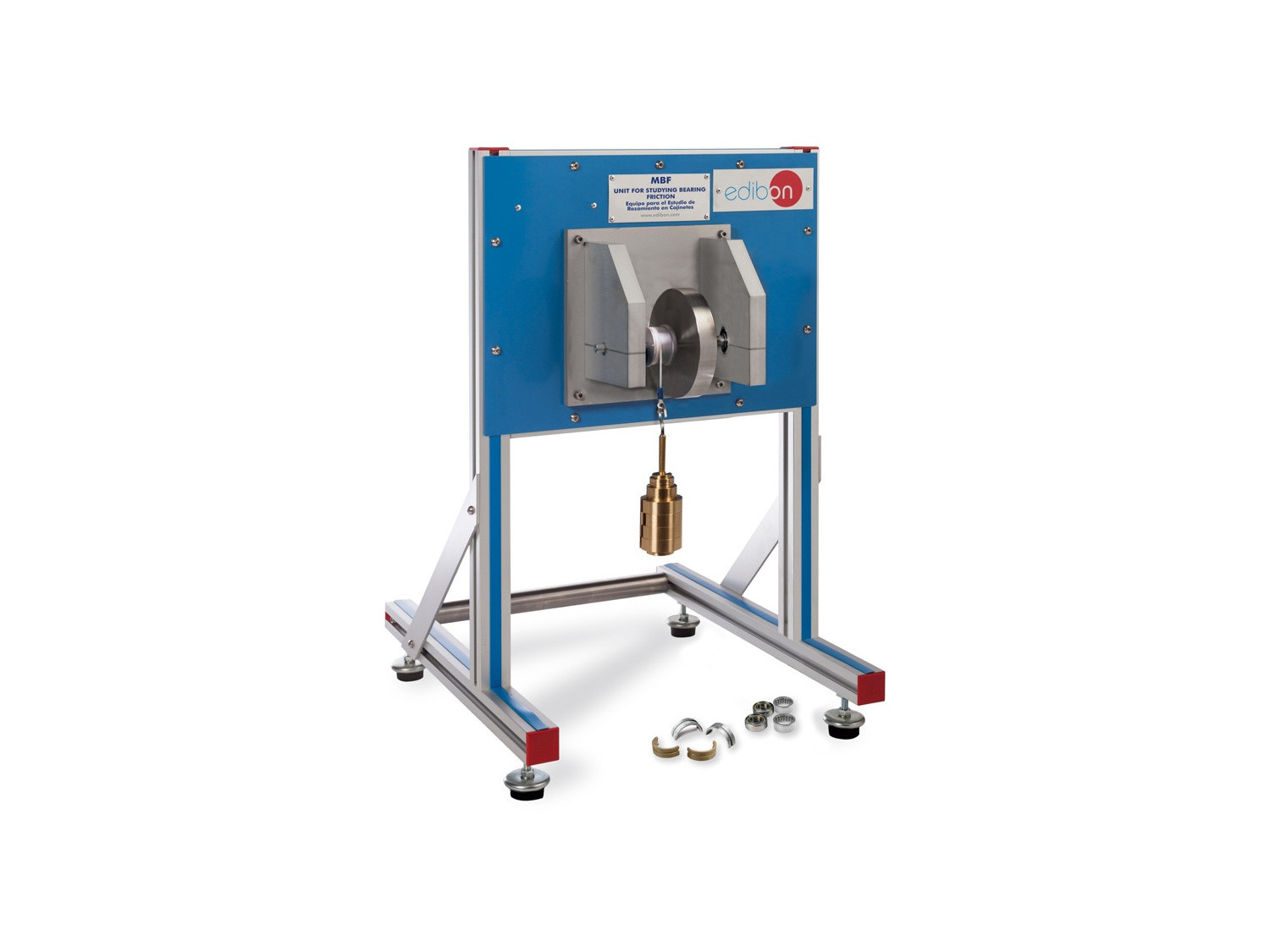

The Unit for Studying Bearing Friction, "MBF", has been designed by EDIBON to study sliding friction in slide bearings and rolling bearings. Since rolling friction is very little, rotational dynamics basic tests can be performed with the inertia flywheel.

일반적인 설명보기

컨테스트 사양

확장

ICAI

상호작용형 컴퓨터 지원 교육 소프트웨어

MSAC

모듈식 획득 및 제어 시스템

일반적인 설명

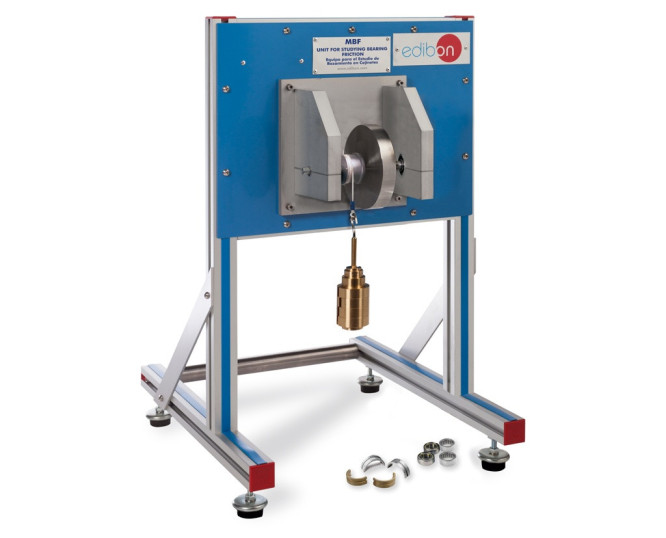

It consists of a shaft with a cable drum and inertia flywheel supported on the bearings under study.

Three pairs of exchangeable bearings shells made of different material, a pair of ball bearings and a pair of rolling bearings are supplied to study friction in different types of bearings.

Different masses are hanged from the drum cable, generating different torques equivalent to the frictional moment when starting the rotation.

연습 및 가이드

매뉴얼에 포함 된 가이드 실기 연습

Study and comparison of slide bearings and rolling bearings.
Experimental determination of the coefficient of friction in slide bearings.
Comparison of the experimental friction in slide bearings made of various materials.
Experimental determination of the coefficient of friction in rolling bearings.
Comparison of the experimental friction in ball bearings and roller bearings.

장비로 수행 할 수있는 더 많은 실용적 연습

Basic studies about rotational dynamics.

보완 장비

Available

7.1.5.- 트라이 볼 로지 (마찰, 마모, 윤활)

MCF

Belt Friction Unit

The Belt Friction Unit, "MCF", allows us to carry out studies and investigations to compare the driving torque for a given degree of overlap of a flat belt (leather or rope) and a V belt.With this unit the relationship between the tensions in the...
