MBM2 휘트워스 빠른 복귀 메커니즘
혁신적인 시스템
The Whitworth Quick Return Mechanism, "MBM2", is a mechanism able to transform circular movement into reciprocating movement.
실험실
관련 뉴스
일반적인 설명

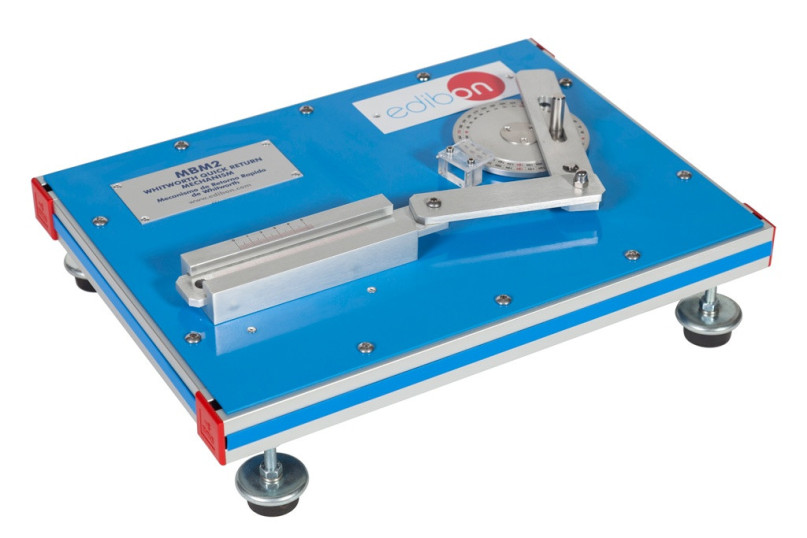

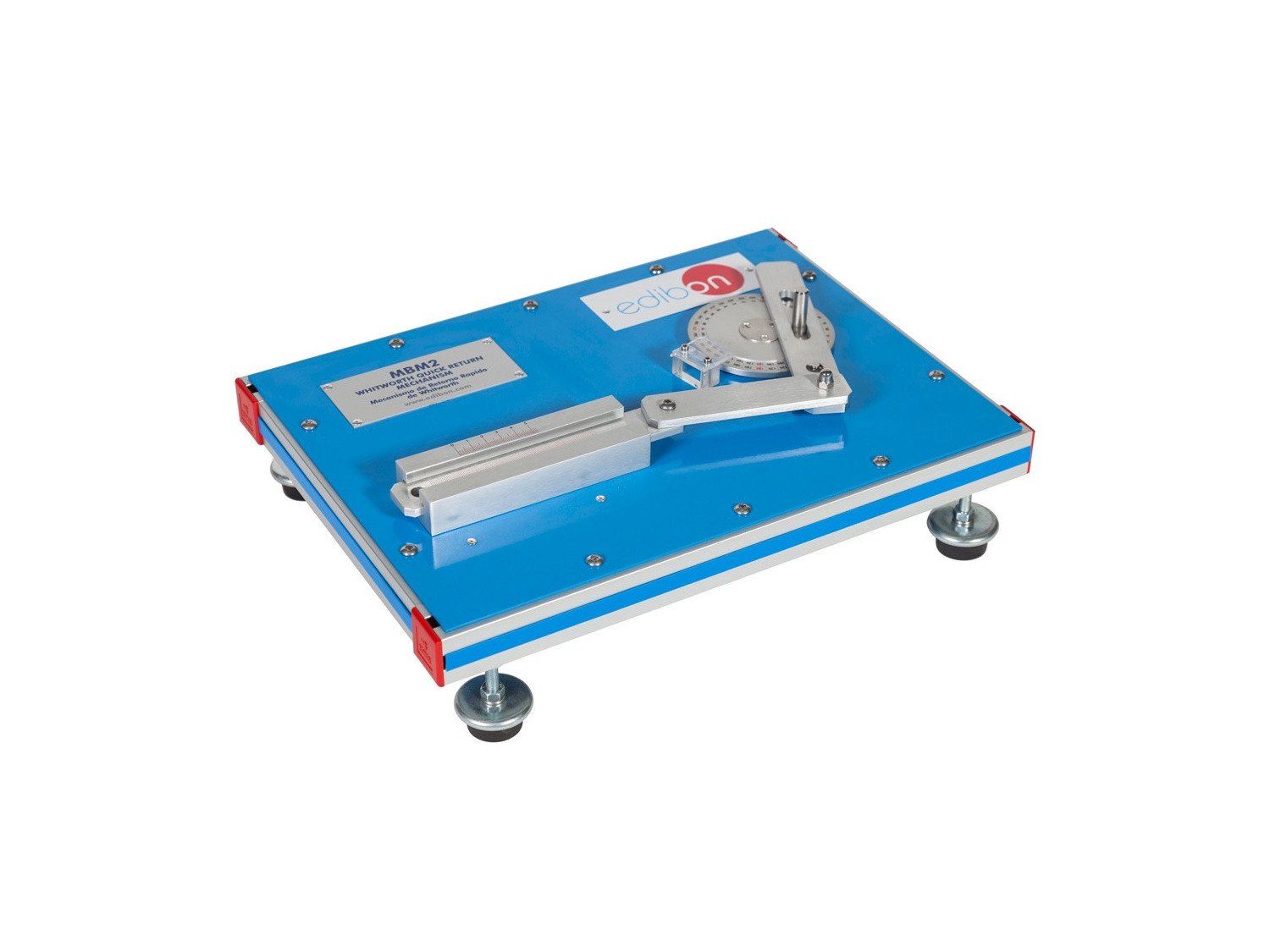

The Whitworth Quick Return Mechanism, "MBM2", is a mechanism able to transform circular movement into reciprocating movement. It ismade of aluminum and consists of a rotary element, called crank, with a graduated disk, connected to a rigid bar, called connecting rod.
When rotating the crank, the connecting rod moves back and forward. The rotation motion of a crank or crankshaft causes a rectilinear reciprocating motion of a piston or plunger.
The forward reciprocating motion is at a different rate than the backward stroke.
연습 및 가이드
매뉴얼에 포함 된 가이드 실기 연습
- To demonstrate the action of a simple Whitworth quickreturn mechanism.
- Graphic determination of the relationship between the linear displacement of the connecting rod and the angular displacement of the input crank.
- More exercises and practices may include the determination of the velocity and acceleration of the connecting rod by graphical differentiation and comparison with the values obtained by velocity and acceleration diagrams.
보완 장비
스코틀랜드 요크 메커니즘
크랭크 및 커넥팅 로드 메커니즘
4바 링크 메커니즘
제네바 메커니즘
결합 메커니즘
유니버설 조인트 메커니즘
캠-팔로워 메커니즘
크랭크 메커니즘
아커만 조향 메커니즘
엘리베이터 메커니즘
