ADVANCED AC ELECTRICAL MOTORS APPLICATION - AEL-ACEMT

SISTEMAS INOVADORES

The Advanced AC Electrical Motors Application, "AEL-ACEMT", has been designed by Edibon to carry out electrical/mechanical test for a great variety of AC motors.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

Setting up at the Uganda Petroleum Institute Kigumba (UPIK)
Setting up at the Uganda Petroleum Institute Kigumba (UPIK)
At EDIBON, we are proud to contribute to the educational development at the Uganda Petroleum Institute Kigumba (UPIK) through the installation of some of our applications.
Ler mais
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
The Importance of Hands-On Training in Electricity for Universities and Companies
The Importance of Hands-On Training in Electricity for Universities and Companies
Electricity is a form of energy resulting from the movement of electrons through a conductor. This physical phenomenon is essential for the operation of a wide variety of devices and systems we use daily, from household appliances to complex industrial systems.
Ler mais
Installation at the Papua New Guinea University of Technology. Dept. Electrical and Communications Engineering
Installation at the Papua New Guinea University of Technology. Dept. Electrical and Communications Engineering
We are very pleased that we have recently completed the installation of two of our equipment, the AEL-ACEMT and the AEL-DCEMT at the Papua New Guinea University of Technology. Dept. Electrical and Communications Engineering. With this equipment designed by EDIBON it will be easier for them to...
Ler mais
What is Industry 4.0?
What is Industry 4.0?
Today we are at the beginning of a new era, named ‘Industrie 4.0’. Let´s explain a little further the concept "Industrie 4.0"!
Ler mais

Descrição Geral

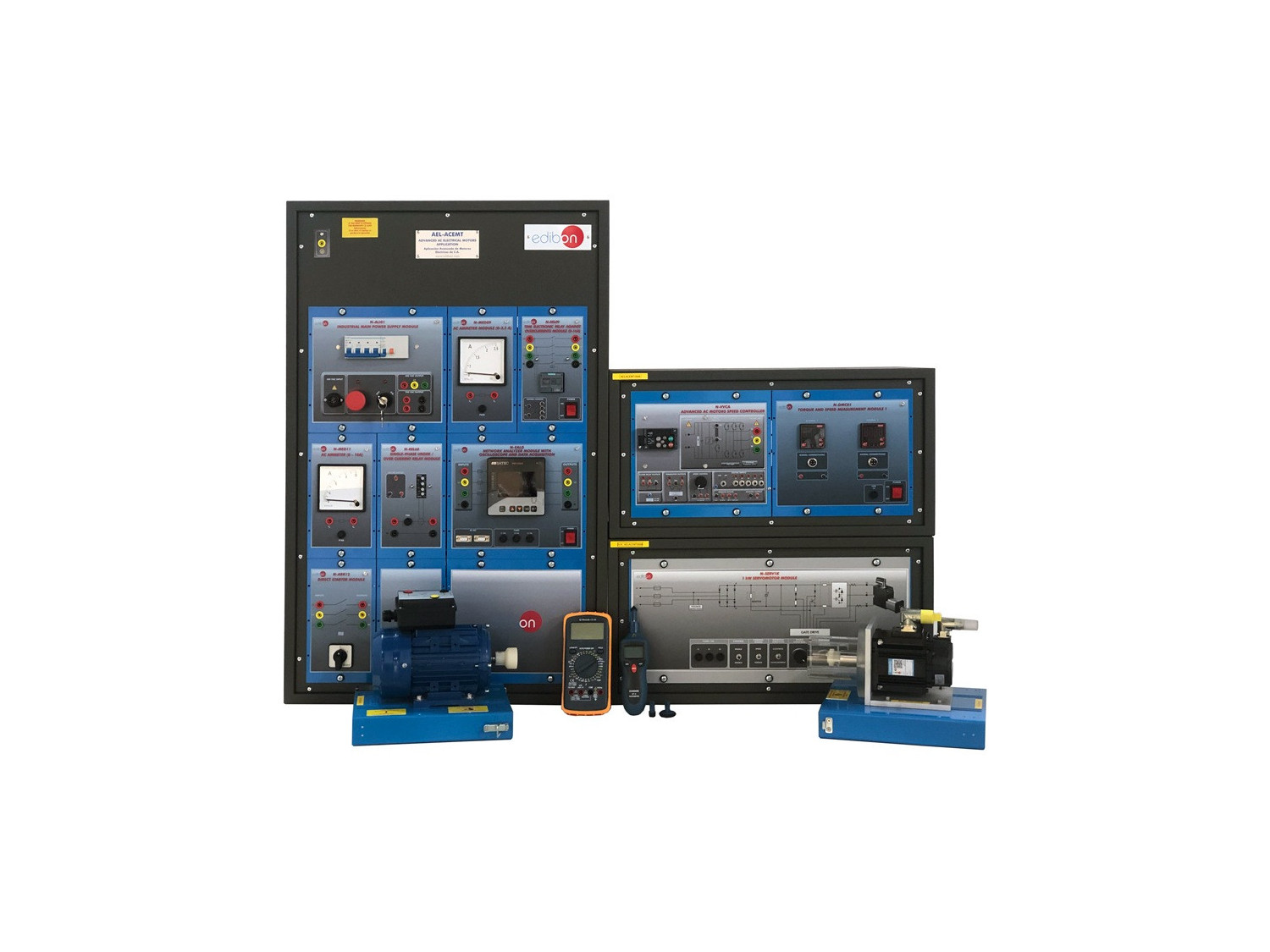

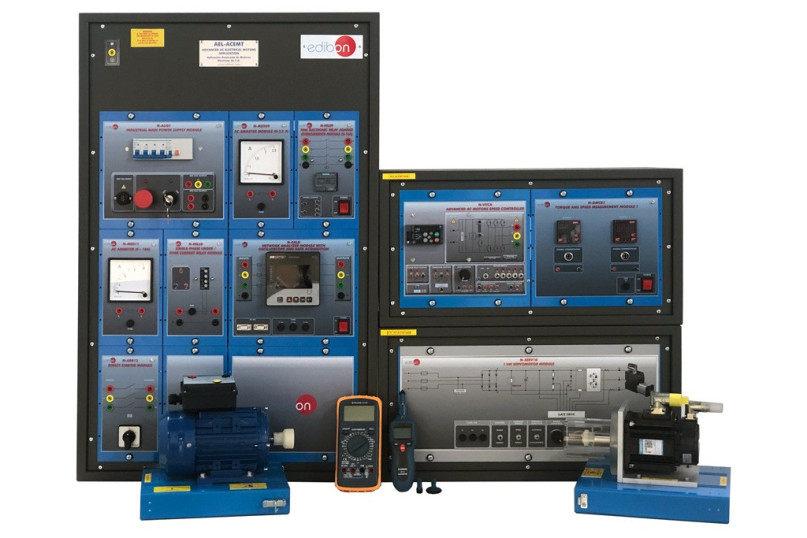

The Advanced AC Electrical Motors Application, "AEL-ACEMT", has been designed by Edibon to carry out electrical/mechanical test for a great variety of AC motors. Such tests allow obtaining the most significant electrical and mechanical characteristics of these motors .In addition, it is advisable to acquire the Control and Data Acquisition System Software for Electrical Machines, with SCADA, ‘’EM-SCADA’’, with which the user will be able to obtain the characteristic curves for the tested electric motors and fulfill reports and comparisons of the obtained curves for each electric motor to study its advantages and application fields.

The "AEL-ACEMT" enables the user to learn in depth the behavior of a great range of AC motors, such as three-phase squirrel-cage induction motor, three-phase wound induction motor, three-phase squirrel-cage induction motor with two speeds, the Dahlander motor, the three-phase reluctance motor, the single-phase asynchronous motor with starting capacitor, the single-phase asynchronous motor with starting and running capacitor, the three-phase synchronous generator, etc.

For this purpose the application includes several elements such as a servomotor, single-phase and three-phase overcurrent relays and a series of measuring devices such as analog ammeters, a network analyzer, a multimeter and an optical speed meter. Dynamic braking tests can be carried out through the servomotor while parameters such as speed, electrical current, the voltage, the power factor or the active and reactive powers are measured.

For the fulfillment of electric motors advanced tests, it is advisable to acquire the Control and Data Acquisition System Software for Electrical Machines, with SCADA, ‘’EM-SCADA’’. This advanced software allows monitoring the waveforms for current, voltage, torque and speed to study in depth the electric machines.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Some practical possibilities with Three-Phase Asynchronous Motor Squirrel Cage Kit (ACEMT-K1):

  1. Advanced frequency controller wiring and start-up. (Optional).
  2. Advanced frequency controller programming. (Optional).
  3. Three-Phase Asynchronous Squirrel Cage Motor speed control through the frequency controller. (Optional).
  4. Direct starting of the Three-Phase Asynchronous Motor of Squirrel Cage.
  5. Star-delta starting of the Three-Phase Asynchronous Motor of Squirrel Cage.
  6. Measuring of Voltages, Currents, Active Power, Reactive Power, Power Factor, etc. of the Three-Phase Asynchronous Motor of Squirrel cage.
  7. Speed digital measurement of the Three-Phase Asynchronous Motor of Squirrel cage.
  8. Braking test with the servomotor for the Three-Phase Asynchronous Squirrel Cage Motor controlled by the frequency controller.
  9. Three-Phase ovecurrent protection calibration and testing.

Some practical possibilities with Three-Phase Asynchronous Motor of Wound Rotor Kit (ACEMT-K2):

  1. Advanced frequency controller wiring and start-up. (Optional).
  2. Advanced frequency controller programming. (Optional).
  3. Three-Phase Asynchronous Motor of Wound Rotor speed control through the frequency controller. (Optional).
  4. Direct starting of the Three-Phase Asynchronous Motor of Wound Rotor.
  5. Star-delta starting of the Three-Phase Asynchronous Motor of Wound Rotor.
  6. Measuring of Voltages, Currents, Active Power, Reactive Power, Power Factor, etc. of the Three-Phase Asynchronous Motor of Wound Rotor.
  7. Speed digital measurement of the Three-Phase Asynchronous Motor of Wound Rotor.
  8. Braking test with the servomotor for the Three-Phase Asynchronous Motor of wound rotor controlled by the frequency controller.
  9. Three-Phase ovecurrent protection calibration and testing.

Some practical possibilities with Three-Phase Dahlander Motor Kit (ACEMT-K3):

  1. Wiring of the Three-Phase Dahlander Motor and the manual commutator of two speeds.
  2. Direct starting of the Three-Phase Dahlander Motor.
  3. Manual change of the Three-Phase Dahlander Motor speed.
  4. Measuring of Voltages, Currents, Active Power, Reactive Power, Power Factor, etc. of the Three-Phase Dahlander Motor.
  5. Speed digital measurement of the Three-Phase Dahlander Motor.
  6. Braking test with the servomotor for the Three-Phase Dahlander Motor.
  7. Three-Phase ovecurrent protection calibration and testing.

Some practical possibilities with Three-Phase Asynchronous Motor of two independent speeds Kit (ACEMT-K4):

  1. Wiring of the Three-Phase Asynchronous Motor of two independent speeds and the independent windings manual commutator.
  2. Direct starting of the Three-Phase Asynchronous Motor of two independent speeds.
  3. Manual change of the Three-Phase Asynchronous Motor of two independent speeds speed.
  4. Measuring of Voltages, Currents, Active Power, Reactive Power, Power Factor, etc. of the Three-Phase Asynchronous Motor of two independent.
  5. Speed digital measurement of the Three-Phase Asynchronous Motor of two independent speeds.
  6. Braking test with the servomotor for the Three-Phase Asynchronous Motor of two independent speeds.
  7. Three-Phase overcurrent protection calibration and testing.

Some practical possibilities with Single-Phase Asynchronous Motor with starting capacitor Kit (ACEMT-K5):

  1. Wiring of the Single-Phase Asynchronous Motor with Starting Capacitor.
  2. Direct starting of the Single-Phase Asynchronous Motor with Starting Capacitor.
  3. Measuring of Voltages, Currents, Active Power, Reactive Power, Power Factor, etc. of the Single-Phase Asynchronous Motor with Starting Capacitor.
  4. Speed digital measurement of the Single-Phase Asynchronous Motor with Starting Capacitor.
  5. Braking test with the servomotor for the Single-Phase Asynchronous Motor with Starting Capacitor.
  6. Single-phase overcurrent protection calibration and testing.

Some practical possibilities with Single-Phase Asynchronous Motor with starting and running capacitor Kit (ACEMT-K6):

  1. Wiring of the Single-Phase Asynchronous Motor with Starting and Running Capacitor.
  2. Direct starting of the Single-Phase Asynchronous Motor with Starting and Running Capacitor.
  3. Measuring of Voltages, Currents, Active Power, Reactive Power, Power Factor, etc. of the Single-Phase Asynchronous Motor with Starting and Running Capacitor.
  4. Speed digital measurement of the Single-Phase Asynchronous Motor with Starting and Running Capacitor.
  5. Braking test with the servomotor for the Single-Phase Asynchronous Motor with Starting and Running Capacitor.
  6. Single-phase overcurrent protection calibration and testing.

Some practical possibilities with Single-Phase Asynchronous Motor with split phase Kit (ACEMT-K7):

  1. Wiring of the Single-Phase Asynchronous Motor with split phase.
  2. Direct starting of the Single-Phase Asynchronous Motor with split phase.
  3. Measuring of Voltages, Currents, Active Power, Reactive Power, Power Factor, etc. of the Single-Phase Asynchronous Motor with split phase.
  4. Speed digital measurement of the Single-Phase Asynchronous Motor with split phase.
  5. Braking test with the servomotor for the Single-Phase Asynchronous Motor with split phase.
  6. Single-phase overcurrent protection calibration and testing.

Some practical possibilities with Three-Phase Reluctance Motor Kit (ACEMT-K8):

  1. Wiring of the Three-Phase Reluctance Motor.
  2. Direct starting of the Three-Phase Reluctance Motor.
  3. Measuring of Voltages, Currents, Active Power, Reactive Power, Power Factor, etc. of the Three-Phase Reluctance Motor.
  4. Speed digital measurement of the Three-Phase Reluctance Motor.
  5. Braking test with the servomotor for the Three-Phase Reluctance Motor.
  6. Three-Phase ovecurrent protection calibration and testing.

Some practical possibilities with Three-Phase Synchronous Generator Kit (ACEMT-K9):

  1. Wiring of the AC asynchronous generator.
  2. Study of the parameters to be controlled in an AC synchronous generator.
  3. Study of the speed VS voltage at the generator output with a constant excitation current.
  4. Study of the excitation current VS voltage at the generator output with constant frequency.
  5. Study of the voltage drop in the under loaded generator.

Practical exercises with the recommended Control and Data Acquisition System Software for Electrical Machines, with SCADA, "EM-SCADA":

  1. Real time torque measurement.
  2. Real time speed measurement.
  3. Real time current and voltage RMS values.
  4. Real time current and voltage waveforms measurement.
  5. Electrodynamical study of the motor.
  6. Obtaining characteristic curves (torque-speed curve, torquecurrent curve etc).
  7. Obtaining the saved results.
  8. Braking test and real time monitoring of the results.
Ver mais

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Several other exercises can be done and designed by the user.
