AEL-WPPI Aplicação de Centrais Eólicas com Gerador de Indução
2.4.3.- ELETRÔNICA DE POTÊNCIA
5.3.3.- ENERGIA EÓLICA
6.1.2.2.- ELETRÔNICA DE POTÊNCIA E ELETRÔNICA INDUSTRIAL
SISTEMAS INOVADORES

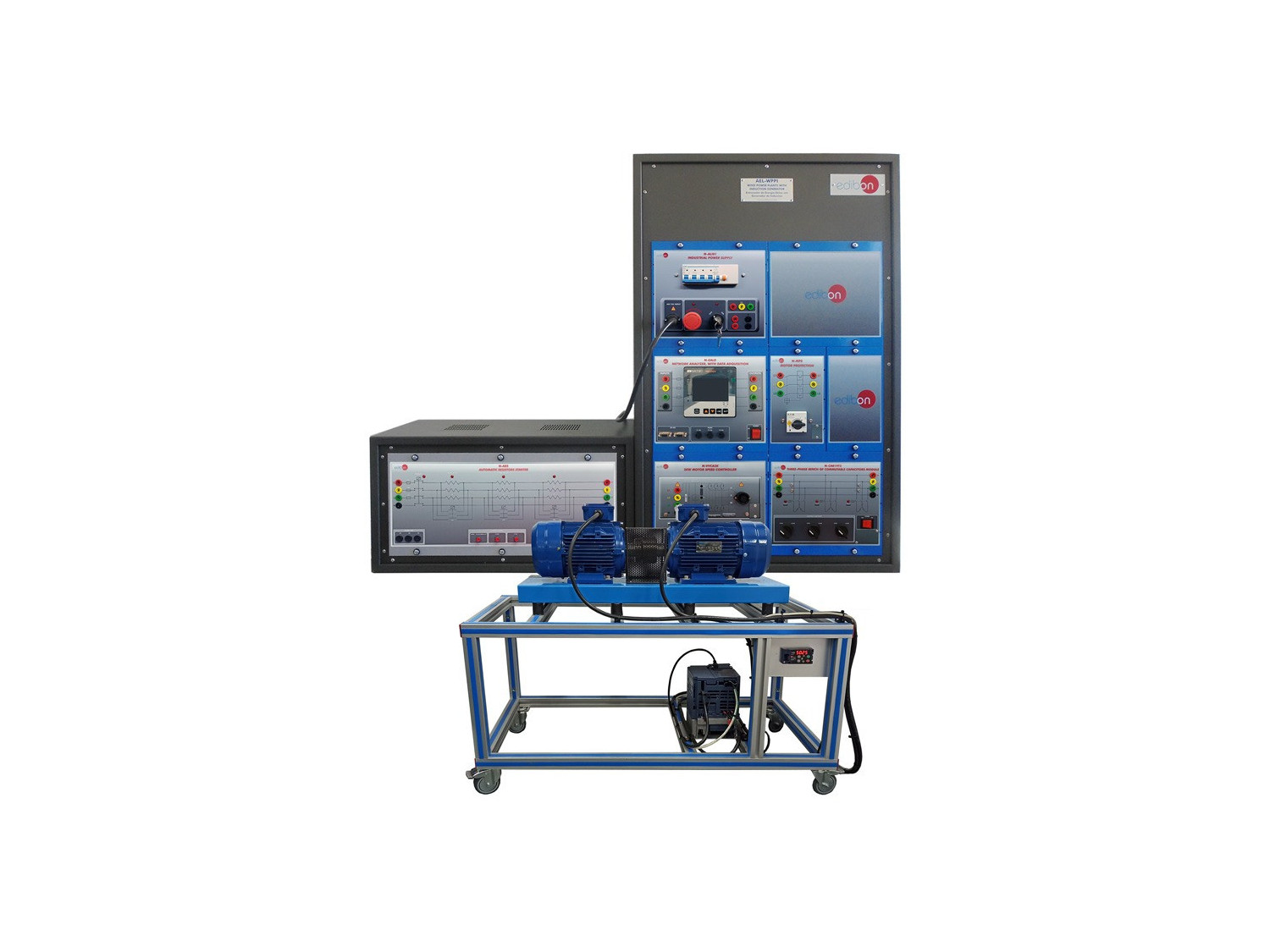

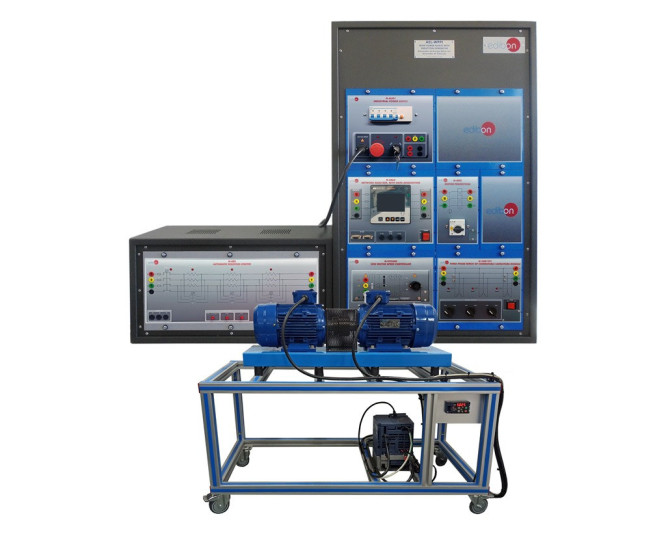

The Wind Power Plants with Induction Generator Application, "AEL-WPPI", has been developed by EDIBON to study the wind turbines electrical performance with three-phase induction generators of squirrel cage that inject power in the network.
NOTÍCIAS RELACIONADAS
Descrição Geral
The Wind Power Plants with Induction Generator Application, "AEL-WPPI", has been developed by EDIBON to study the wind turbines electrical performance with three-phase induction generators of squirrel cage that inject power in the network.
Wind turbines with induction generator have some characteristics, of great interest to the students, which will be studied working with the machine in different regimes: sub-synchronous, synchronous and super-synchronous. Depending on the working regime of the induction generator, different electrical parameters can be analyzed. To analyze these electrical parameters, the Wind Power Plants with Induction Generator Trainer has an advanced network analyzer to will show the student, among others, the following parameters: positive and negative active, reactive and apparent powers (P, Q and S), line and total power factors, line currents, phase and line voltages, current and voltage harmonics, etc.
The wind turbine induction generator is coupled to the three-phase induction motor of squirrel cage in order to simulate different wind speeds. The three-phase induction motor is controlled by mean a frequency variator to vary the wind speed. On this way, the user can simulate different wind speeds and observes the response of the electrical generator coupled to the grid.
The Wind Power Plants Induction Generator Application has a series of sensors which allow the student to measure the wind turbine speed and the applied torque for it in order to calculate electrical and mechanical parameters, through which the student will go in depth about knowledge of wind turbines with induction generator.
This application has a power factor compensation module in order to analyze the effects of the reactive energy in the induction generator and the grid.
This application has all necessary electrical and mechanical safety elements.
The "AEL-WPPI" application includes the following elements:
- N-ALI01. Industrial Main Power Supply Module.
- N-CAR19T3. Three-Phase Bench of Commutable Capacitors Module.
- N-VVCA2K. 2 kW Motor Speed Controller Module.
- N-EALD. Electrical Network Analyzer Module with Oscilloscope and Data Acquisition.
- N-MPS. Motor Protection Module (1.6 A - 2.5 A).
- N-ARS. Automatic Resistors Starter Module.
- GMG1.25K3PH. 1.25 kW Generator-Motor Group.
EXERCÍCIOS E PRÁTICAS GUIADAS
EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL
- Commissioning of the induction generator.
- Wiring procedure of the induction generator to the grid.
- Study of operation regimes of the wind turbines with threephase induction generator of squirrel cage.
- Analysis of the induction generators coupled to the grid in sub-synchronous state.
- Analysis of the induction generators coupled to the grid in synchronous state.
- Analysis of the induction generators coupled to the grid in super-synchronous state.
- Study of electrical parameters of the induction generator coupled to the grid in sub-synchronous state.
- Study of electrical parameters of the induction generator coupled to the grid in synchronous state.
- Study of electrical parameters of the induction generator coupled to the grid in super-synchronous state.
- Efficiency study of the induction generator comparing the injected power in the grid with the mechanical power shaft of the turbine.
- Power factor influence with the speed variations and analysis of the possible solutions to automate the regulation of the power factor.
- Active power compensation by mean capacitor banks and electrical measurement of the electrical machine response.
- Several other exercises can be done and designed by the user.
EQUIPAMENTOS SIMILARES DISPONÍVEIS
5.3.3.- ENERGIA EÓLICA
EEE
The Wind Energy Unit, "EEE", contains an aerogenerator, in laboratory-scale, and is used to study the conversion of kinetic wind energy into electrical energy and to study the influence of some factors on this generation.The unit consists of a...
5.3.3.- ENERGIA EÓLICA
EEEC
Equipamento de Energia Eólica, Controlado por Computador (PC)
The Computer Controlled Wind Energy Unit, "EEEC", contains an aerogenerator, in laboratory-scale, and is used to study the conversion of kinetic wind energy into electrical energy and to study the influence of some factors on this generation.The...
5.3.3.- ENERGIA EÓLICA
MINI-EEEC
Equipamento Básico de Energia Eólica, Controlado por Computador (PC)
The Computer Controlled Wind Energy Basic Unit, "MINI-EEEC", is a small-scale unit designed to study wind energy and the influence of some factors on its generation.This unit consists of a transparent tunnel, a wind turbine with rotor to place up...
5.3.3.- ENERGIA EÓLICA
MINI-EEE
Equipamento básico de Energia Eólica.
The Wind Energy Basic Unit, "MINI-EEE", is a small-scale unit designed to study wind energy and the influence of some factors on its generation.This unit consists of a transparent tunnel, a wind turbine with rotor to place up to six blades and a...
5.3.3.- ENERGIA EÓLICA
AEL-WPT
Aplicação de Energia Eólica com Gerador Síncrono de Ímãs Permanentes
Considering the above, this application allows experimental investigation on the conversion of wind energy into electricity by means of a wind power generator. The system configuration is stand-alone (isolated from the grid). The equipment is...
5.1.3.1.- GERAÇÃO DE ENERGIA
AEL-EPP
Aplicação de Centrais Elétricas
The Energy Power Plants Application, "AEL-EPP", has been designed by EDIBON for the study of the basic principles of operation of power plants as well as of the substations in charge of receiving the energy produced by them.The "AEL-EPP"...
5.3.3.- ENERGIA EÓLICA
AEL-SWT
Aplicação de Turbina Eólica em Redes Isoladas
The Stand-Alone Wind Turbine Aplication, "AEL-SWT", has been designed by Edibon for the training at both the theoretical and practicallevels in the field of wind turbines.The "AEL-SWT" application provides several levels of training to give the...
5.3.3.- ENERGIA EÓLICA
AEL-WPTC
Aplicação de Energia Eólica com Gerador Síncrono de Imãs Permanentes, com SCADA
The Wind Power Application with Permanent Magnets Synchronous Generator, with SCADA, "AEL-WPTC", has been designed to study the conversion of wind energy into electricity by means of a permanent magnet synchronous generator. This application...
5.3.3.- ENERGIA EÓLICA
AEL-WPPIC
Aplicação de Plantas de Energia Eólica com Gerador de Indução, Controlada por Computador (PC)
The Computer Controlled Wind Power Plants Application with Induction Generator, "AEL-WPPIC", has been designed by EDIBON to study of the main characteristics and behavior of the induction generators used in wind turbines which inject the generated...
EQUIPAMENTOS COMPLEMENTARES
5.3.3.- ENERGIA EÓLICA
AEL-WPP
Wind Power Plants with Double Feed Induction Generator Application
The Wind Power Plants with Double Feed Induction Generator Application, "AEL-WPP", is used to investigate the design and operation of modern wind power stations. The "AEL-WPP" consists of a prime motor that moves a double-feed induction generator...
5.3.3.- ENERGIA EÓLICA

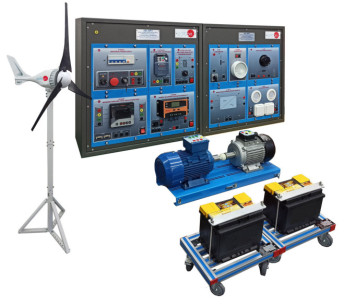

AEL-WPT
