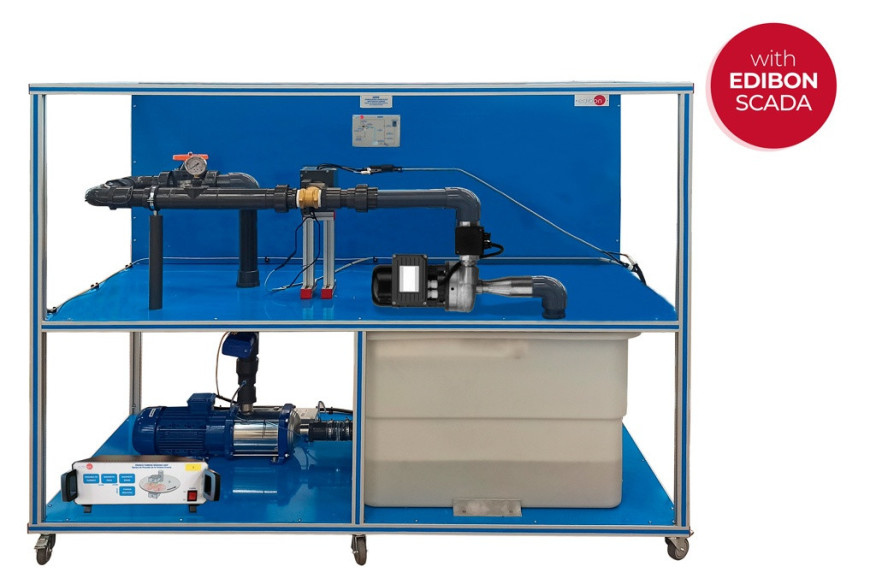

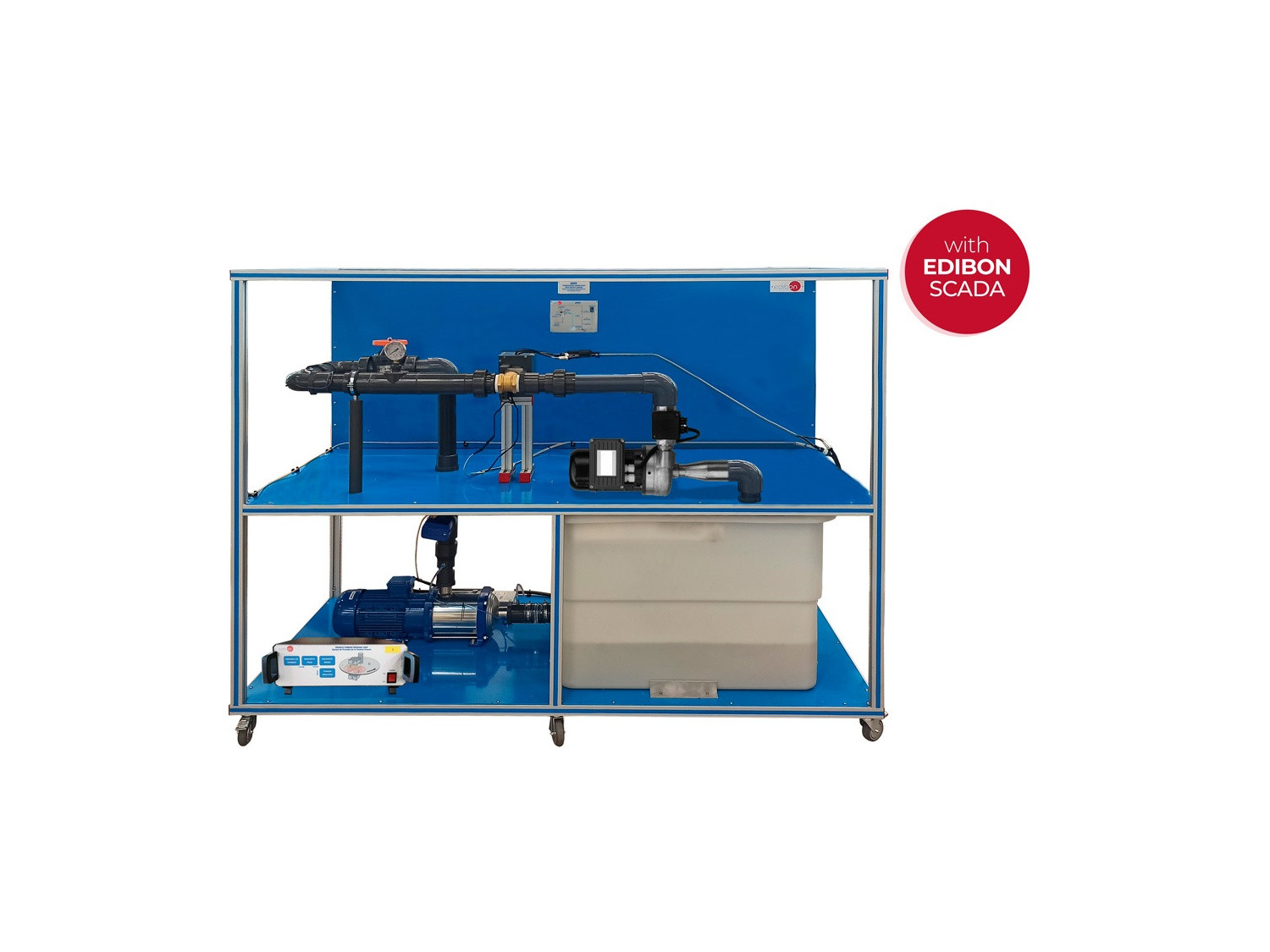

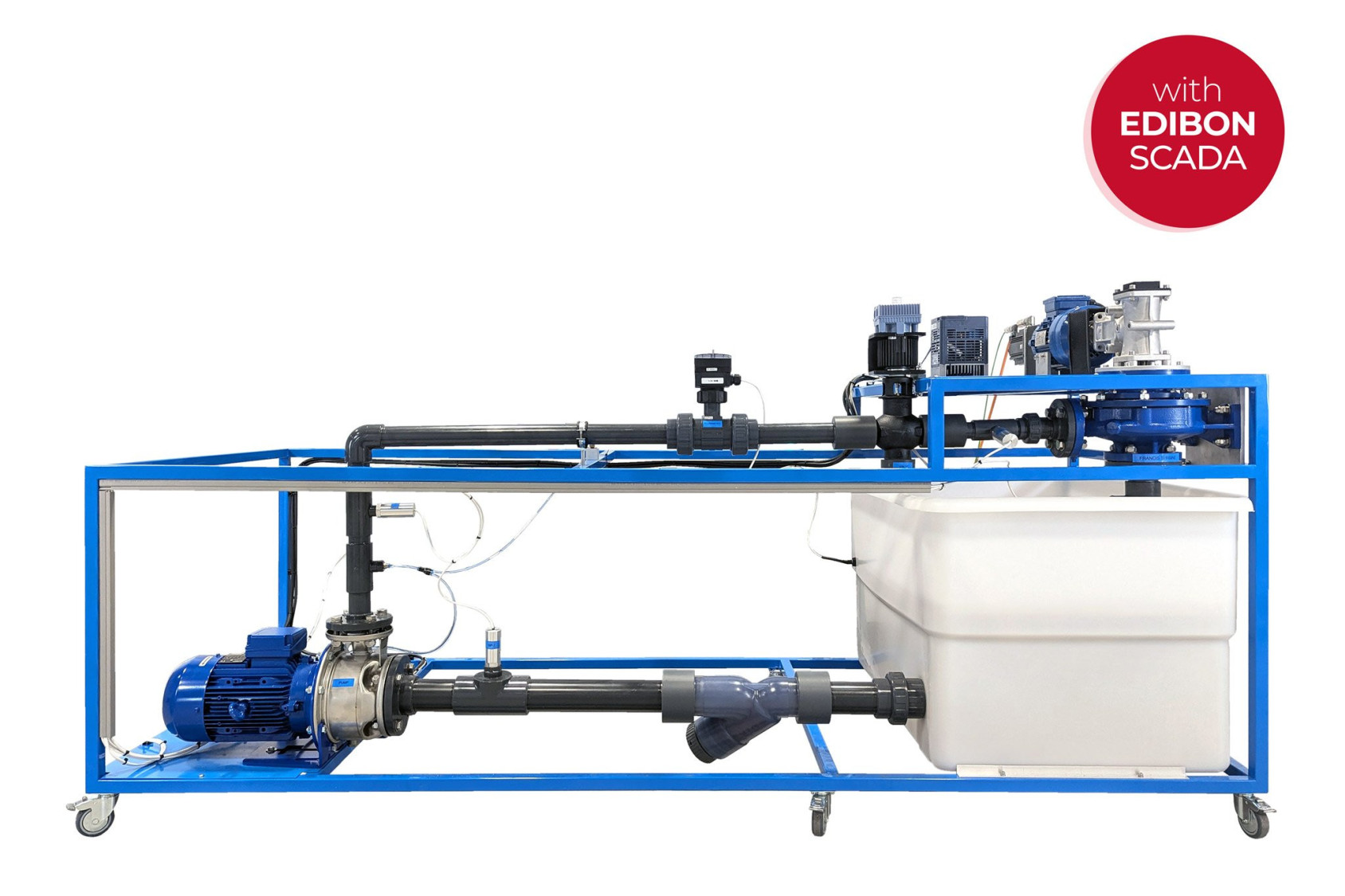

Unit: HPPF. Computer Controlled Hydroelectric Power Plant with Francis Turbine

COMPUTER CONTROLLED HYDROELECTRIC POWER PLANT WITH FRANCIS TURBINE - HPPF

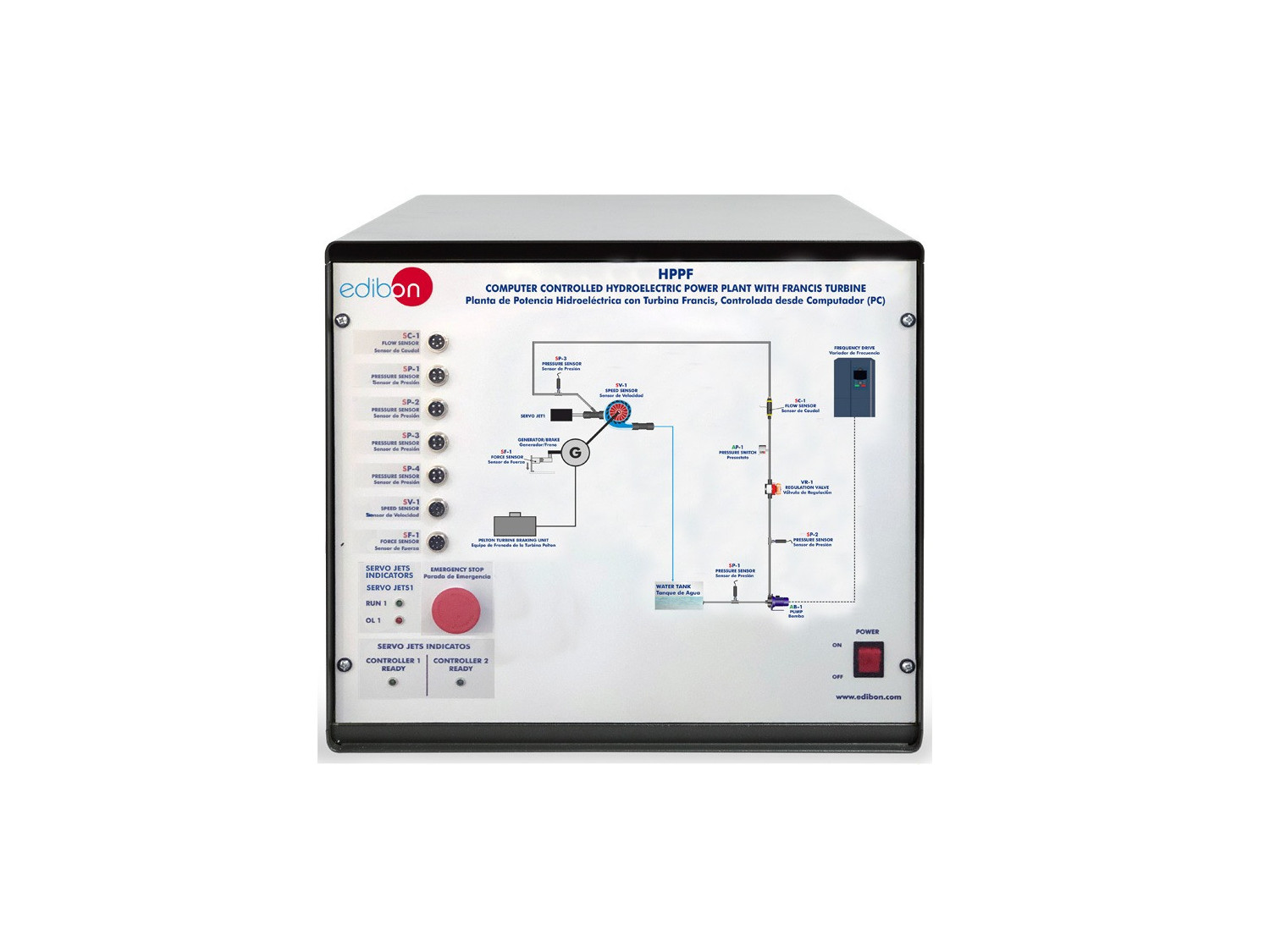

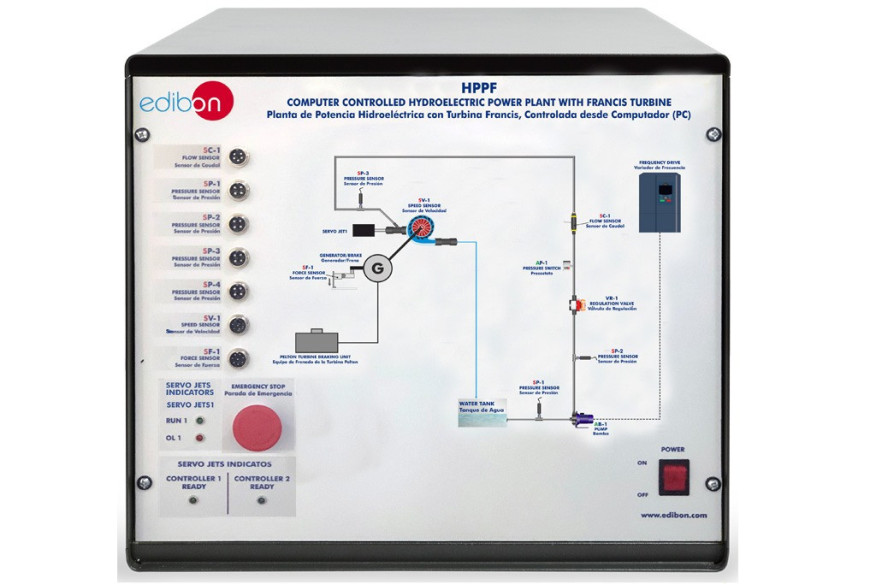

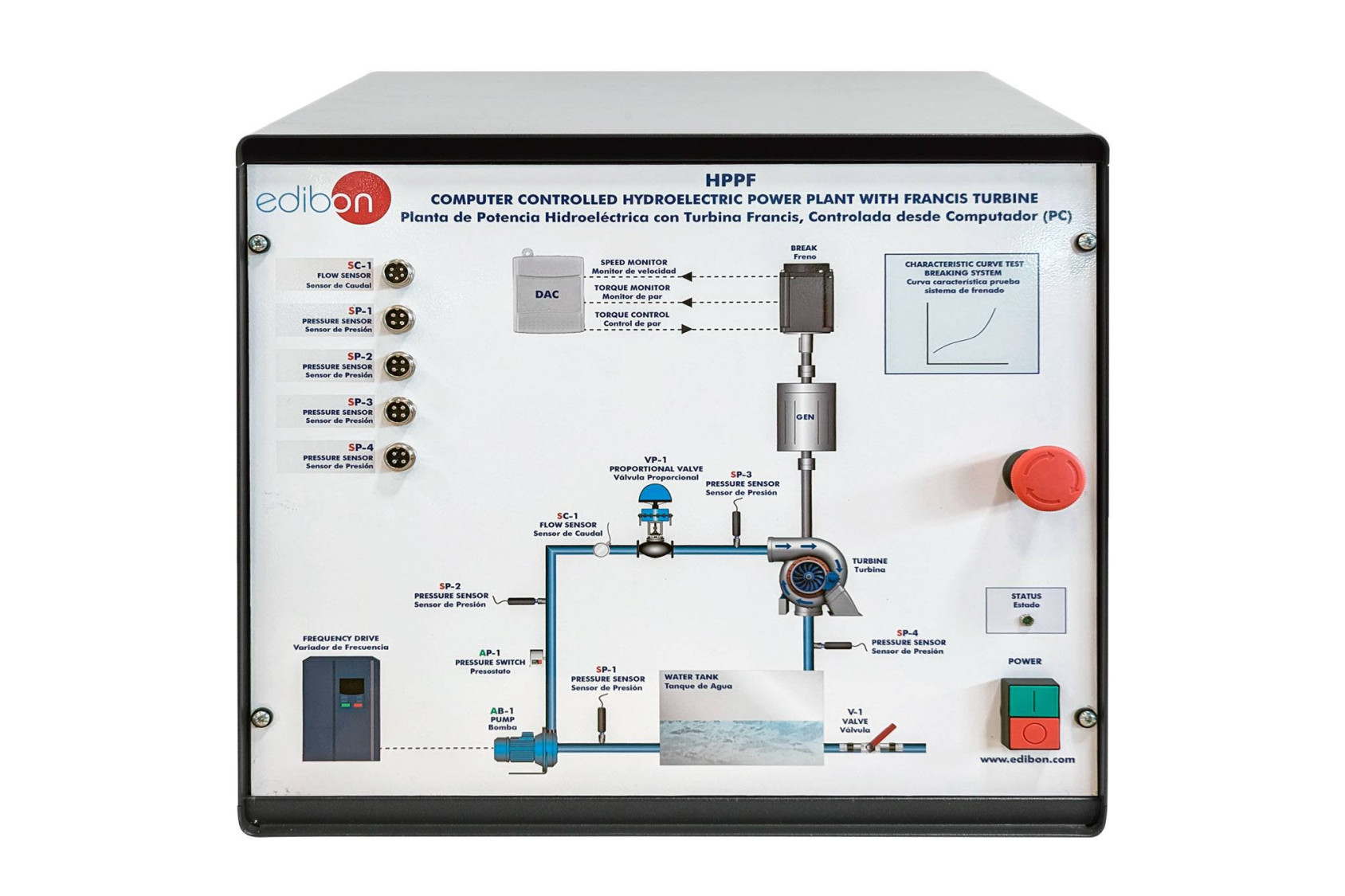

HPPF/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED HYDROELECTRIC POWER PLANT WITH FRANCIS TURBINE - HPPF

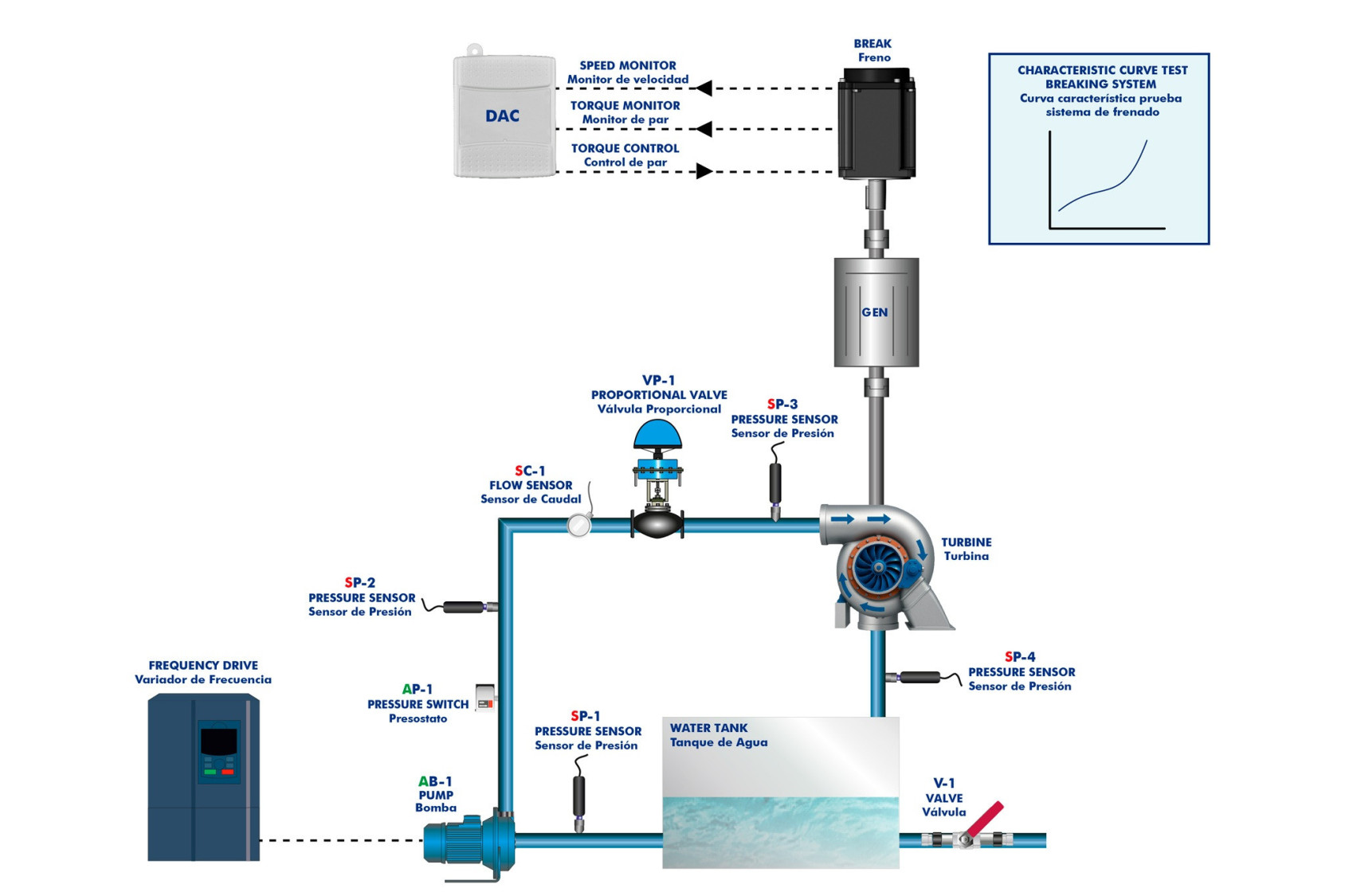

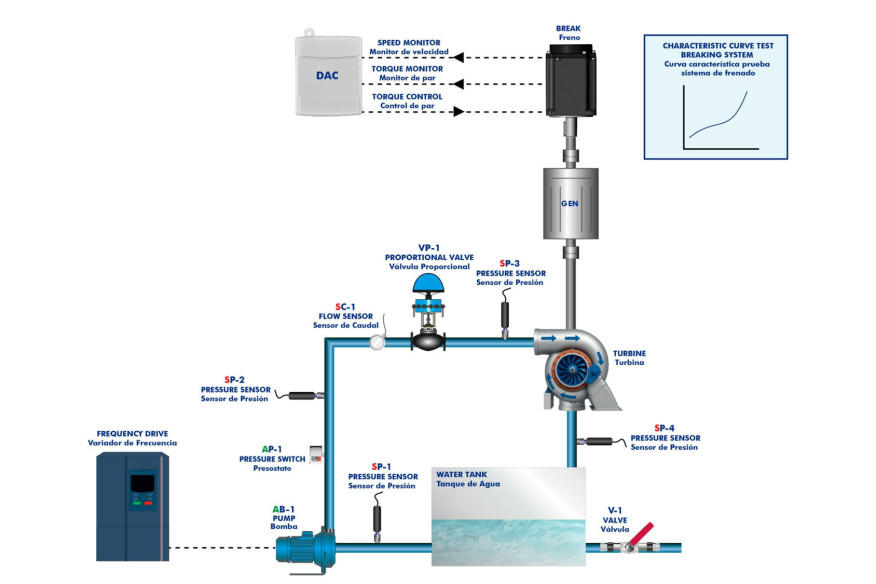

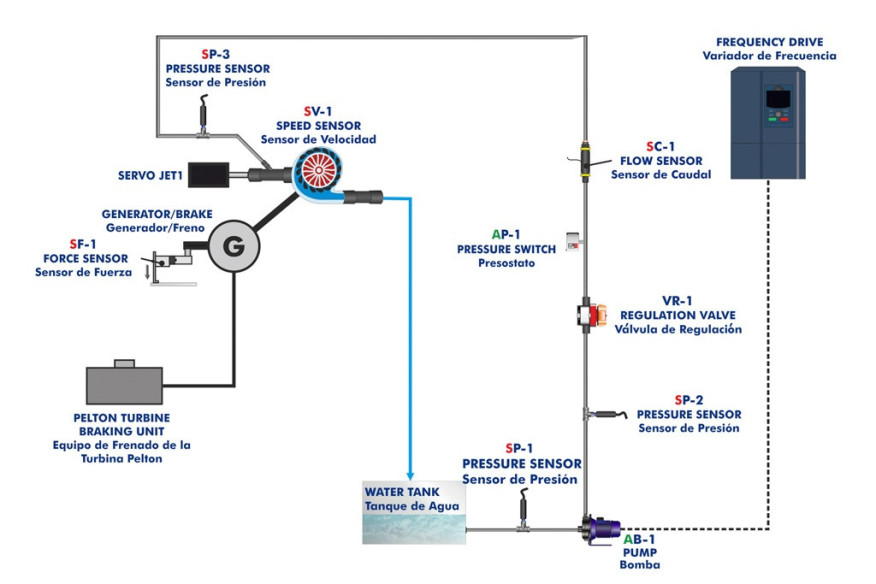

Process diagram and unit elements allocation

COMPUTER CONTROLLED HYDROELECTRIC POWER PLANT WITH FRANCIS TURBINE - HPPF
COMPUTER CONTROLLED HYDROELECTRIC POWER PLANT WITH FRANCIS TURBINE - HPPF
COMPUTER CONTROLLED HYDROELECTRIC POWER PLANT WITH FRANCIS TURBINE - HPPF

SISTEMAS INOVADORES

EDIBON introduces the Computer Controlled Hydroelectric Power Plant with Francis Turbine, "HPPF," meticulously designed to explore the functionality of hydroelectric power plants based on Francis turbines.

Ver descrição geral

NOTÍCIAS RELACIONADAS

Descrição Geral

EDIBON introduces the Computer Controlled Hydroelectric Power Plant with Francis Turbine, "HPPF," meticulously designed to explore the functionality of hydroelectric power plants based on Francis turbines.

This unit not only facilitates the investigation of hydroelectric processes but also allows for a detailed analysis of the mechanical attributes unique to Francis turbines.

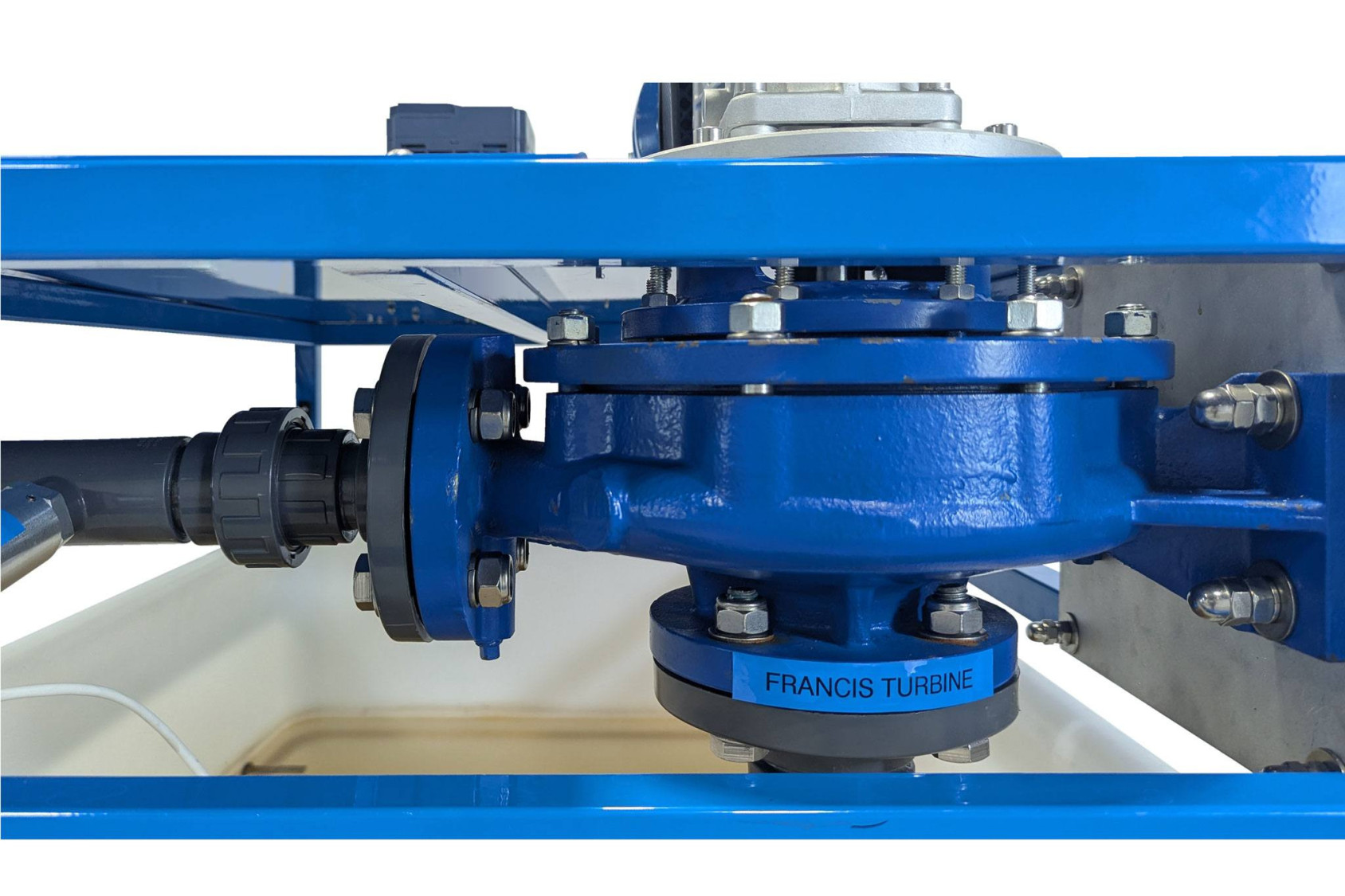

From a mechanical standpoint, the "HPPF" unit boasts an aluminum and steel structure incorporating key components: a 0.75 kW Francis turbine with appropriate features, a water tank simulating a river, a powerful water pump for simulating controlled water flow. Manual control via the SCADA system or automatic control through an advanced controller, as outlined later in this catalog, provides flexibility. The "HPPF" unit integrates strategically positioned sensors measuring physical variables like flow, pressure and speed. These sensors empower users to visualize and analyze turbine and plant efficiencies and the impact of system variables on turbine performance.

Electrical exploration recommends acquiring the "N-REVT/1K" and "N-CAR19T/3C" resistive and capacitive loads, along with the "HPPF-CR" Control and Regulation Unit. This unit encompasses essential electrical elements for Francis turbine control. Analog measuring instruments such as voltmeter, wattmeter, and varimeter deliver insights into generator electrical parameters. The advanced controller automatically manages turbine adjustments concerning electrical power generated, acting as a multifunctional protective shield against over-frequency, over-voltage, over-current, and reverse power situations. An adjacent network analyzer facilitates measurement and visualization of electrical parameters injected into the real electrical network during synchronization. Additionally, the unit operates in island mode, supplying power to specified electrical loads.

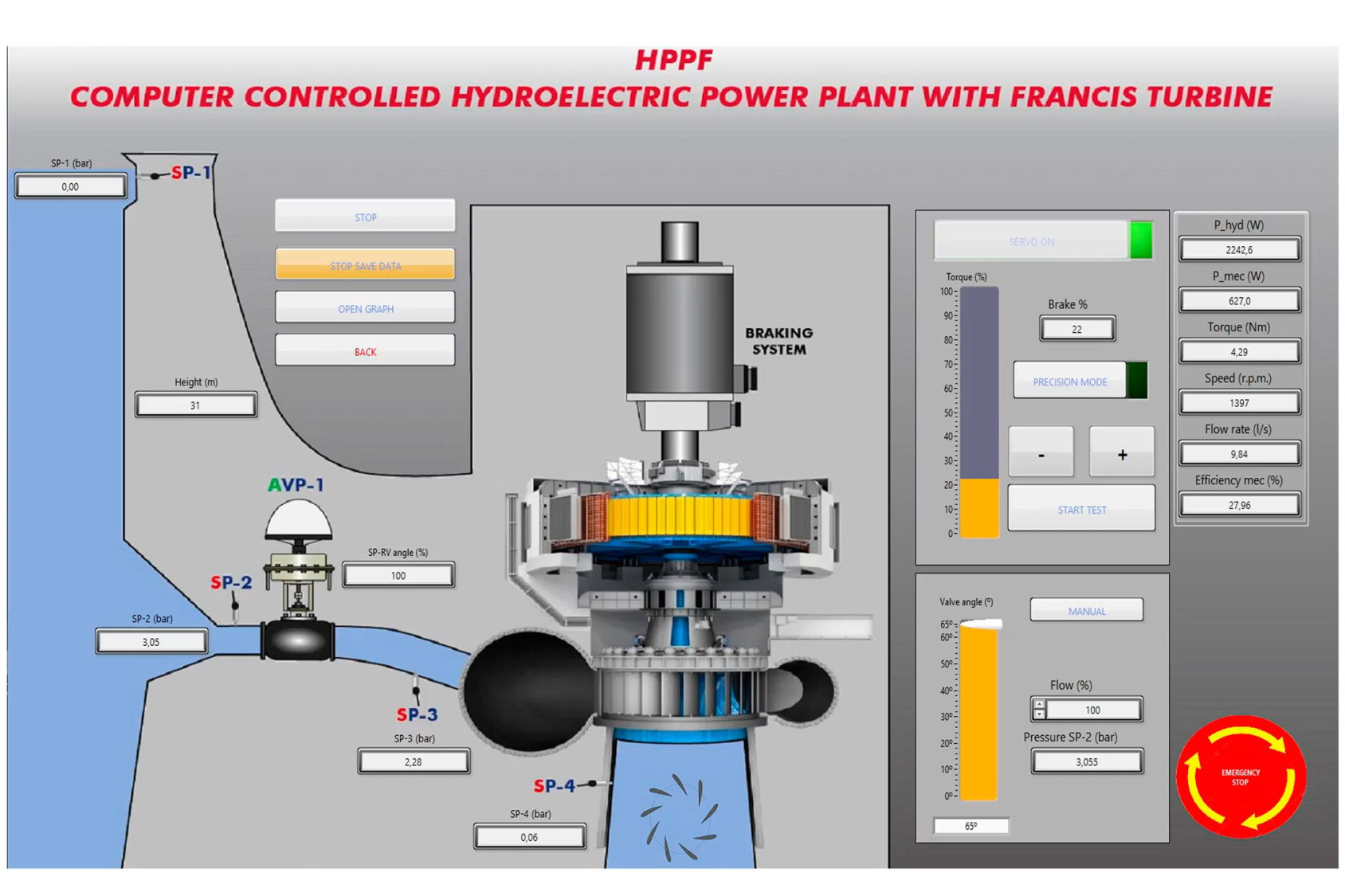

Supervisory Control and Data Acquisition (SCADA) system inclusion ensures the comprehensive collection of electrical and mechanical parameters. SCADA serves as an indispensable tool for meticulous analysis, allowing graphical visualization of parameters. This capability enables a step-by-step understanding of system dynamics, such as the influence of variables on turbine mechanical power, performance variation based on adjustments, and its consequential impact on turbine torque.

In summary, the "HPPF" unit has the following features:

Computer Controlled Hydroelectric Power Plant with Francis Turbine (HPPF):

  • Aluminum and steel structure.
  • 0.75 kW Francis turbine with appropriate features.
  • Water reservoir for simulating the flow of the river.
  • Water pump for simulating controlled water flow.
  • 0.75 kW electrical generator.

Acquiring the additional recommended elements HPPF-CR, N-REVT/1K, and N-CAR19T/3C:

  • Analog measuring instruments: voltmeter, wattmeter, and varimeter.
  • Advanced controller to govern turbine adjustments and provide generator and turbine protection.
  • Network analyzer to measure and visualize generator's electrical parameters.
  • Ability to operate in island mode, supplying power to electric loads.
  • Electrical loads to simulate different energy consumptions.

These elements allow for a comprehensive study of both the mechanical and electrical aspects of hydroelectric power generation with Francis turbines. The "HPPF" unit offers an integrated tool for investigating and thoroughly understanding the operation of these systems, providing precise and detailed information through the SCADA system.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Determination of Francis turbine operating parameters.
  2. Analysis of the relationship between water flow and turbine mechanical power.
  3. Determination of Francis turbine efficiency as a function of water jump and load applied to the turbine.
  4. Analysis of the influence of water flow on turbine performance: the water flow rate supplied to the turbine is adjusted and its performance is measured in relation to the mechanical power.
  5. Study the relationship between injector opening and generated mechanical power: measuring of the mechanical power developed by the turbine while varying the injector opening.
  6. Optimization of turbine performance: testing with different combinations of water head height and injector opening to find the configuration that maximizes turbine performance.
  7. Study the behavior of sensors: Analyze the response of flow rate, pressure y velocity sensors under different operating conditions.

Additional practical possibilities with additional recommended elements HPPF-CR, N-REVT/1K and N-CAR19T/3C:

  1. Study of energy production in stand-alone mode.
  2. Study of the impact of the connection to the generator of electrical loads in island mode. Influence on generator voltage and frequency.
  3. Study of the synchronization process of the generator with the grid. Control of frequency, voltage and phase sequence.
  4. Study of the causes and consequences of the motorization of the generator in synchronism with the grid.
  5. Study of the impact of sudden uncoupling of the turbine and the grid on the electrical and mechanical variables of the turbine.
  6. Analysis of the effect of load on power plant performance: Study of the synchronization of the electrical generator with the grid. Use of the network analyzer to measure and visualize the most relevant electrical parameters of the process.
  7. Study of the synchronization of the electric generator with the grid. Use of the network analyzer to measure and visualize the most relevant parameters of the process.
  8. Evaluation of system protection and safety: verification of advanced controller protection functions, such as overfrequency, over-voltage, over-current and reverse power protection. Verification of the system response to fault or overload situations.
  9. Analysis of system dynamics using SCADA: Use SCADA to visualize electrical and mechanical parameters in real time. Monitor in detail how the parameters vary and the interactions between them during different plant operations.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the HPPF unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the HPPF unit process.
  9. Several other exercises can be done and designed by the user.
