ERP-CBM Aplicação de Cibersegurança

5.6.2.- SISTEMAS DE PROTEÇÃO
CYBERSECURITY APPLICATION - ERP-CBM

SISTEMAS INOVADORES

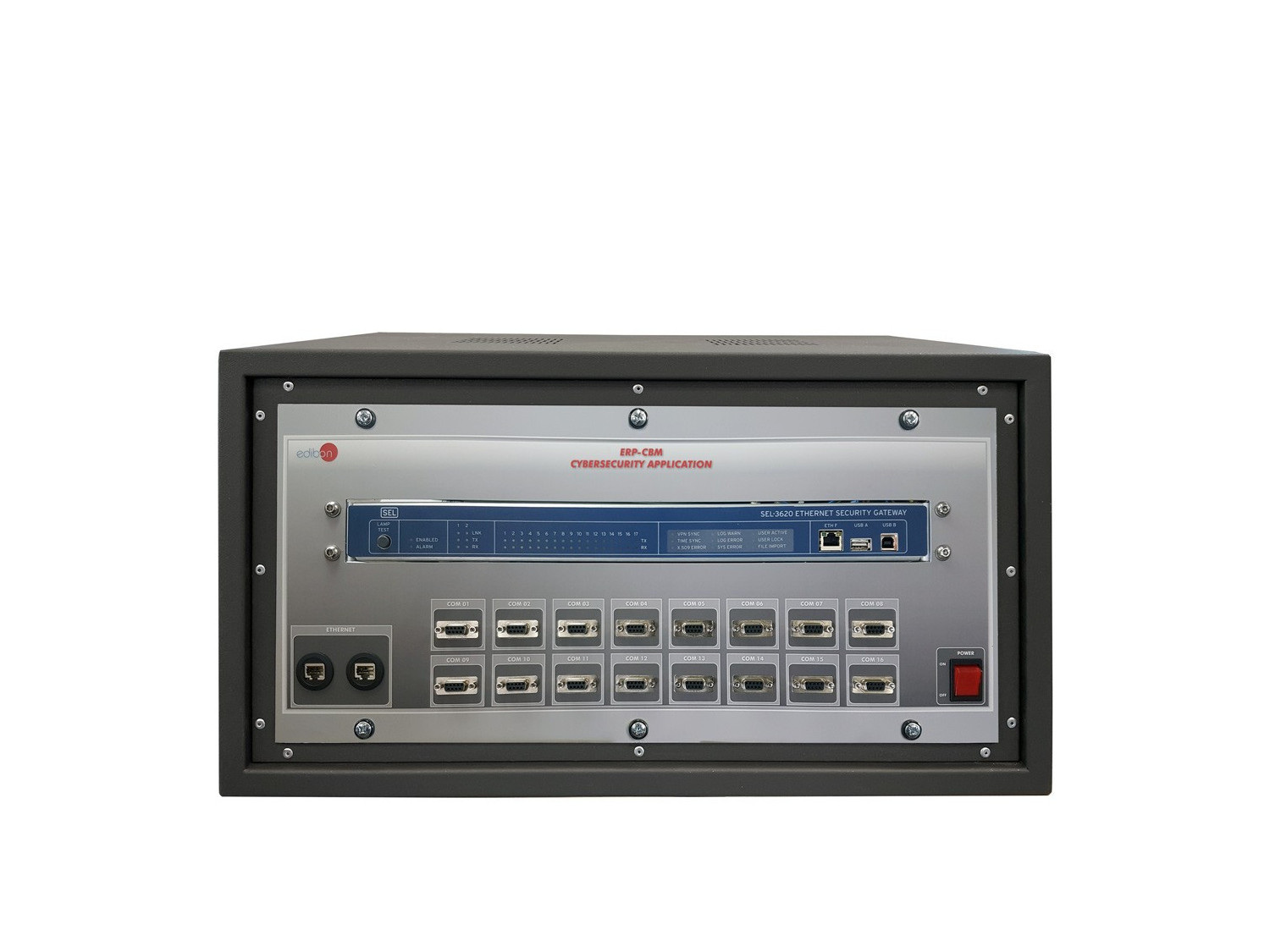

The Cybersecurity Application, "ERP-CBM", has been designed by EDIBON to allow the students, teachers and researchers to understand how substations are protected against cyber attacks.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Ler mais
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Ler mais
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais

Descrição Geral

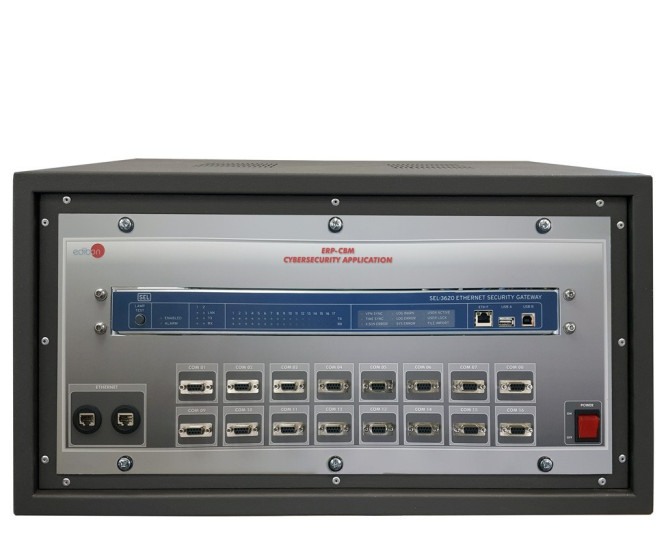

The Cybersecurity Application, "ERP-CBM", has been designed by EDIBON to allow the students, teachers and researchers to understand how substations are protected against cyber attacks.

Power engineers demand the most reliable services for their control and protection systems. Settings cannot be disturbed, cables cannot be switched, and significant latency cannot be tolerated. Engineers must have full control of their critical systems and maintain full access

control to their equipment 24 hours a day, 365 days a year. Cybersecurity must protect these assets and enable power engineers to accomplish their work efficiently.

The ERP-CBM has been designed to protect power protections relays network from malicious traffic with an integrated firewall and strong authentication access control.

Protects meters, protective relays, programmable logic controllers (PLC), remote terminals unit (RTUs), and computers, are communicated through EIA-232, also known as RS-232 (standard for serial communication transmission of data).

The ERP-CBM allows the students to study how prevent unauthorized access, control, monitoring, and malicious attacks by authenticating and optionally encrypting all data along the communications path.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Accessing the cybersecurity protection relay web server.
  2. Creating administrator accounts.
  3. Configuration of the hierarchical communication cybersecurity system between the protection relays using the ACSelerator software.
  4. Creation of users, groups and permissions.
  5. Configuration of the cybersecurity relay communication ports.
  6. Creating communications between different protection relays and the cybersecurity relay.
  7. Creating user passwords with different access levels.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Resetting the protection relay to set up the communication system from scratch.
  2. Simulation of cyber attack.
  3. Creation of encrypted communication between the cybersecurity relay and the differential protection relay.
  4. Creation of encrypted communication between the cybersecurity relay and the overcurrent protection relay.
  5. Creation of encrypted communication between the cybersecurity relay and the distance protection relay.
  6. Creation of encrypted communication between the cybersecurity relay and the directional protection relay.
  7. Creation of encrypted communication between the cybersecurity relay and the feeder management relay.
