AE-PLC-PAN Aplicação de CLP PANASONIC

6.2.1.- OPÇÕES DE PLC

SISTEMAS INOVADORES

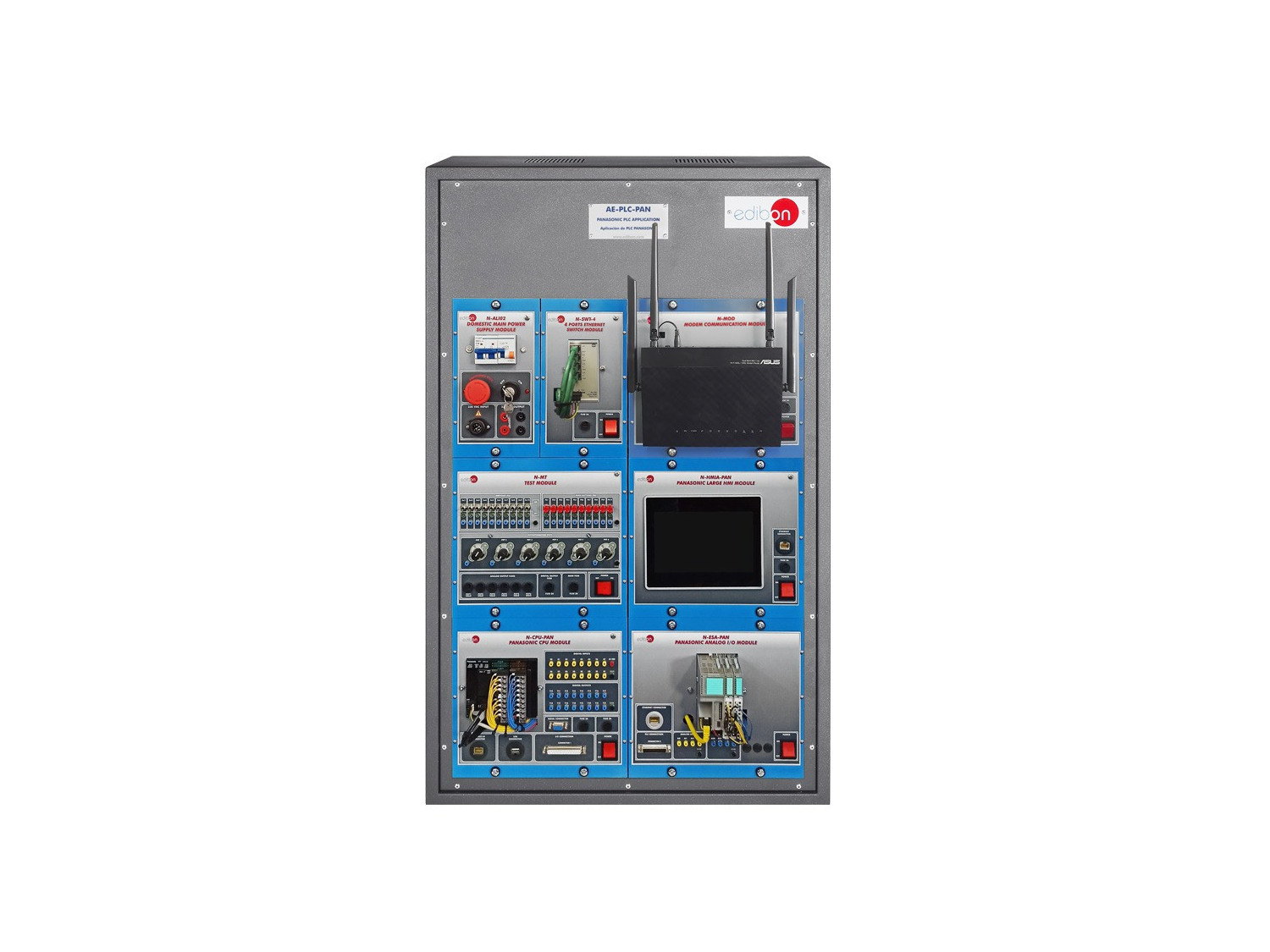

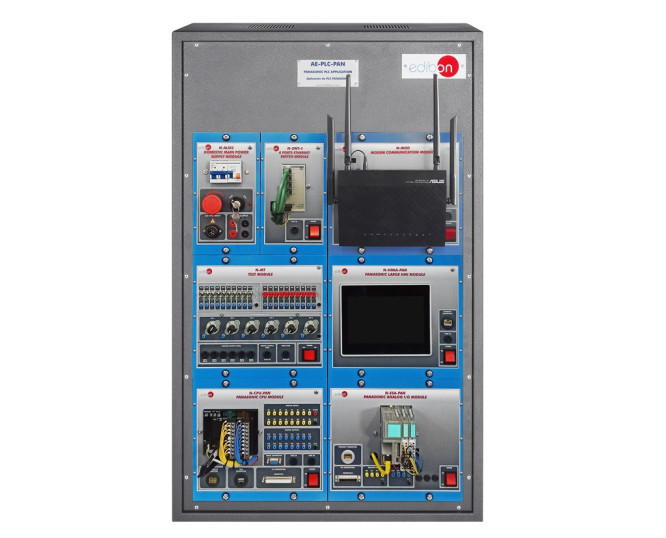

The PANASONIC PLC Application, "AE-PLC-PAN", is a PLC unit designed by EDIBON which use one of the last PANASONIC PLC units. It allows the user to learn about PLC logic programming, different PLC programming languages, PLC to PC communication, etc.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

Descrição Geral

The "AE-PLC-PAN" is provided with a set of practical exercises, through which the student will understand how to work with the PLC systems, without any background knowledge or experience. Can be used alone, to study the PLC systems, or in combination with the EDIBON compatible units, to study a real application of the PLC systems.

The "AE-PLC-PAN" is a modular system with the common components that make up a complete PLC system. The PANASONIC PLC Base Unit, "AE-PLC-PAN-UB" always includes the power supply, the PLC CPU module and the software to program it, but there are also available a series of recommended additional kits to complete the PLC system with the required functions of the programmable controller (test module, analog input and output signals, HMI devices, PLC internet connection, etc.). These kits allows the user to learn about HMI programming, testing analog inputs and outputs signals, programming a web server application, etc.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Using variables.
Using digital inputs I.
Using digital inputs II.
Testing digital inputs (PLC-PAN-K1).
Using digital outputs.
Testing digital outputs.
Using analog signals I (PLC-PAN-K1 and PLC-PAN-K2).
Using analog signals II (PLC-PAN-K1 and PLC-PAN-K2).
Square wave generator.
HMI simple program (PLC-PAN-K3 or PLC-PAN-K4).
Using digital outputs with HMI device I (PLC-PAN-K3 or PLC-PAN-K4).
Using digital outputs with HMI device II (PLC-PAN-K3 or PLC-PAN-K4).
Reading data from a register with the HMI device (PLC-PAN-K3 or PLC-PAN-K4).
Writing data to a register with the HMI device (PLC-PAN-K3 or PLC-PAN-K4).
Switching screens of the HMI device (PLC-PAN-K3 or PLC-PAN-K4).
Internet connection of the PLC unit (PLC-PAN-K5).
Control digital inputs with a web server application (PLC-PAN-K5).
Control digital outputs with a web server application (PLC-PAN-K5).
Control analog inputs with a web server application (PLC-PAN-K5).
Control analog outputs with a web server application (PLC-PAN-K5).
