AEL-APFC Aplicação de Controle Automático do Fator de Potência em Circuitos Monofásicos

5.1.3.3.- DISTRIBUIÇÃO DE ENERGIA E CARGAS
SINGLE-PHASE AUTOMATIC POWER FACTOR COMPENSATION APPLICATION - AEL-APFC

SISTEMAS INOVADORES

The Single-phase Automatic Power Factor Compensation Application, "AEL-APFC", has been designed by EDIBON is an application designed to study the single phase automatic power factor controllers installed in the energy utilization points.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Ler mais
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Ler mais
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
SMART GRID. What is about?
SMART GRID. What is about?
With the new smart bidirectional meters, all protection and control devices and the wide use of Internet, the grid has become an intelligent (smart) grid.
Ler mais
NEW Renewable Energies leaflet
NEW Renewable Energies leaflet
The growing concern over pollution and climate change has exponentially increased the interest about clean energies. Computer Controlled Renewable Energies units (with SCADA), designed by EDIBON, are not only an effective learning tool to understand all energy related processes, but also a...
Ler mais

Descrição Geral

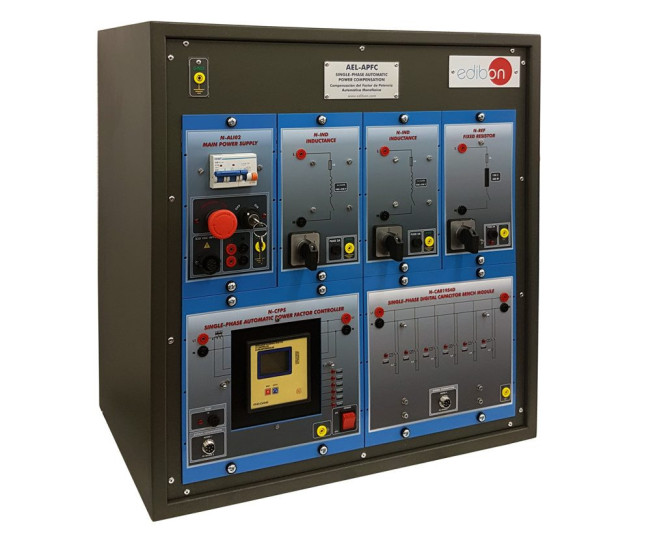

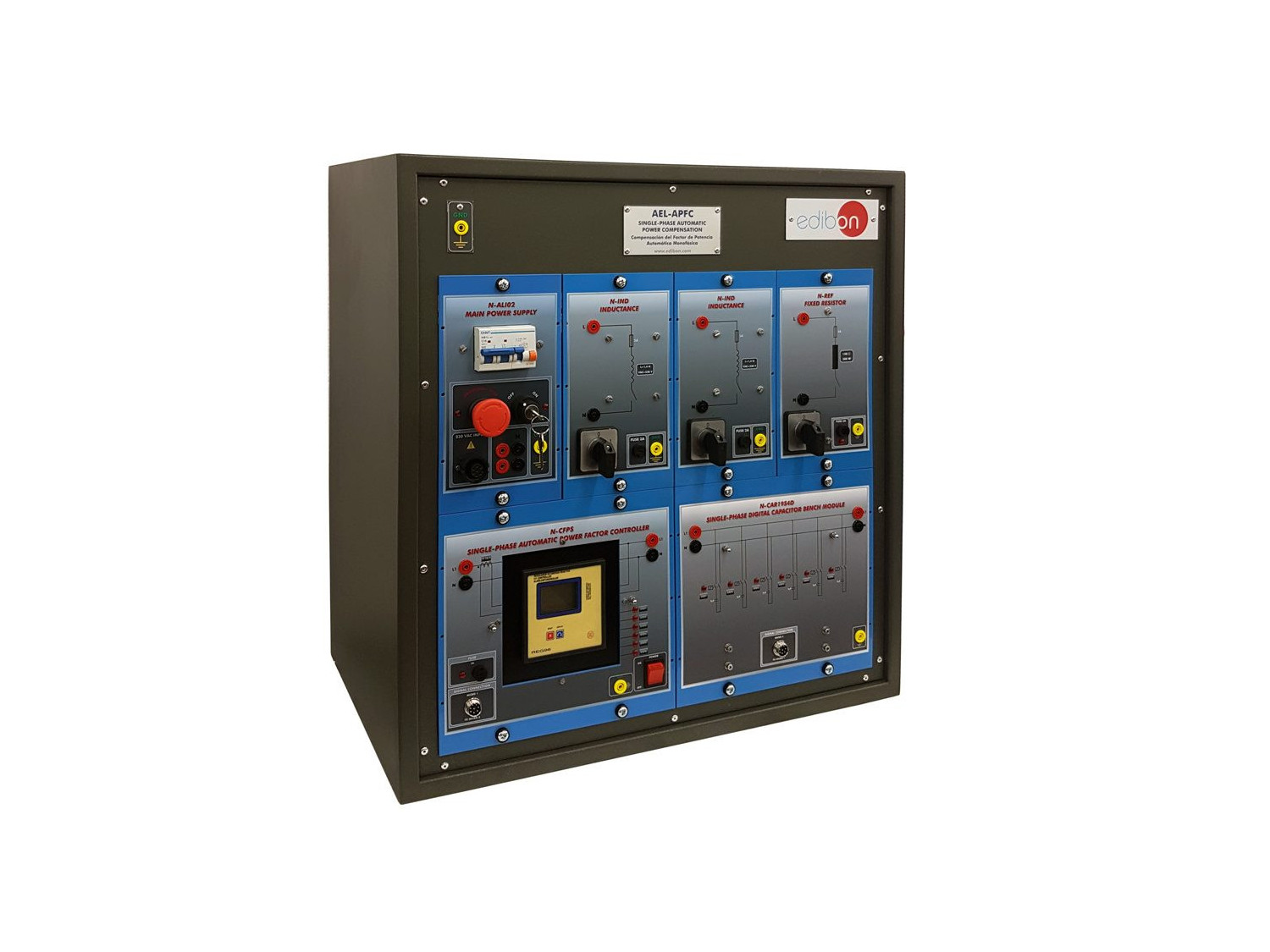

The Single-phase Automatic Power Factor Compensation Application, "AEL-APFC", has been designed by EDIBON is an application designed to study the single phase automatic power factor controllers installed in the energy utilization points. In some places where the reactive energy consumption is high, distribution lines may be overload and it is necessary to install power factor compensators.

The "AEL-APFC" consists of a single phase automatic power factor controller of six compensation steps that work together resistor and inductor loads.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Studying the reactive power compensation for static loads.
  2. Comparison of the reactive energy before and after of power factor compensation.
  3. Optimum configuration of the reactive power controller.
  4. Checking the compensation control unit applying different reactive power levels.
  5. Practical case in which the user carries out manually the reactive energy compensation.
