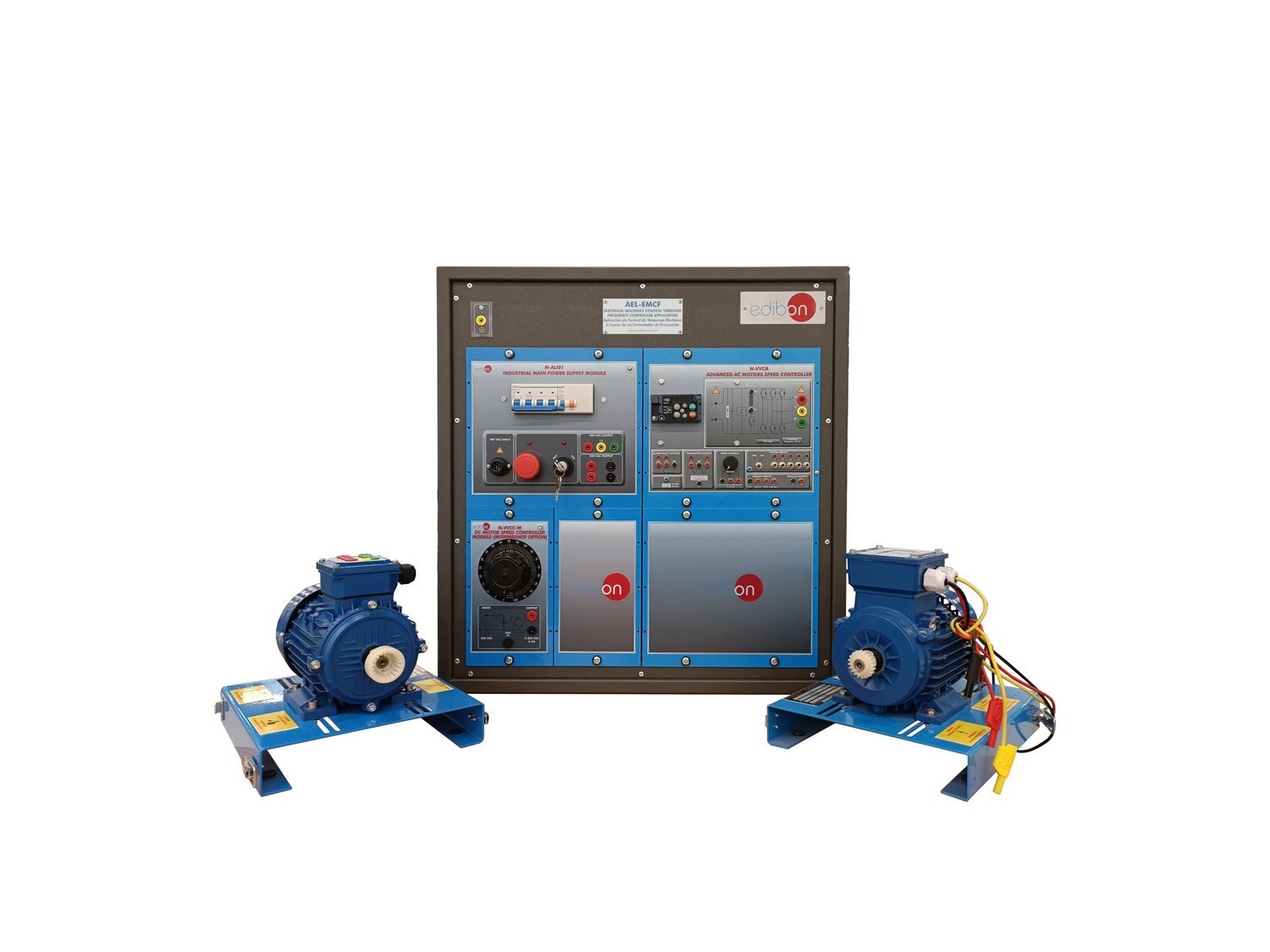

The Application for the Control of Electrical Machines through a Frequency Controller, "AEL-EMCF", has been designed by EDIBON to study the wiring, programming and operation of a frequency converter for the control of a three-phase induction machine.
NOTÍCIAS RELACIONADAS
Descrição Geral

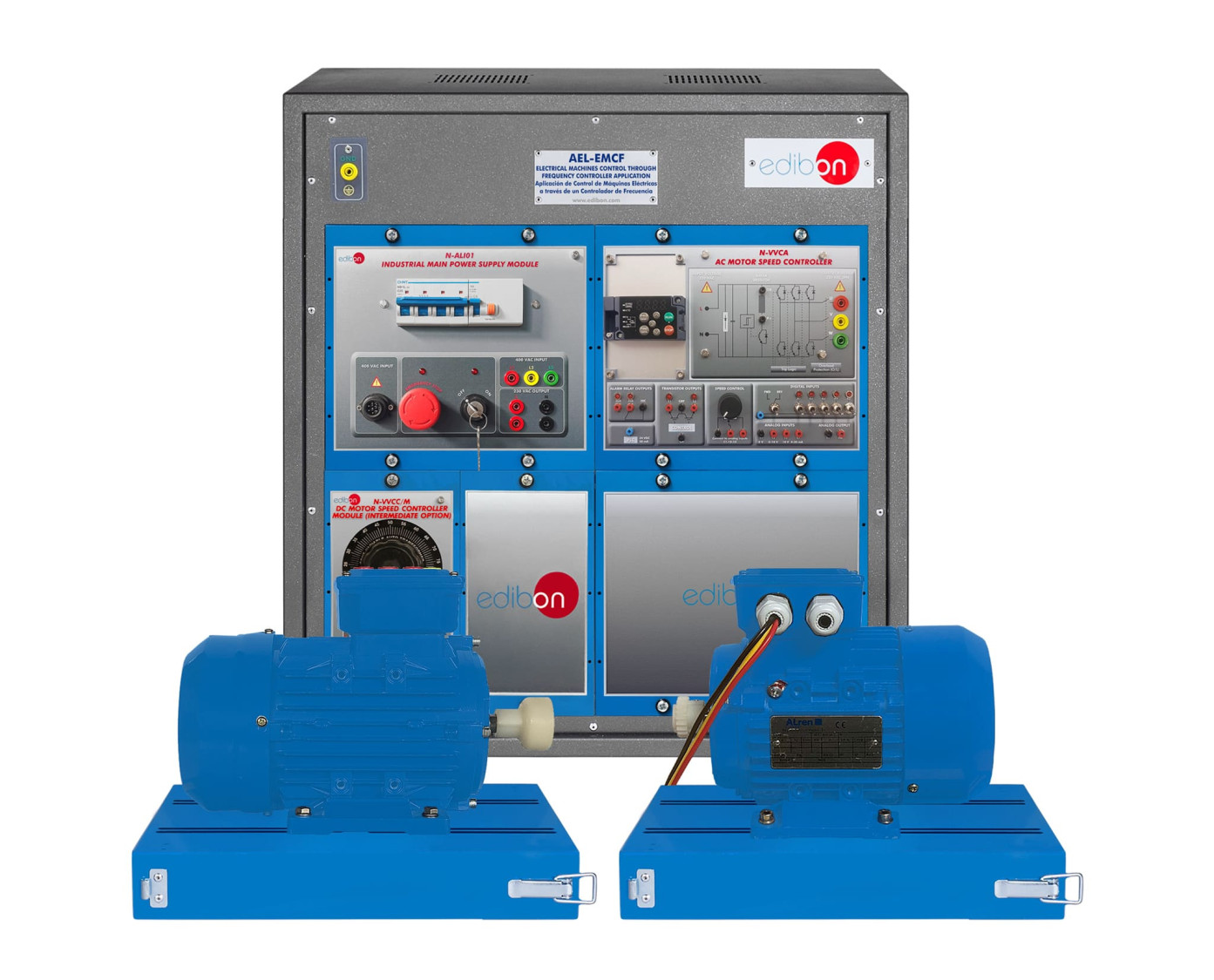

The Electrical Machines Control through Frequency Controller Application, "AEL-EMCF", has been designed by EDIBON to instruct the student in managing of frequency controllers for the control of three phase induction electrical machines.
This application offers the possibility to study the commissioning of the frequency controller by programming basic functions such as the adjusting of the rotation direction parameter, starting/stopping functions, the frequency commutation parameter, programming the nominal voltage, nominal current, nominal frequency, etc. Besides, the user can study the operational performance, measuring power and RMS and realize different experiments with loads through to the Eddy Current Brake, "FRECP".
EXERCÍCIOS E PRÁTICAS GUIADAS
EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL
- Wiring of manual direct starting and turning direction of the 3PH squirrel-cage motor.
- Wiring of the advanced frequency controller.
- Adjusting the fundamental functions concerning to the basic motor running.
- Adjusting the functions for setting up characteristic parameters of the motor.
- Braking test with eddy current brake and frequency controller.
- Study of the frequency controller multifrequency control mode.
- Study of the frequency controller frequency limiter.
- Study of the frequency controller torque limiter.
EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE
- Several other exercises can be done and designed by the user.
