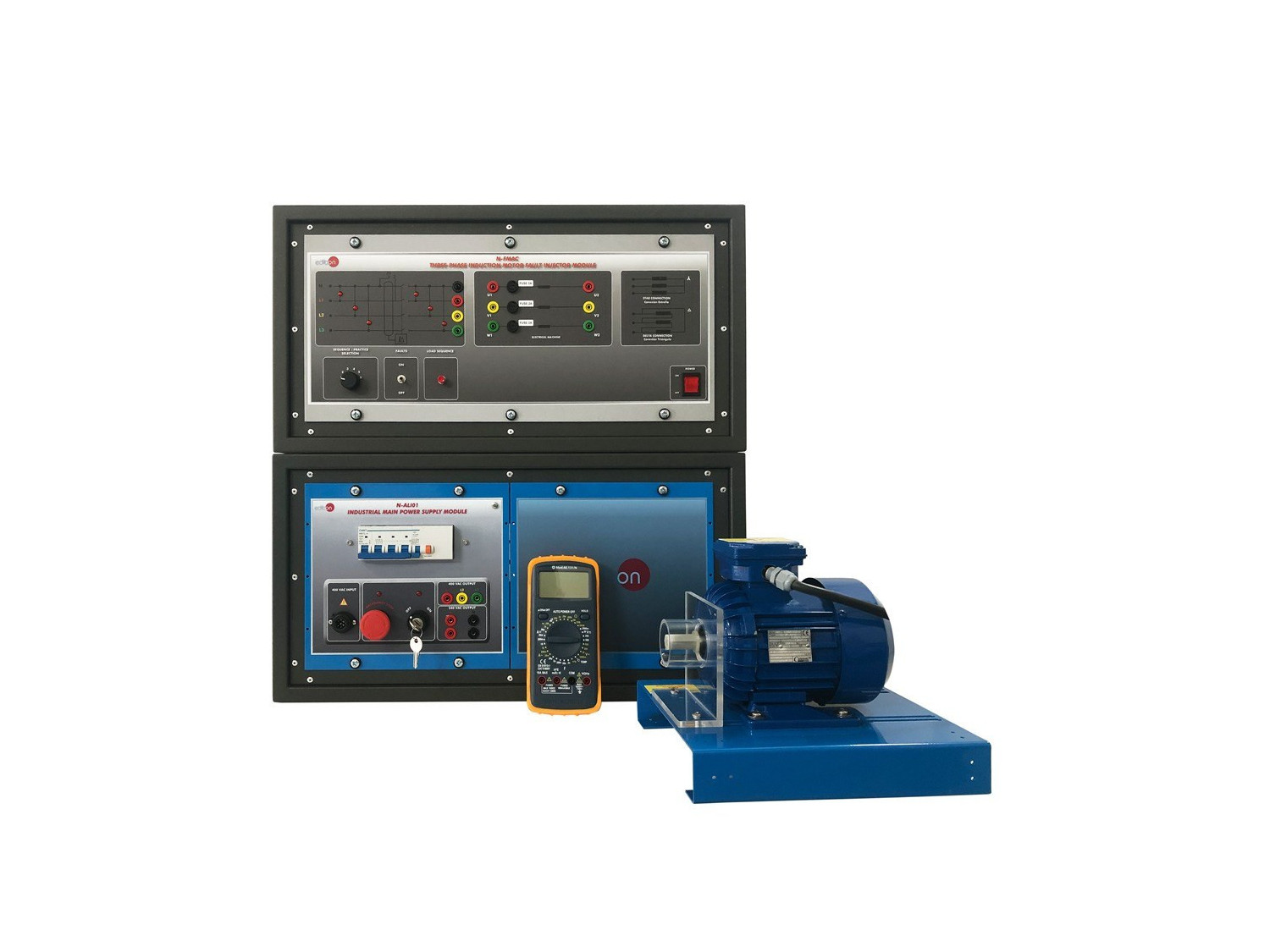

AEL-ESAM Aplicação de Simulação de Avarias em Motores Elétricos

4.3.2.1.- MOTORES E GERADORES ELÉTRICOS DE CA

SISTEMAS INOVADORES

The Faults Simulation Application in Electrical Motors, "AEL-ESAM", has been designed by EDIBON to simulate non-destructive faults in three-phase motors and application of diagnostic and localization techniques.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

Descrição Geral

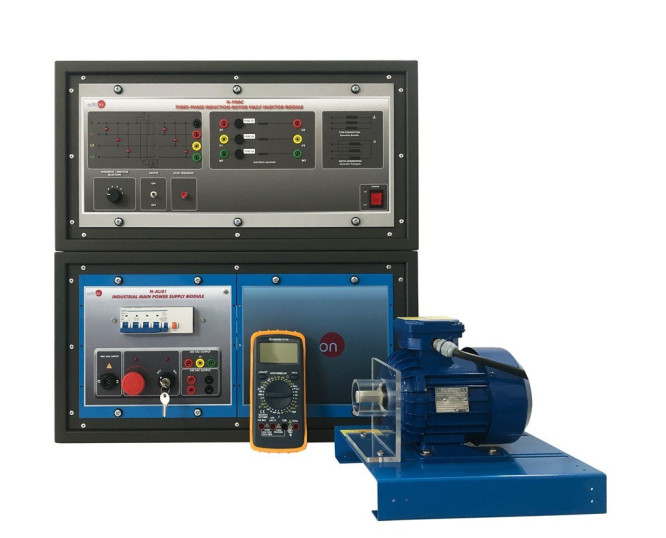

This application allows simulating different breakdowns that can usually take place in electric motors, such as: Phase loss detection, power supply loss detection, short-circuited turn-coil detection, open coil detection, short-circuit between different phase coils detection and ground derivation detection.

All this simulations are carried out by the "AEL-ESAM" application, which has a circuit control that realizes the failures randomly.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Detection of fault on a phase.
Detection of fault on the supply voltage.
Phase lost detection.
Coils with turns in short circuit.
Measurement the resistance of the windings.
Detection of open-ended coil.
Detection of short circuit in coils from different phase.
Measurement the resistance between coils from different phases.
Detection of ground fault.
Measurement of the insulation resistance between the winding and the motor case.
Motor in star connection.
Motor in delta connection.
