HPSE Bomba de Calor para Distintas Fontes e Trocadores de Calor

9.3.- BOMBAS DE CALOR
HEAT PUMP FOR DIFFERENT HEAT SOURCES AND HEAT EXCHANGERS - HPSE

SISTEMAS INOVADORES

The Heat Pump for different Heat Sources and Heat Exchangers, "HPSE", designed by EDIBON, has a heat pump that can be connected to different heat sources and heat exchangers that act as heat sinks, allowing the study of the generation and accumulation of heat and cold.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
Ler mais
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
Ler mais

Descrição Geral

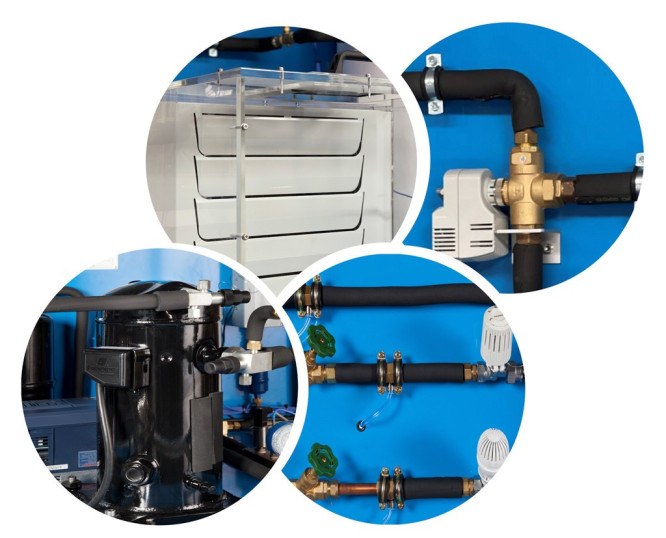

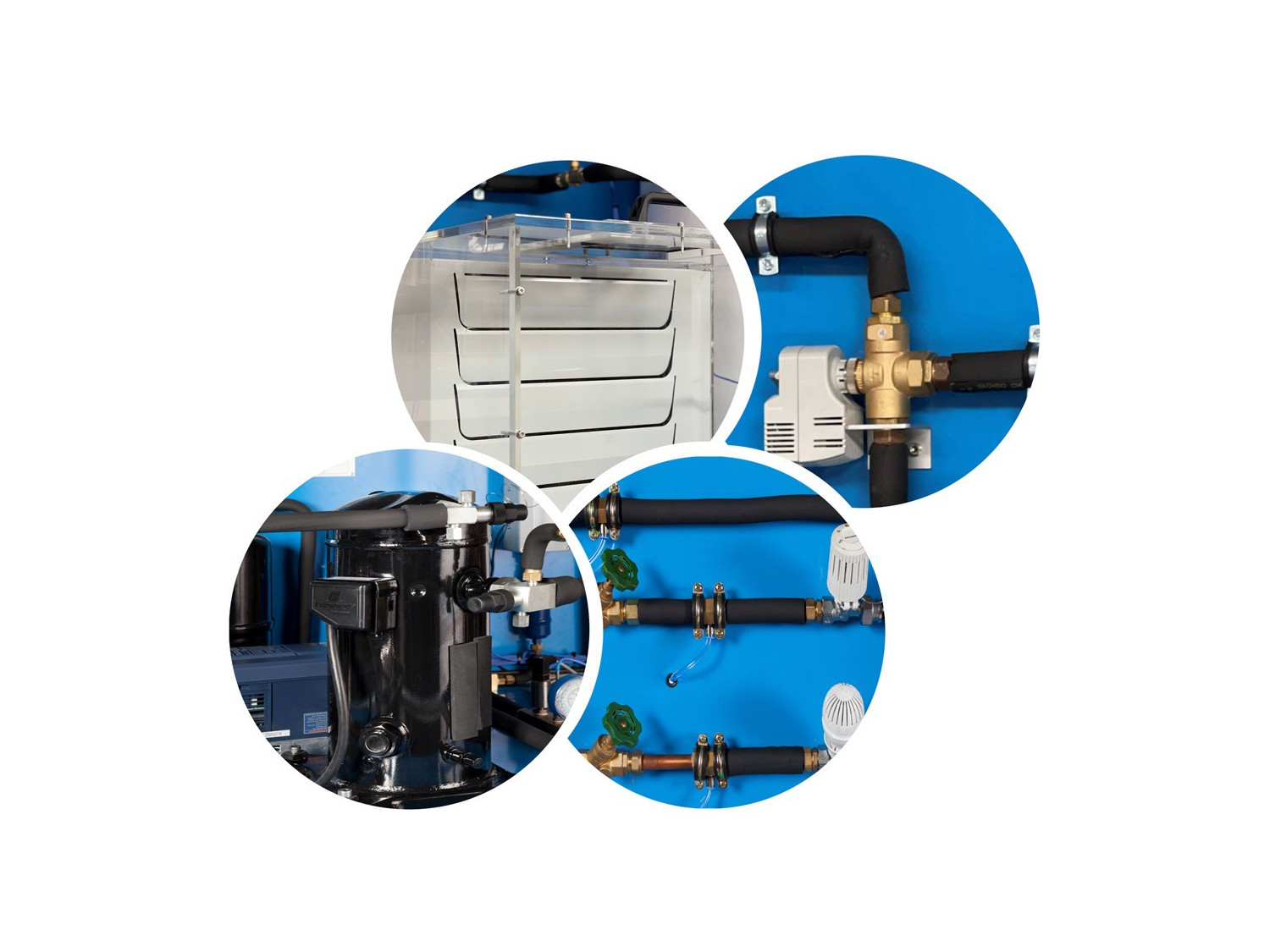

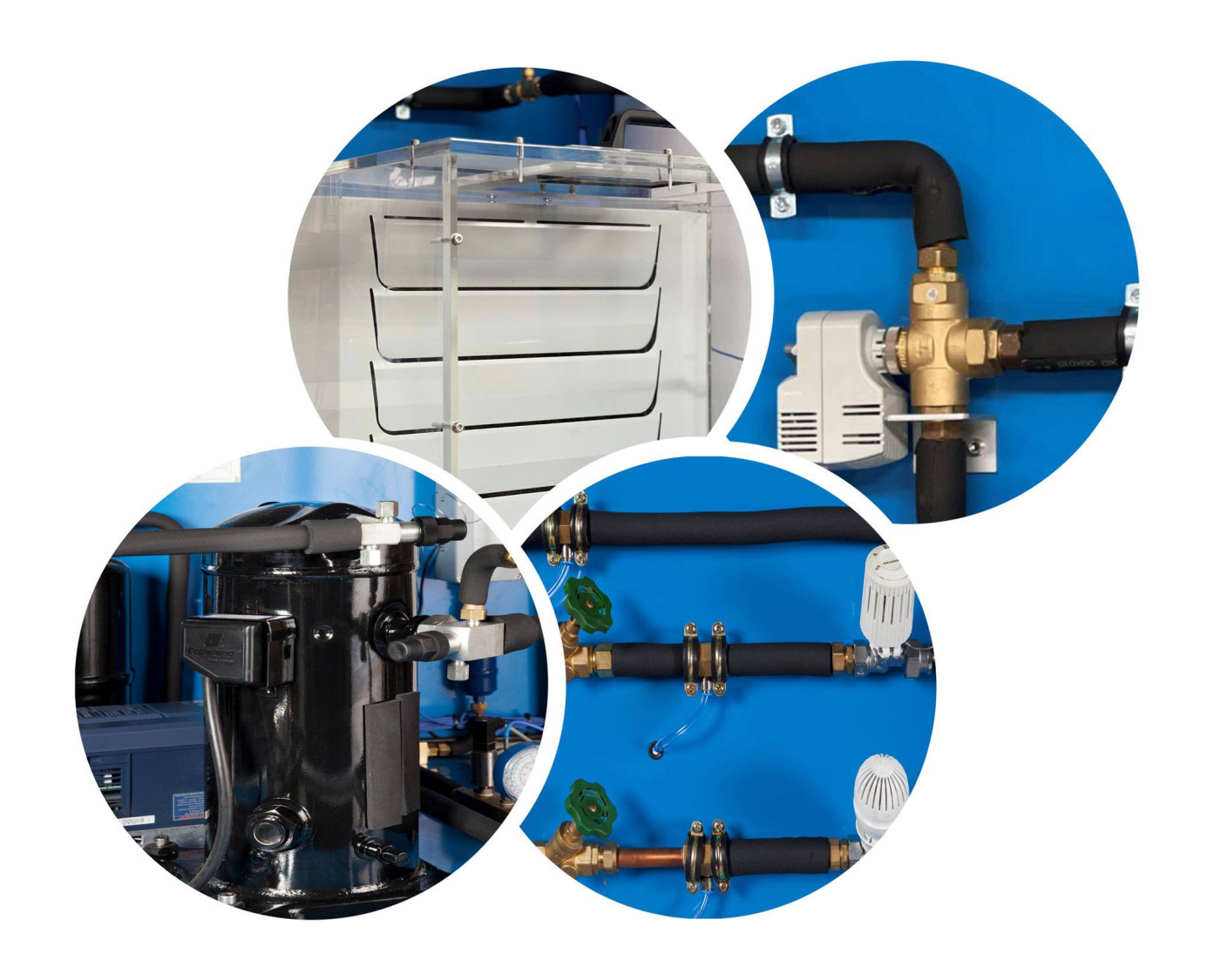

The Heat Pump for different Heat Sources and Heat Exchangers, "HPSE", represents the typical compressor compression refrigeration plant. The compressor is of the scroll type, which is a positive displacement compressor.

The evaporator and condenser are plate heat exchangers and the expansion element is a thermostatic expansion valve.

It includes a programmable heating controller that allows the management and control of the complete heat pump.

For the development of energy balances and to calculate the amount of heat transferred, temperature, pressure and flow sensors are provided at key points in the circuit.

Both the evaporator and condenser can be connected to different heat sources and heat exchangers to analyze and study the advantages and disadvantages of different systems.

As a safety feature, the unit is equipped with a pressure switch, which stops the compressor if the pressure is high.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Study of the different applications of a heat pump for heating and cooling.
  2. Study and adjustment of a heating controller for the control of a heat pump.
  3. Study of the operation and adjustment in case of variable heat supply.
  4. Study of the operation and adjustment in case of variable heat demand.
  5. Study of the dependence of the performance coefficient on the temperature of the sources and exchangers and their optimization.
