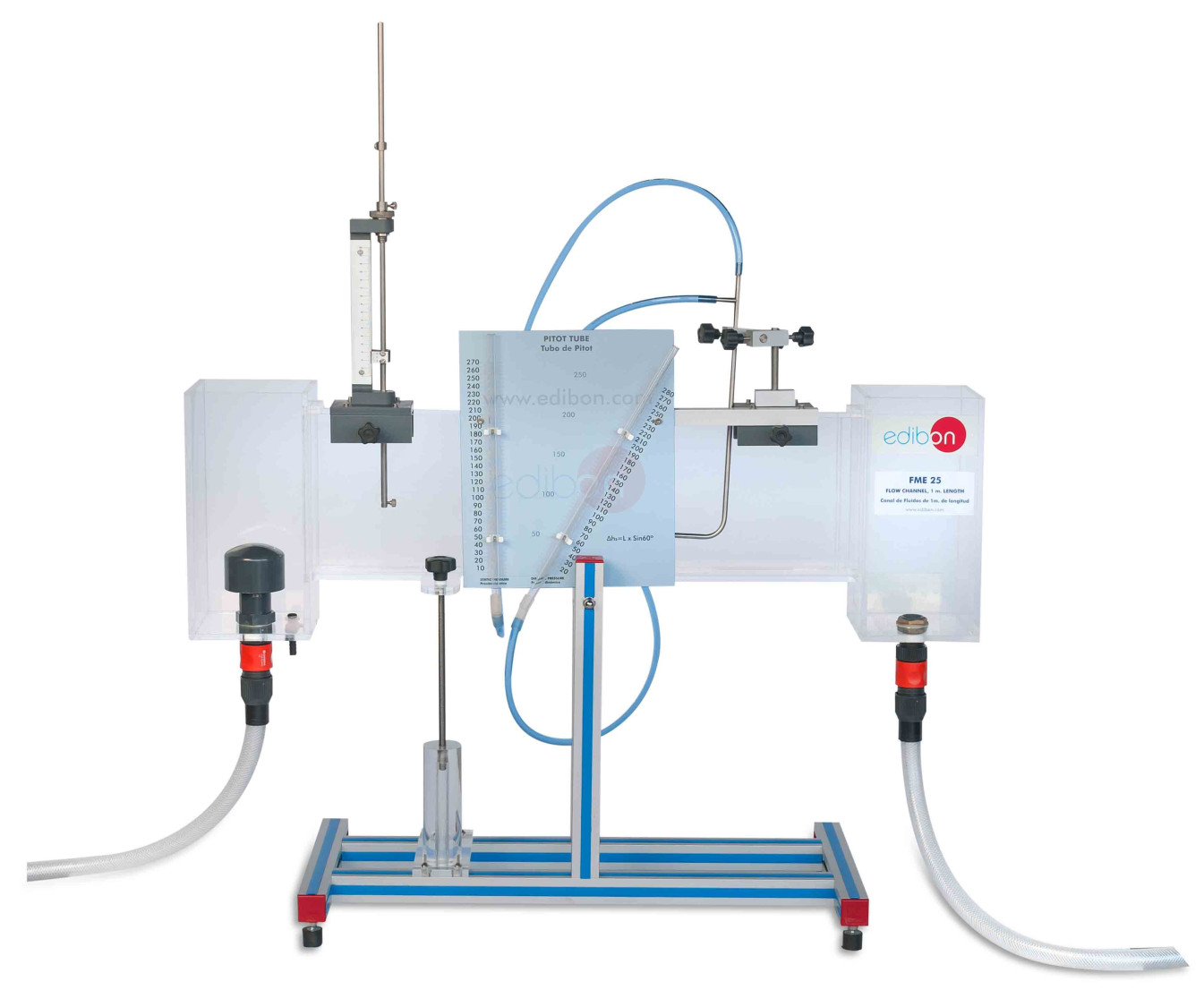

Complete FME25 Unit

FLOW CHANNEL, LENGHT: 1 M - FME25

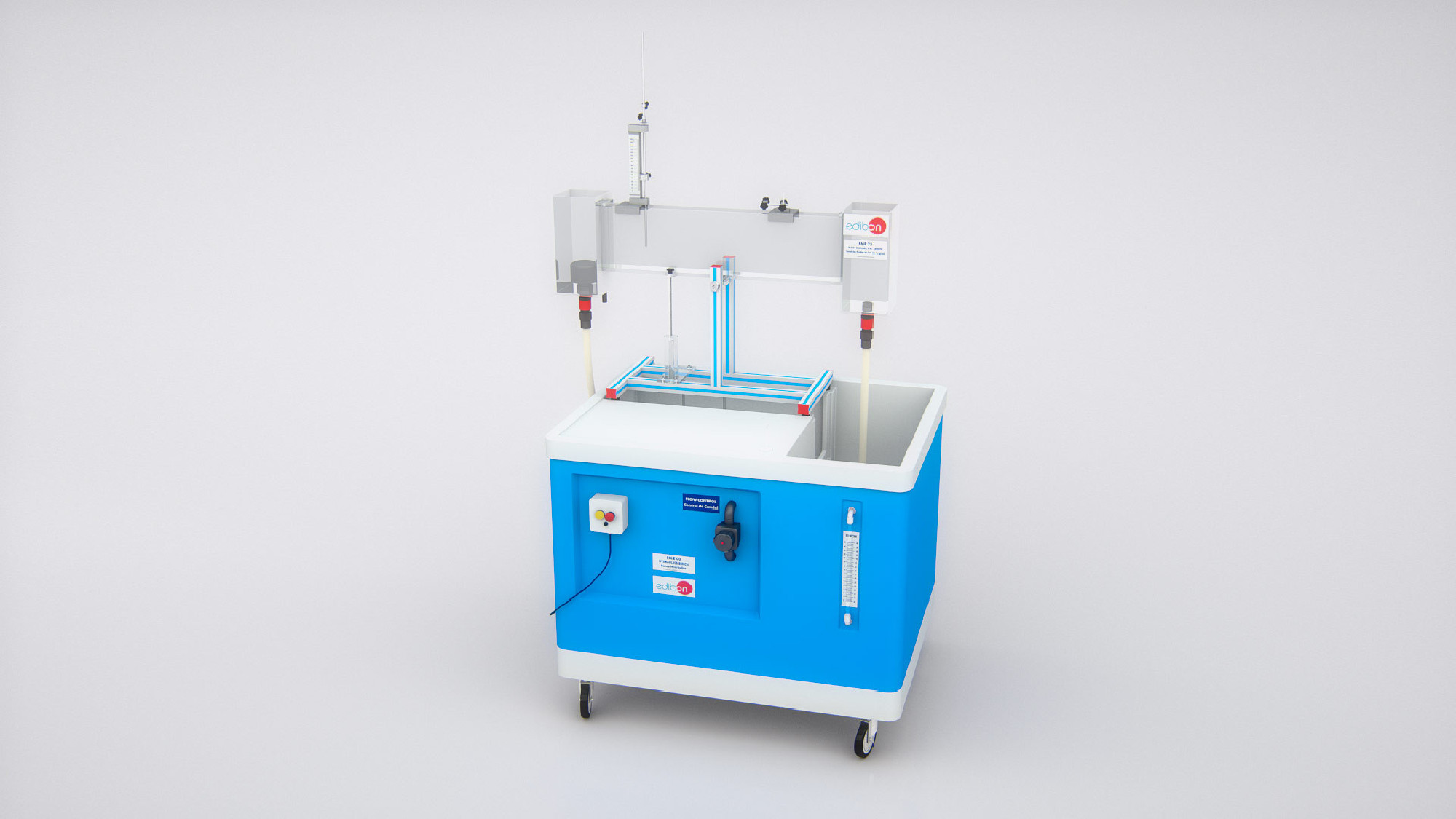

FME25 Unit with service unit FME00

FLOW CHANNEL, LENGHT: 1 M - FME25
FLOW CHANNEL, LENGHT: 1 M - FME25

SISTEMAS INOVADORES

The Flow Channel, lenght: 1 m, "FME25", designed by EDIBON, allows to study of the water behavior flowing through a channel.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

8TV
 Laboratório de Mecânica dos Fluidos para o Ensino Técnico e Vocacional
8HE
 Laboratório de Mecânica dos Fluidos para o Ensino Superior

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
NEW Fluid Mechanics Course
NEW Fluid Mechanics Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Fluid Mechanics and learn about #fluids properties. #DiscoverEdibon #Engineering.
Ler mais

Descrição Geral

The Flow Channel, lenght: 1 m, "FME25", designed by EDIBON, allows to study of the water behavior flowing through a channel.

It basically consists of a channel of rectangular cross section with transparent walls, through which water flows.

It has a mechanism that allows to vary the shape of the channel and it can directly be placed on the Hydraulics Bench.

Water is taken from the tank of the Hydraulics Bench (FME00) or the Hydraulic Feed System (FME00/B) by means of a pump and, through the pipe, it is driven to the tank, where there is a settling of the flow. After this, the water circulates through the channel and returns to the storage tank. Therefore, the closed circuit is completed.

There is a mechanism that allows to adjust the slope of the channel.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Study of the fundamental aspects of fluid flow.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

Practical possibilities depending on the accessories used:

  1. Measurement of water level and velocity along the channel.
  2. Measurement of flow rate using a Pitot tube.
  3. Determination of the static and total pressure.
  4. Use of hydraulic structures to control level.
  5. Study of the effects of gradual and sudden changes in cross section (energy losses).
  6. Use of a contraction to measure flow.
  7. Use of hydraulic structures to measure flow in an open channel.
  8. Study of flow patterns associated with flow around hydraulic structures.
  9. Comparison between the theoretical and experimental flow.
