N-EM-MD Circuito Motor Dahlander

6.2.2.4.- CONTROLE DE MÁQUINAS ELÉTRICAS
DAHLANDER MOTOR CIRCUIT - N-EM-MD

SISTEMAS INOVADORES

"N-EM-MD" represents a Dahlander motor circuit which has two connection configuration for connect 2 and 4 poles and emulates the motor’s movement.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

Descrição Geral

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

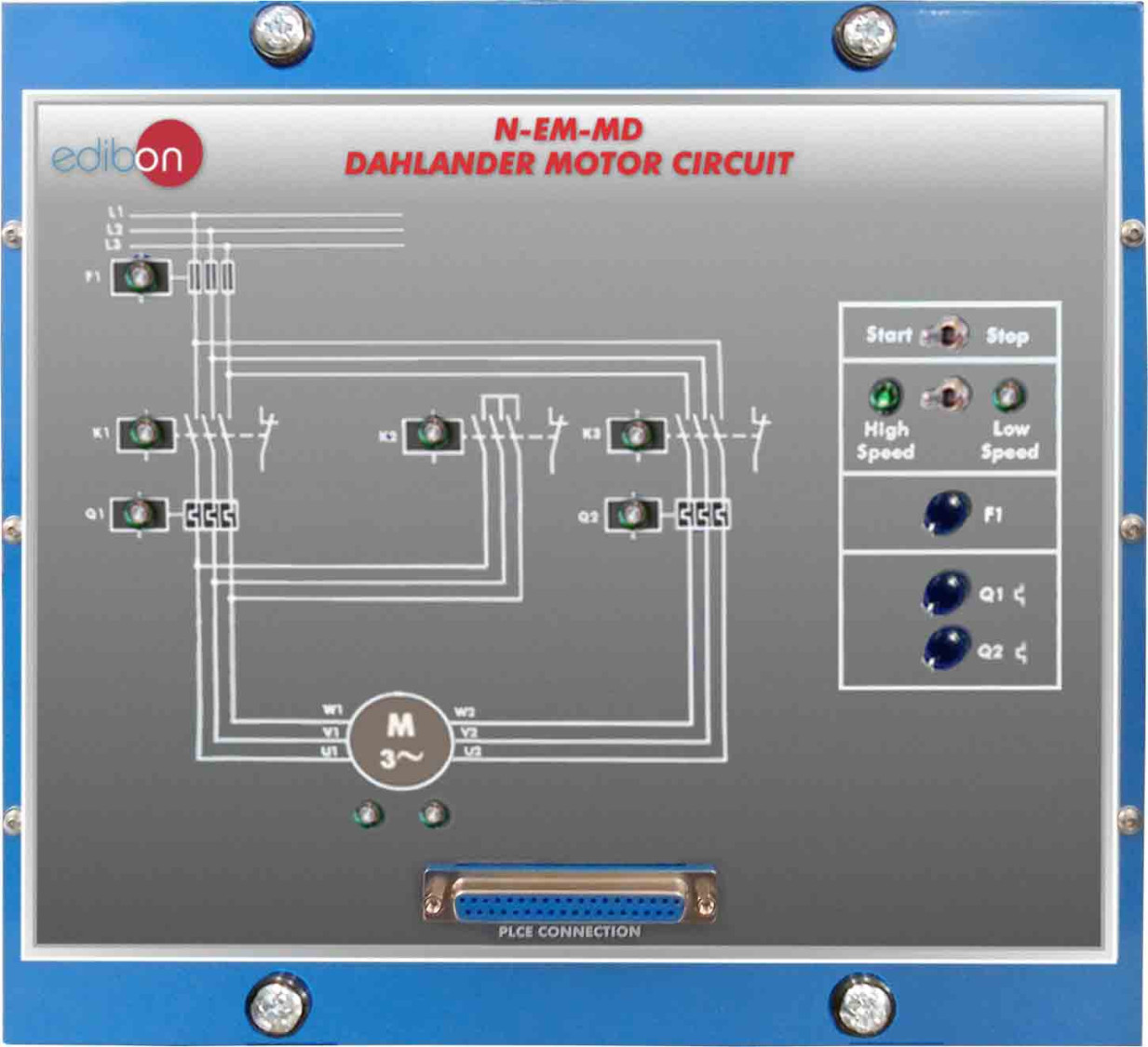

"N-EM-MD" represents a Dahlander motor circuit which has two connection configuration for connect 2 and 4 poles and emulates the motor’s movement. The system also allows to use the different switches to emulate faults in the three phase fuses and magnetothermics.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

All "N-EM" modules allow to perform the following practical exercises:

  1. Temporization.
  2. Counting.
  3. Sequential counting.
  4. All the practical exercises include the diagrams and the flow charts of the example programs used.
