COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC

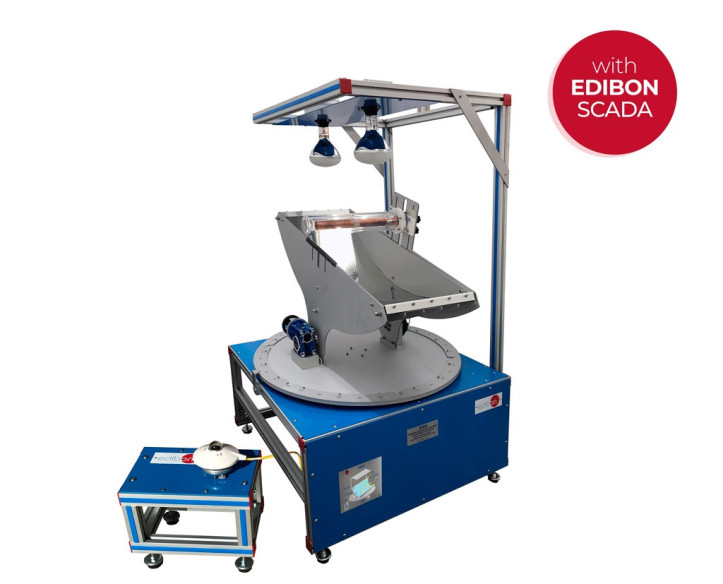

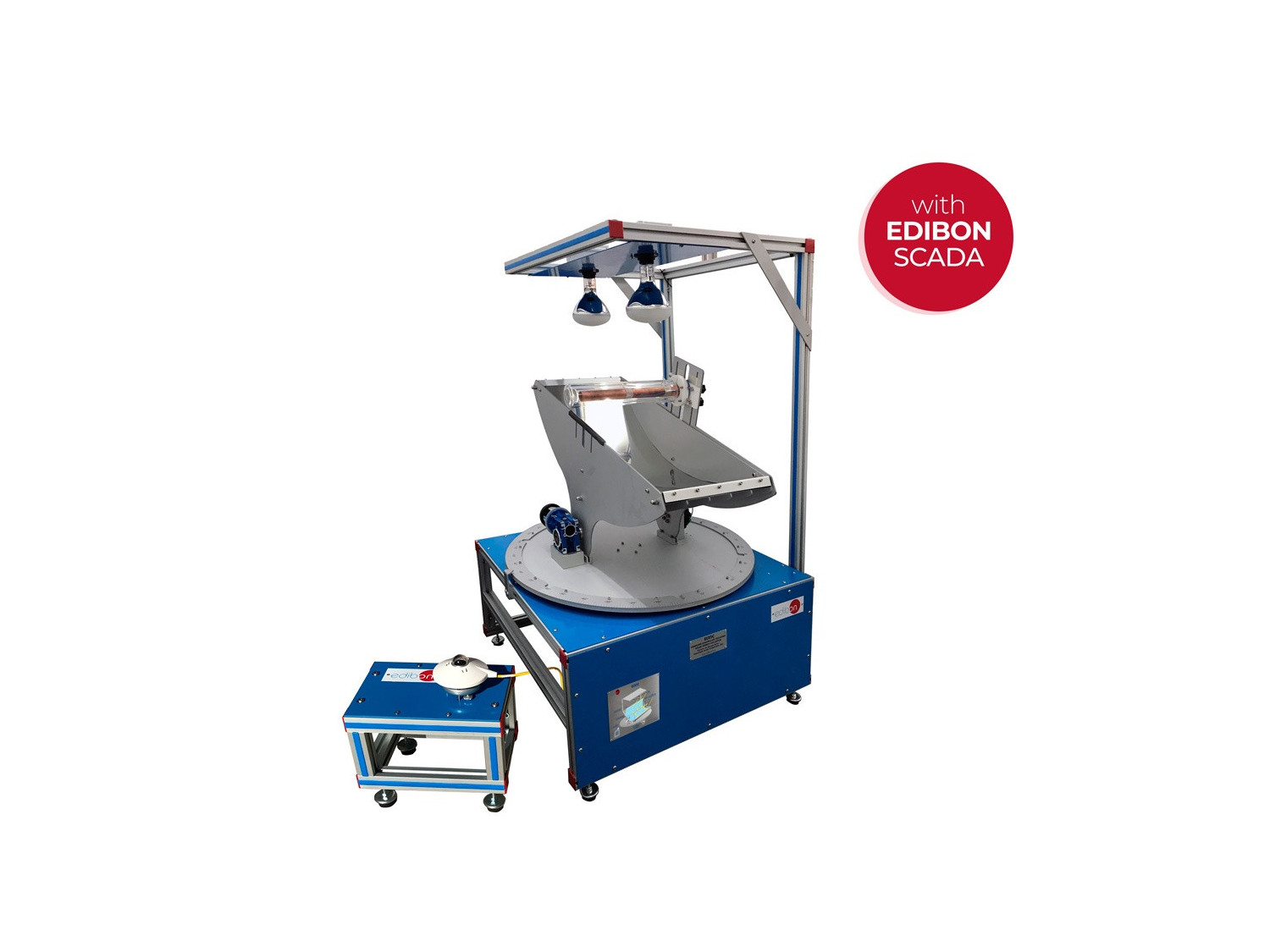

Unit: ECESC. Computer Controlled Geothermal (low enthalpy) Energy Unit, with SCADA

COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC

Unit details

COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC

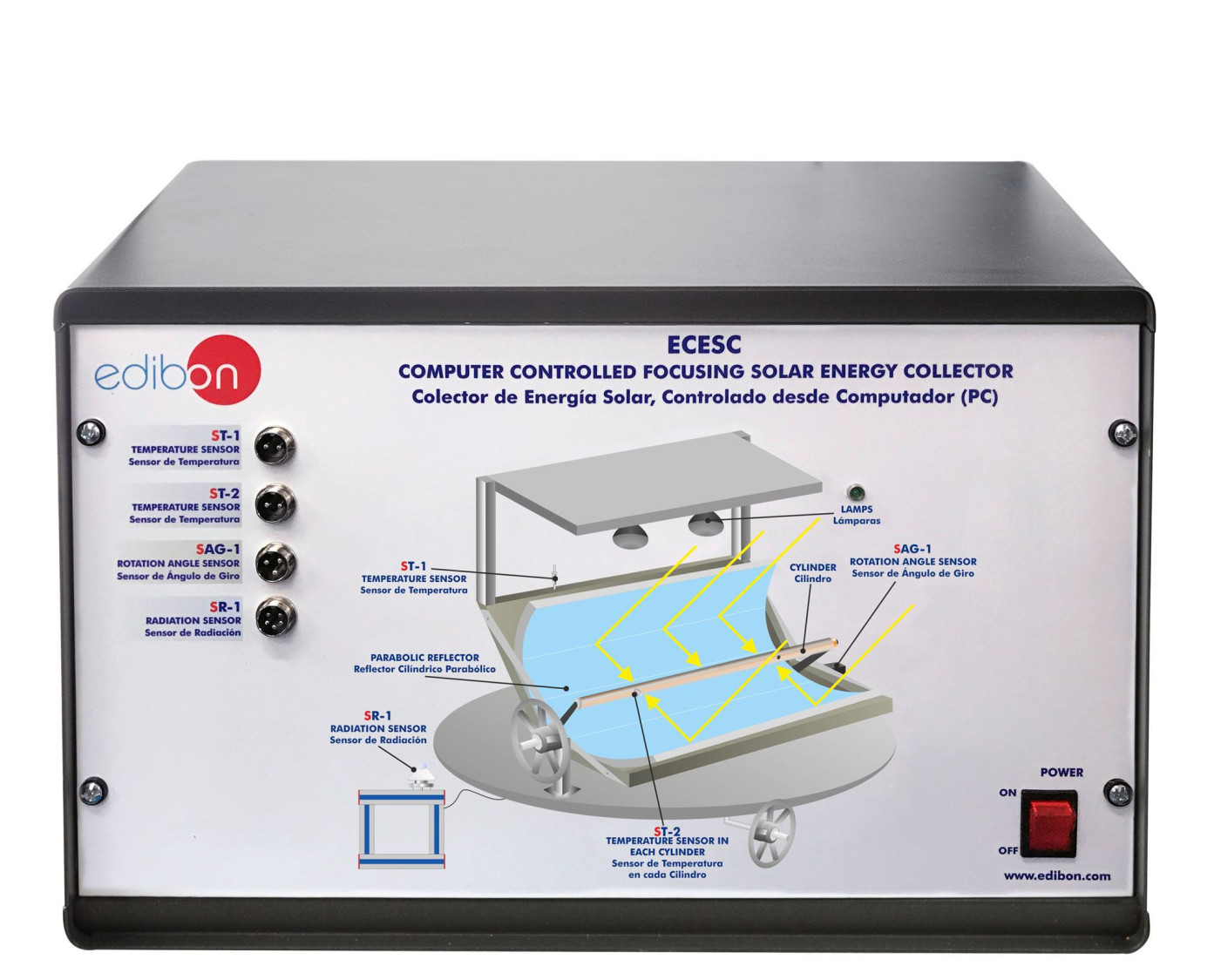

ECESC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC

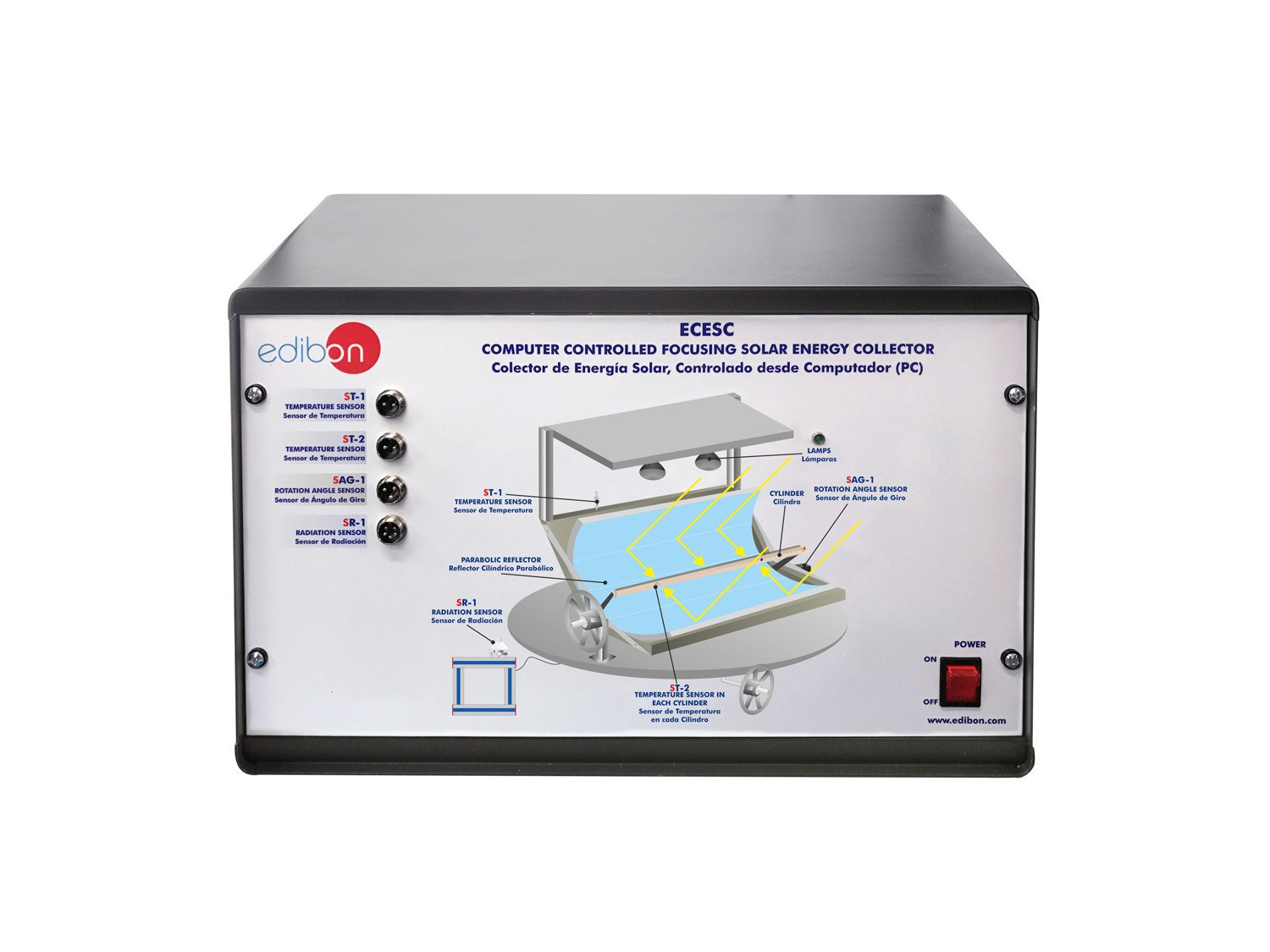

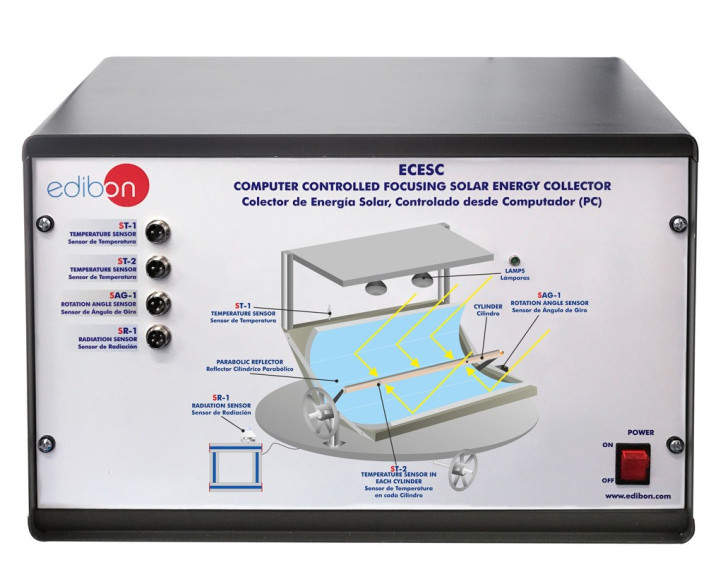

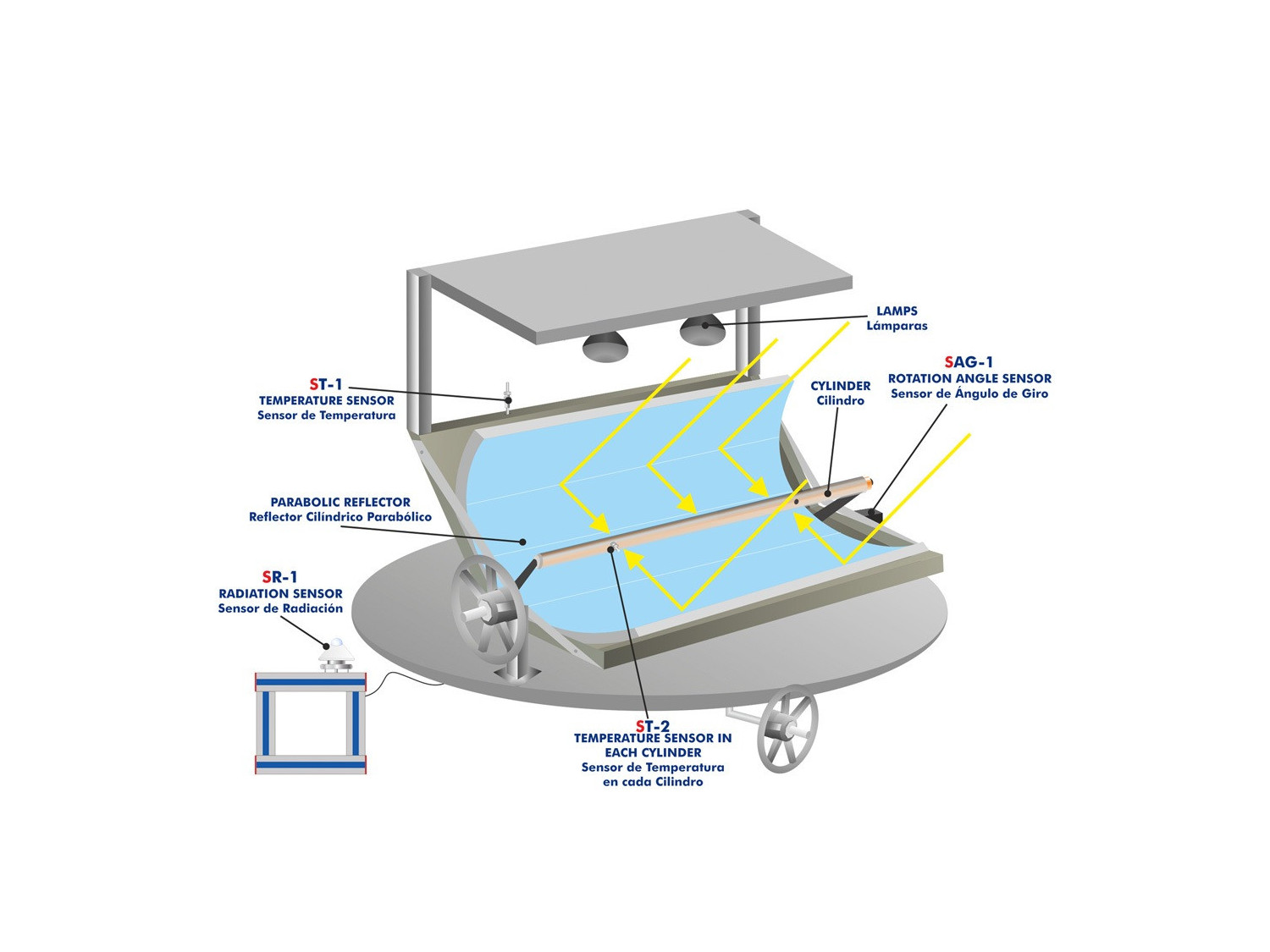

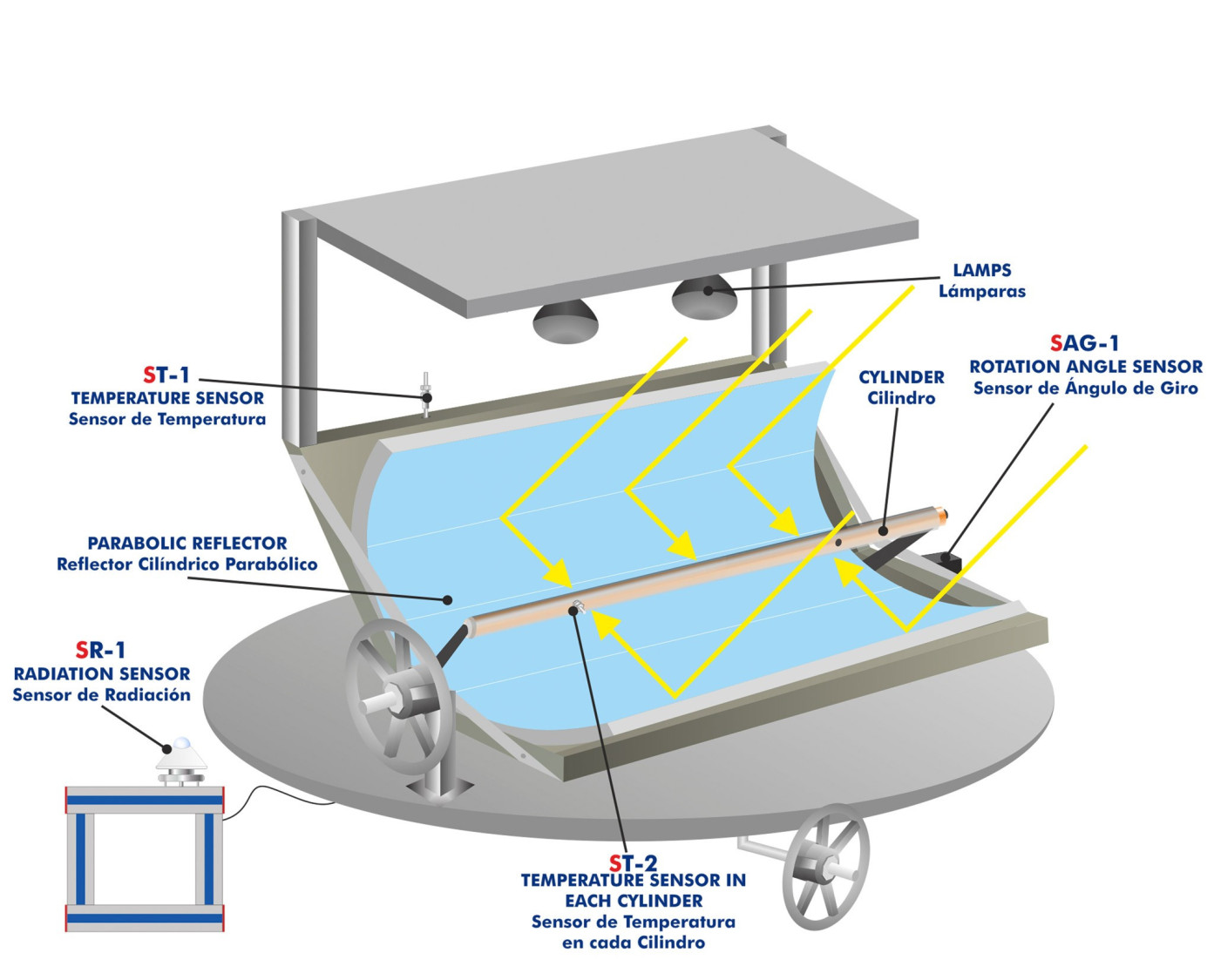

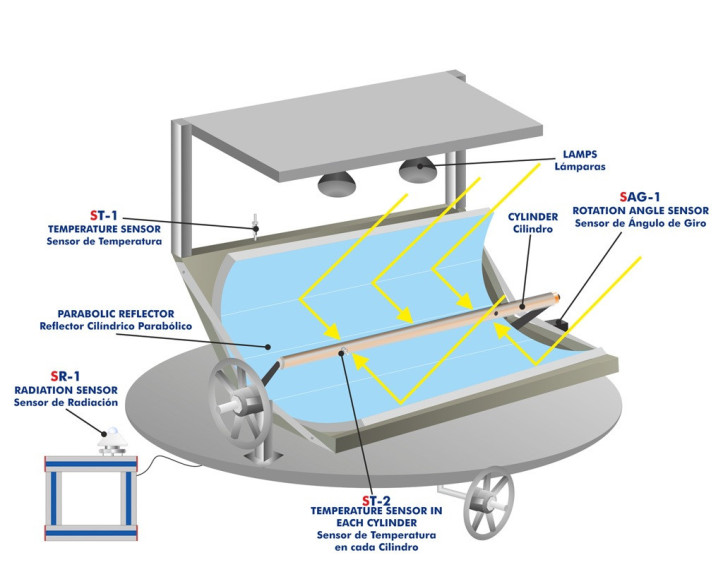

Process diagram and unit elements allocation

COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC

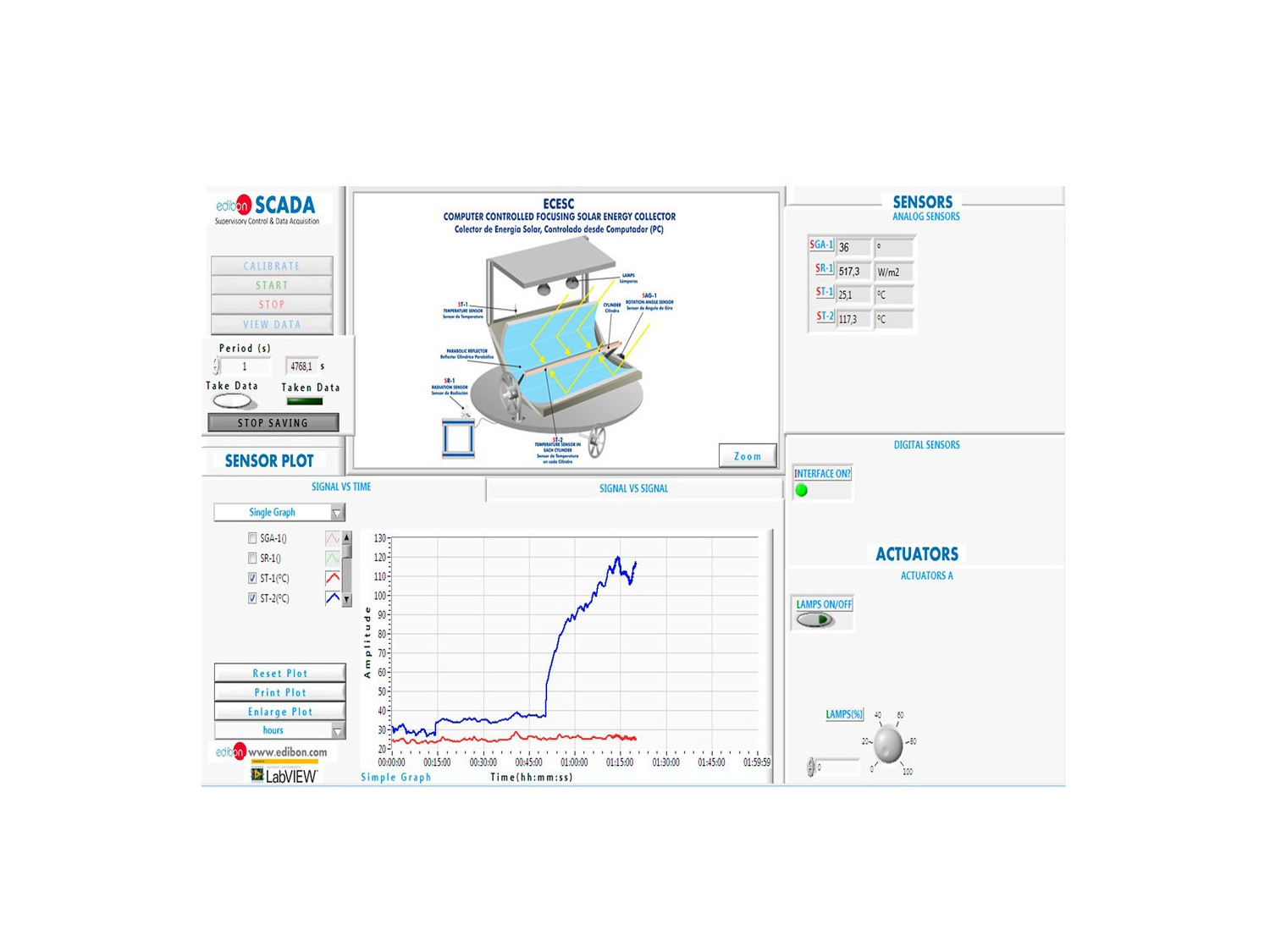

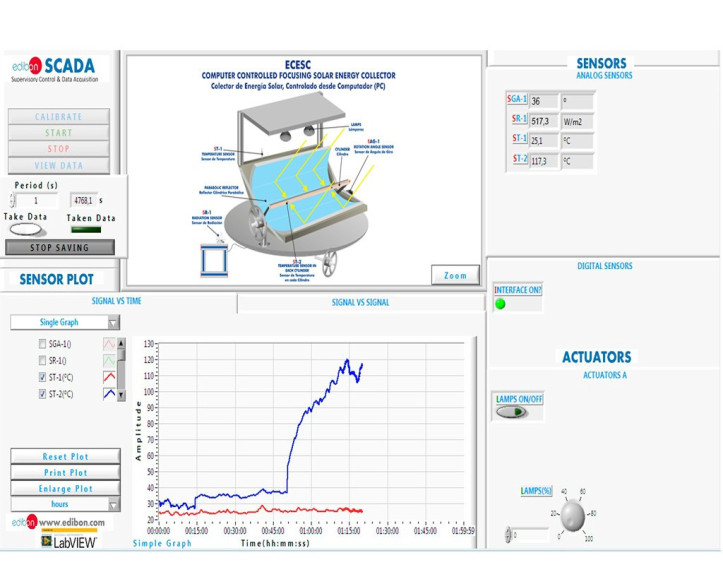

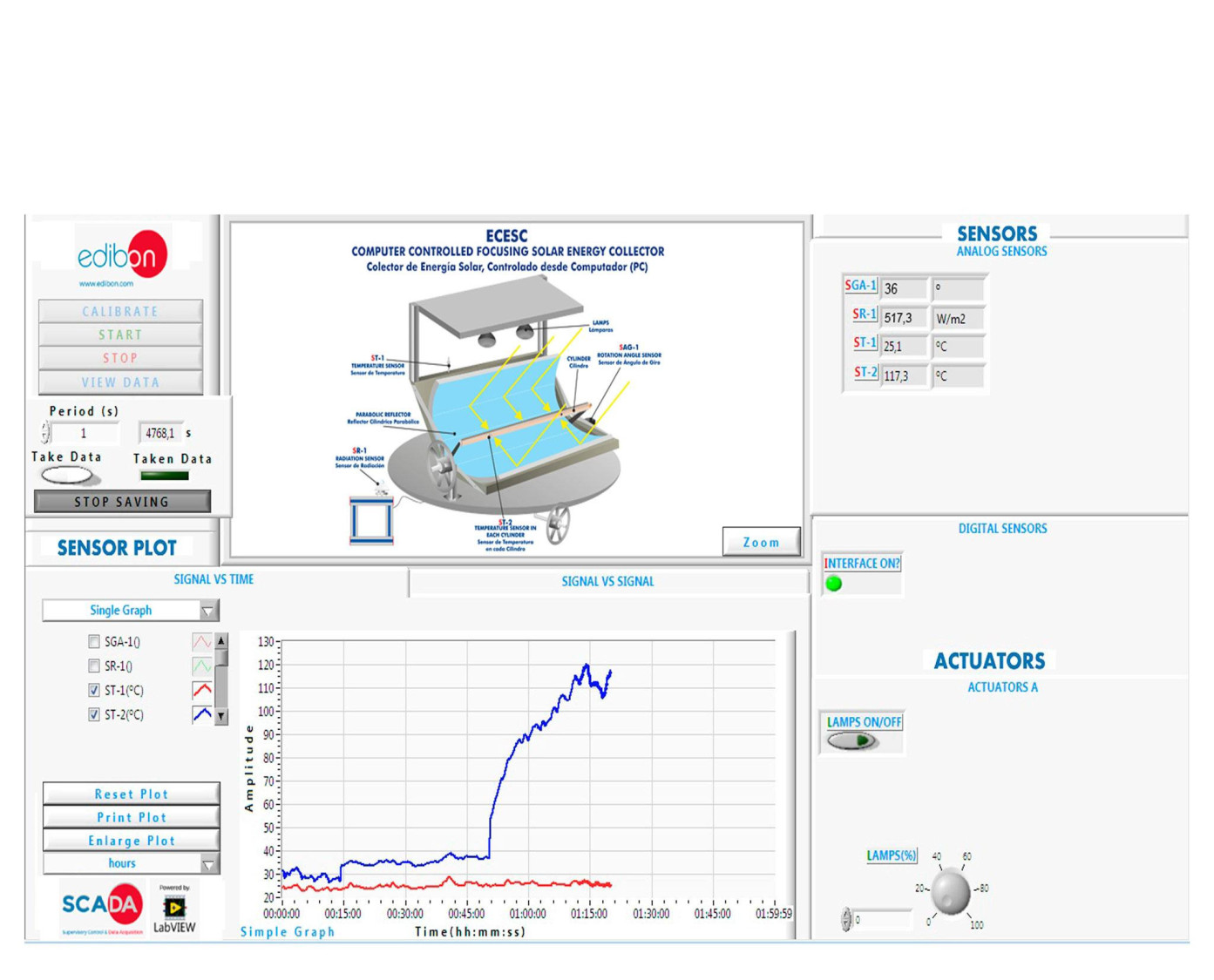

ECSC/SOF. EG5C Software. Main Screen

COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC
COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC
COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC
COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC
COMPUTER CONTROLLED FOCUSING SOLAR ENERGY COLLECTOR - ECESC

SISTEMAS INOVADORES

The Computer Controlled Focusing Solar Energy Collector, "ECESC", has been designed by EDIBON to study the conversion of solar energy into thermal energy using a parabolic trough.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
FSS

Sistema de Simulação de Falhas
PLCHMI

Controle e Monitoramento local/remoto IIoT com HMI
ELK

Kit de Desenvolvimento de Software EDIBON, Desenvolvido por NI LabVIEW ™
ESN

EDIBON Scada-Net
ECL

Educação a Distância EDIBON

NOTÍCIAS RELACIONADAS

Laboratory supported by Official College of Technical Industrial Engineers (Spain)
Laboratory supported by Official College of Technical Industrial Engineers (Spain)
At EDIBON, we reaffirm our commitment to the advancement of clean and renewable energy, with a special focus on green hydrogen as a key driver for a more sustainable future. We are proud to have been selected to equip the first Green Hydrogen Laboratory in the Region of Murcia, a pioneering space...
Ler mais
Recycling and energy storage systems
Recycling and energy storage systems
The shift towards electric vehicles (EVs) has gained considerable momentum worldwide, promising a reduction in greenhouse gas emissions and a path to a more sustainable future. However, as the demand for EVs accelerates, so too does the need for large quantities of essential minerals, such as...
Ler mais
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais

Descrição Geral

The Computer Controlled Focusing Solar Energy Collector, "ECESC", shows the principles of a parabolic trough to collect solar energy.

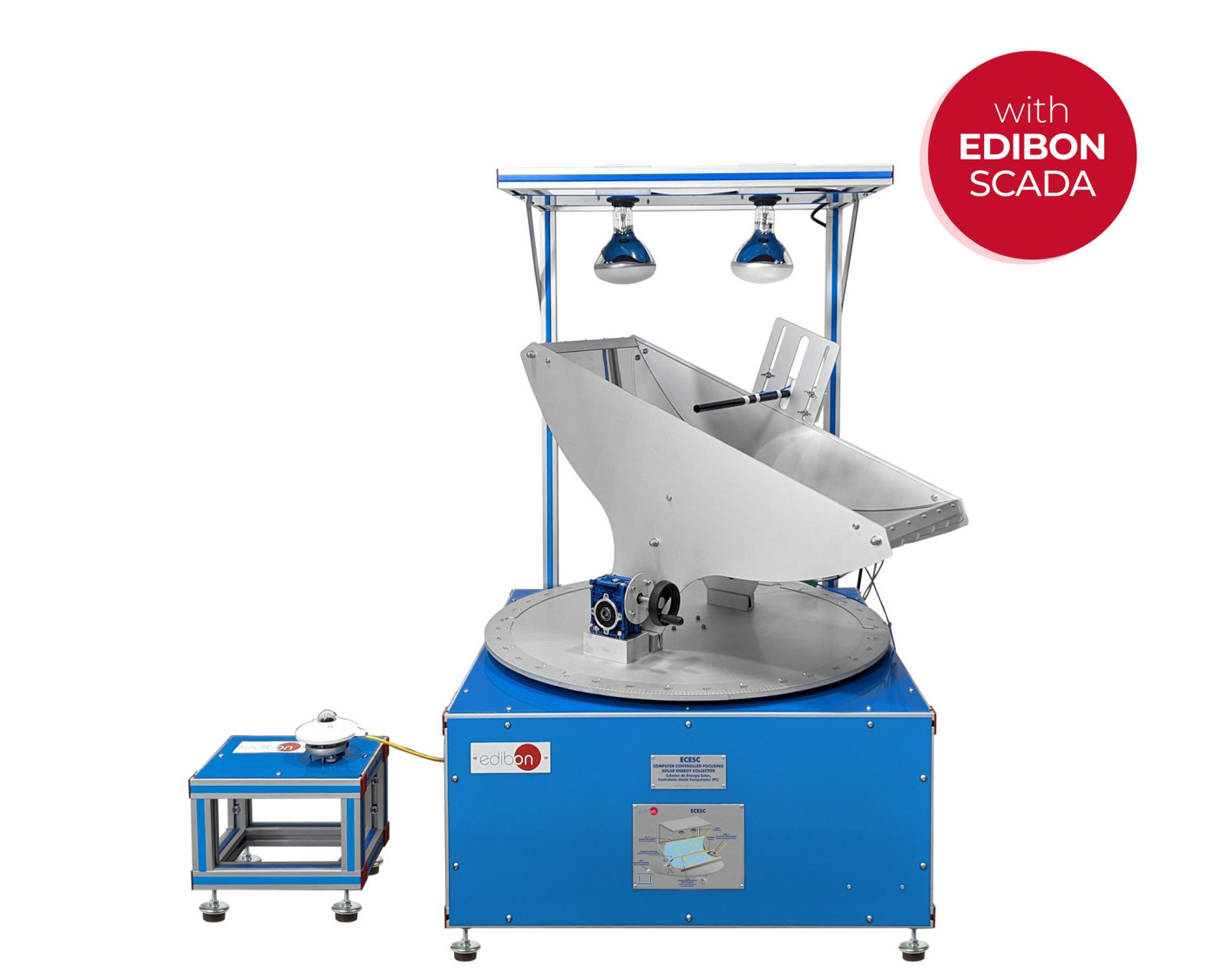

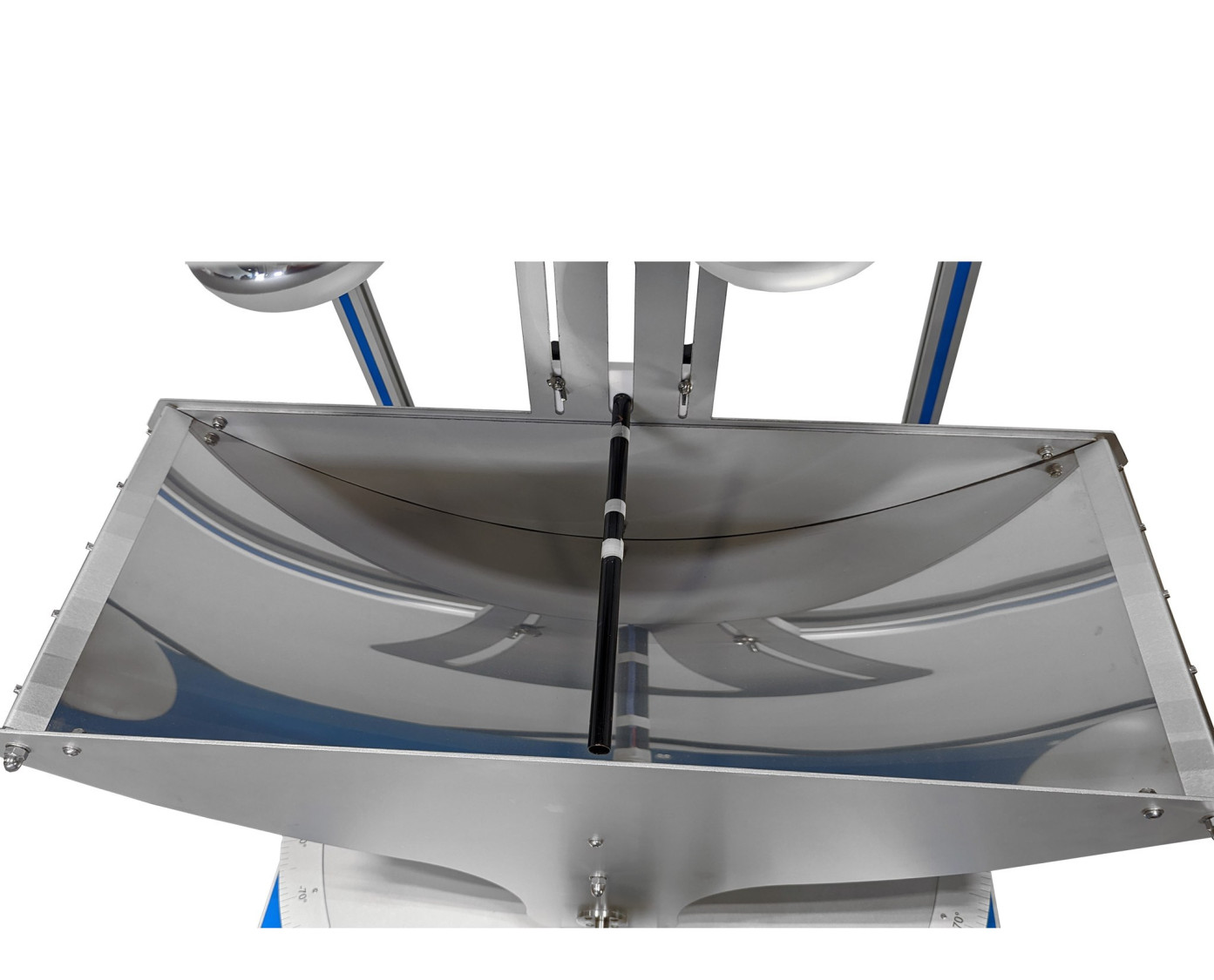

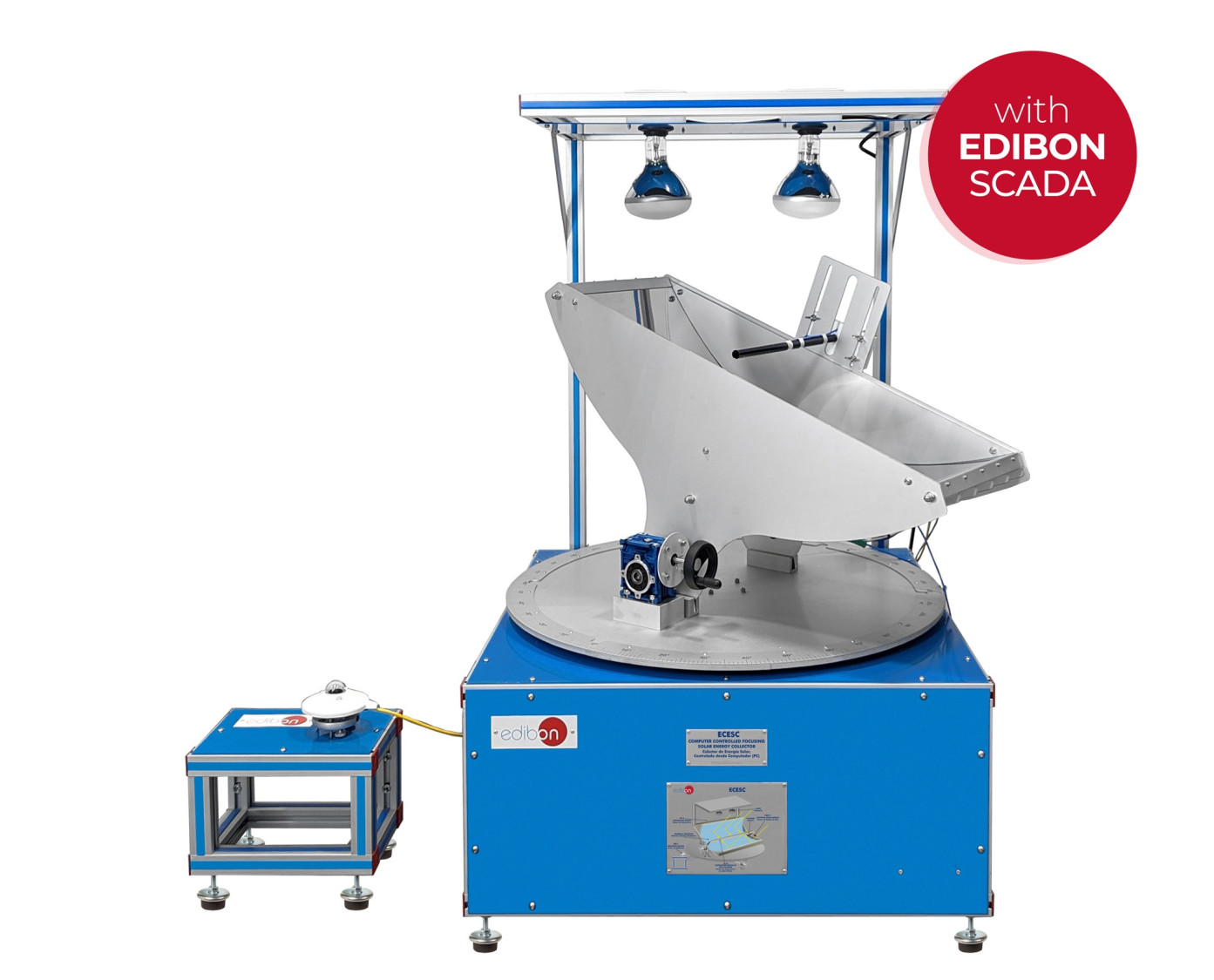

The unit includes a highly polished stainless steel parabolic reflector on a mobile base. It can be horizontally and vertically adjusted so that solar energy is focused on an energy collector from different positions. The reflector includes a pyranometer to measure the incident solar radiation.

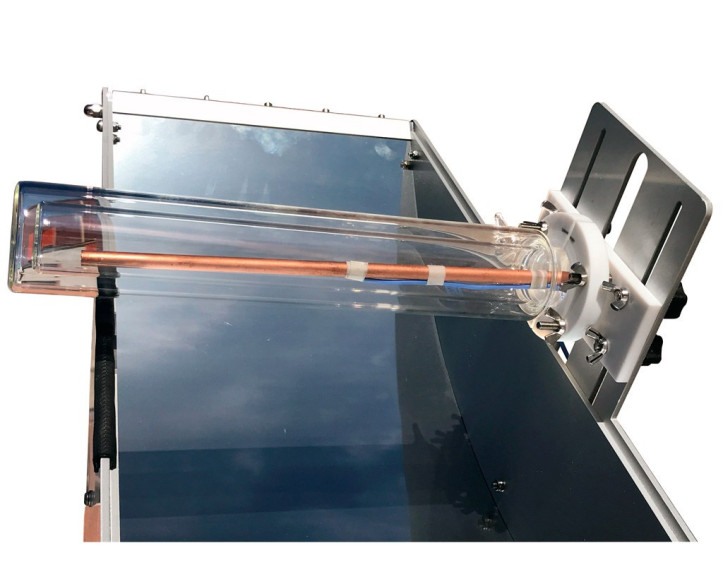

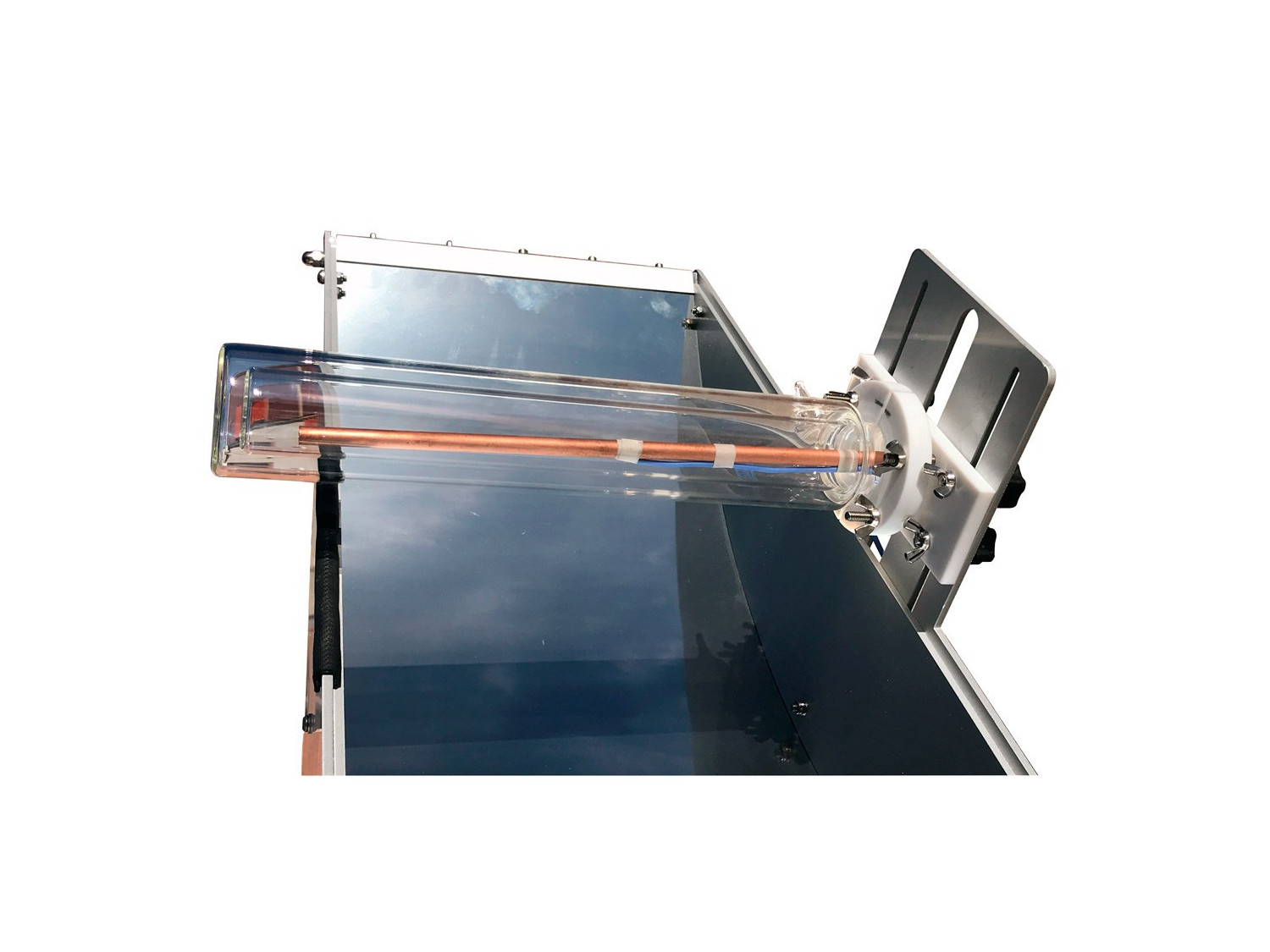

Five interchangeable energy collectors of different sizes are included to study different concentration ratios. One of them has a special black coating to study its effect. Each one has a "J" type temperature sensor to measure the temperature of the collector. Additionally, another insulating glass collector with vacuum coating is included to study the effect of a shielded collector.
