QCCC Coluna de Craqueamento, Controlada por Computador (PC)

11.1.4.- DESTILAÇÃO E CRAQUEAMENTO
COMPUTER CONTROLLED CRACKING COLUMN - QCCC

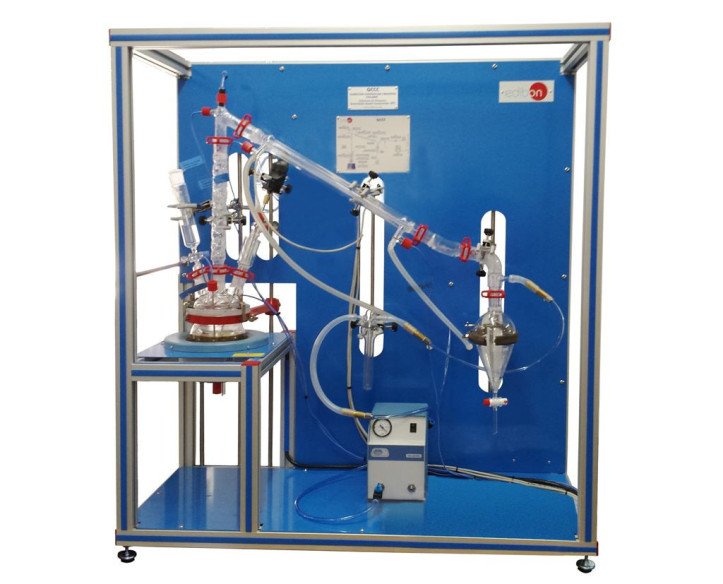

QCCC Unit. Computer Controlled Cracking Column

COMPUTER CONTROLLED CRACKING COLUMN - QCCC

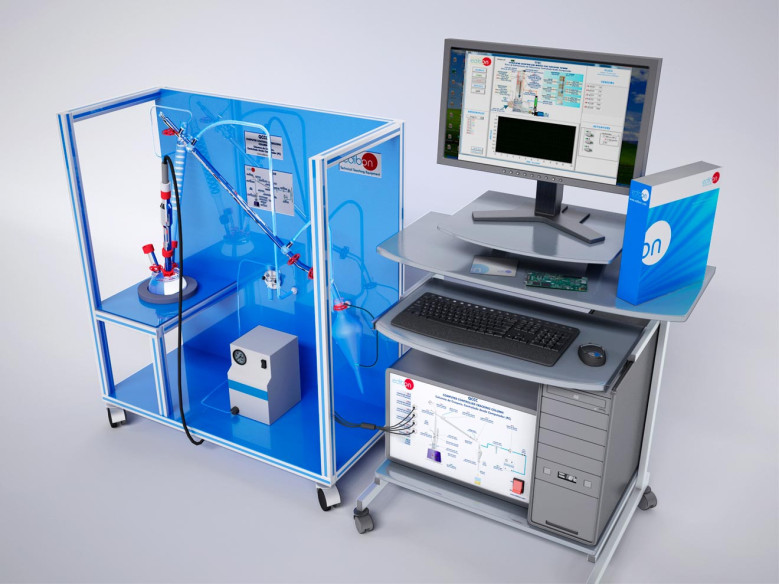

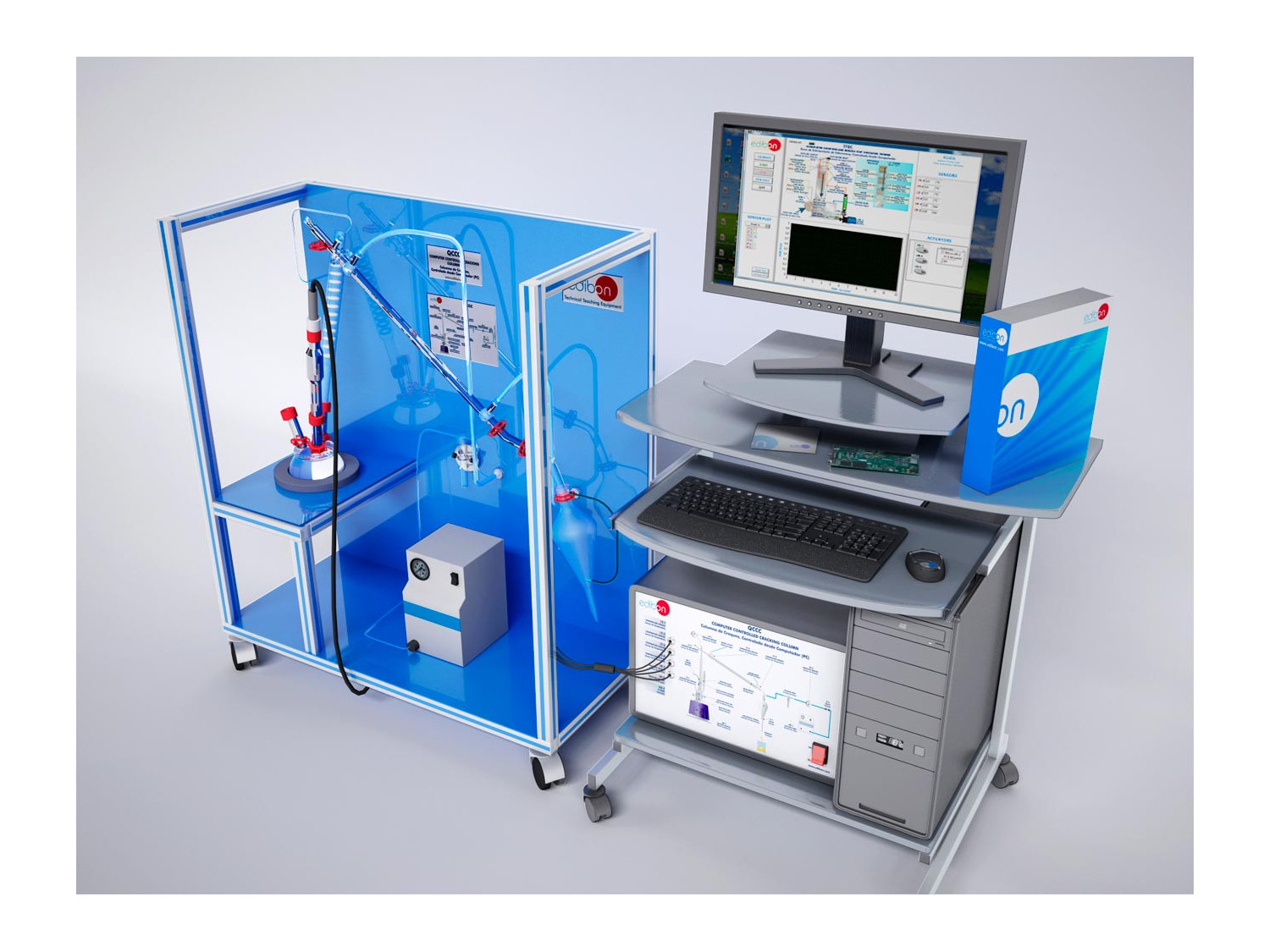

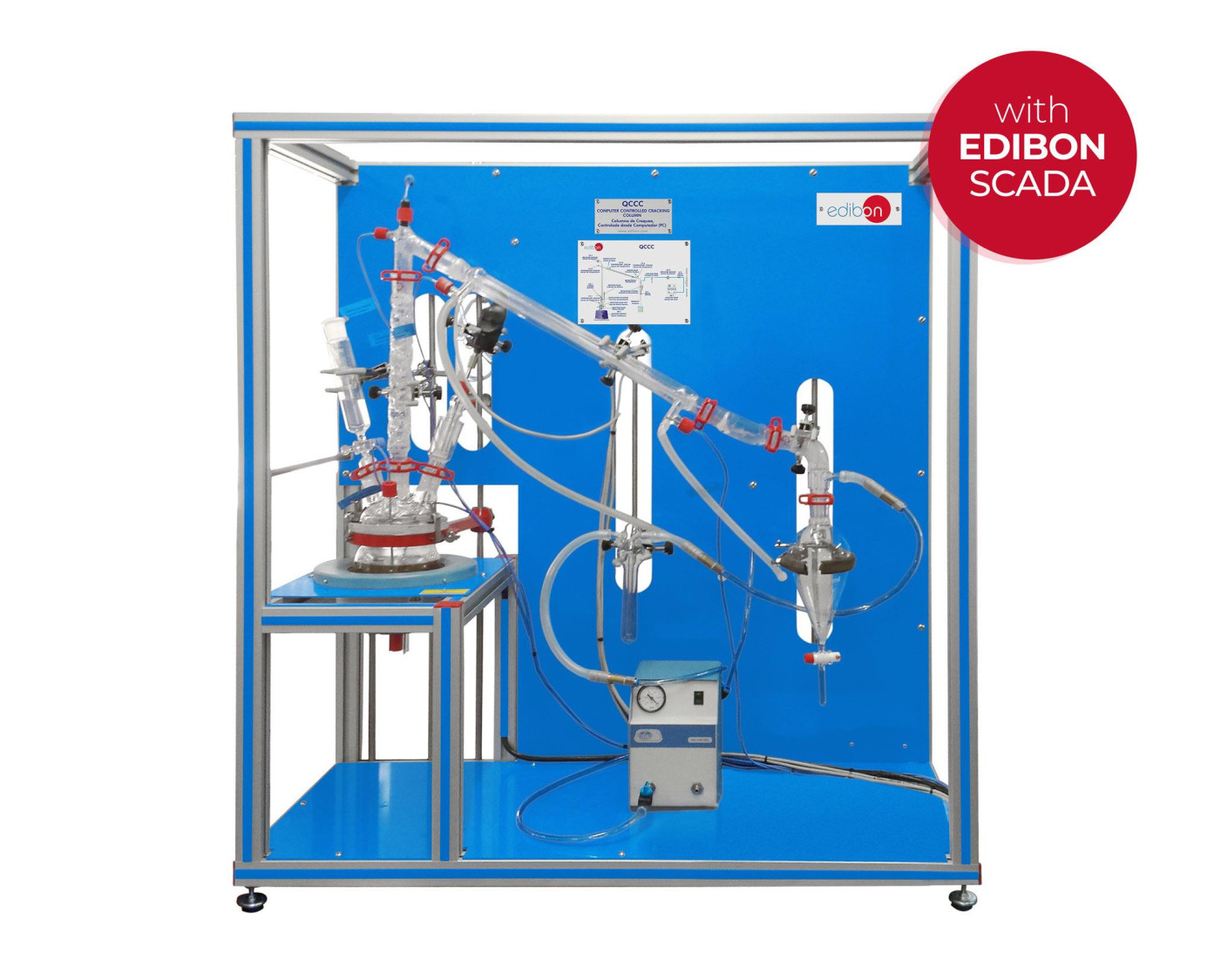

Complete QCCC Unit

COMPUTER CONTROLLED CRACKING COLUMN - QCCC

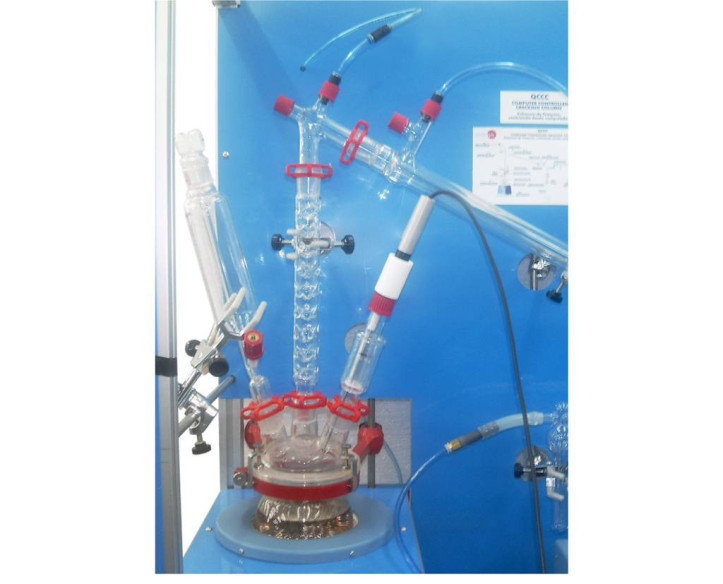

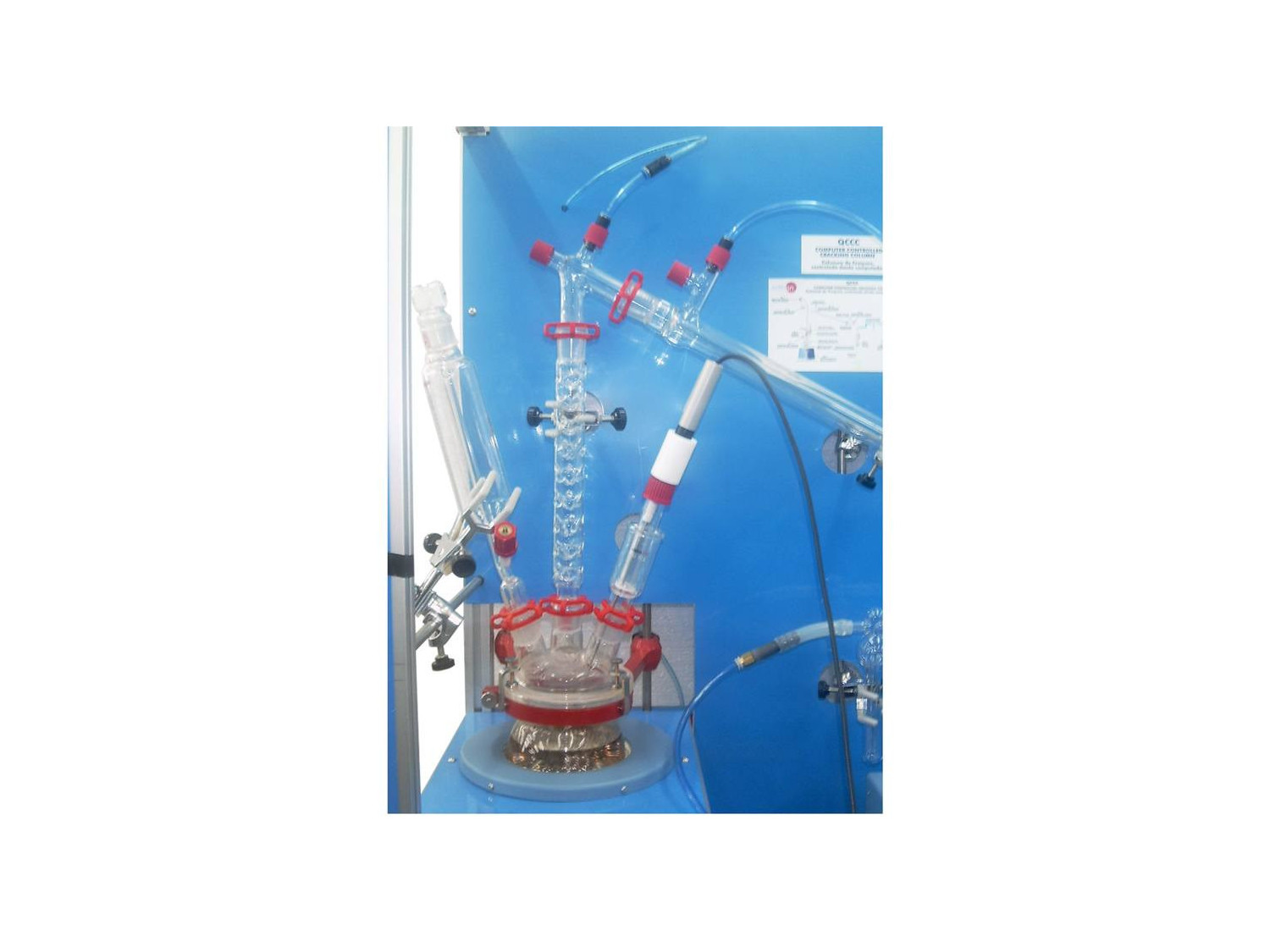

Unit details

COMPUTER CONTROLLED CRACKING COLUMN - QCCC

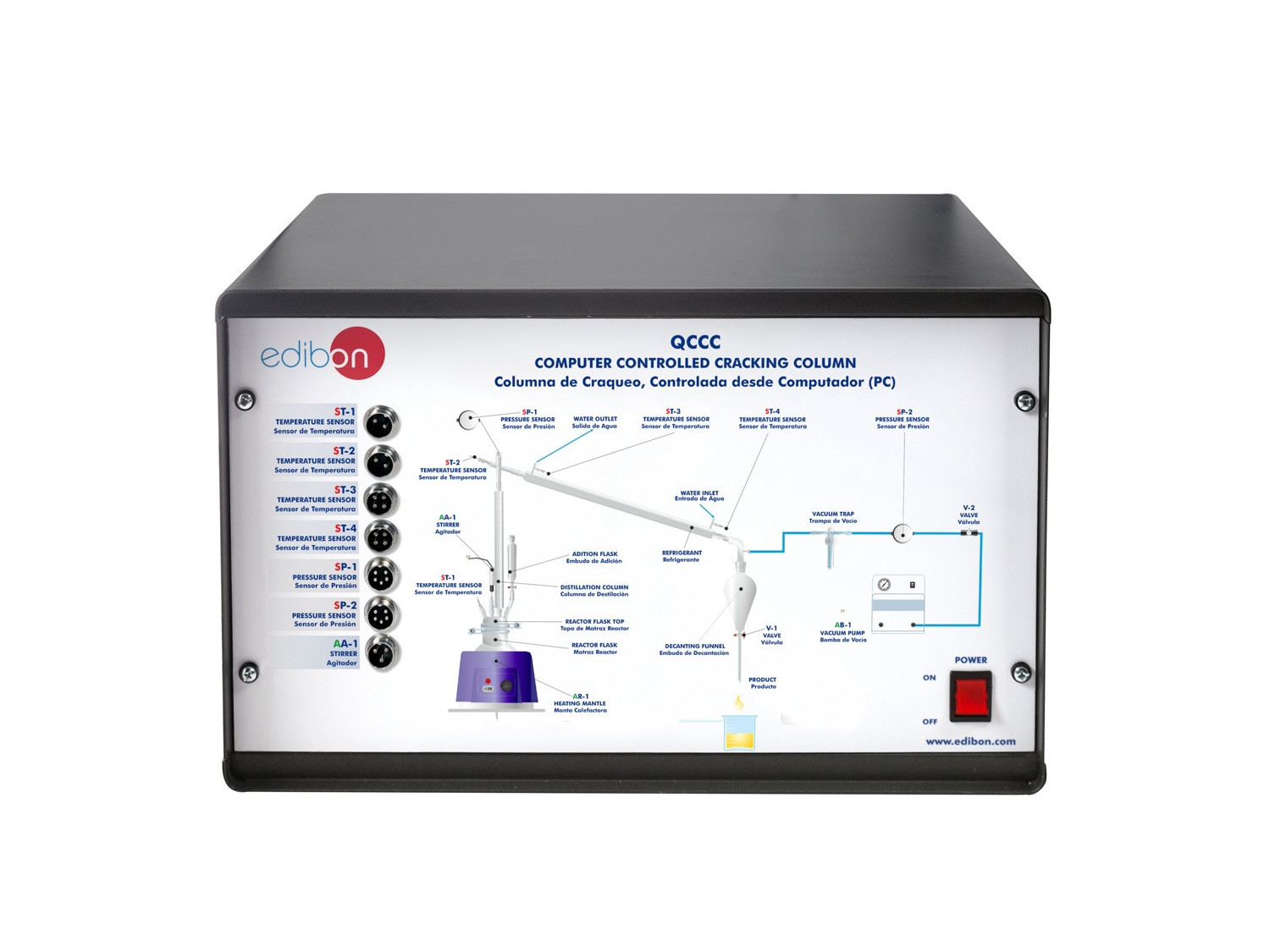

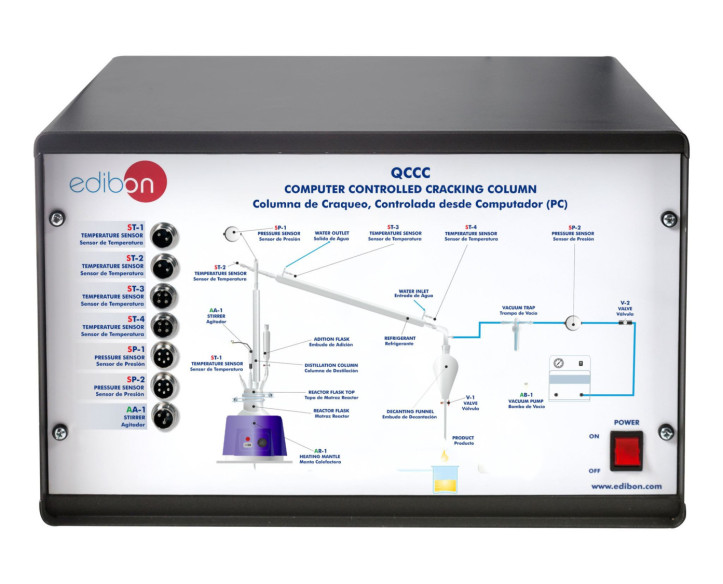

QCCC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED CRACKING COLUMN - QCCC

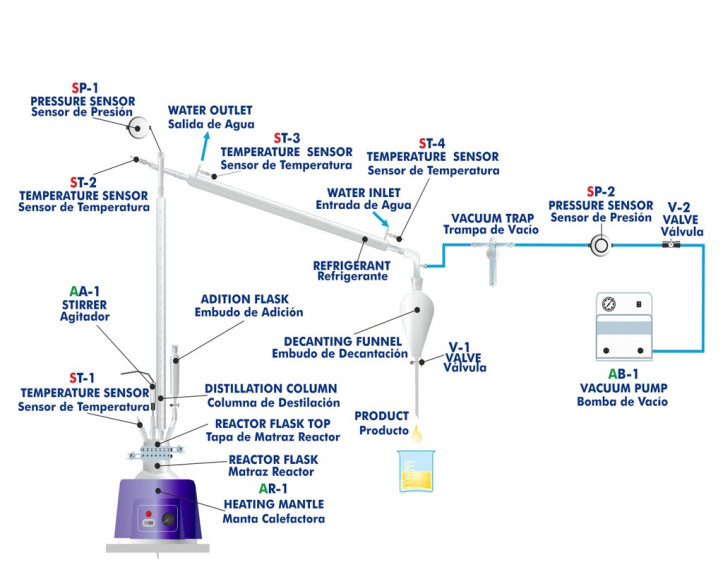

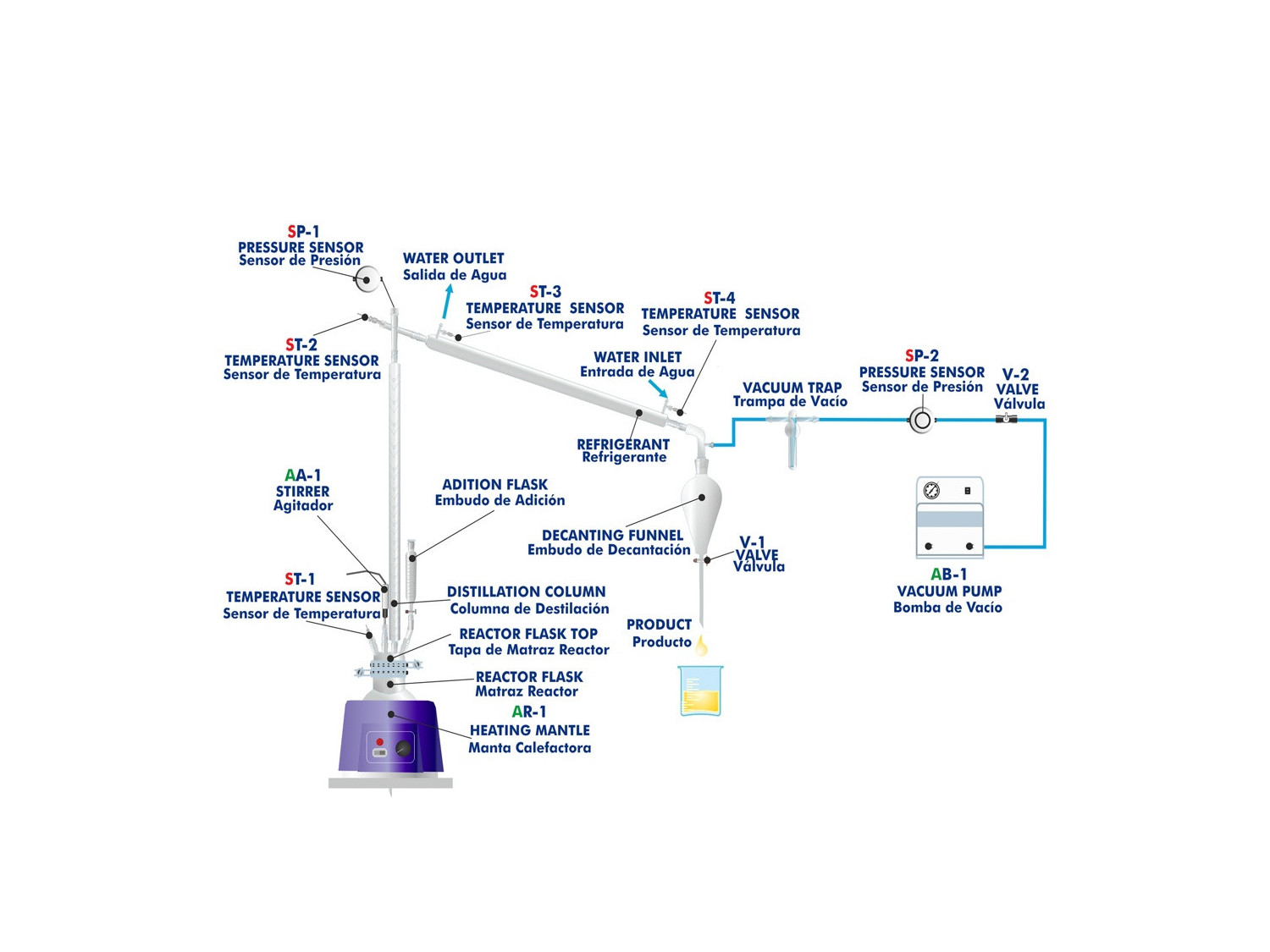

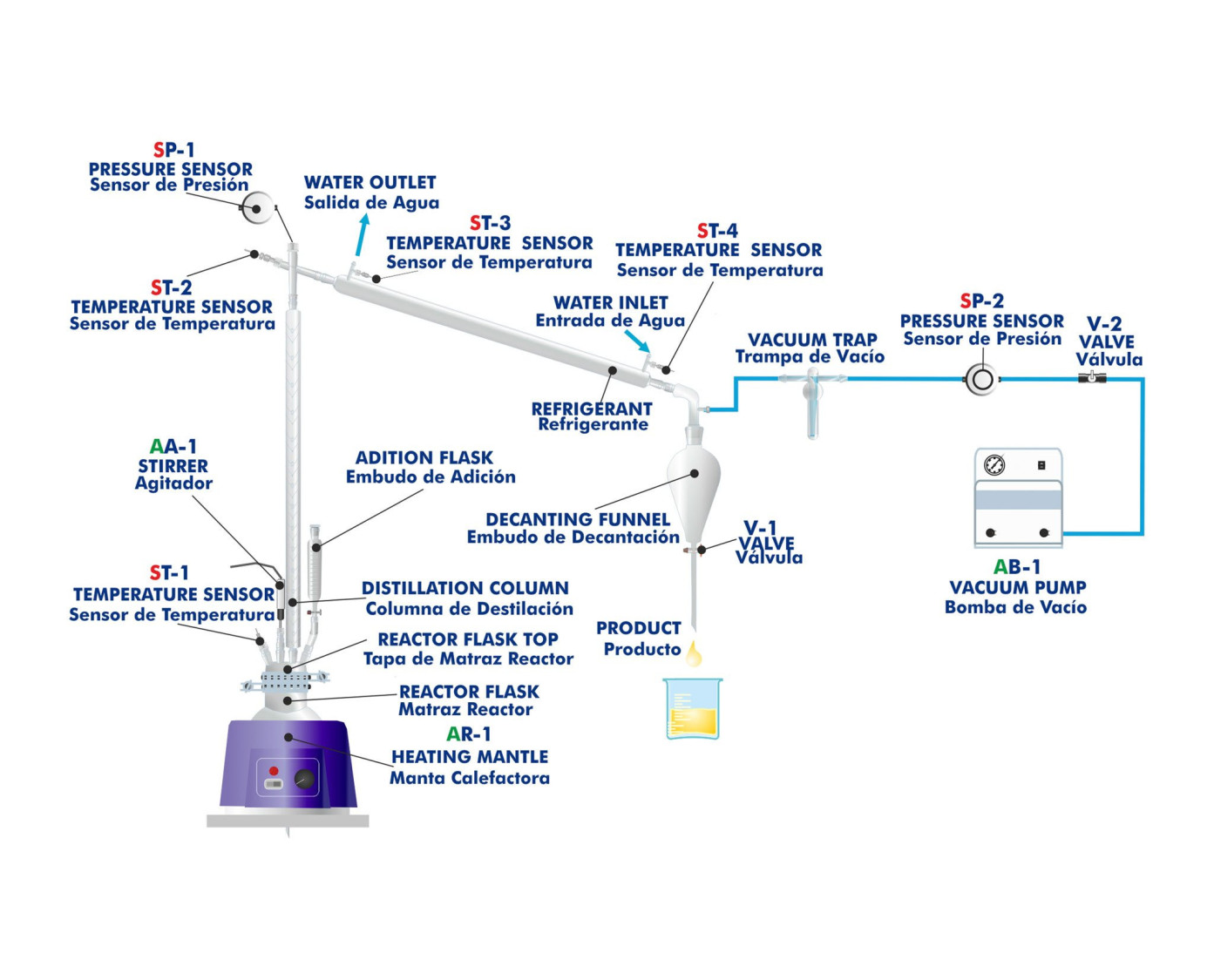

Process diagram and unit elements allocation

COMPUTER CONTROLLED CRACKING COLUMN - QCCC

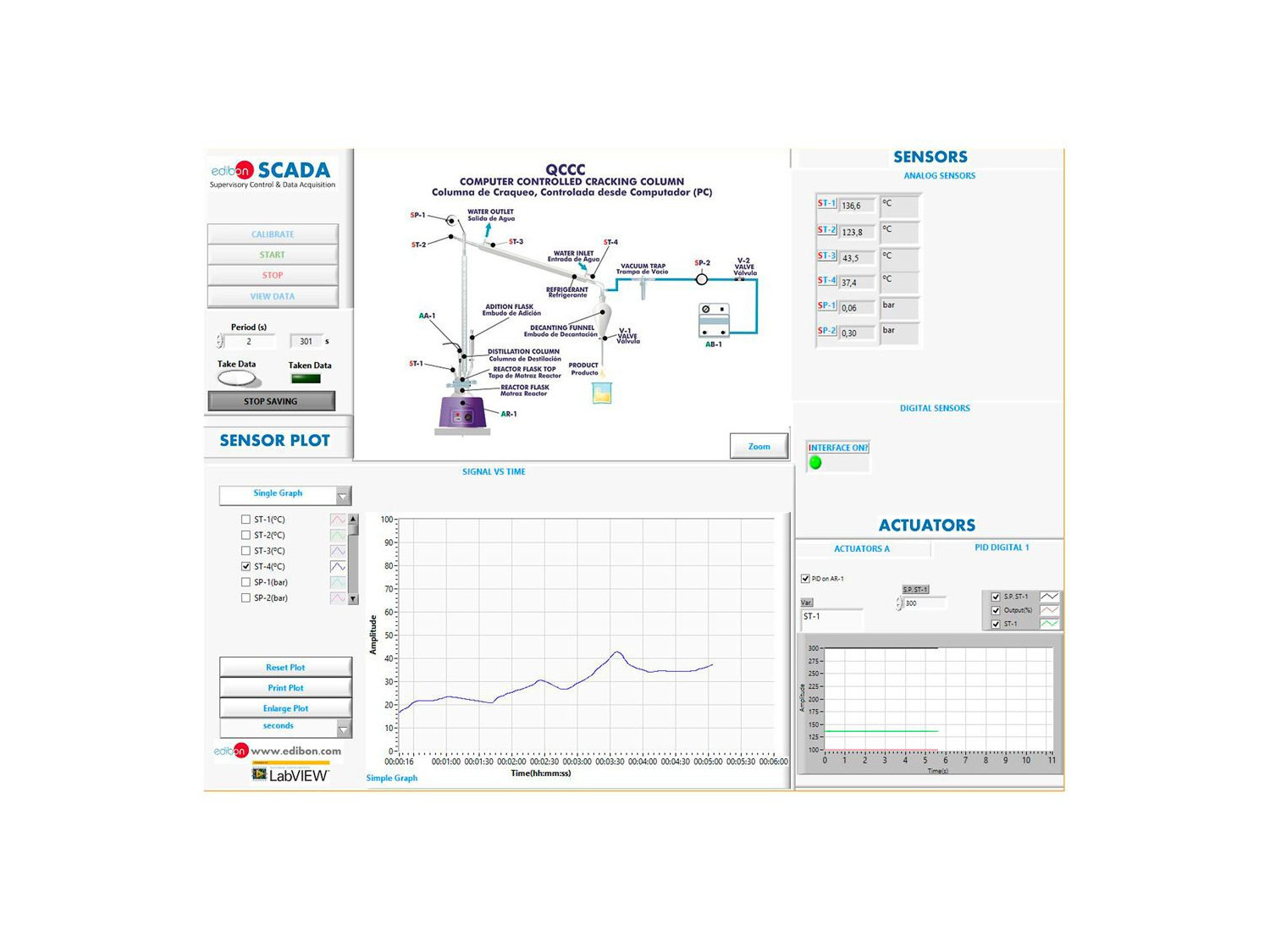

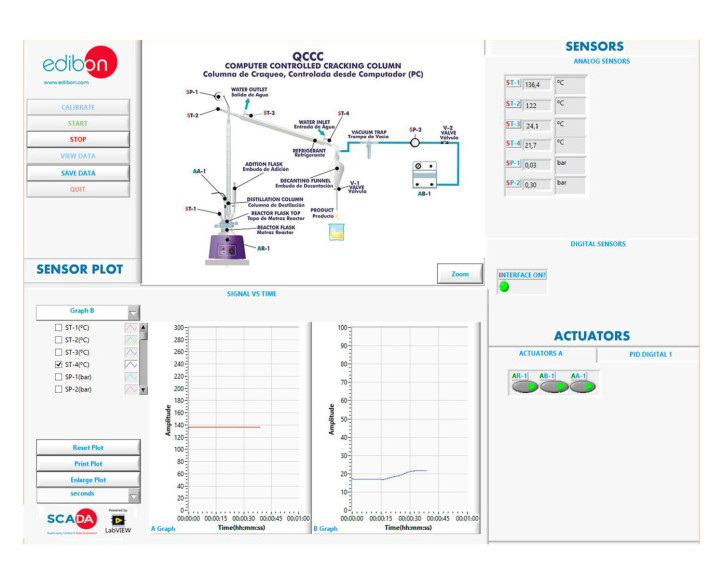

QCCC/SOF. QCCC Software. Main Screen

COMPUTER CONTROLLED CRACKING COLUMN - QCCC
COMPUTER CONTROLLED CRACKING COLUMN - QCCC
COMPUTER CONTROLLED CRACKING COLUMN - QCCC
COMPUTER CONTROLLED CRACKING COLUMN - QCCC
COMPUTER CONTROLLED CRACKING COLUMN - QCCC
COMPUTER CONTROLLED CRACKING COLUMN - QCCC

SISTEMAS INOVADORES

The Computer Controlled Cracking Column, "QCCC", for cracking and distilling oil is a complete lab tool that allows to the students to carry out a cracking reaction, and the study and the control of different variables that condition it.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
FSS

Sistema de Simulação de Falhas
PLC

Controle de Processos Industriais por CLP
PLCHMI

Controle e Monitoramento local/remoto IIoT com HMI
ELK

Kit de Desenvolvimento de Software EDIBON, Desenvolvido por NI LabVIEW ™
ECR

Sistema Modular Industrial EDIBON com NI CompactRIO
ESN

EDIBON Scada-Net
ECL

Educação a Distância EDIBON

LABORATÓRIOS

11TV
 Laboratório de Engenharia Química para o Ensino Técnico e Vocacional
11HE
 Laboratório de Engenharia Química para o Ensino Superior
11PTC
 Laboratório para o Centro de Formação Petrolífera

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Second-generation biofuels: the sustainable future at EDIBON
Second-generation biofuels: the sustainable future at EDIBON
In a world where energy demand continues to rise and non-renewable resources are rapidly depleting, the need for sustainable, environmentally friendly solutions has never been more urgent. The circular economy and the use of organic biomass to produce biofuels are emerging as key answers to...
Ler mais

Descrição Geral

The Computer Controlled Cracking Column, "QCCC", for cracking and distilling oil is a complete lab tool that allows to the students to carry out a cracking reaction, and the study and the control of different variables that condition it. Also, the production cycle will be completed by means of a separation, purification and analysis of the obtained products in that cracking reaction.

This unit is controlled from a computer. That allows a register of temperature and pressure data and the control of the cracking and distillation processes. Control software is easy and intuitive.

It consists of a glass body, perfectly fixed to an aluminum structure, which allows its handling with complete security, and several systems that allow to control the reaction: stirring, cooling, emptying and heating.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Carry out cracking reactions.
  2. Influence of the temperature in the Ricinoleic Acid cracking reaction (gradual increment of temperature).
  3. Influence of the temperature in the Ricinoleic Acid cracking reaction (sudden increment of temperature).
  4. Influence of the pressure in the Ricinoleic Acid pyrolysis reaction (working pressure too low).
  5. Influence of pressure in the Ricinoleic Acid pyrolysis reaction (low working pressure).
  6. Work with different heating gradients, regulated through the computer.
  7. Work with different pressures, regulated through the computer.
  8. Pitch as a catalyst.
  9. Simple distillation.
  10. Separation in its components of the product mixture of cracking.
  11. Heptanal purification.
  12. Undecylenic acid purification.
  13. Application of samples on TLC plates.
  14. Thin layer chromatography plates analysis.
  15. Study of several parameters that influence the analysis by thin layer chromatography.
  16. Other simple practices as calibration of instruments, preparation of samples, etc.
  17. Sensors calibration.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Cleaning the system.
  2. Monogram of pressure.

Other possibilities to be done with this unit:

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the QCCC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the QCCC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
