MDU-SES Conjunto de Árvore Elástica

7.4.3.- TREINAMENTO DE INSTALAÇÕES E MANUTENÇÃO

SISTEMAS INOVADORES

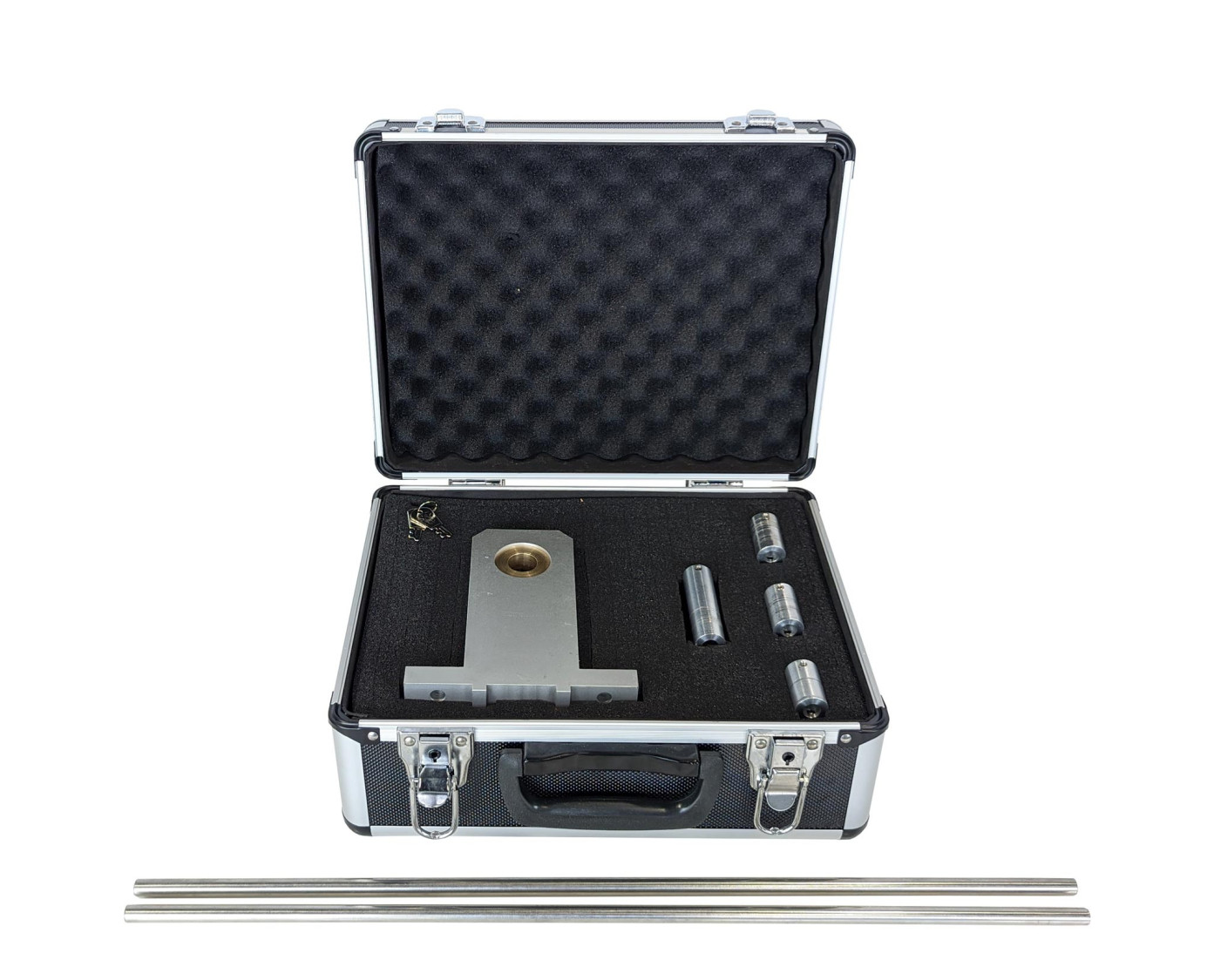

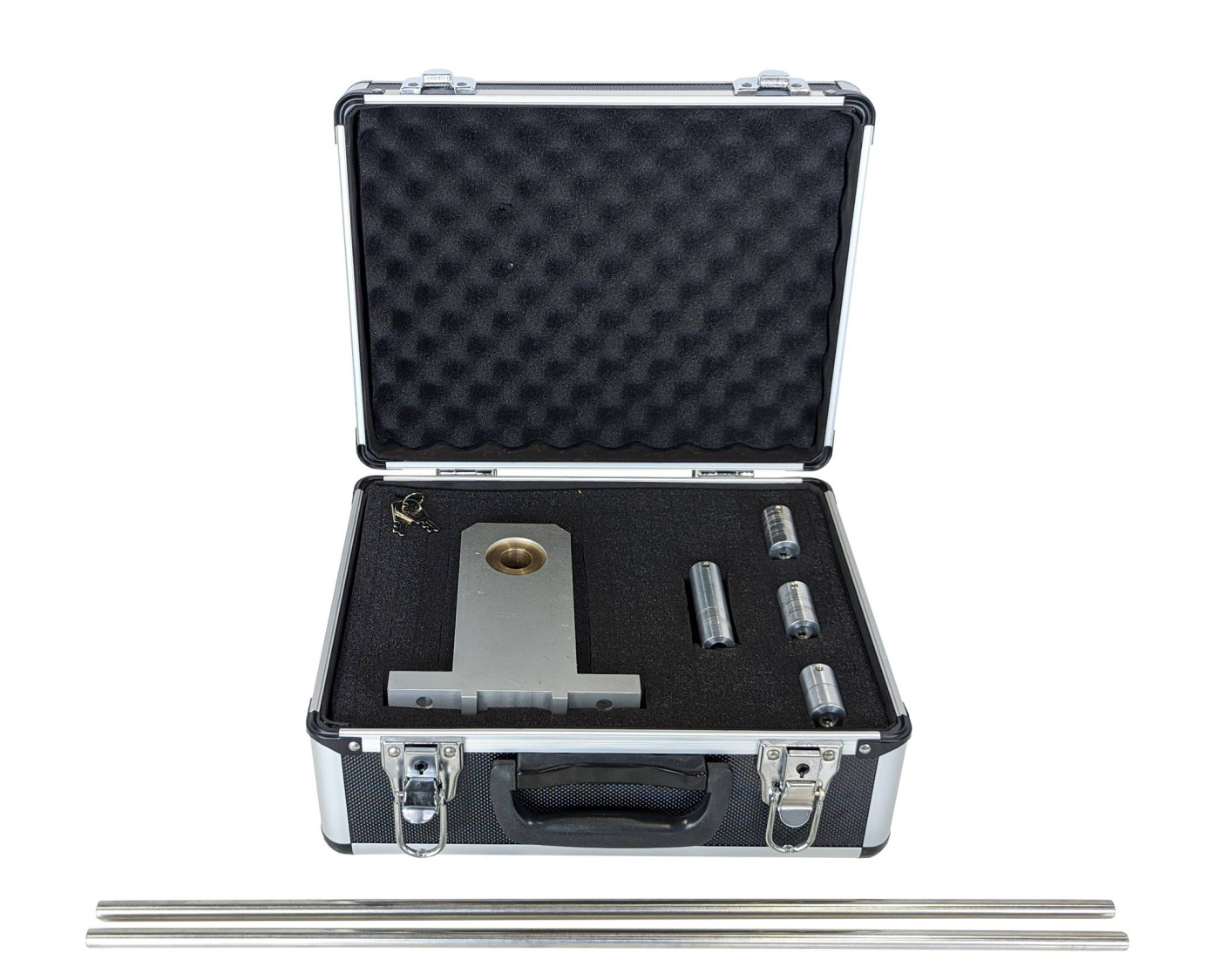

The Set of Elastic Shaft, "MDU-SES", of EDIBON allows to study the behavior of an elastic rotor subjected to imbalance and balance of elastic rotors in operation. It is possible to study the resonance and the phenomena occurred in subcritical and supercritical regimes with the Displacement Sensors for MDU Unit, "MDU-SD".

Ver descrição geral

Catálogo

Especificações de Concurso

Descrição Geral

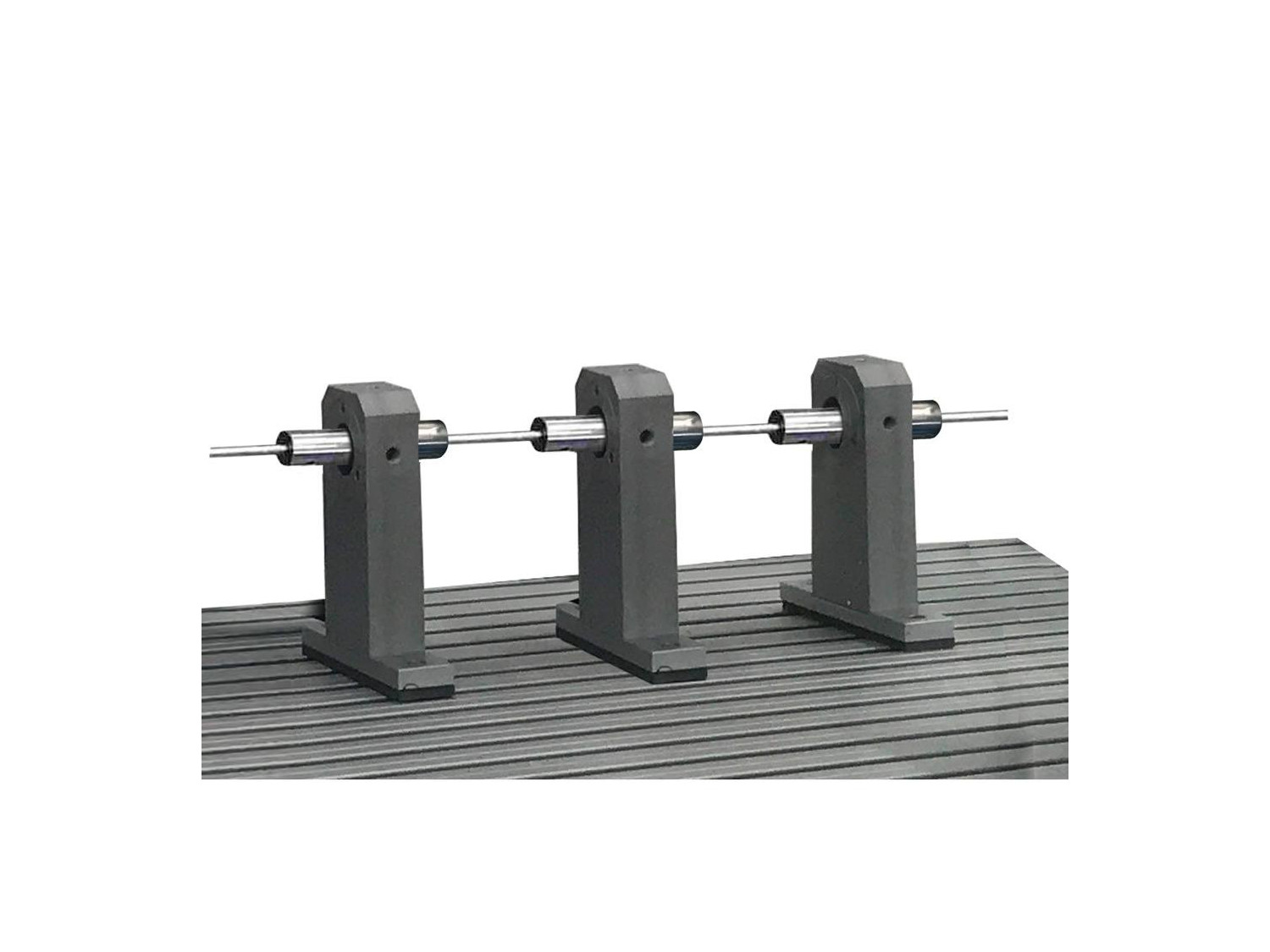

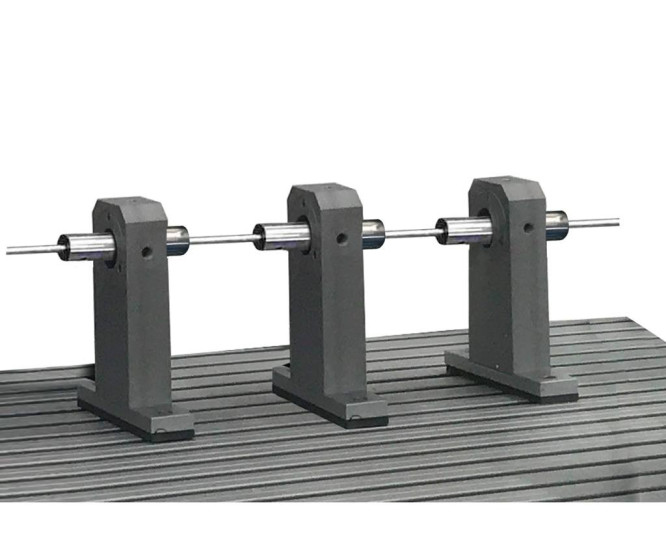

The Set of Elastic Shaft, "MDU-SES", includes some oscillating ball bearings that guarantee the total shaft movement, and the protective bearings limit the amplitude in areas close to the resonance to non-hazardous values.
