MDU-SSCP Conjunto de Cavitação em Bombas

7.4.3.- TREINAMENTO DE INSTALAÇÕES E MANUTENÇÃO

SISTEMAS INOVADORES

The Set to Study Cavitation in Pumps, "MDU-SSCP", allows to produce the cavitation phenomenon and study its vibrational response.

Ver descrição geral

Catálogo

Especificações de Concurso

Descrição Geral

Pump cavitation is produced when steam cavities are created within a fluid in which forces act responding to the pressure differences.

Cavitation causes noise, damage to components and loss of performance.

The Set to Study Cavitation in Pumps, "MDU-SSCP", allows to produce the cavitation phenomenon and study its vibrational response.

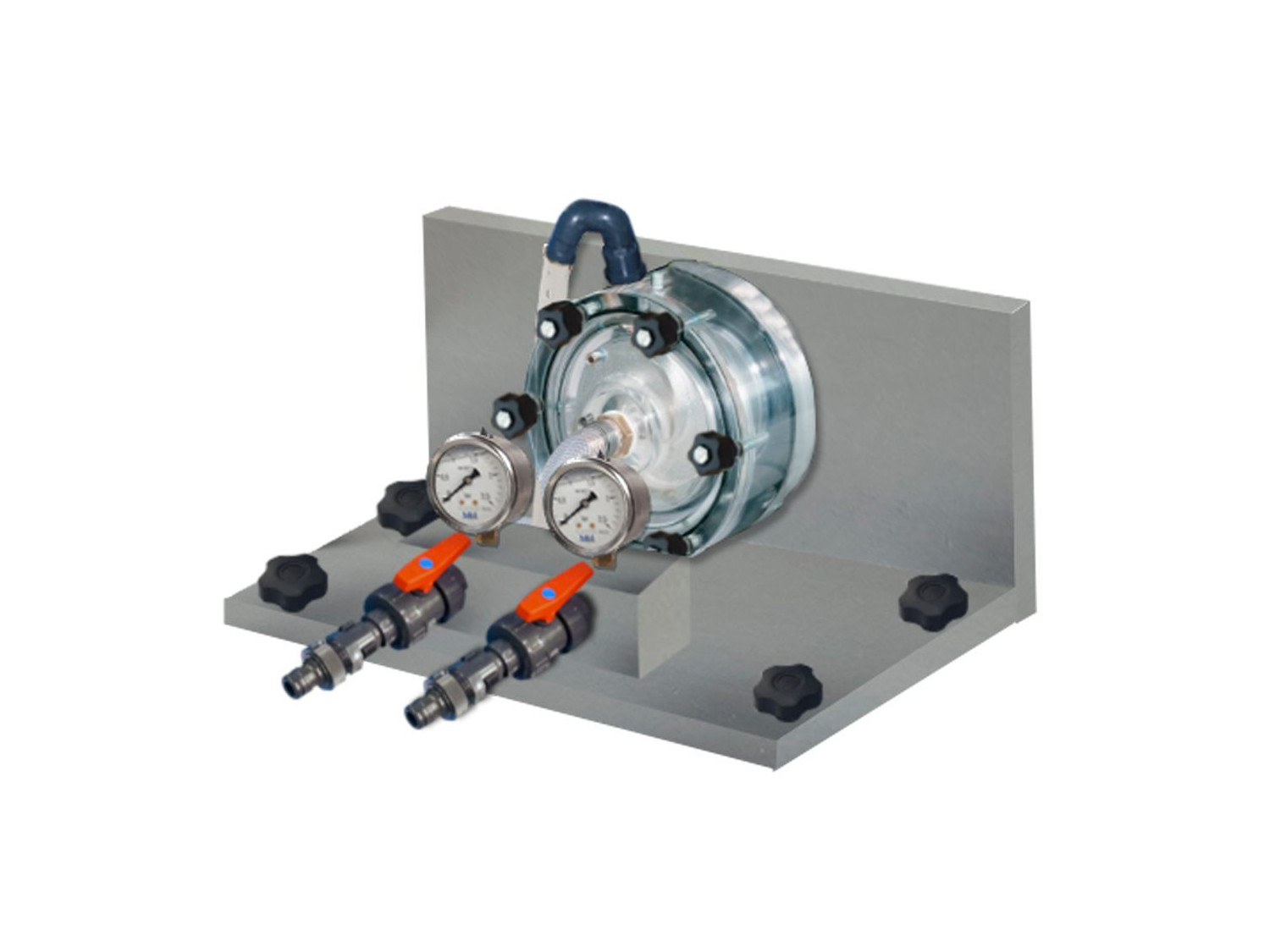

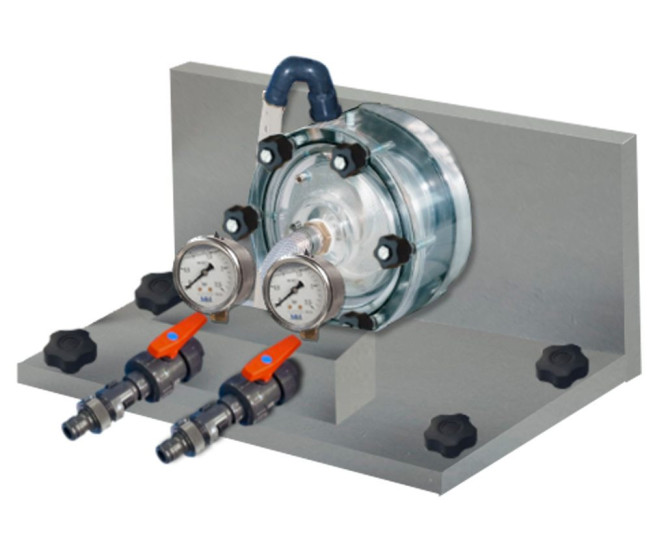

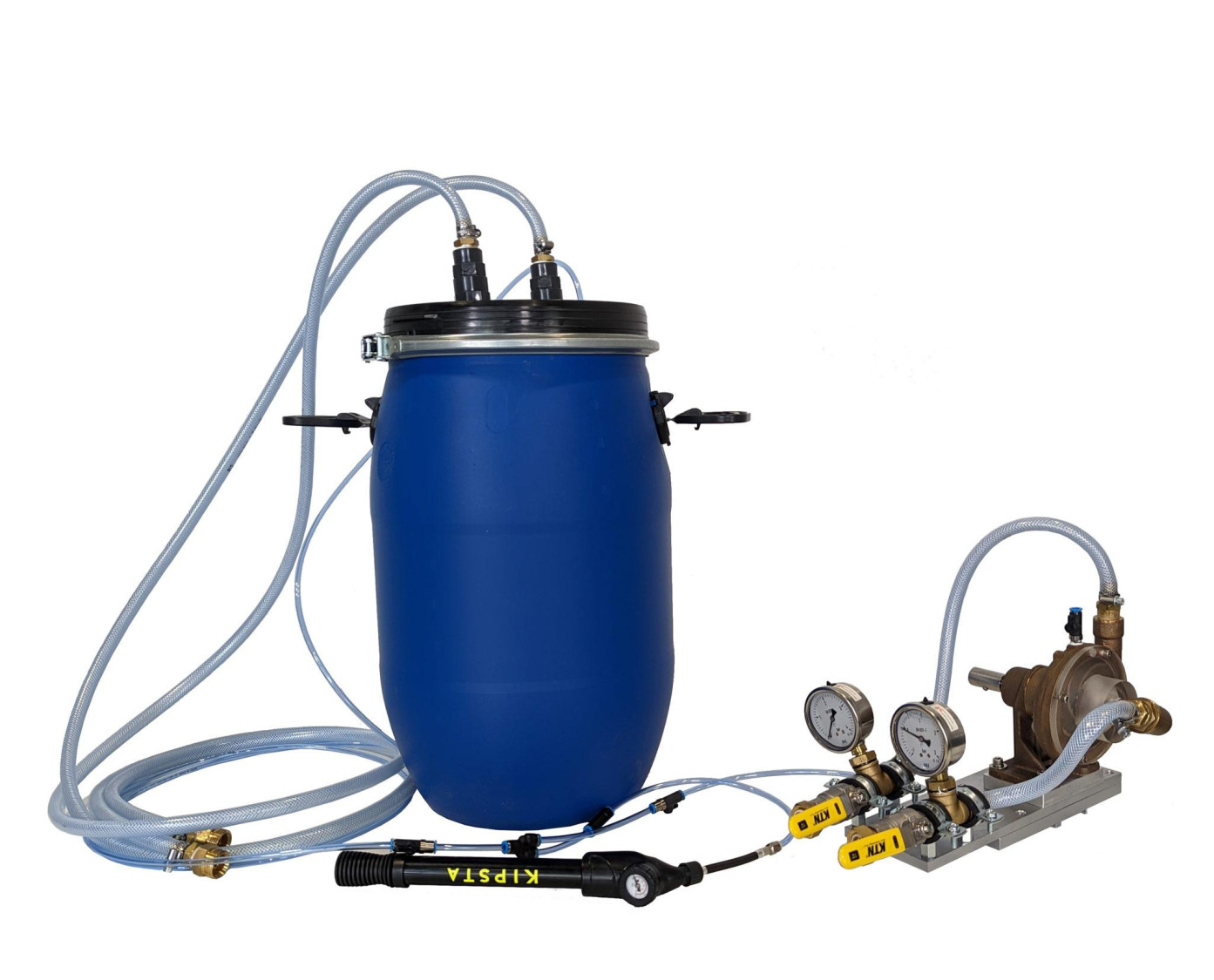

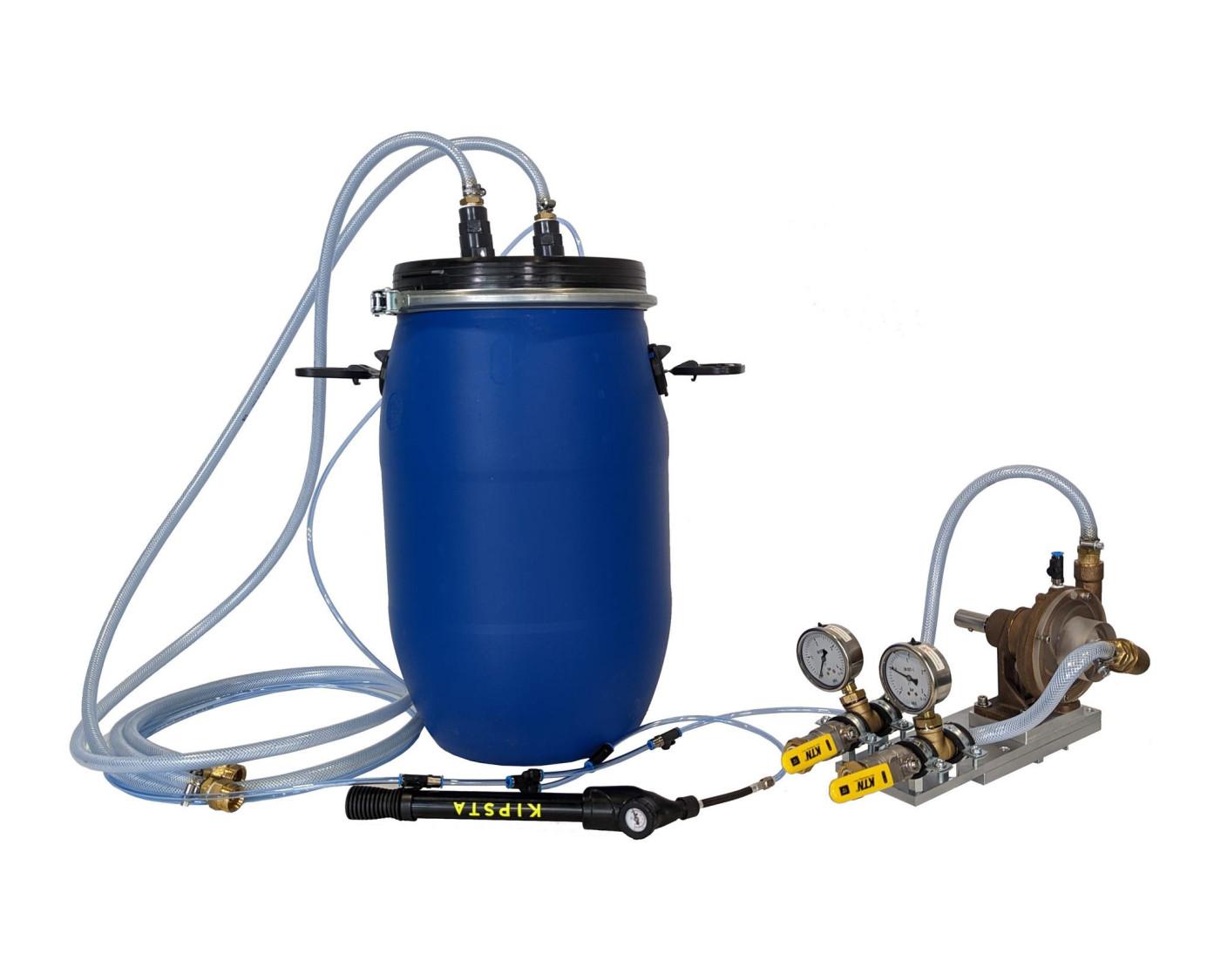

The Set to Study Cavitation in Pumps, "MDU-SSCP", consists of a single-stage centrifugal pump connected to flexible tubes with a tank. It is possible to adjust different operating conditions with valves and manometers. Furthermore, it is possible to observe the inside of a pump in operation through the plastic casing.

The pump can be driven directly through an elastic coupling or the Set of Belt Drive, "MDU-SBD".
