N-EM-CCO Controle de Comportas

6.2.2.2.- CONTROLE DE NÍVEL E FLUXO

SISTEMAS INOVADORES

"N-EM-CCO" represents a sluice gate control system.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

Descrição Geral

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

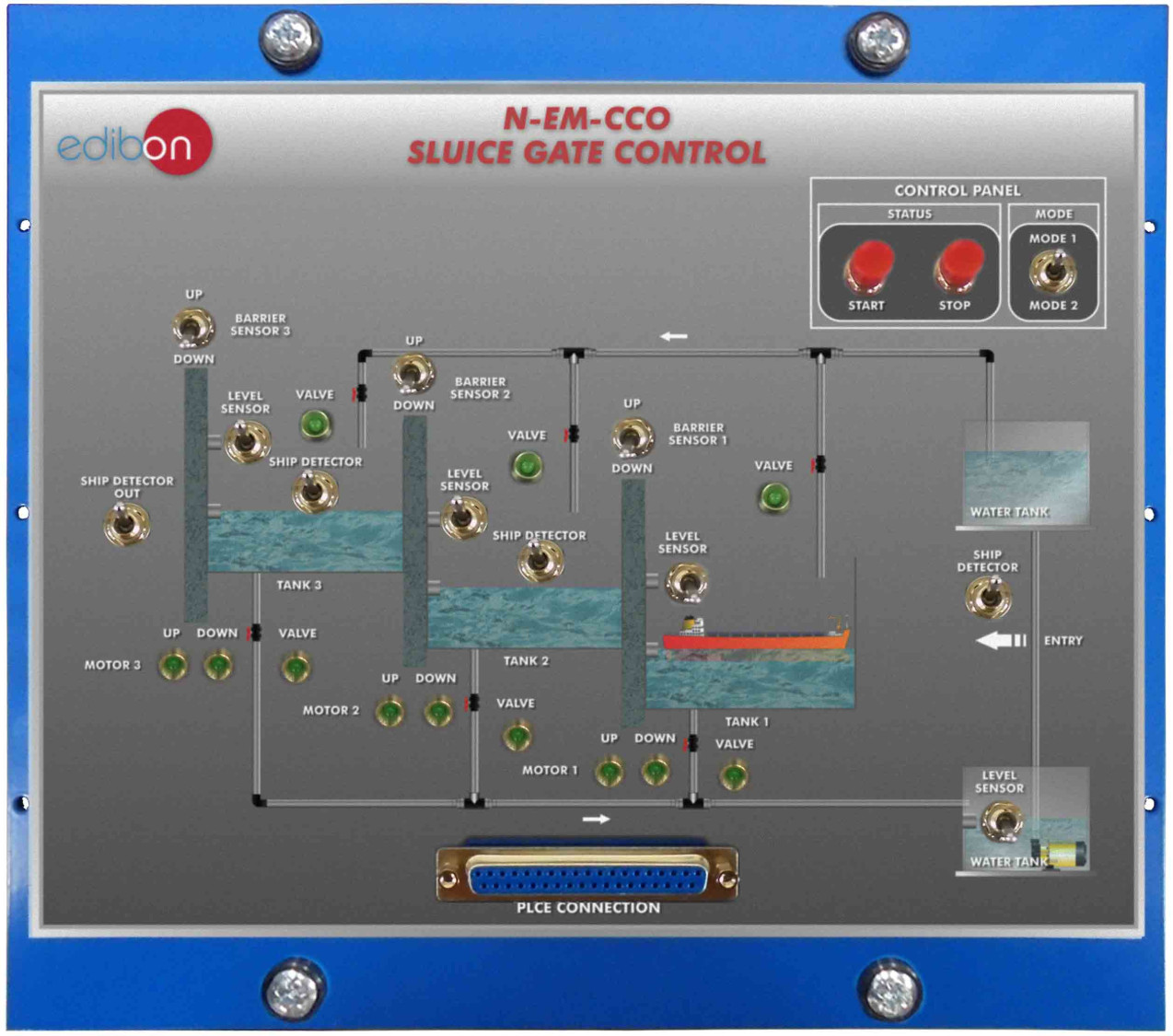

"N-EM-CCO" represents a sluice gate control system. The sluice system is composed by three sluice gates, and we have to control them using the water pumps and the gates control. The switches and pushbuttons emulate the state of the sluice doors, the level sensors of each tanks, the state of the presence sensors, etc.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

All "N-EM" modules allow to perform the following practical exercises:

Temporization.
Counting.
Sequential counting.
All the practical exercises include the diagrams and the flow charts of the example programs used.
