N-EM-CME Controle de Misturador

6.2.2.2.- CONTROLE DE NÍVEL E FLUXO

SISTEMAS INOVADORES

"N-EM-CME" represents a mixer control system with two different products in a central tank.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

Descrição Geral

The "N-EM" are a series of emulators that provide the students the required hardware to emulate the most common automatic systems.

The "N-EM" modules are designed to work with the "AE-PLC" units to obtain the fundamental knowledge of PLC programing, PLC management, etc.

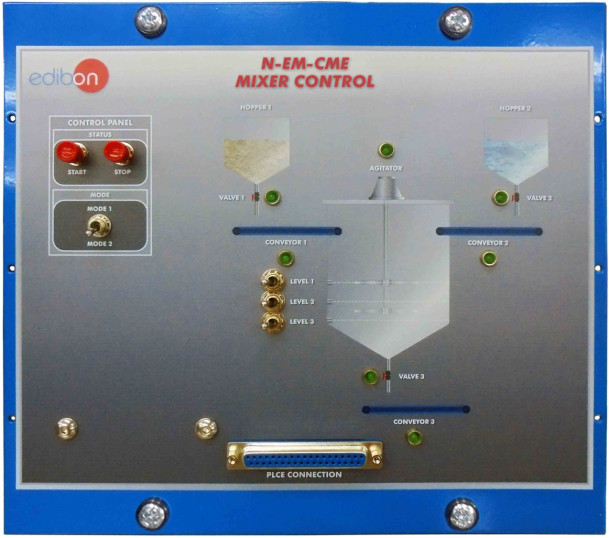

"N-EM-CME" represents a mixer control system with two different products in a central tank. The tank is fed with two little chutes using conveyor belts, once the product is mixed, a main conveyor belt transport the mix to the output zone. The different switches and pushbuttons emulate the level sensor signals located at the main tank.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

All "N-EM" modules allow to perform the following practical exercises:

Temporization.
Counting.
Sequential counting.
All the practical exercises include the diagrams and the flow charts of the example programs used.

EQUIPAMENTOS COMPLEMENTARES

N-EM-SBAR

Available

6.2.2.2.- CONTROLE DE NÍVEL E FLUXO

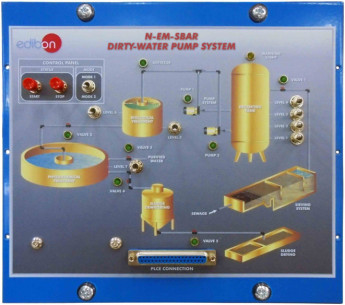

N-EM-SBAR
