FME19 Demonstração de Cavitação

8.1.4.- HIDRODINÂMICA

CAVITATION PHENOMENON DEMONSTRATION - FME19

Complete FME19 Unit

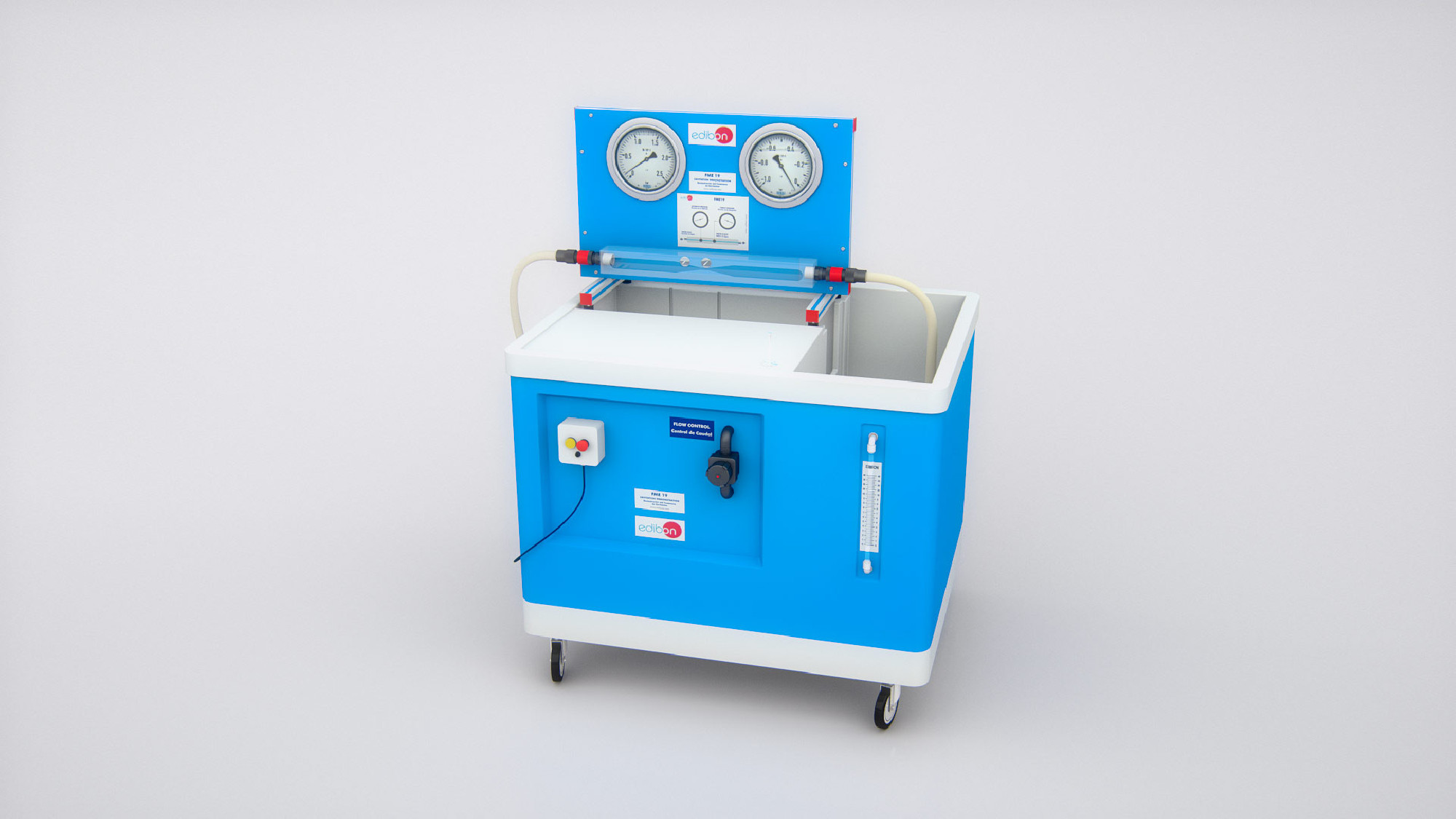

FME19 Unit with service unit FME00

SISTEMAS INOVADORES

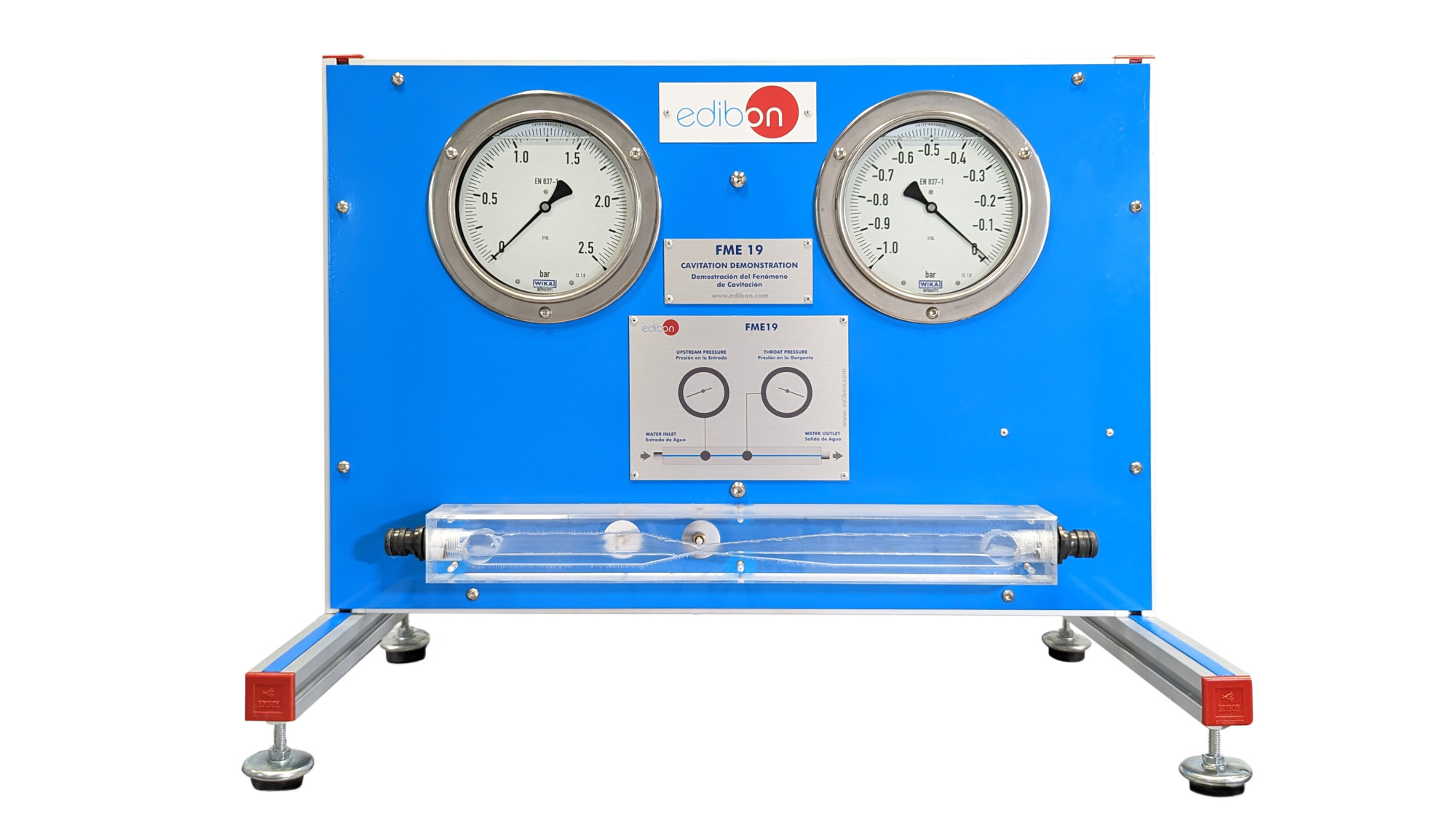

The Cavitation Phenomenon Demonstration unit, "FME19", designed by EDIBON is composed of a Venturi tube with a rectangular cross section, one of its sides being transparent, allowing a better visualization of the cavitation phenomenon.

Ver descrição geral

Catálogo

Especificações de Concurso

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

8TV

Laboratório de Mecânica dos Fluidos para o Ensino Técnico e Vocacional

8HE

Laboratório de Mecânica dos Fluidos para o Ensino Superior

NOTÍCIAS RELACIONADAS

Descrição Geral

It includes a manometer and a vacuum meter that are respectively connected to the inlet section and to the reduction throat section.

The existing pressure in the Venturi sections is transmitted by thin capillary tubes placed at the back of the frame.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

Study of cavitation.
Visualization of the cavitation phenomenon with forced conduction.
