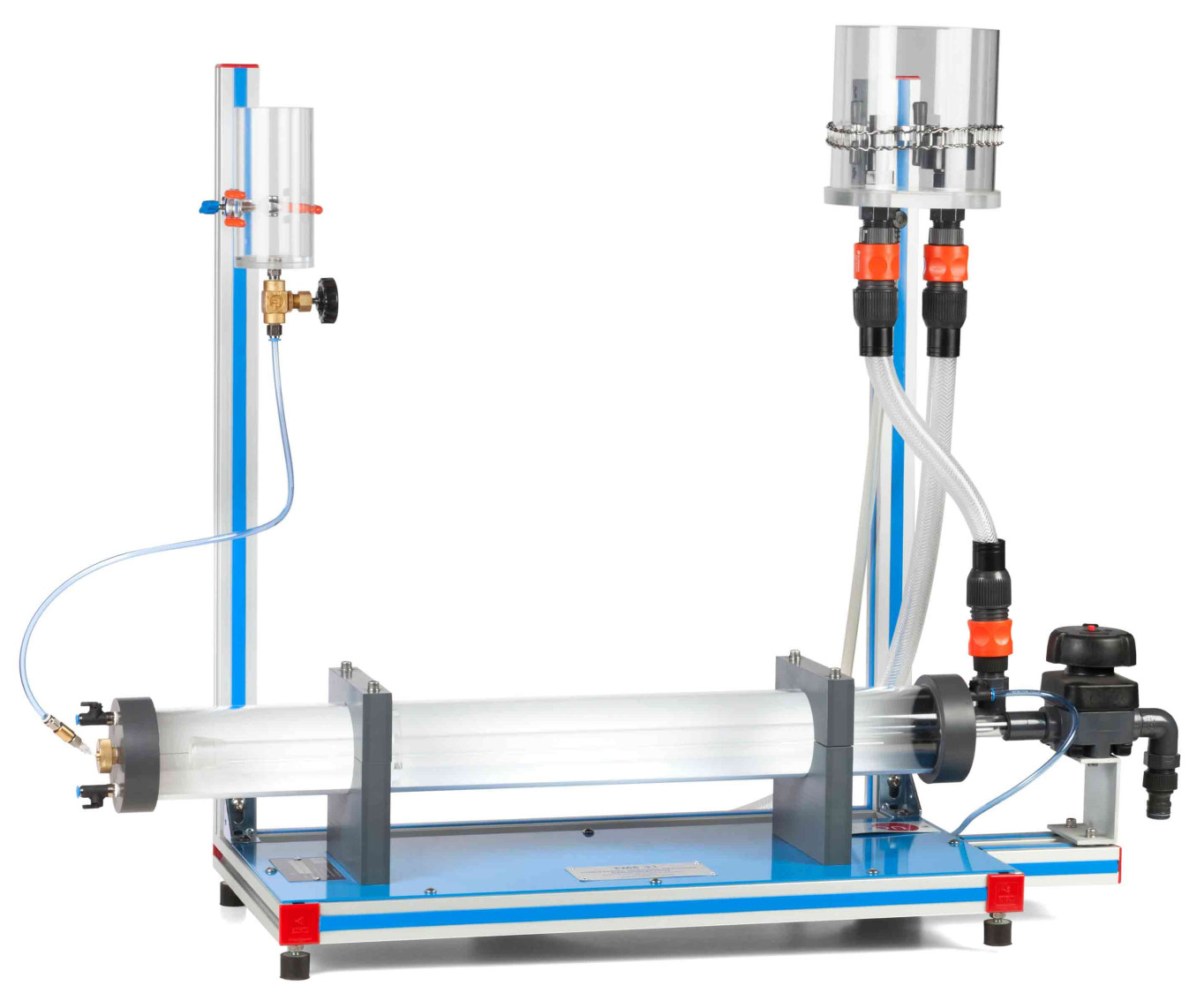

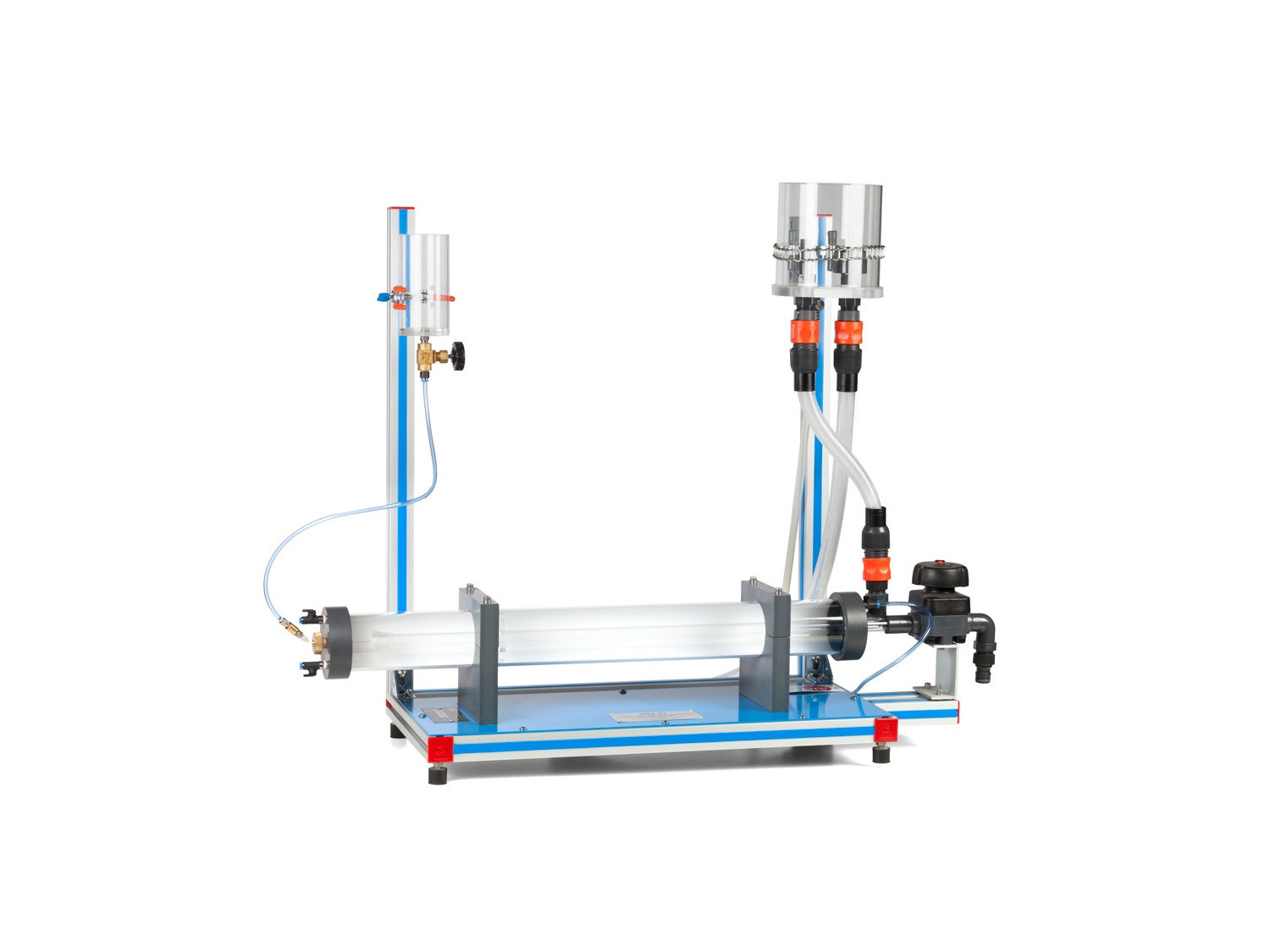

Complete FME31 Unit

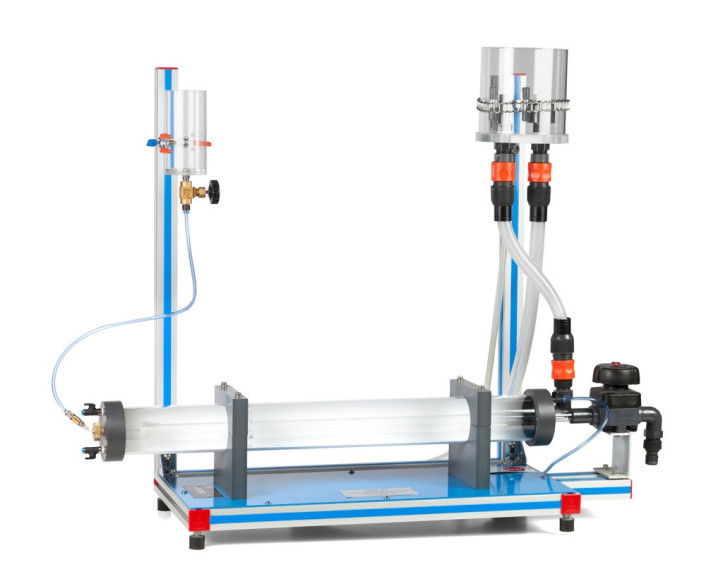

HORIZONTAL OSBORNE REYNOLDS DEMONSTRATION - FME31

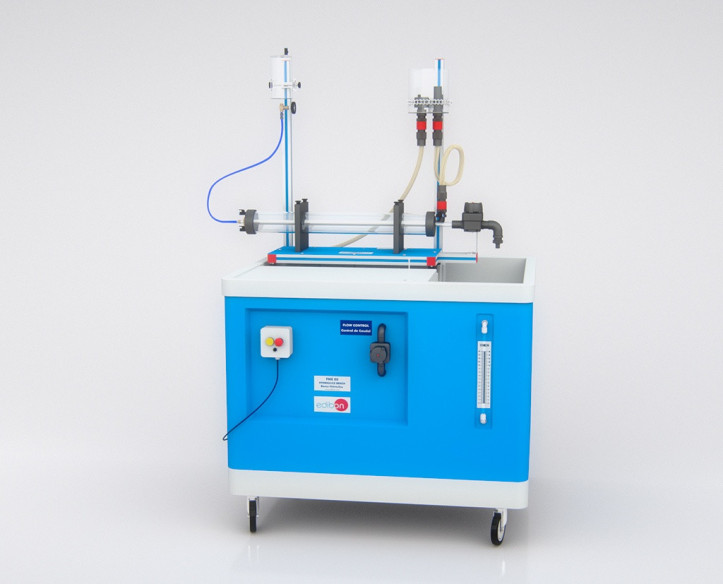

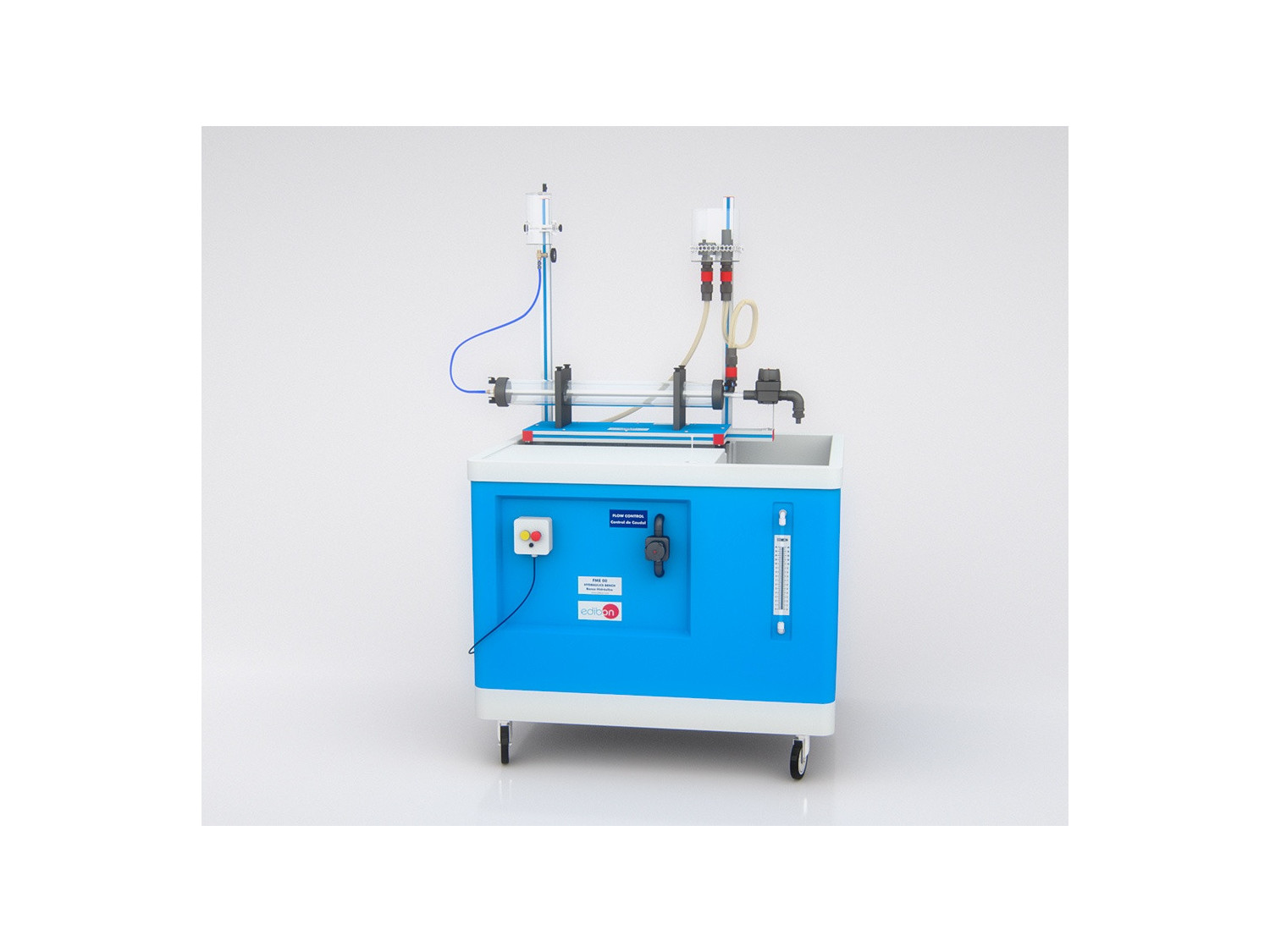

FME31 Unit with service unit FME00

HORIZONTAL OSBORNE REYNOLDS DEMONSTRATION - FME31
HORIZONTAL OSBORNE REYNOLDS DEMONSTRATION - FME31

SISTEMAS INOVADORES

The Osborne Reynolds Horizontal Demonstration Unit, "FME31", designed by EDIBON, allows to study the characteristics of a liquid flowing through a pipe and the Reynolds number in each of the liquid states.
