MFV Demonstrador de Deflexão em Vigas

7.1.6.- MECÂNICA DE ESTRUTURAS 7.3.2.1.- ENSAIOS MECÂNICOS 14.1.6.- MECÂNICA DE ESTRUTURAS
BEAM DEFLECTION UNIT - MFV

SISTEMAS INOVADORES

The Beam Deflection Unit, "MFV", enables the student to demonstrate the fundamentals of bending by studying the deflection produced in metallic flat bars, which simulate the behavior of beams, subjected to different loads.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

7TV
 Laboratório Mecânico, Automóvel e de Materiais para o Ensino Técnico e Vocacional
7HE
 Laboratório de Mecânica, Automóvel e Materiais para o Ensino Superior

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Setting up at Slippery Rock University
Setting up at Slippery Rock University
We are very pleased that we have recently completed an installation in the department of Physics and Engineering at the Slippery Rock University.  It's always a pleasure to work on projects like this!
Ler mais
NEW Photoelasticity course
NEW Photoelasticity course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
Ler mais
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Ler mais
NEW Strength of Materials Course
NEW Strength of Materials Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!
Ler mais

Descrição Geral

The Beam Deflection Unit, "MFV" has been designed to enable the students to observe and study the following phenomena in simply supported beams and cantilever beams:

  • Relation between the deflections and the applied loads.
  • Effect of the length and the cross section on the beam behaviour. Ex: deflection load ratio.

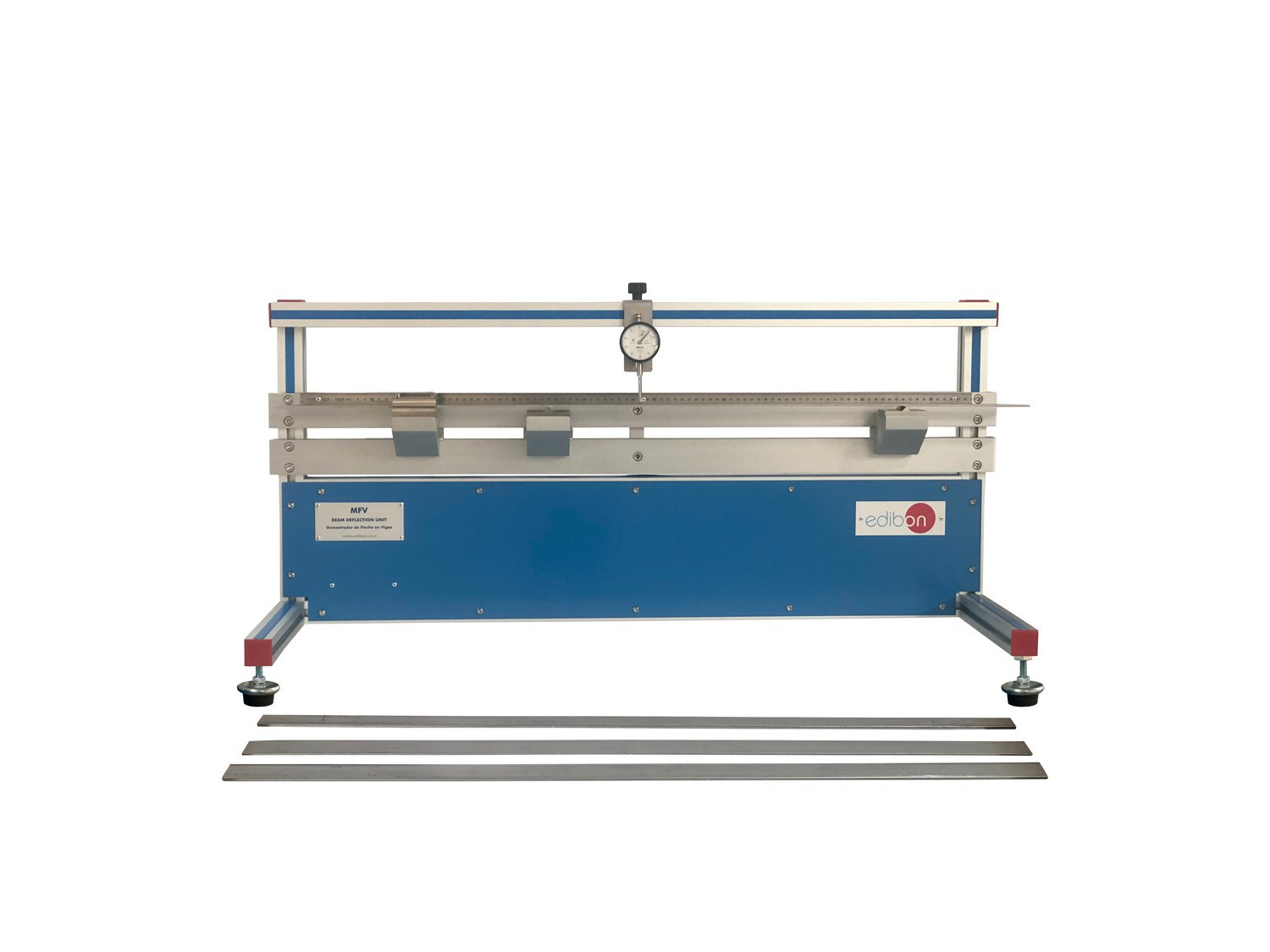

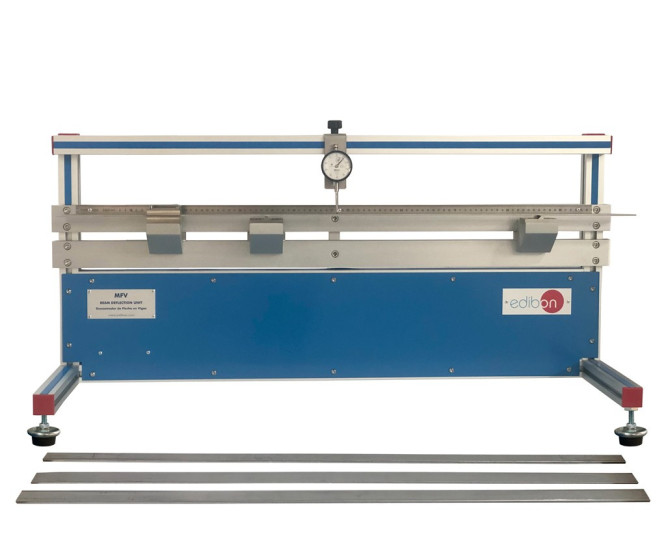

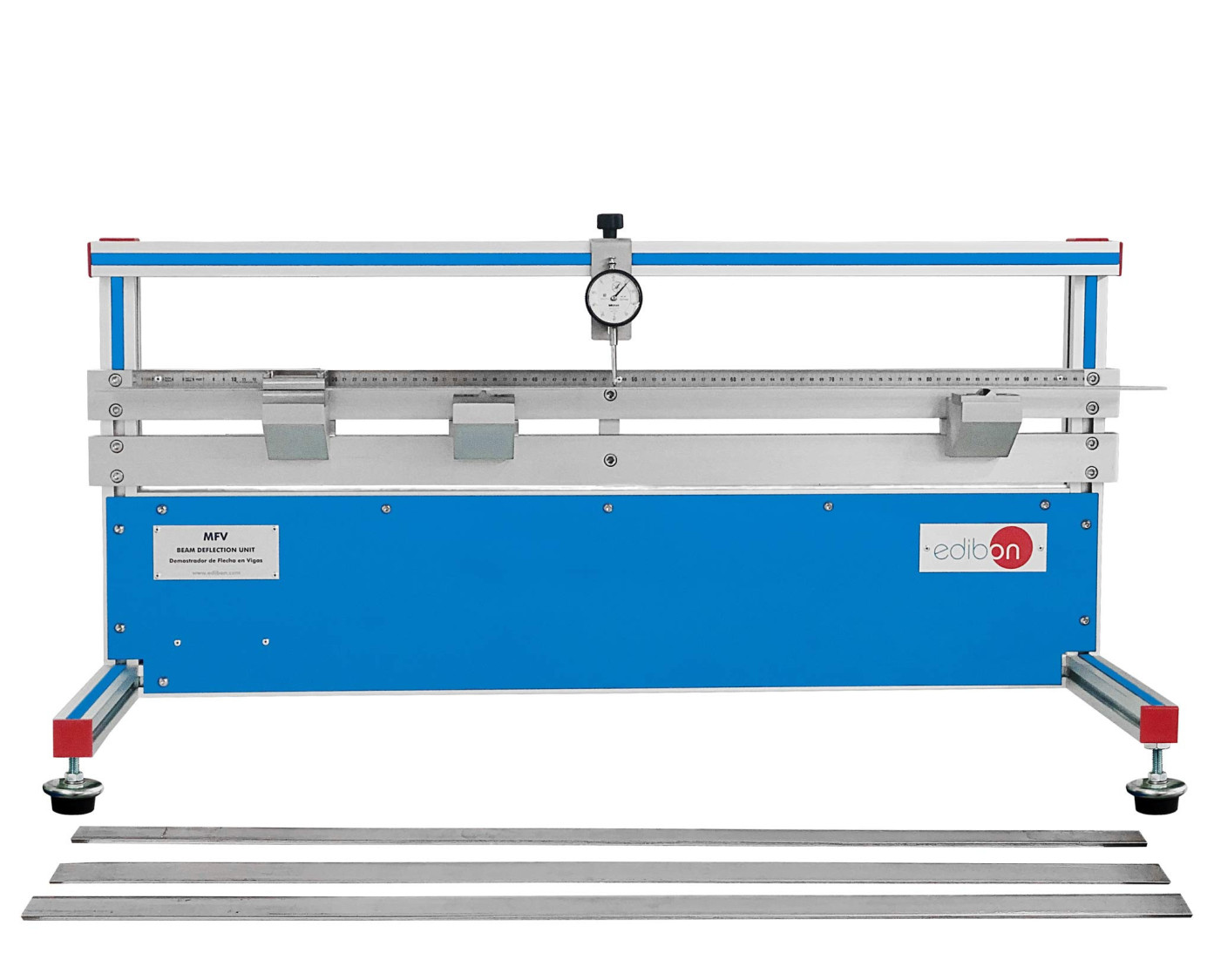

The "MFV" unit consists of an aluminum and stainless steel structure to carry out experiment with metal beams up to a length of 1 m. Three beams with different cross section are supplied.

The structure makes it easy to study cantilevers holding the beam by one end, or beams simply supported on two points.

The "MFV" unit gives us the possibility of modifying the position of the supporting and holding points.

It has a graduated ruler fixed on the structure that allows to obtain measures easily in different points of the beam.

The weights will be hung from hooks, in order to apply the load on any point in the beam.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Study of the characteristics of simply-supported and cantilever beams.
  2. Determination of the relationship between applied load and deflection.
  3. Beam supported on its two ends with a central loading point.
  4. Study of the variation of length in deflection.
  5. The effect the beam´s length has on a centrally loaded beam supported by its two ends.
  6. The effect of the cross-section of deflection of beams.
  7. The effect the beam´s section has on a centrally loaded beam supported on its two ends.
  8. Cantilever beam with a load on one of its ends.
  9. The effect the beam´s length has on a cantilever with a load on one of its ends.
  10. The effect of a cross-section in a cantilever with a load on one of its ends.
  11. Beam supported by two points and subjected to a different momentum of uniform bending.
  12. Study of bending, application of loads at different points with fixed or free ends.
