Today we would like to tell you about our latest installation in Indonesia. At Institut Teknologi Sepuluh Nopember we have installed the following equipment. Our engineers came to the centre to install the equipment and explain how it works to the people responsible for using it.
EDPAB Double Effect Rising Film Evaporator
SISTEMAS INOVADORES
The "EDPAB" unit, designed by EDIBON, allows to observe and control a serial, parallel or double effect evaporation process.
NOTÍCIAS RELACIONADAS
Descrição Geral
The Double Effect Rising Film Evaporator, "EDPAB", designed by EDIBON, allows to observe and control a serial, parallel or double effect evaporation process.
The unit consists of two evaporators with a single glass tube, allowing the student to observe all the processes that take place in the unit.
The solution to be concentrated enters the evaporator and, as it flows along the tube, it is progressively evaporated since an annular flow or rising film flow is generated internally, keeping that film thanks to the friction induced by the vapour nucleus, which moves at high speed with regard to the liquid film. The supply enters the rising tube in liquid state for a short distance, receiving heat from the steam.
Steam introduced in the first evaporator can be introduced again in the second evaporator (serial operation mode) or either two different steam flows can be introduced (parallel operation mode).
The unit also allows the steam generated in the first evaporator to be introduced as heating medium in the second evaporator and the concentrated product obtained can be used as supply for the second column. Thus, one of the main premises of a double effect evaporator, which is the economy of the heat employed, can be evaluated.
EXERCÍCIOS E PRÁTICAS GUIADAS
EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL
- Heating efficiency calculation.
- Sugared solution concentration.
- Evaporation velocity determination.
- Study of the evaporation velocity in function of the working conditions.
- Study of the relation between condensed and evaporated product.
- Study of the mass balance of the solute.
- Study of the mass balance of the solvent.
- Energy balance of the evaporation unit.
- Energy balance of the tubular refrigerator.
- Heat transfer global coefficient determination.
- Heat transfer coefficient determination of a tubular refrigerator.
- Study of the mass balance of the solute in one column.
- Fruit juices and vegetable extracts concentration.
- Concentrated milk obtaining.
- Efficiency determination of the steam used in the process.
- Steam generator efficiency determination.
- Investigation of effect of varying process parameters such as:vacuum, flow rate, temperature, recycle rate.
EQUIPAMENTOS SIMILARES DISPONÍVEIS
11.1.2.- EVAPORAÇÃO
EPAC
The objective of evaporation is to concentrate a non-volatile solute, carrying out the elimination of a volatile compound. Water is the volatile compound used in most evaporations.The rising or falling film evaporators are very useful if high...
11.1.2.- EVAPORAÇÃO
EDPAC
Evaporador de Película Ascendente de Duplo Efeito, Controlado por Computador (PC)
The Computer Controlled Double Effect Rising Film Evaporator, "EDPAC", designed by EDIBON, allows to observe and control a serial, parallel or double effect evaporation process.The unit consists of two evaporators with a single glass tube,...
11.1.2.- EVAPORAÇÃO
EPAB
Rising Film Evaporator
The objective of evaporation is to concentrate a non-volatile solute, carrying out the elimination of a volatile compound. Water is the volatile compound used in most evaporations.Basically, the unit consists of the following circuits:The feed...
11.1.2.- EVAPORAÇÃO
EPDC/C
Evaporador de Película Descendente, Controlado por Computador (PC)
The objective of the evaporation is to concentrate a non-volatile solute, carrying out the elimination of a volatile compound. Water is the volatile compound used in most evaporations. The rising or falling film evaporators are very useful...
EQUIPAMENTOS COMPLEMENTARES
ENGENHARIA QUÍMICA
CGE/0.4/CTS
Evaporador tipo Carver-Greenfield de 0,4 l/h, Controlado por Computador (PC) e Tela Sensível ao Toque
The Computer Controlled and Touch Screen 0.4 l/h Carver-Greenfield Evaporator, "CGE/0.4/CTS", is able to show, for further investigation and study, the removal of dissolved solids from a liquid stream composed of Gamma-Valerolactone (GVL) and...
ENGENHARIA QUÍMICA
CGE/12/CTS
Evaporador tipo Carver-Greenfield de 12 l/h, Controlado por Computador (PC) e Tela Sensível ao Toque
The Computer Controlled and Touch Screen 12 l/h Carver-Greenfield Evaporator, "CGE/12/CTS", is able to show, for further investigation and study, the removal of dissolved solids from a liquid stream composed of Gamma-Valerolactone (GVL) and...
11.1.2.- EVAPORAÇÃO
EPAC
Evaporador de Filme Ascendente, Controlado por Computador (PC)
The objective of evaporation is to concentrate a non-volatile solute, carrying out the elimination of a volatile compound. Water is the volatile compound used in most evaporations.The rising or falling film evaporators are very useful if high...
11.1.2.- EVAPORAÇÃO
EPAB
Rising Film Evaporator
The objective of evaporation is to concentrate a non-volatile solute, carrying out the elimination of a volatile compound. Water is the volatile compound used in most evaporations.Basically, the unit consists of the following circuits:The feed...
11.1.2.- EVAPORAÇÃO
EPDC/C
Evaporador de Película Descendente, Controlado por Computador (PC)
The objective of the evaporation is to concentrate a non-volatile solute, carrying out the elimination of a volatile compound. Water is the volatile compound used in most evaporations. The rising or falling film evaporators are very useful...
11.1.2.- EVAPORAÇÃO
EDPAC
Evaporador de Película Ascendente de Duplo Efeito, Controlado por Computador (PC)
The Computer Controlled Double Effect Rising Film Evaporator, "EDPAC", designed by EDIBON, allows to observe and control a serial, parallel or double effect evaporation process.The unit consists of two evaporators with a single glass tube,...
11.1.2.- EVAPORAÇÃO
EPFC

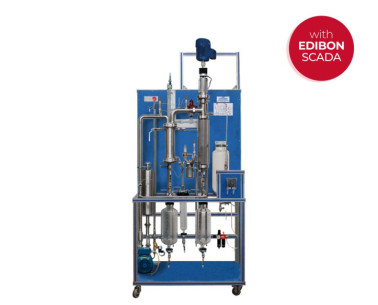

Evaporador de Película Fina, Controlado por Computador (PC)
