14.1.6.- MECÂNICA DE ESTRUTURAS

MECÂNICA DE ESTRUTURAS UNITS

Mostrando 1-21 de um total de 21 produto(s)

UNIT FOR STUDYING FORCES IN A JIB CRANE - MFPG

MFPG

Available

7.1.6.- MECÂNICA DE ESTRUTURAS

MFPG

Equipamento de Estudo de Forças em Guindaste de Lança

The Unit for studying Forces in a Jib Crane, "MFPG", is designed to study the tensile and compressive forces in a planar central force system based on the example of a crane jib.The unit represents a planar central force system in which multiple...

Available

7.1.6.- MECÂNICA DE ESTRUTURAS

MVS

Equipamento de Ponte Suspensa

The Suspension Bridge Unit, "MVS", has been meticulously designed by EDIBON to explore the dynamics of stresses in a suspension bridge system. This unit simulates a suspension bridge using a deck and two parallel main cables, allowing students to...

MARP

Available

7.1.6.- MECÂNICA DE ESTRUTURAS

MARP

Equipamento de Arco Parabólico

The Parabolic Arch Unit "MARP" contains a pre-shaped articulated arch, which can be subjected to point or evenly distributed loads by means of seven uniformly distributed cables (cords) with hangers.One support of the arch is fixed whereas the...

MART

Available

7.1.6.- MECÂNICA DE ESTRUTURAS

MART

Equipamento de Arco Tri articulado

The Three-Hinged Arch Unit "MART" allows the student to become familiar with three-hinged arches, to calculate the bearing forces (for point load, for uniformly distributed load and for moving load), to investigate the influence of the load on the...

UNIT FOR STUDYING FORCES IN A SIMPLE BAR STRUCTURE - MFBS

MFBS

Available

7.1.6.- MECÂNICA DE ESTRUTURAS

MFBS

Equipamento de Estudo de Forças em uma Estrutura de Barras Simples (Treliças Simples)

The Unit for Studying Forces in a Simple Bar Structure, "MFBS", designed by EDIBON allows the study of forces acting on a simple truss when is subjected to a point load in one of the nodes that make up the structure.It consists of a group of five...

UNIT FOR STUDYING FORCES IN DIFFERENT SINGLE PLANE TRUSSES - MFCS1

MFCS1

Available

7.1.6.- MECÂNICA DE ESTRUTURAS

MFCS1

Equipamento para Estudo de Forças em Diferentes Montagens de Treliças Planas

The Unit for studying Forces in Different Single Plane Trusses, "MFCS1", allows the measurement of the bar forces in various single plane trusses, the study of the dependency on the external force and the comparison of the experimental bar forces...

UNIT FOR STUDYING FORCES IN AN OVERDETERMINATE TRUSS - MFCS2

MFCS2

Available

7.1.6.- MECÂNICA DE ESTRUTURAS

MFCS2

Equipamento de Estudo de Forças em Treliças Hiperestáticas

The Unit for studying Forces in an Overdeterminate Truss, "MFCS2", allows the measurement of the bar forces in a statically determinate truss and in a statically overdeterminate truss, the study of the distribution of forces in the single plane...

UNIT FOR STUDYING DEFORMATION OF TRUSSES - MFCS3

MFCS3

Available

7.1.6.- MECÂNICA DE ESTRUTURAS

MFCS3

Equipamento para Estudo de Deformação em Treliças

The Unit for studying Deformation of Trusses, "MFCS3", allows the measurement of the stresses in the bars in different types of trusses, and the study of the dependence of the external force and the comparison of the experimental forces in the...

Available

7.1.6.- MECÂNICA DE ESTRUTURAS

MFL

Equipamento de Arco Biarticulado

The Two Hinged Arch Unit, "MFL", designed by EDIBON allows to study the response of an arched beam when an external load is applied on it.The arch is supported on two supports, a fixed one and a movable one. The displacement and horizontal...

Available

7.1.6.- MECÂNICA DE ESTRUTURAS

MPO

Equipamento de Pórtico

The Portal Frame Unit, "MPO", designed by EDIBON, allows for precise measurements of vertical and horizontal deflection in an embedded rectangular portal frame. By applying various loads with specific weights, changes in the portal frame’s...

Available

7.1.6.- MECÂNICA DE ESTRUTURAS

STH

Equipamento de Hipóteses de Tensões

The Stress Hypotheses Unit, "STH", allows the study and testing of stress hypotheses by applying loads in different directions on a test specimen point and measuring the deformations produced.Normal and shear stresses are applied, avoiding...

SIMPLE STABILITY PROBLEMS STUDY UNIT - MEPE

MEPE

Available

7.1.6.- MECÂNICA DE ESTRUTURAS

MEPE

Equipamento para Estudo de Problemas de Estabilidade

The Simple Stability Problems Study Unit, "MEPE", has been designed to study the stability of a bar subjected to buckling by obtaining the critical load in different configurations. The unit consists of two bars of same length connected by a...

UNIT FOR STUDYING METHODS TO DETERMINE THE ELASTIC LINE - MDLE

MDLE

Available

7.1.6.- MECÂNICA DE ESTRUTURAS

MDLE

Equipamento de Estudo dos Métodos para Determinar a Linha Elástica

The Unit for studying Methods to Determine the Elastic Line, "MDLE", consists of set of beams, several supports (with clamp fixing and dial gauges, and with force gauge), a device to generate a bending moment, fixed pulleys, dial gauges and a set...

Available

7.1.5.- TRIBOLOGIA (ATRITO, DESGASTE, LUBRIFICAÇÃO)

MCD

Equipamento de Cilindro Fino

The Thin Cylinder Unit, "MCD", has been developed to enable the student to verify various analytical formulae with actual measured results. Strain gauges mounted in various positions and orientations on the cylinder provide an opportunity for...

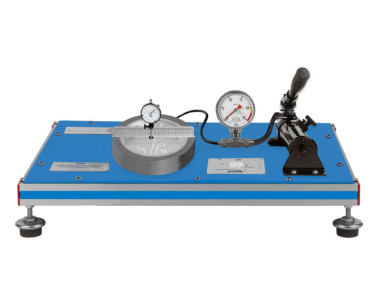

UNIT TO STUDY STRESS ON A MEMBRANE - SSM

Available

7.1.6.- MECÂNICA DE ESTRUTURAS

SSM

Equipamento para o Estudo de Tensões em uma Membrana

The Unit to Study Stress on a Membrane, "SSM", designed by EDIBON, allows the study of stresses and deformations in a thin disc or membrane subjected to different compressive stresses.The main element of the equipment is a thin disc or membrane...

Available

7.1.6.- MECÂNICA DE ESTRUTURAS

MVV

Equipamento de Vigas Cantiléver

The system consists of a vertical cantilever rigidly clamped at its lower end to the main column which is attached to a rigid structure. Beams of different sections may be used.A loading head, located at the upper end of the column, can rotate...

Available

7.3.2.1.- ENSAIOS MECÂNICOS

MDB

Equipamento de Deflexão em Barras Curvas

The Deflection of Curved Bars Unit "MDB" consists of a structure of aluminum and steel that allows the incorporation of different curved bars to be studied. It allows tests with curved bars of different shape.The use of two dial gauges placed...

Available

7.3.2.1.- ENSAIOS MECÂNICOS

MFV

Demonstrador de Deflexão em Vigas

The Beam Deflection Unit, "MFV" has been designed to enable the students to observe and study the following phenomena in simply supported beams and cantilever beams:Relation between the deflections and the applied loads.Effect of the length and...

MFLT

Available

7.3.2.1.- ENSAIOS MECÂNICOS

MFLT

Equipamento de Flambagem em Barras

The Strut Buckling Unit "MFLT" allows the student to obtain experimentally the buckling critical load of slender struts subjected to compression.The unit allows to study the buckling of pieces of different lengths, ranging from 300 mm. to 625 mm.,...

Available

7.3.2.1.- ENSAIOS MECÂNICOS

MUP

Equipamento Universal de Flambagem

The Universal Buckling Unit "MUP" is a bench-top unit whose frame is made of anodized aluminum profiles and plates and steel elements, on which a bubble level is installed to equilibrate the system.The unit has been designed to carry out tests...

SHEAR FORCE AND BENDING MOMENTUM UNIT - MMF

Available

7.3.2.1.- ENSAIOS MECÂNICOS

MMF

Equipamento de Momento Fletor e Força de Corte

The Shear Force and Bending Momentum Unit, "MMF", unit is formed by an aluminum and steel structure that allows us to perform a mechanical study of different structures.An articulated structure makes it possible to convert the application of one...
