FME23 Equipamento Básico de Rede de Tubulações

The Basic Pipe Network Unit, "FME23", designed by EDIBON, allows the study of pressures and flows created by interconnected pipes, i.e. in a network.

The objective of this unit is to simulate the problems that could originate in pipe networks, with pipes of different lengths and diameters, as often happens in cities.

With this study, the distribution and arrangement of the networks will be understood, in order to obtain the necessary flows and pressures in them.

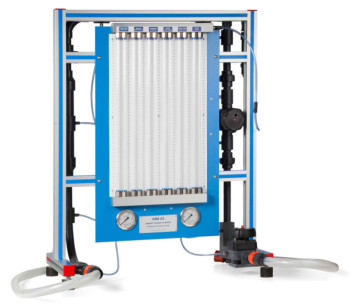

The unit is formed by a pipe network, valves, their connection systems, water manometers and anodized aluminum structure where the pipes network is located and the subjection panel of the manometers.
