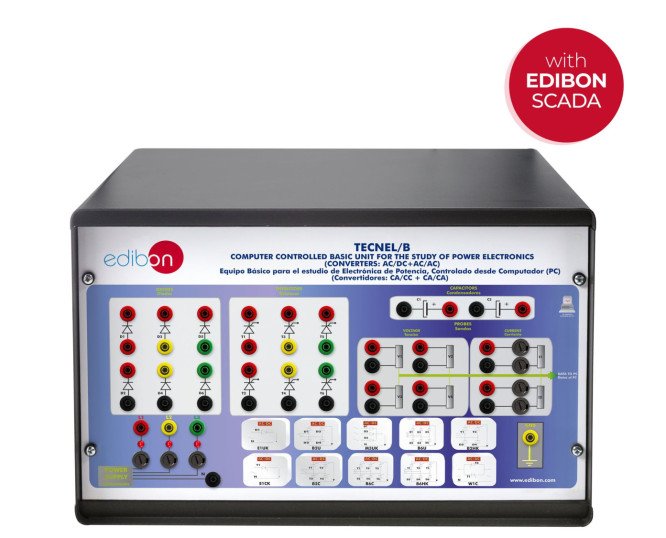

COMPUTER CONTROLLED BASIC TEACHING UNIT FOR THE STUDY OF POWER ELECTRONICS (NO IGBTS). (CONVERTERS: AC/DC+AC/AC) - TECNEL/B

SISTEMAS INOVADORES

The TECNEL/B is a Unit with Computer Control and Data Acquisition System designed to study the basis of Power Electronics.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
EMSK

Kit de Desenvolvimento EDIBON para Simulação de Circuitos, Desenvolvido pelo NI LabVIEW™
ESN

EDIBON Scada-Net

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
Completion of the Small Laboratory Equipment Repair Course
Completion of the Small Laboratory Equipment Repair Course
On December 1st, the Repair Course for Small Laboratory Equipment, taught by our engineers at the EDIBON facilities, was completed, lasting 4 days. The attendees, (Laboratory technicians and maintenance of the Rey Juan Carlos University of Madrid) had the opportunity to perform multiple...
Ler mais

Descrição Geral

The Computer Controlled Basic Teaching Unit for the Study of Power Electronics (no IGBTS). (Converters: AC/DC+AC/AC), "TECNEL/B", is a unit with Computer Control and Data Acquisition System designed to study the basis of Power Electronics. It allows students to study AC/DC, AC/AC converters.

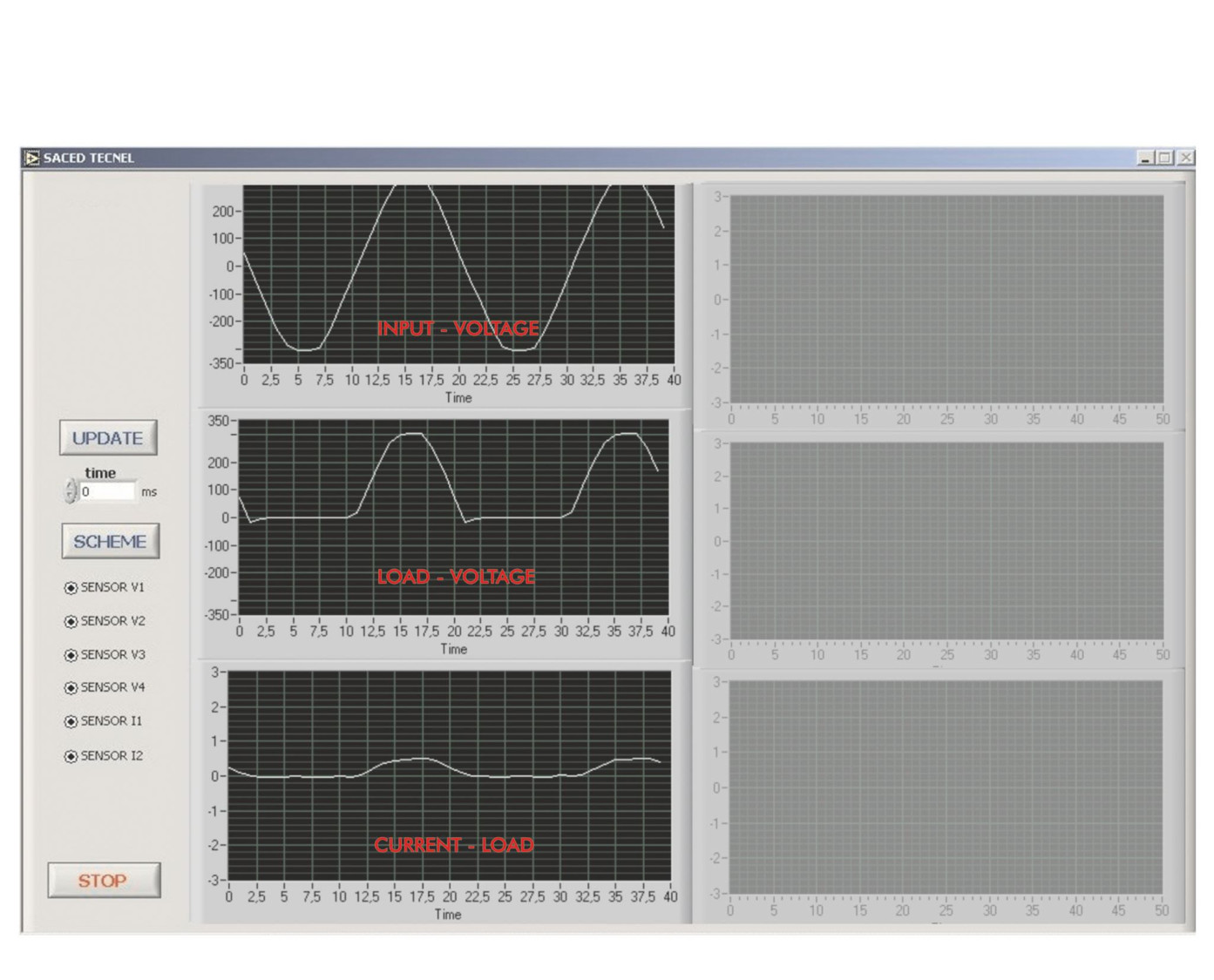

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Single phase half-wave rectifier with load R.
  2. Single phase half-wave rectifier with load R-L.
  3. Single-phase half-wave rectifier with R-L load with free wheeling diode (FWD).
  4. Single-phase full-wave rectifier.
  5. Three-phase half-wave uncontrolled rectifier.
  6. Three-phase full-wave uncontrolled rectifier.
  7. Single-phase half-wave controlled rectifier.
  8. Single-phase full-wave controlled rectifier.
  9. Single-phase full-wave controlled rectifier with a DC motor.
  10. Three-phase full-wave completely controlled.
  11. Single-phase semi-controlled rectifier.
  12. Three-phase full-wave semi-controlled rectifier.
  13. Alternating regulators: R and R-L load.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc. in real time.
  3. The Computer Control System with SCADA allows a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical/electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Several other exercises can be done and designed by the user.
