COMPUTER CONTROLLED GAS LAWS UNIT (BOYLE AND GAY-LUSSAC LAWS) - TLBGC

SISTEMAS INOVADORES

The Computer Controlled Gas Laws Unit (Boyle and Gay-Lussac Law), "TLBGC", allows to demonstrate two fundamental gas laws: Boylend Mariotte's Law (isothermal change of state) and Gay-Lussac's 2 Law (isochoric change of state).

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
FSS

Sistema de Simulação de Falhas
PLCHMI

Controle e Monitoramento local/remoto IIoT com HMI
ELK

Kit de Desenvolvimento de Software EDIBON, Desenvolvido por NI LabVIEW ™
ESN

EDIBON Scada-Net
ECL

Educação a Distância EDIBON

LABORATÓRIOS

11PTC
 Laboratório para o Centro de Formação Petrolífera
9TV
 Laboratório de Termodinâmica e Termotecnia para o Ensino Técnico e Vocacional
9HE
 Laboratório de Termodinâmica e Termotecnia para o Ensino Superior

NOTÍCIAS RELACIONADAS

Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and Thermotechnology: Key concepts and EDIBON's contribution
Thermodynamics and thermotechnology are fundamental fields of engineering that play a critical role across various industries, from energy generation to climate control. Understanding these foundational concepts is essential not only for engineers but also for fostering technological innovations...
Ler mais
EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
We are excited to celebrate the publication of the article by Prof. Dr. Nina Penkova titled "Performance of Diffusion Absorption Refrigerators with Variable Input Power" The study explores how absorption refrigerators, which utilize waste or solar energy for heating and cooling, can operate...
Ler mais

Descrição Geral

The Computer Controlled Gas Laws Unit (Boyle and Gay-Lussac Law), "TLBGC", allows to demonstrate two fundamental gas laws: Boylend Mariotte's Law (isothermal change of state) and Gay-Lussac's 2 Law (isochoric change of state).

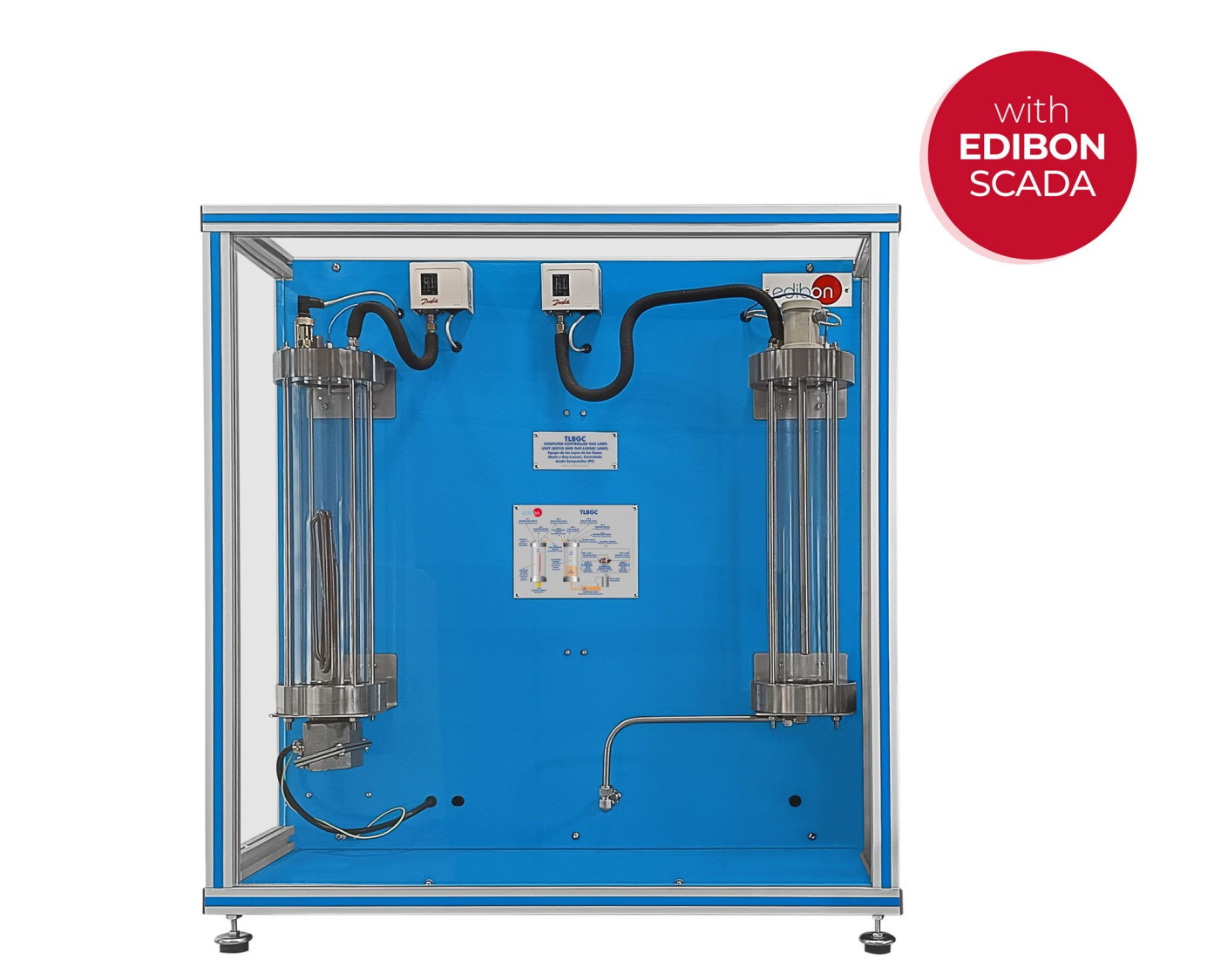

The unit consists of a rigid frame containing two transparent vessels, that enables to observe the change of state in the test gas (air).

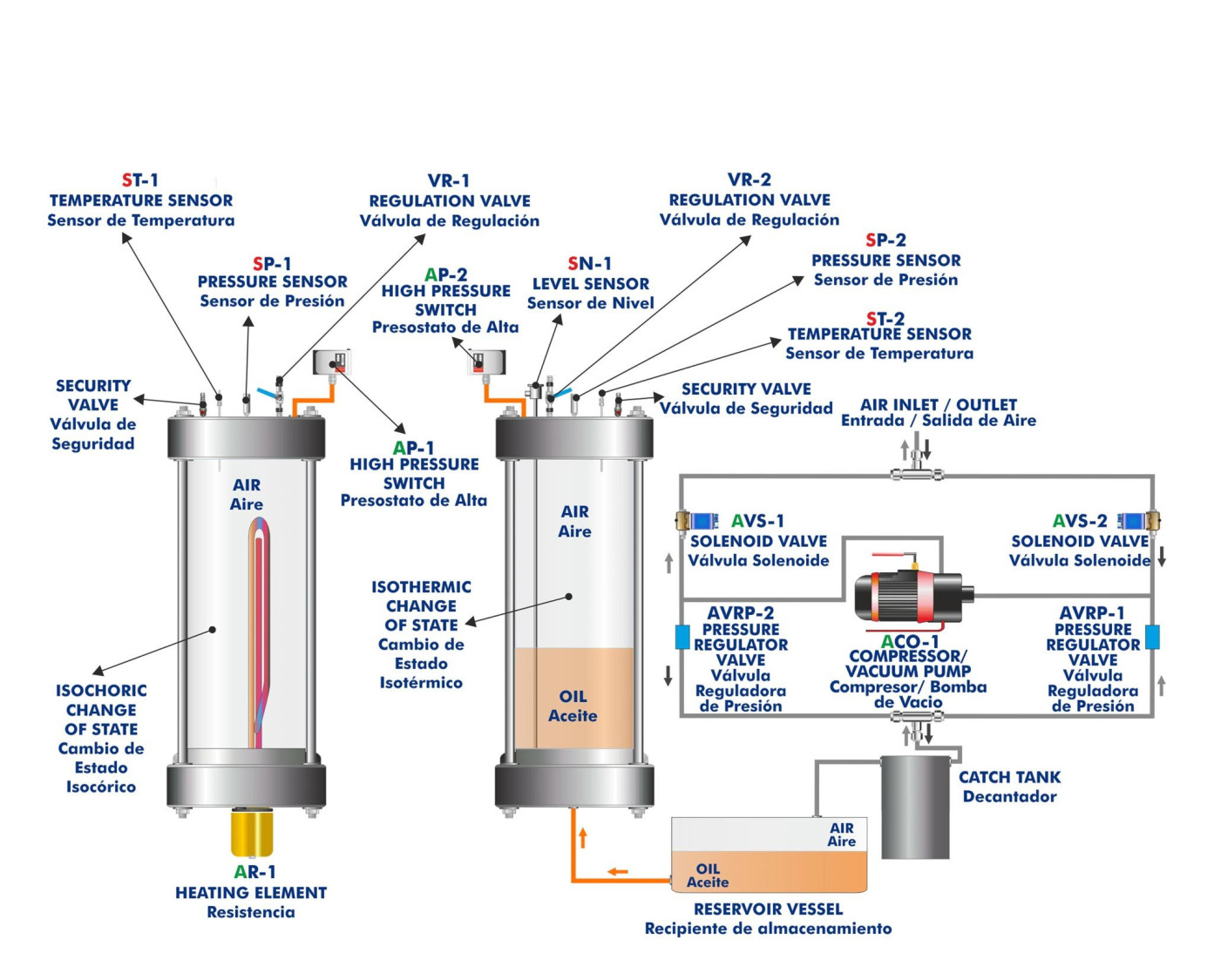

In the first vessel, for investigation of isochoric change of state, the temperature of the test gas is increased by a computer controlled electrical heating element, and the resulting pressure rise is measured. The volume of the enclosed gas remains constant. A valve at the bottom of the vessel allows students to normalize the air in the vessel to room conditions.

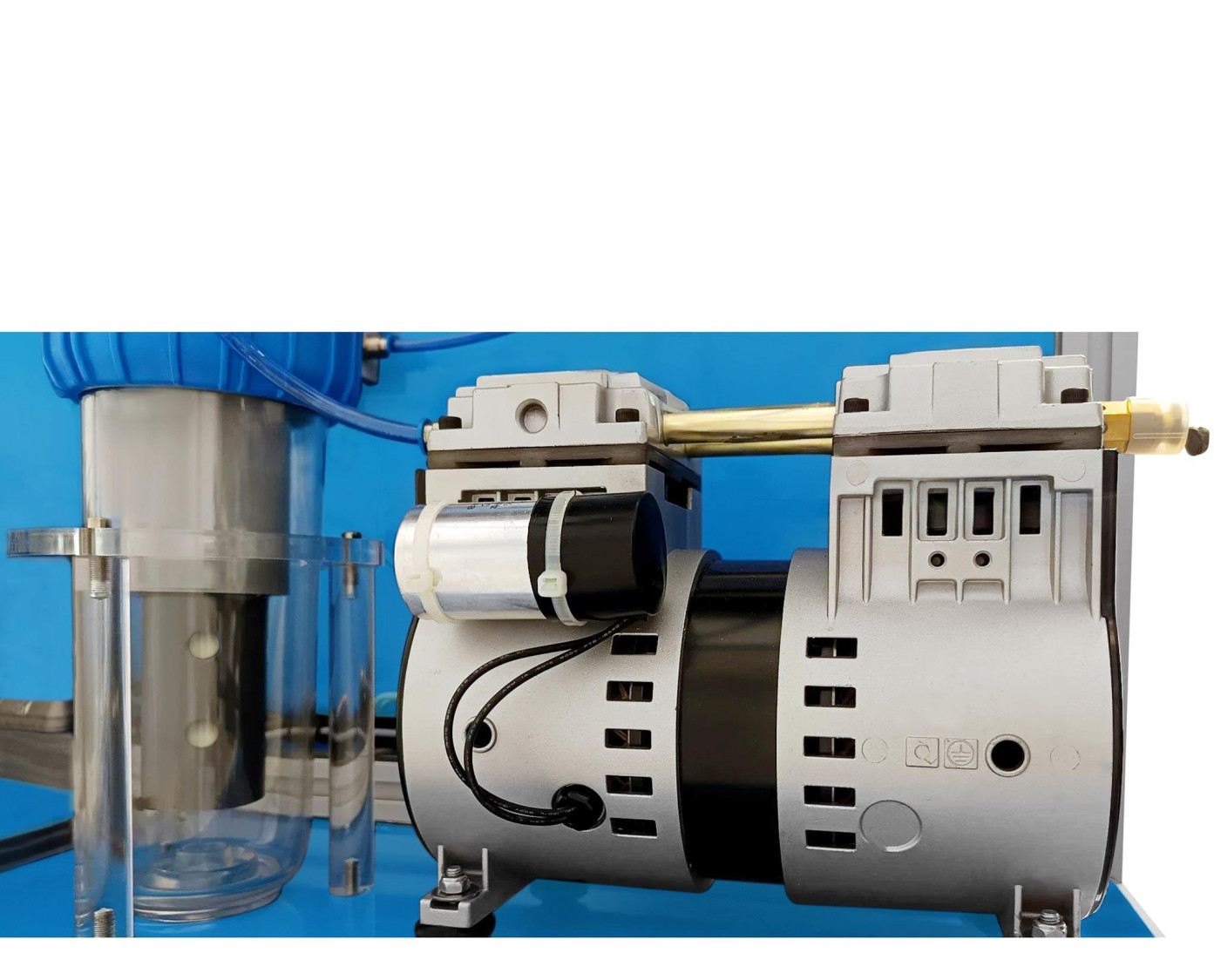

In the second vessel, for investigation of isothermal change of state, students use a compressor/vacuum pump to increase or decrease the pressure in a reservoir vessel that moves a "liquid piston" of oil in the test vessel. This piston compresses or decompresses a trapped column of air in the test vessel. If the changes occur slowly, the change of state takes place at an almost constant temperature.

Temperatures, pressures and level are measured by means of sensors. The unit includes two pressure switches and relief valves to ensure the safety of the user.

A PID control enables constant temperature operation by controlling the power of the electrical heating element in the first vessel.

Two solenoid valves and two pressure regulator valves enables to control the level of oil inside the second vessel.

The unit uses air that behaves as an ideal gas within the range of pressures used in this unit.

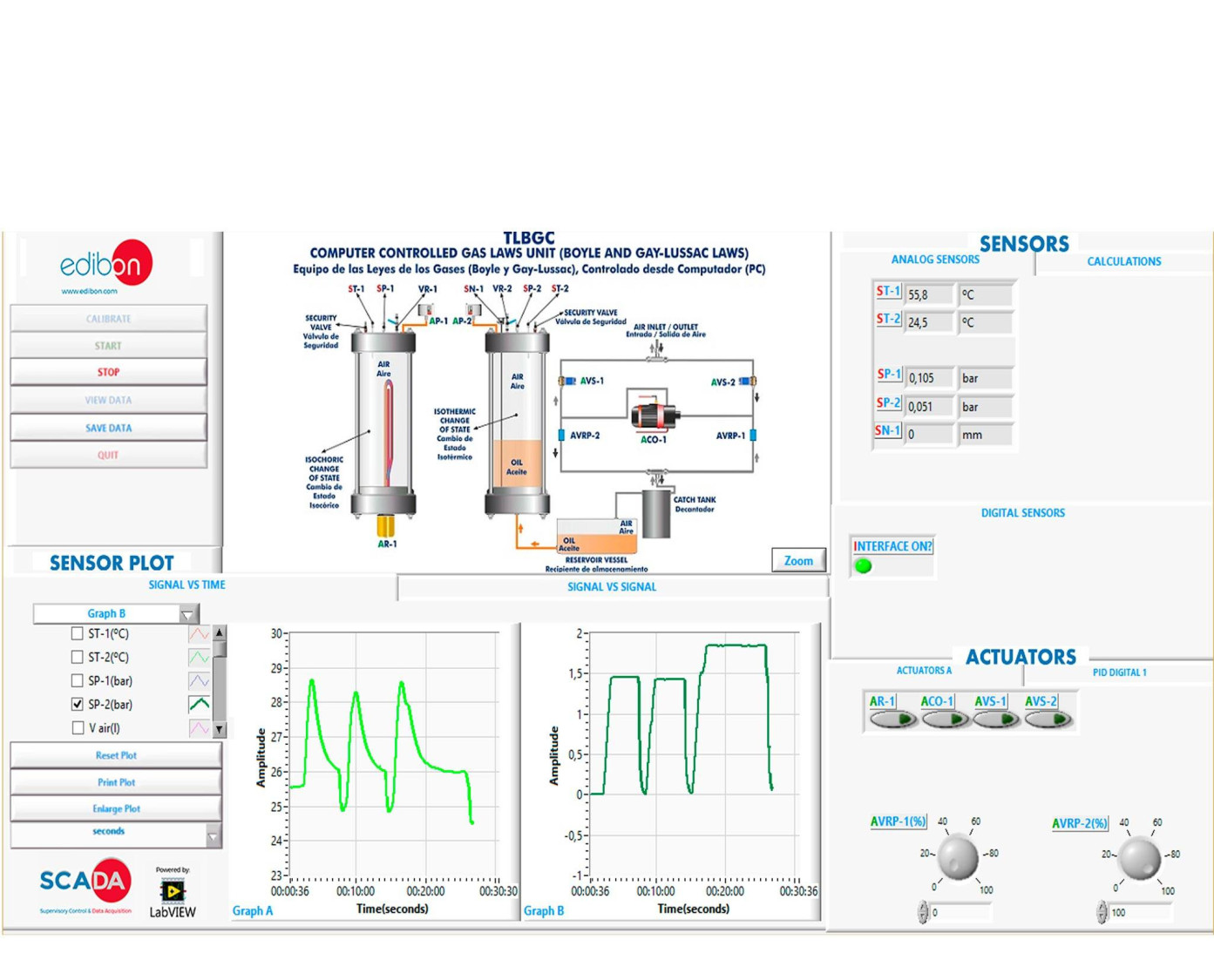

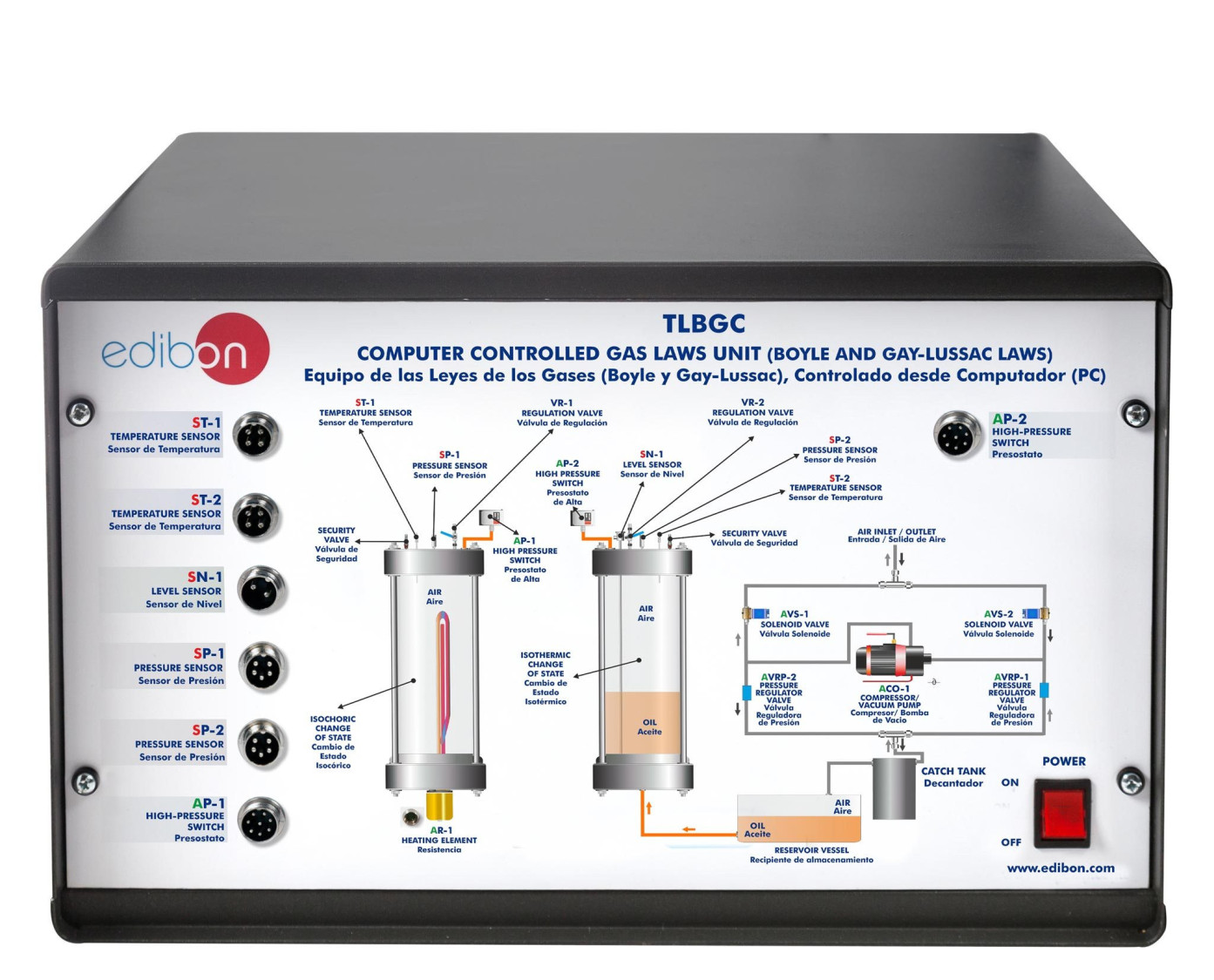

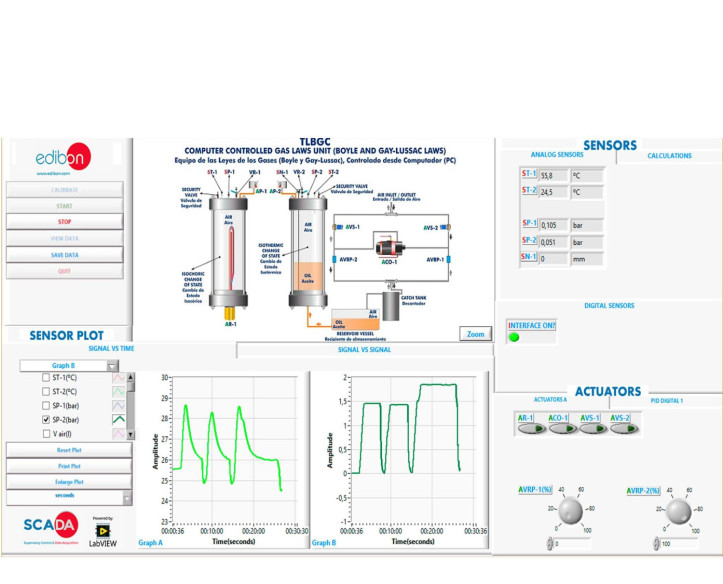

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
