MAE Equipamento de Aceleração em Sistemas de Engrenagens

7.1.2.2.- ENGRENAGENS 14.1.2.2.- ENGRENAGENS
ACCELERATION OF GEARED SYSTEM UNIT - MAE

SISTEMAS INOVADORES

The Acceleration of Geared Systems Unit, "MAE", designed by EDIBON, allows to perform tests to calculate the moment of inertia of a gear train system.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador
MSAC

Sistema Modular de Aquisição e Controle

LABORATÓRIOS

7TV
 Laboratório Mecânico, Automóvel e de Materiais para o Ensino Técnico e Vocacional
7HE
 Laboratório de Mecânica, Automóvel e Materiais para o Ensino Superior

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
NEW Basic Mechanics course
NEW Basic Mechanics course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course Basic Mechanics and learn about #forces and vectors. #DiscoverEdibon #Engineering.
Ler mais

Descrição Geral

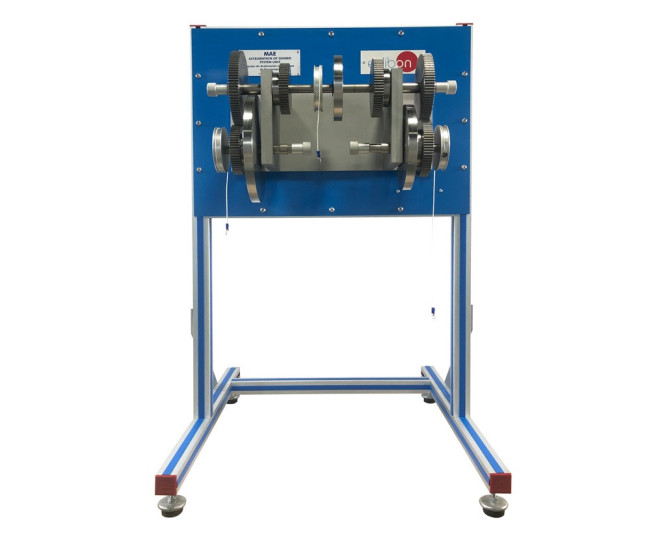

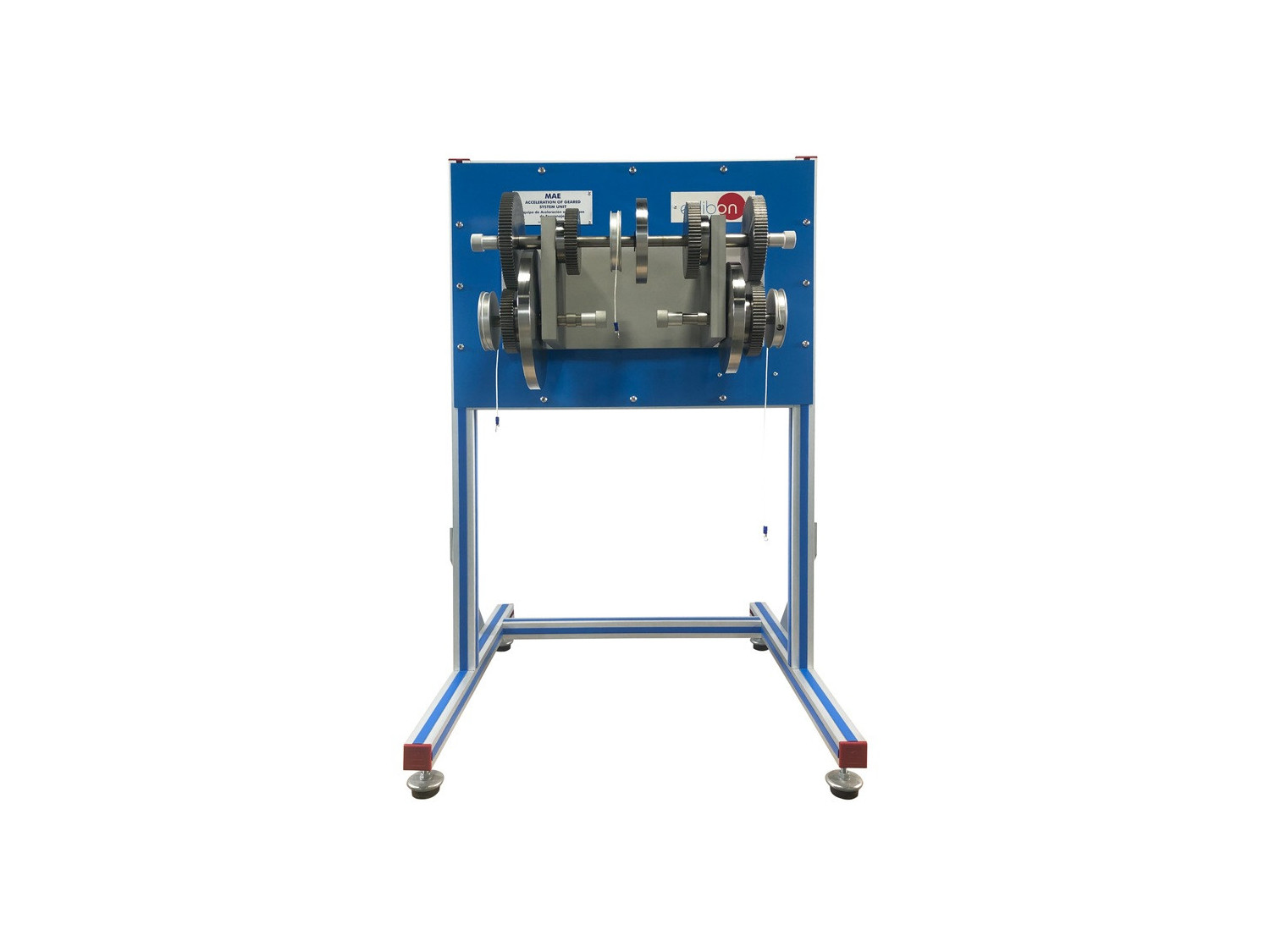

The Acceleration of Geared Systems Unit, "MAE", designed by EDIBON, allows to perform tests to calculate the moment of inertia of a gear train system.

The MAE unit includes six gears. Two of them can have another position in the shafts to vary the gear ratio, allowing to obtain a different moment of inertia and, therefore, to accelerate the system.

Additionally, there are three masses of inertia, one per shaft. The position of these discs will modify the total moment of inertia and the acceleration of the system too.

There is one pulley in each shaft. Different masses are hung from these pulleys to observe how the acceleration of the gear system varies.

Depending on the position from which the mass is hung, the acceleration of the gears and the moment of inertia, will be modified.

To be able to calculate the total moment of inertia and the acceleration of the system, it is neccessary to know the time required by the mass hung from the pulley to travel a given distance.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Determination of the moment of inertia of a gear system under different arrangements.
  2. Determination of the moment of inertia of a gear system with one, two or three shafts.
  3. Determination of the minimum mass required to accelerate a gear system with one, two or three shafts.
  4. Comparison of the experimental and theoretical moment of inertia.
  5. Study of the gear ratio of the shafts when different moments or force couples are applied to the system.
  6. Determination of the acceleration of the system.

Qualidade

Serviço pós-venda

Solicitar informação
