MCPG Equipamento de Cilindro de Parede Espessa
SISTEMAS INOVADORES

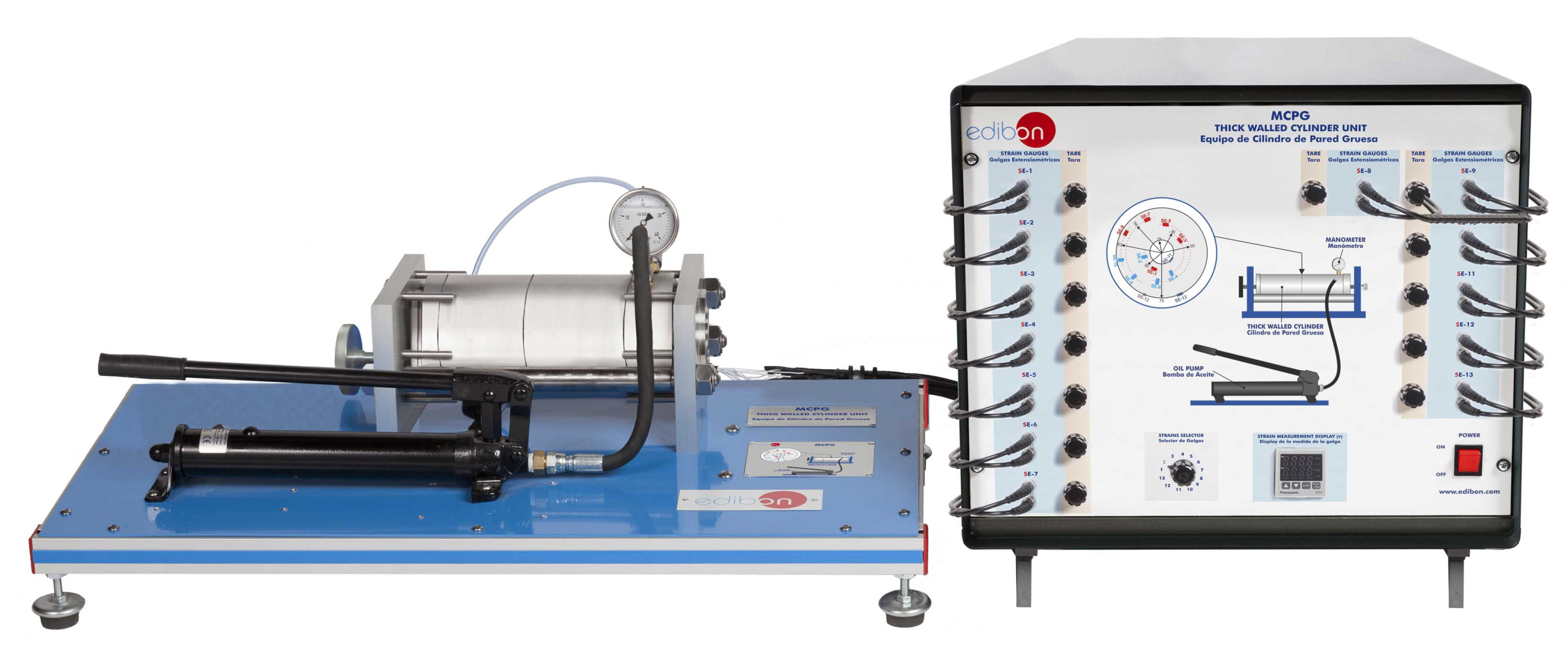

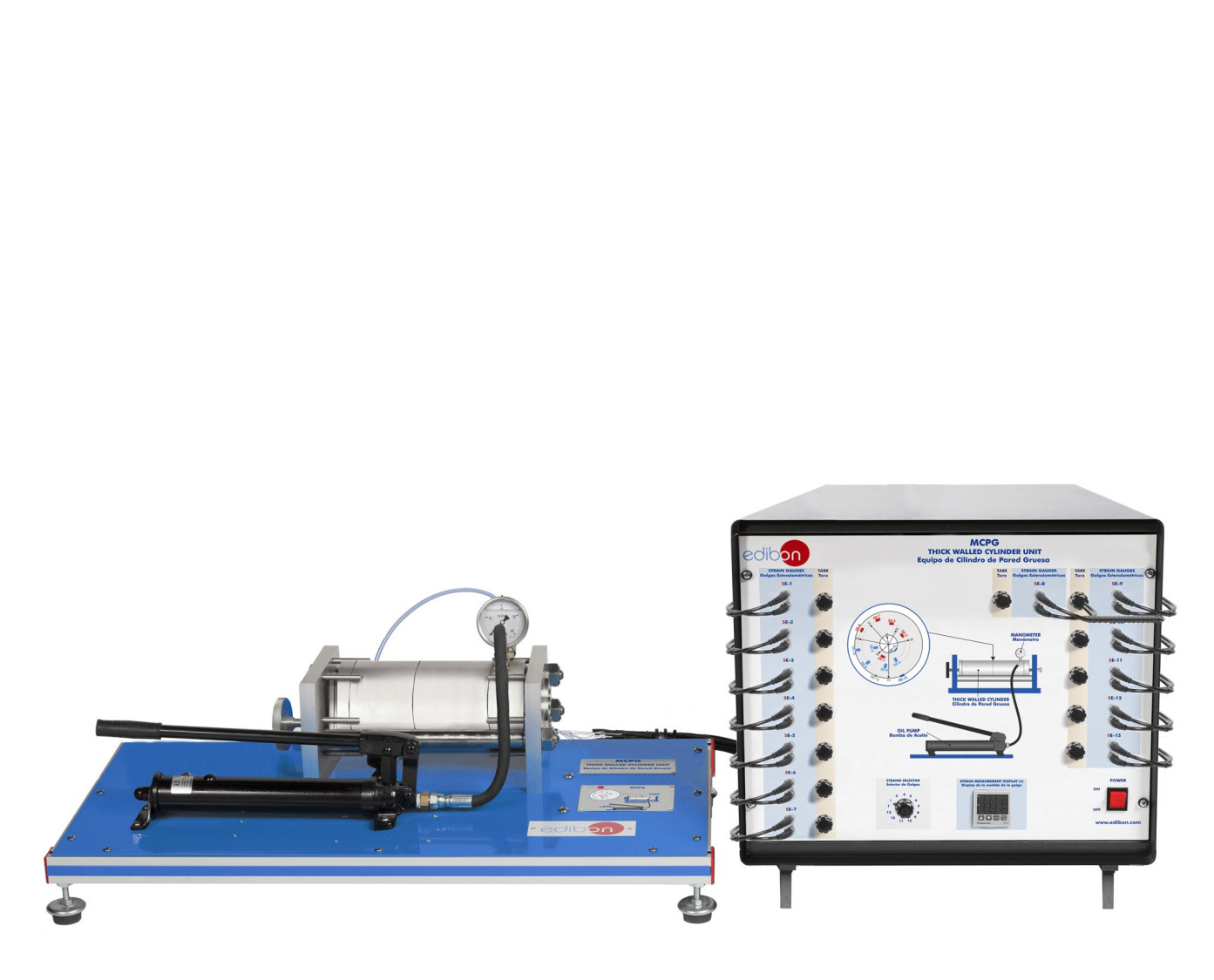

The Thick-Walled Cylinder Unit, "MCPG", has been designed to study stresses and strains in a thick-walled cylinder under internal pressures.
Expansões
NOTÍCIAS RELACIONADAS
Descrição Geral
In the Thick-Walled Cylinder Unit, "MCPG", the stresses are determined through the measurement of the strains produced on the surface. These strains are measured by strain gauges.
The thick-walled vessel consists of an aluminum cylinder of length 300 mm, whose walls have a thickness of 50 mm. It is divided into two parts (closed on both sides) and the strain gauges are arranged in different radii in the center, in an eccentric slot.
In addition, there are also gauges on the inner and outer walls of the cylinder, allowing the measurement of strains in radial, tangential and axial direction.
Pressure inside is generated with oil by means of a hand-operated hydraulic pump and measured by a manometer located in the cylinder.
EXERCÍCIOS E PRÁTICAS GUIADAS
EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL
- Study of stress in a thick-walled vessel under internal pressure.
- Measurement of strains with strain gauges.
- Study of stress distribution in three axes. Mohr’s circle.
- Determination of normal stress distribution in radial, tangential and axial direction.
- Analysis of the existing relationships between strains, pressure and stresses generated.
EQUIPAMENTOS SIMILARES DISPONÍVEIS
7.1.5.- TRIBOLOGIA (ATRITO, DESGASTE, LUBRIFICAÇÃO)
MCD
The Thin Cylinder Unit, "MCD", has been developed to enable the student to verify various analytical formulae with actual measured results. Strain gauges mounted in various positions and orientations on the cylinder provide an opportunity for...
EQUIPAMENTOS COMPLEMENTARES
7.1.6.- MECÂNICA DE ESTRUTURAS
MFPG
Equipamento de Estudo de Forças em Guindaste de Lança
The Unit for studying Forces in a Jib Crane, "MFPG", is designed to study the tensile and compressive forces in a planar central force system based on the example of a crane jib.The unit represents a planar central force system in which multiple...
7.1.6.- MECÂNICA DE ESTRUTURAS
MVS
Equipamento de Ponte Suspensa
The Suspension Bridge Unit, "MVS", has been meticulously designed by EDIBON to explore the dynamics of stresses in a suspension bridge system. This unit simulates a suspension bridge using a deck and two parallel main cables, allowing students to...
7.1.6.- MECÂNICA DE ESTRUTURAS
MARP
Equipamento de Arco Parabólico
The Parabolic Arch Unit "MARP" contains a pre-shaped articulated arch, which can be subjected to point or evenly distributed loads by means of seven uniformly distributed cables (cords) with hangers.One support of the arch is fixed whereas the...
7.1.6.- MECÂNICA DE ESTRUTURAS
MART
Equipamento de Arco Tri articulado

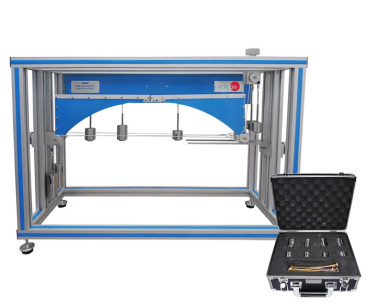

The Three-Hinged Arch Unit "MART" allows the student to become familiar with three-hinged arches, to calculate the bearing forces (for point load, for uniformly distributed load and for moving load), to investigate the influence of the load on the...
7.1.6.- MECÂNICA DE ESTRUTURAS
MFBS
Equipamento de Estudo de Forças em uma Estrutura de Barras Simples (Treliças Simples)
The Unit for Studying Forces in a Simple Bar Structure, "MFBS", designed by EDIBON allows the study of forces acting on a simple truss when is subjected to a point load in one of the nodes that make up the structure.It consists of a group of five...
7.1.6.- MECÂNICA DE ESTRUTURAS
MFCS1
Equipamento para Estudo de Forças em Diferentes Montagens de Treliças Planas

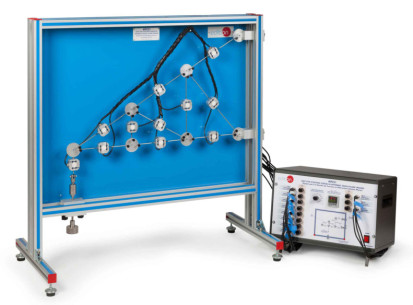

The Unit for studying Forces in Different Single Plane Trusses, "MFCS1", allows the measurement of the bar forces in various single plane trusses, the study of the dependency on the external force and the comparison of the experimental bar forces...
7.1.6.- MECÂNICA DE ESTRUTURAS
MFCS2
Equipamento de Estudo de Forças em Treliças Hiperestáticas

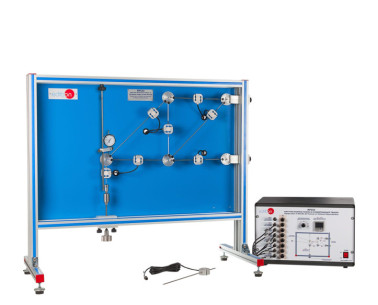

The Unit for studying Forces in an Overdeterminate Truss, "MFCS2", allows the measurement of the bar forces in a statically determinate truss and in a statically overdeterminate truss, the study of the distribution of forces in the single plane...
7.1.6.- MECÂNICA DE ESTRUTURAS
MFCS3
Equipamento para Estudo de Deformação em Treliças

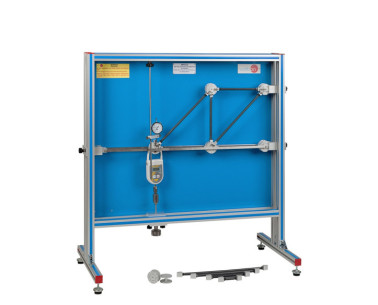

The Unit for studying Deformation of Trusses, "MFCS3", allows the measurement of the stresses in the bars in different types of trusses, and the study of the dependence of the external force and the comparison of the experimental forces in the...
