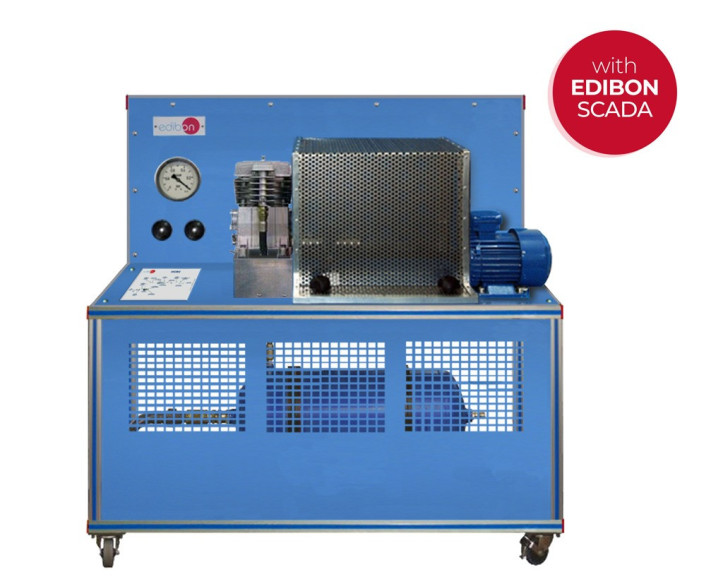

Unit: HCRC. Computer Controlled Reciprocating Compressor Unit

COMPUTER CONTROLLED RECIPROCATING COMPRESSOR UNIT - HCRC

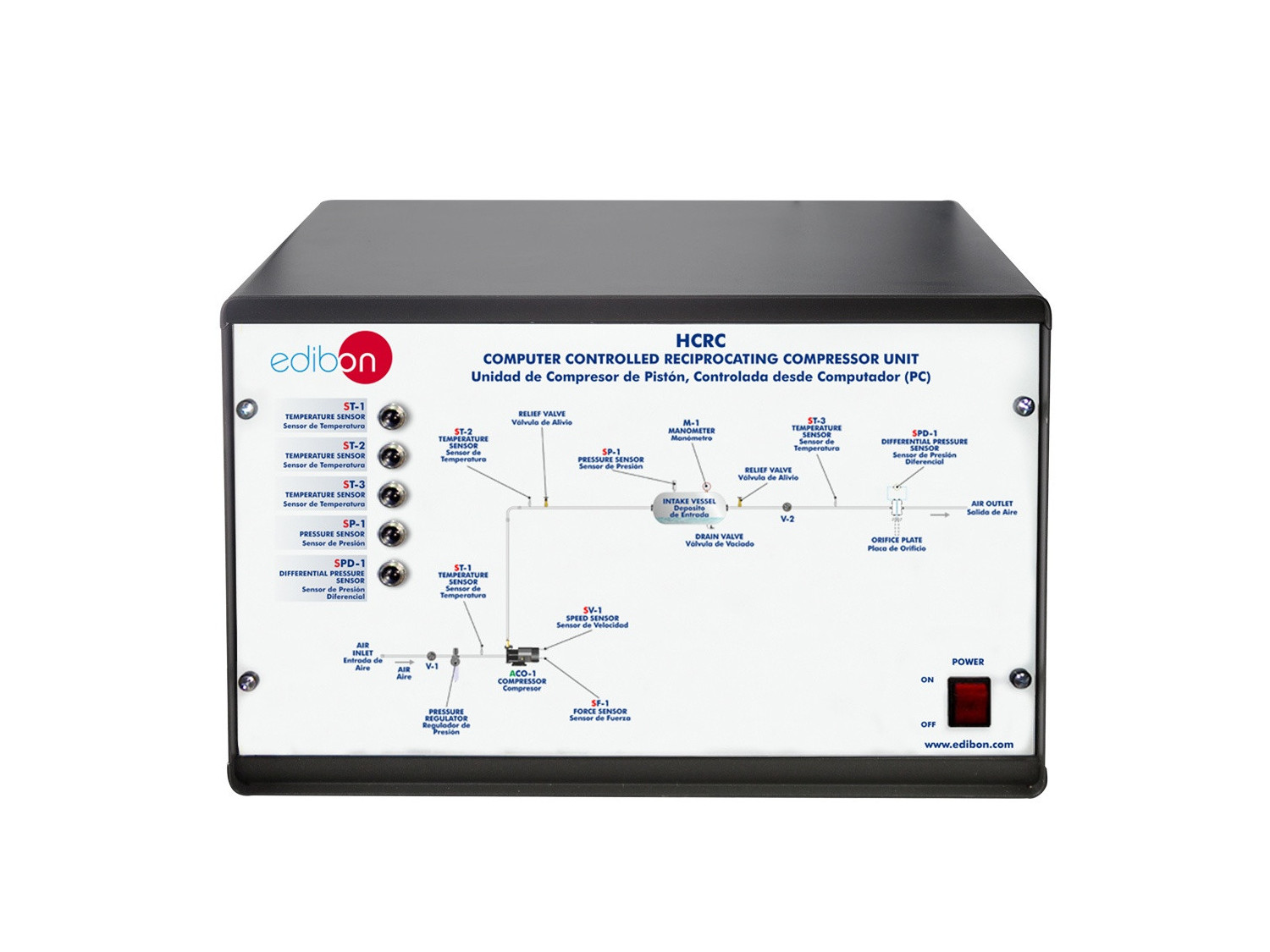

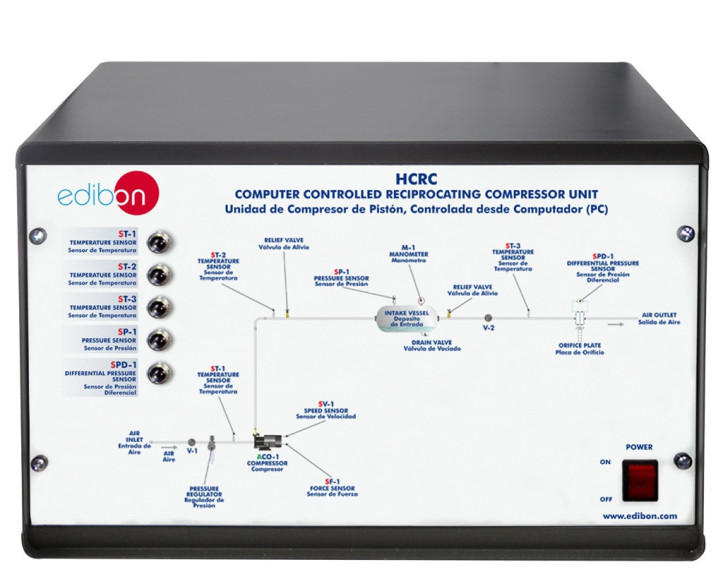

HCRC/CIB. Control Interface Box: The Control Interface Box is part of the SCADA system

COMPUTER CONTROLLED RECIPROCATING COMPRESSOR UNIT - HCRC

Process diagram and unit elements allocation

COMPUTER CONTROLLED RECIPROCATING COMPRESSOR UNIT - HCRC
COMPUTER CONTROLLED RECIPROCATING COMPRESSOR UNIT - HCRC
COMPUTER CONTROLLED RECIPROCATING COMPRESSOR UNIT - HCRC

NOTÍCIAS RELACIONADAS

Descrição Geral

The Computer Controlled Reciprocating Compressor Unit, "HCRC", allows students to study and test a fluid power machine and to discover how the compressor flow rate relates to the pressure delivered by the compressor. The unit provides a detailed analysis of a compressor performance and allows to study the energy balance, efficiencies and thermodynamics of the compressor.

This unit consists of a small reciprocating compressor with an intake vessel. All controls and instrumentation are controlled from the computer.

The compressor speed is variable up to the maximum allowable for the compressor. The control of the compressor motor speed allows flexibility to match the compressor motor under different conditions.

The inlet air passes through an air filter and pressure regulator to provide constant pressure, clean and water free air to the unit. The air enters the compressor, which delivers it under pressure to the intake vessel. The inlet air passes to an intake vessel to reduce intake pulsations and allows various inlet conditions to be established.

A valve releases pressure from the intake vessel to the atmosphere through an orifice plate. The valve sets the pressure in the intake vessel and, hence, the flow. The air passes through the orifice plate to determine the flow of the outlet air with a differential pressure sensor.

Pressures and temperatures are recorded using sensors at key points in the system. The temperature sensors are located at the inlet and outlet of the compressor, and upstream of the orifice plate. Pressure sensors measure the differential pressure in the orifice plate and pressure in the intake vessel.

The air throughput and the electrical power consumption of the compressor motor is also measured.

Instrumentation allows the motor electrical power consumption to be measured together with the speed and torque of the compressor motor. The product of the torque and speed gives the true shaft power.

The unit includes a manometer to show the intake vessel pressure if the main electricity fails.

Besides, the unit is equipped with safety devices (pressure relief valves, etc) to prevent misuse and to ensure a completely fail-safe operation for the students. For safety, all pressurized lines have relief valves.

This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Study of the layout and function of a reciprocating compressor.
  2. Determination of the intake airflow rate.
  3. Determination of the compression ratio.
  4. Study of the energy balance for a compressor.
  5. Study of the compression process on a p-V diagram.
  6. Study of the work done by a reciprocating compressor.
  7. Study of the motor output power (compressor shaft power).
  8. Investigation of variation of compressor performance with pressure.
  9. Investigation of variation of compressor performance with speed.
  10. Study of the thermodynamics of a compressor.
  11. Investigation of variation in mechanical efficiency with compressor pressure ratio.
  12. Investigation of variation in volumetric efficiency with compressor pressure ratio.
  13. Investigation of variation in isothermal efficiency with compressor pressure ratio.
  14. Investigation of the compressor performance relative to electrical power, shaft power, etc.
  15. Sensors calibration.

EXERCÍCIOS MAIS PRÁTICOS A SEREM FEITOS COM A UNIDADE

  1. Many students view results simultaneously. To view all results in real time in the classroom by means of a projector or an electronic whiteboard.
  2. Open Control, Multicontrol and Real Time Control. This unit allows intrinsically and/or extrinsically to change the span, gains, proportional, integral, derivative parameters, etc, in real time.
  3. The Computer Control System with SCADA and PID Control allow a real industrial simulation.
  4. This unit is totally safe as uses mechanical, electrical and electronic, and software safety devices.
  5. This unit can be used for doing applied research.
  6. This unit can be used for giving training courses to Industries even to other Technical Education Institutions.
  7. Control of the HCRC unit process through the control interface box without the computer.
  8. Visualization of all the sensors values used in the HCRC unit process.
  9. By using PLC-PI additional 19 more exercises can be done.
  10. Several other exercises can be done and designed by the user.
