PSD Equipamento de Demonstração Fotoelástica de Tensões

7.3.1.- FOTOELASTICIDADE E EXTENSOMETRIA 14.1.7.- FOTOELASTICIDADE E EXTENSOMETRIA
PHOTOELASTIC STRESS DEMONSTRATION UNIT - PSD

SISTEMAS INOVADORES

The Photoelastic Stress Demonstration Unit, "PSD", designed by EDIBON, allows, together with a light source, to study and analyze stress distribution and concentration from line images obtained by photoelasticity tests.

Ver descrição geral

Expansões

ICAI

Software Interativo para Educação Assistida por Computador

NOTÍCIAS RELACIONADAS

EDIBON and its commitment to European Skills
EDIBON and its commitment to European Skills
At EDIBON, we are committed to strengthening skills as a strategic pillar for the competitiveness and social well-being of the European Union. Proper training not only boosts the economy but also enables individuals to fully participate in society and democracy.
Ler mais
NEW Photoelasticity course
NEW Photoelasticity course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of Photoelasticity and learn about #elasticity, #fracturemechanics and #materialtesting. #DiscoverEdibon #Engineering.
Ler mais
NEW Strength of Materials Course
NEW Strength of Materials Course
Are you a teacher or do you work as an engineering researcher? EDIBON offers courses for teachers and #research staff. Take a look at the course of 12 days of material resistance and learn about #energy theorems. #DiscoverEdibon #Engineering Contact us for further information!
Ler mais

Descrição Geral

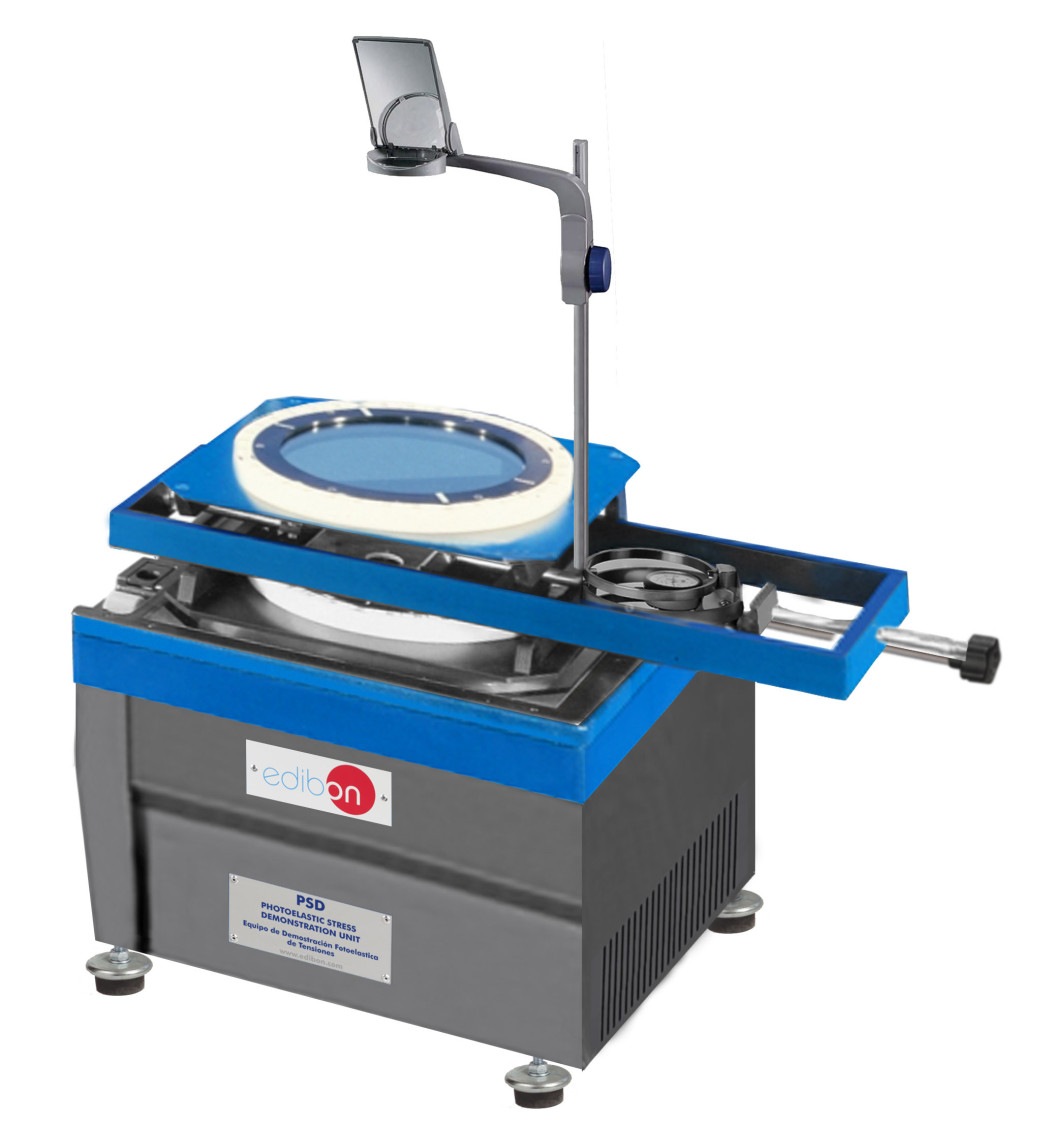

The Photoelastic Stress Demonstration Unit, "PSD", consists of a frame on which the test specimens are placed. The specimens are made of a special transparent material that has a double optical refraction effect under the action of a mechanical load.

The individual specimens are loaded by applying external forces and illuminated with a polarized light (required element). The load is applied by means of a spindle, allowing the application of tensile or compressive force, which is measured by means of a dynamometer.

Polarizing filters represent the stress distribution in colors. By using white or monochromatic light and a different configuration of linear and circular polarizer/analyzer we can obtain the direction of principal stresses and the difference of principal stresses. A filter is included to generate monochromatic light.

The Photoelastic Stress Demonstration Unit, "PSD" requires the light source.

EXERCÍCIOS E PRÁTICAS GUIADAS

EXERCÍCIOS PRÁTICOS GUIADOS INCLUÍDOS NO MANUAL

  1. Study of different plane stress states generated in different models subjected to compressive load.
  2. Study of different plane stress states generated in different models subjected to tensile loading.
  3. Study of stress distributions with linear or circularly polarized light.
  4. Investigation of the stress distribution by means of images obtained by photoelasticity.
  5. Investigation of stress concentration by means of images obtained by photoelasticity.

EQUIPAMENTOS SIMILARES DISPONÍVEIS

PHOTOELASTICITY UNIT - EFO
  • EFO
Available
7.3.1.- FOTOELASTICIDADE E EXTENSOMETRIA
EFO
Equipamento de Fotoelasticidade
Unit for photoelasticity practices, illustrating the subjects of the Photoelasticity theory, the Elasticity theory, Strength of Materials, and Structure theory.It is very suitable for the introduction and study of photoelasticity: optical...
Ver Equipamento

Qualidade

Serviço pós-venda

Solicitar informação
